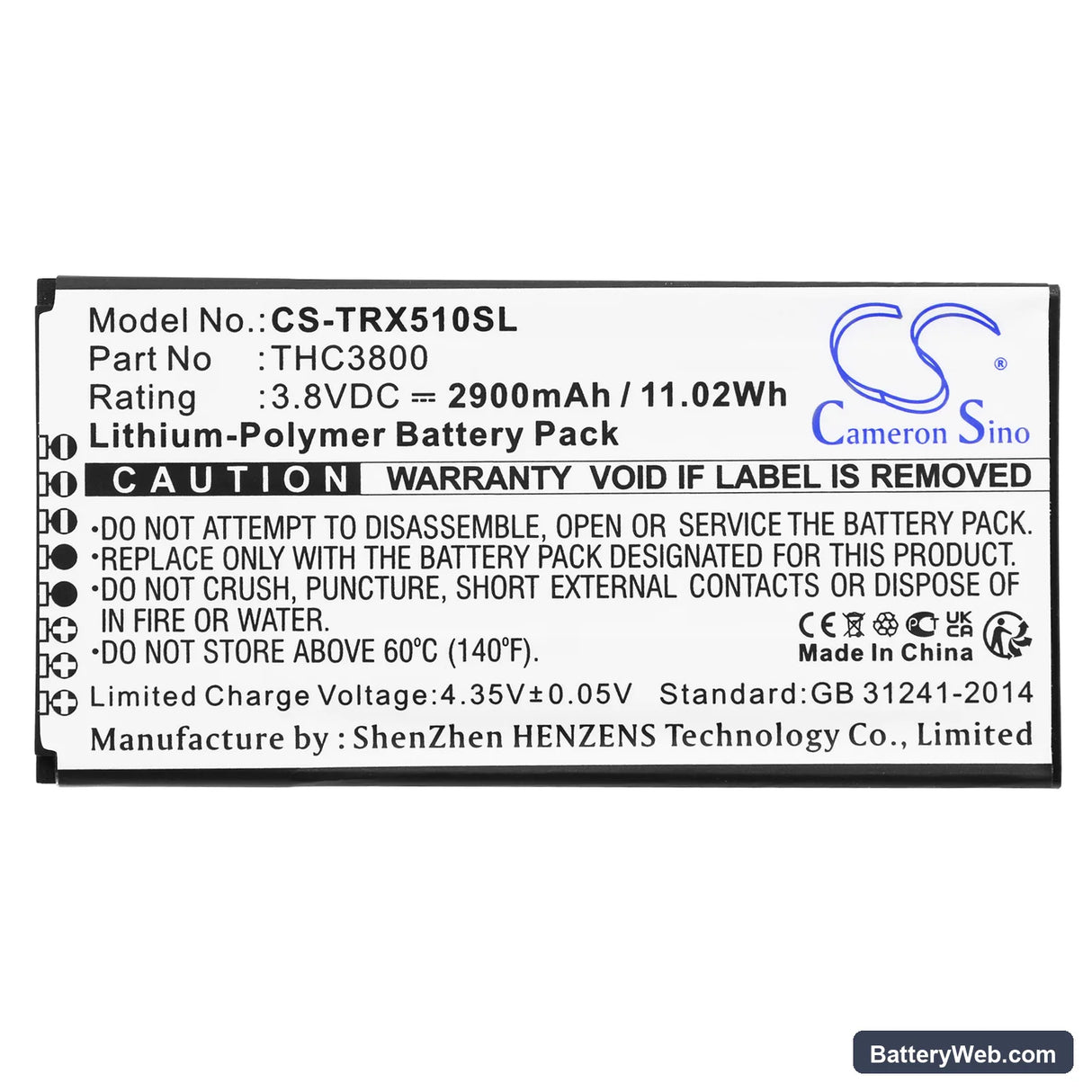

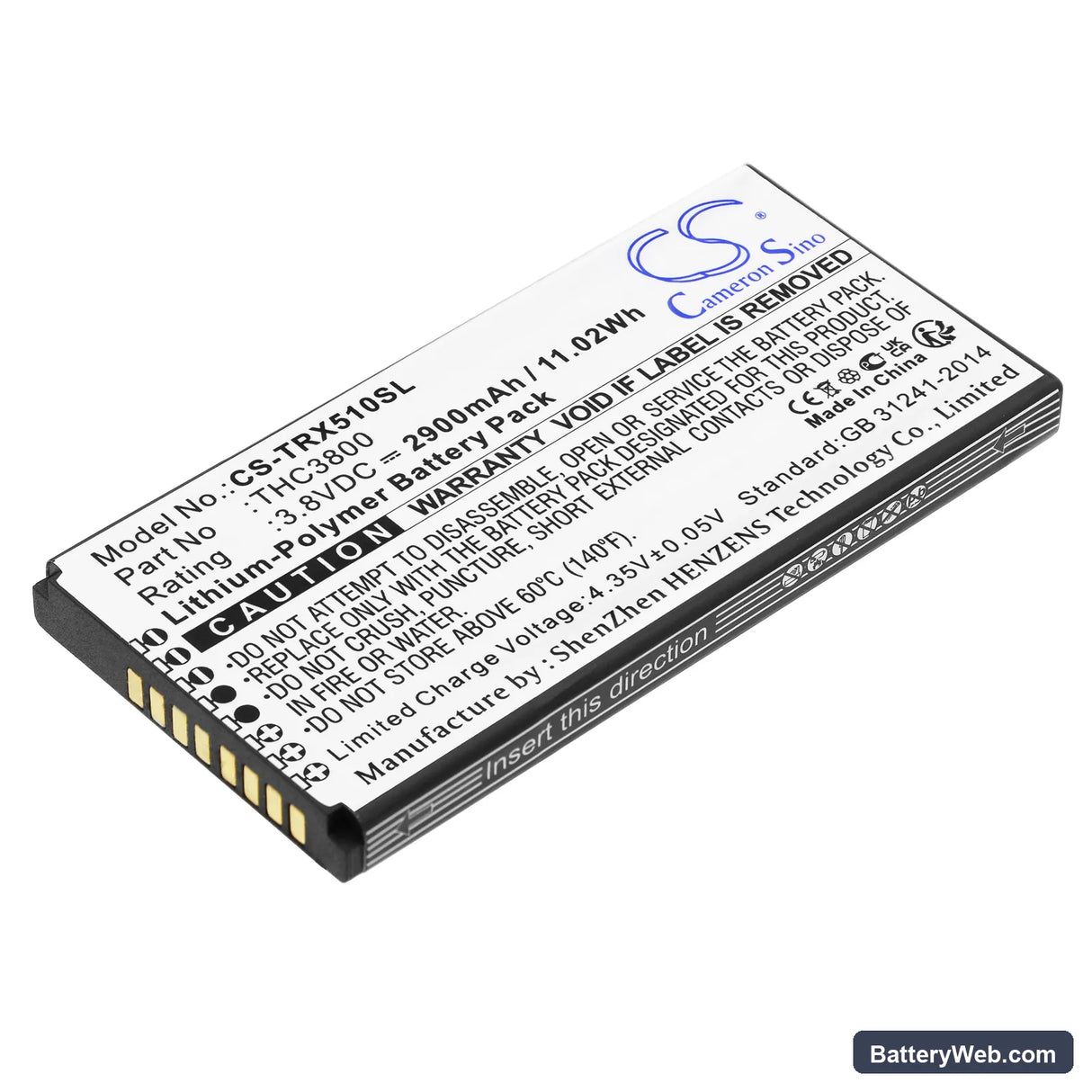

Thuraya X5-Touch Replacement Battery 3.8V 2900mAh

Thuraya X5-Touch — 3.8V Li-Polymer Replacement Battery (THC3800)

This is a 3.8V, 2900mAh Li-Polymer battery for the Thuraya X5-Touch satellite phone. It replaces OEM part THC3800 and fits the X5-Touch directly. At 11.02Wh, it matches the original cell's energy spec for the X5-Touch's satellite radio and Android OS stack.

• X5-Touch platform fit: The X5-Touch runs a dual-mode satellite and GSM radio stack on an Android OS layer. Both draw from the same cell simultaneously. The THC3800 form factor and voltage profile are what the X5-Touch's power management IC expects — substituting a mismatched cell causes the PMIC to flag a fault before the phone reaches the home screen.
• Bench tested on actual hardware: We cycled this cell through satellite acquisition sequences and sustained transmit loads. The BMS handled the current spike at antenna lock-on without tripping into protection mode, and cell voltage recovered cleanly to float after each high-draw event.
• Cold-field operation tip: In sub-zero conditions, carry the battery in an inner pocket before inserting it. Li-Polymer internal resistance climbs sharply below 0°C, and the current spike during satellite acquisition on a cold cell can trip the BMS mid-search — leaving the phone dark at the worst possible moment.

Why the X5-Touch cuts out during satellite acquisition

Satellite acquisition on the X5-Touch pulls a sharp current spike as the radio sweeps for a Thuraya L-band signal and the antenna circuit initialises. On a degraded or cold cell, this spike drags cell voltage below the BMS low-voltage cutoff threshold — typically around 3.0V — and the protection circuit opens before a lock is achieved. The phone shuts down even if the battery icon showed partial charge seconds earlier. A fresh cell with low internal resistance absorbs the spike without the voltage sag that triggers the cutoff.

Charger refusing to accept the X5-Touch battery after storage

Li-Polymer cells stored for several months self-discharge past the charger's acceptance threshold — typically below 2.5V per cell. Most chargers treat a cell at that voltage as faulty and refuse to start a charge cycle. The fix is a short recovery charge at a low trickle rate, either via the phone itself if it still boots, or with a universal Li-Po charger set to recovery mode. Once the cell climbs above 3.0V, a standard charger will accept it and complete a normal charge.
