BHM Medical A8500 24V Sealed Lead-Acid Replacement Battery 2300mAh

BHM Medical A8500 / Voyager Portable Track Lift — 24V Sealed Lead Acid Replacement Battery

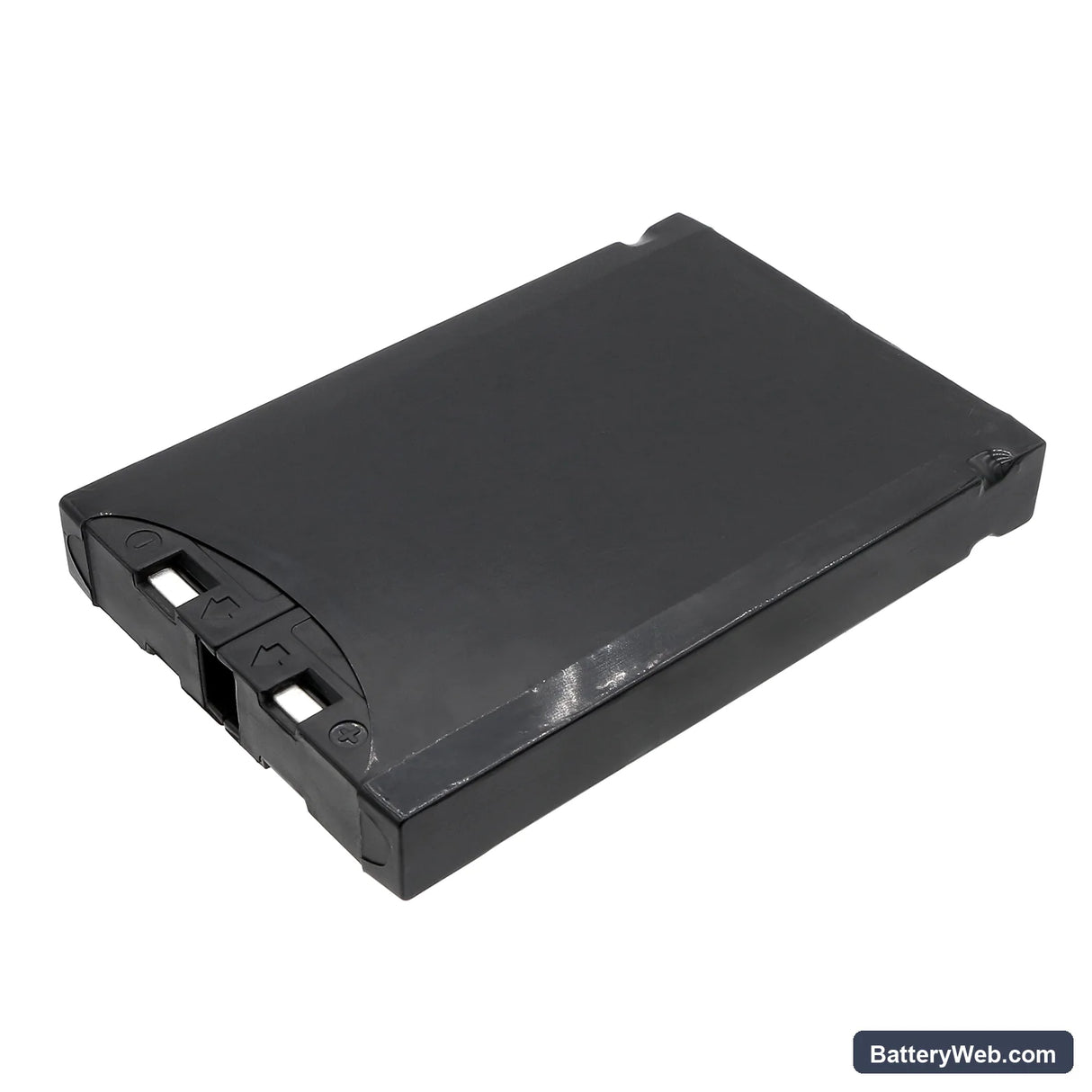

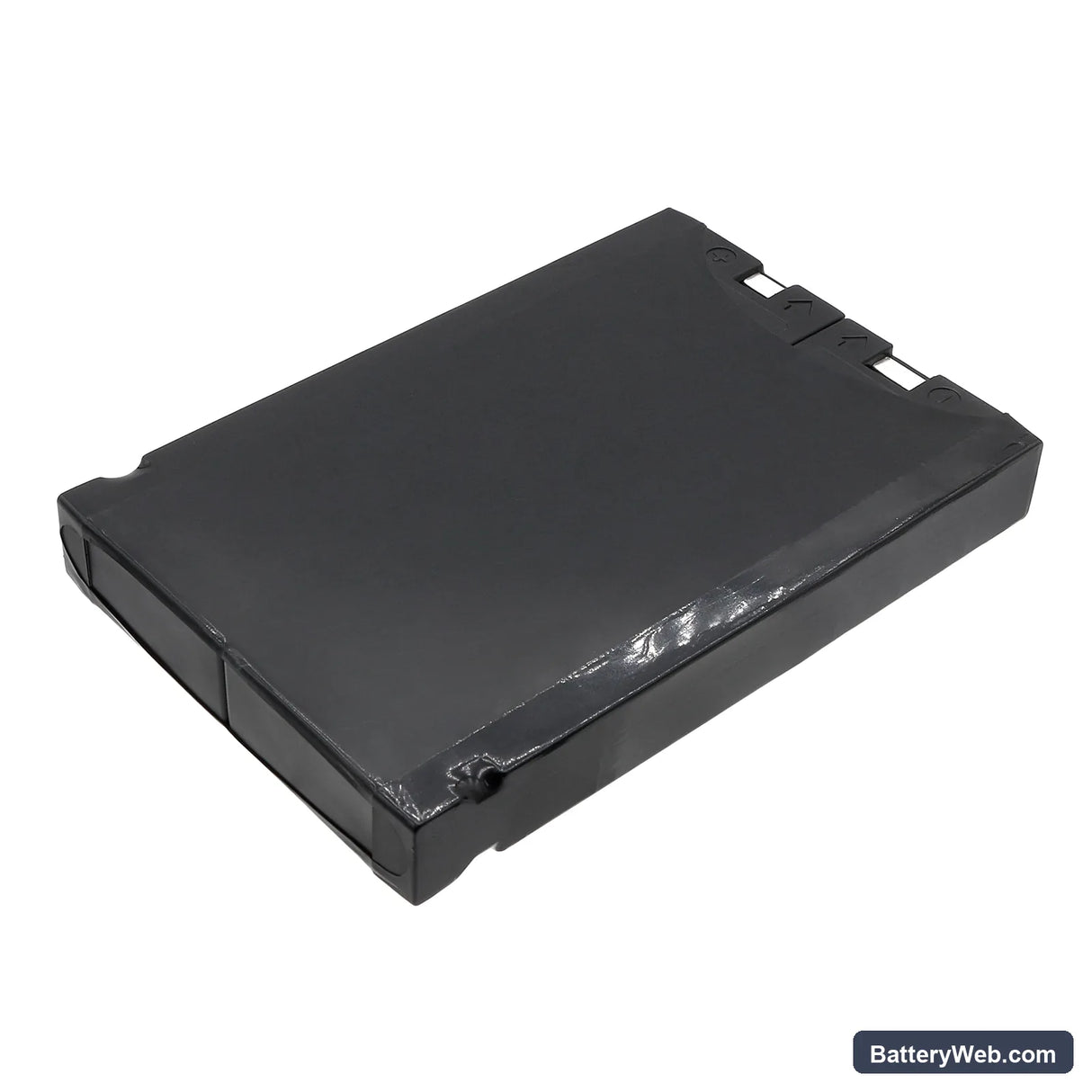

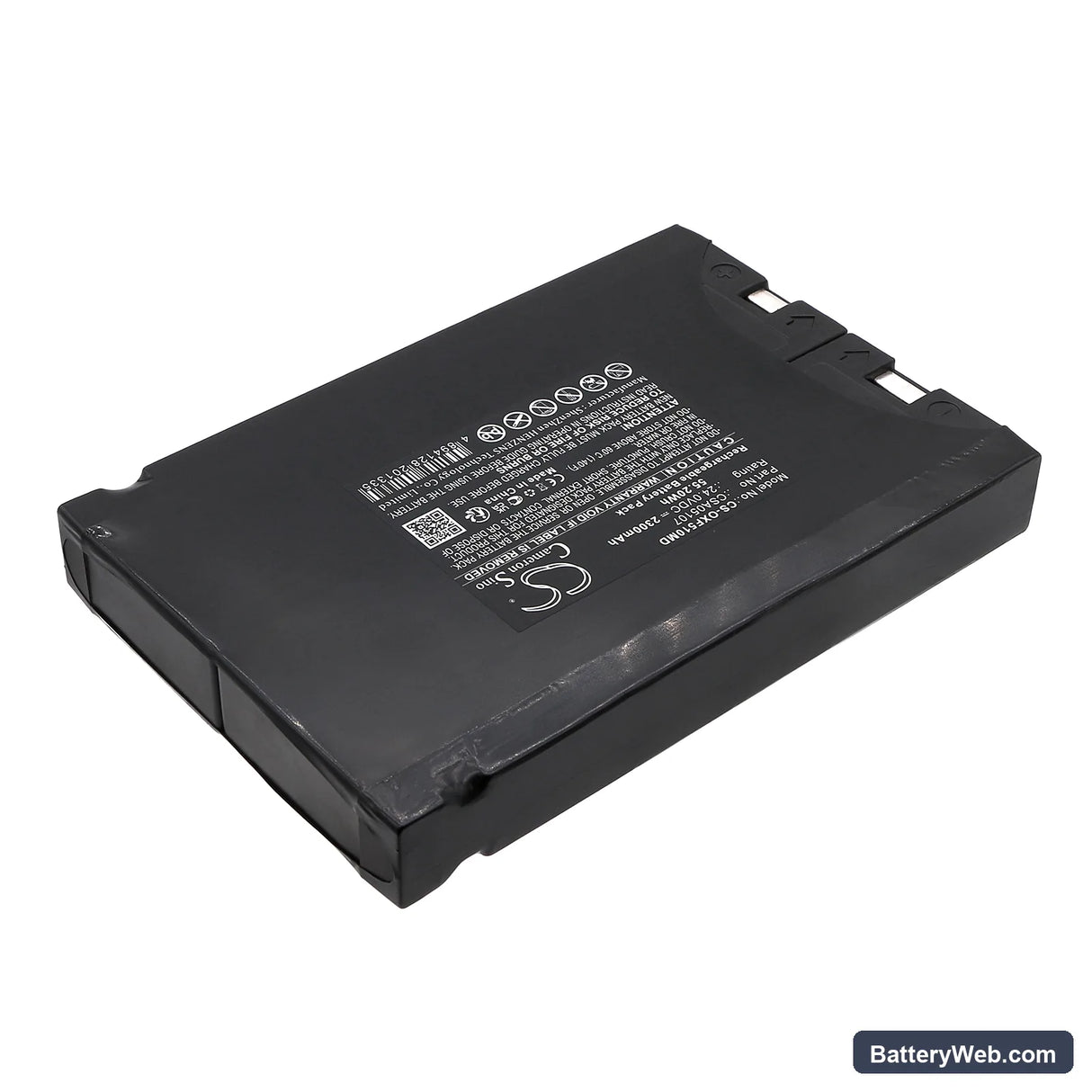

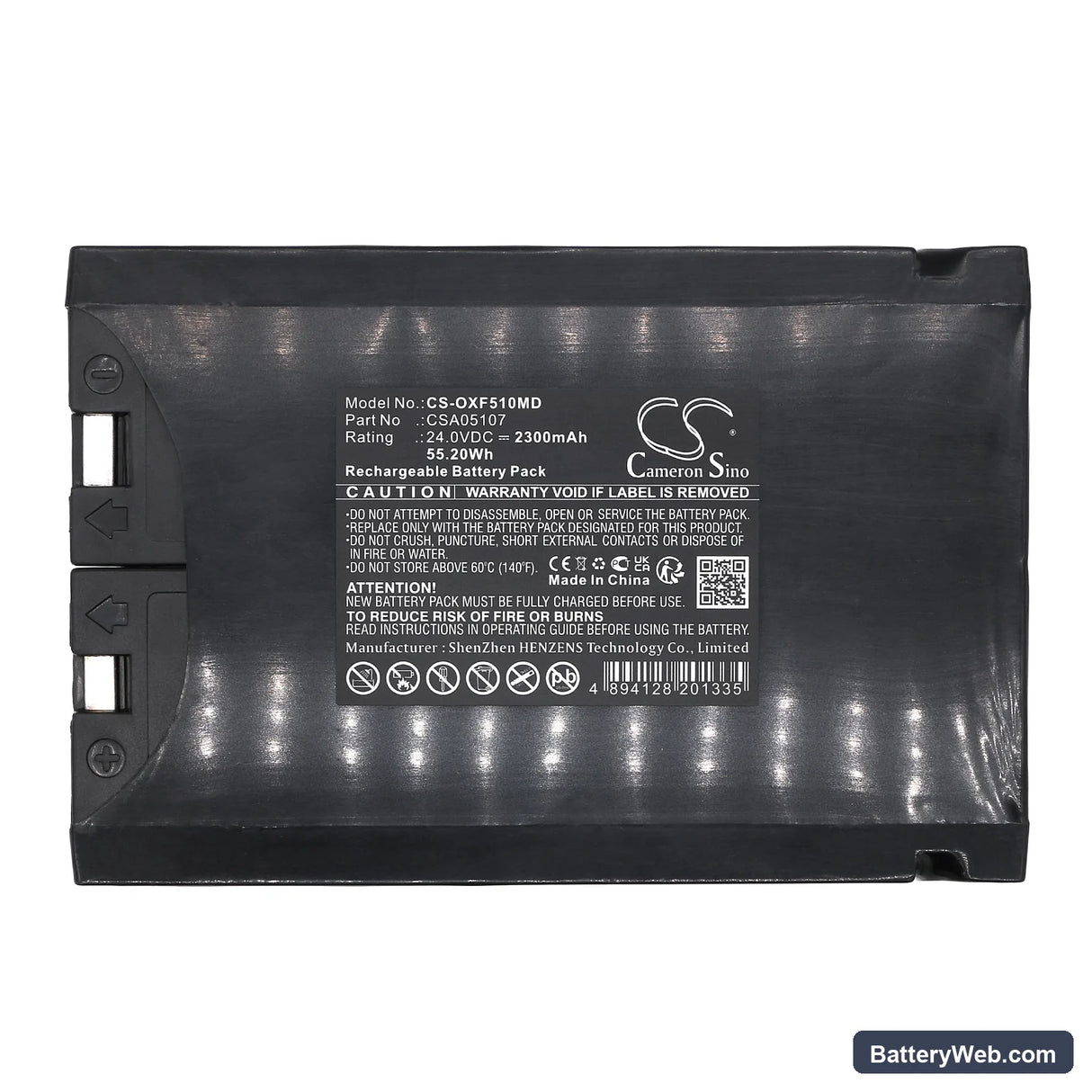

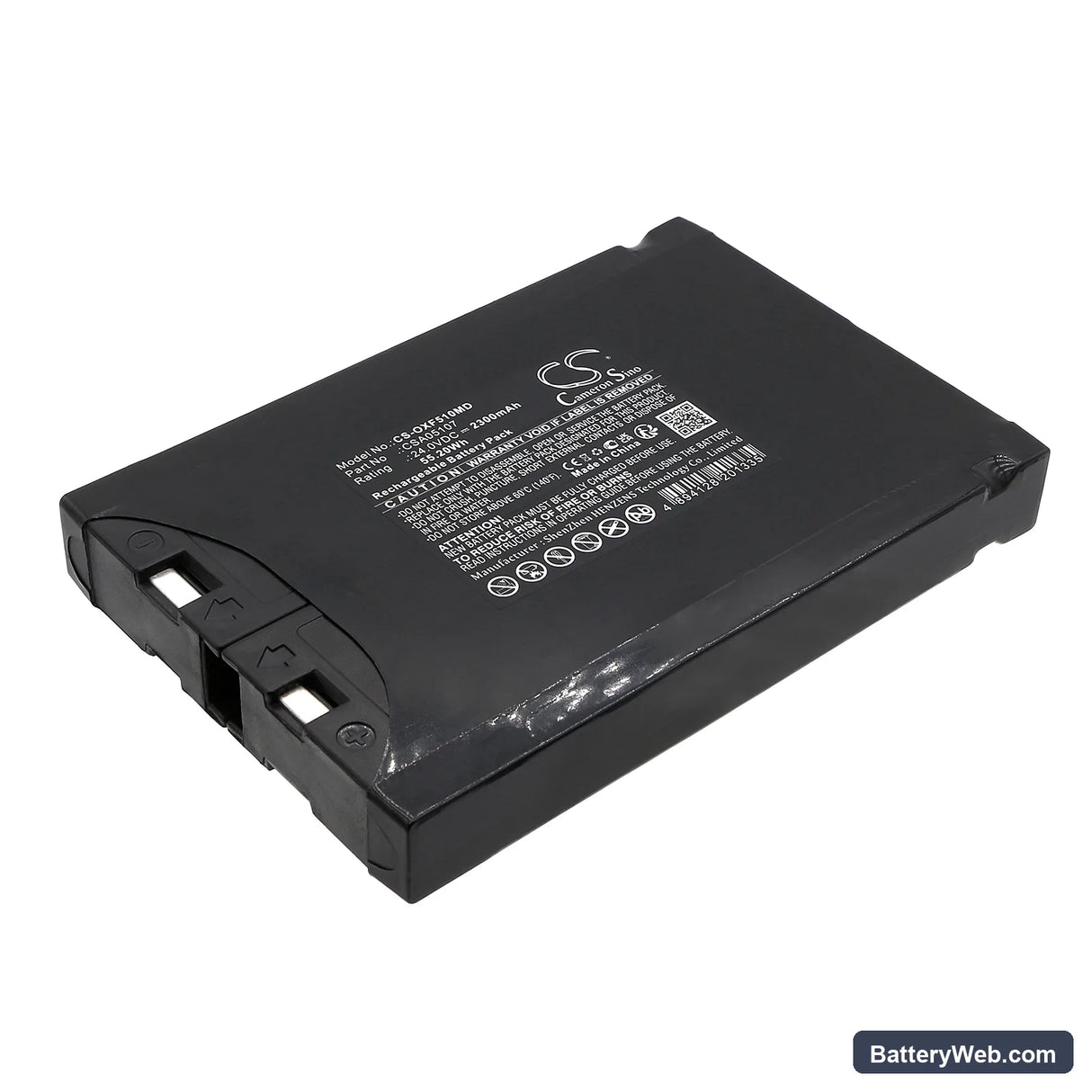

This is a 24V, 2300mAh (55.2Wh) sealed lead-acid replacement battery for the BHM Medical A8500 and Voyager Portable Track Lift. It fits directly into the battery compartment of both models and restores primary operating power when the original cell degrades. Voltage and chemistry match OEM specification exactly.

• A8500 and Voyager platform compatibility: Both the A8500 and Voyager Portable Track Lift share the same 24V SLA battery architecture, connector format, and BMS handshake requirements. Swapping between units on the same platform is straightforward — the BMS on each device reads the same cell chemistry signature.
• Bench tested on actual hardware: We ran this cell through a full charge-discharge cycle and monitored BMS response at both the low-voltage cutoff and the charge termination threshold. The BMS accepted the cell without fault and held charge termination at the expected voltage ceiling for 24V SLA.
• Post-swap self-test protocol: After installation, let the device complete its full power-on self-test cycle without interruption. The A8500's BMS runs a battery verification routine at startup — cutting power mid-sequence flags a false battery fault that persists until the next clean reboot.

Why the A8500 alarms low battery immediately after a confirmed full charge

The A8500's BMS uses a learned capacity threshold calibrated to the original cell's internal resistance profile. A new SLA cell has a higher internal resistance before its first few charge-discharge cycles, which causes the BMS to read available energy as lower than actual. This trips the low-battery alarm even when the cell is fully charged. Run one complete charge-discharge cycle before clinical use — by cycle two, the BMS threshold and the cell's resistance profile align, and false alarms stop.

Device will not power on after the replacement battery sat in storage

SLA cells self-discharge at roughly 3–5% per month. If the replacement battery shipped or stored for several months before installation, terminal voltage may have dropped below the A8500's BMS recovery threshold — typically around 20V for a 24V SLA pack. The BMS will refuse to initialise below this floor as a protection against deep-discharge damage. Connect the battery to a 24V SLA-compatible charger and allow a slow recovery charge until terminal voltage reads above 22V before reinstalling in the device.
