BlackBerry Z5 Replacement Battery PM1 3.8V 2100mAh

BlackBerry Z5 — 3.8V Li-ion Replacement Battery (PM1 / BAT-53861-003)

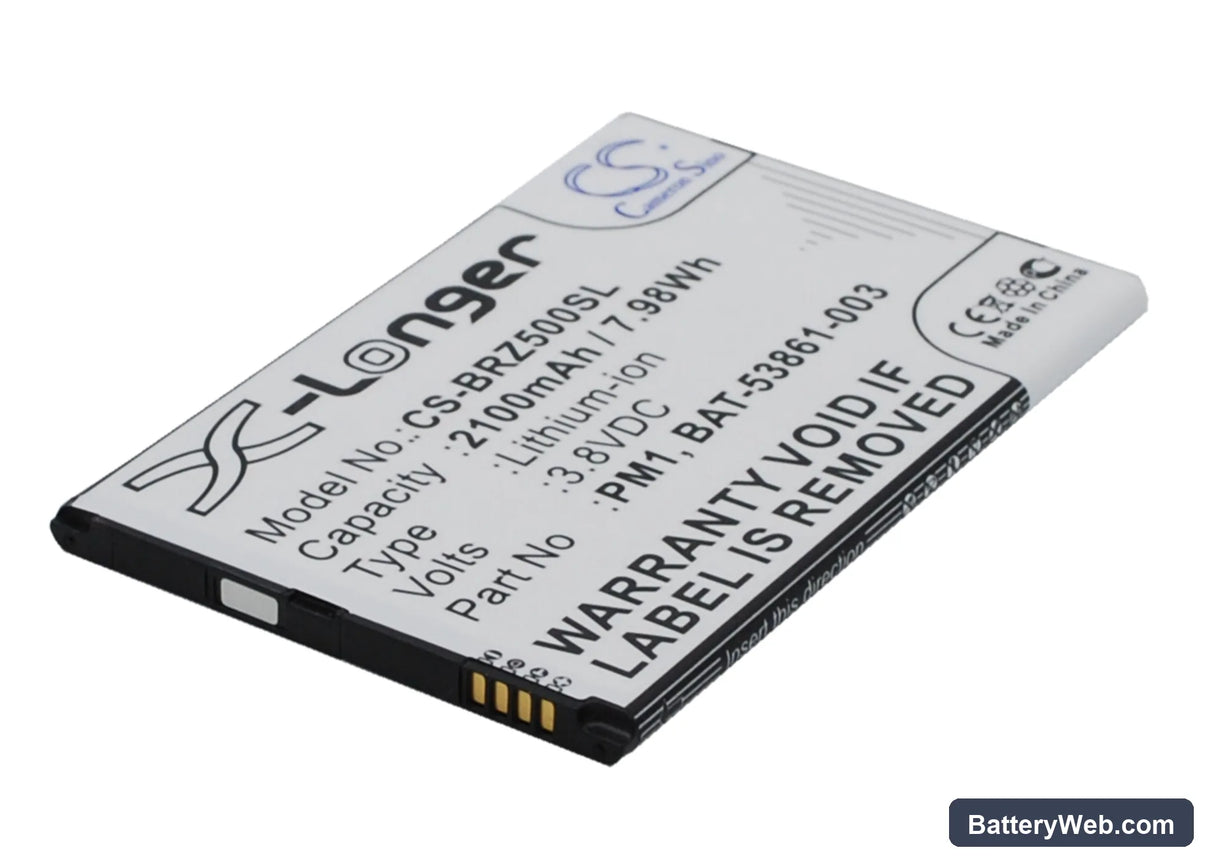

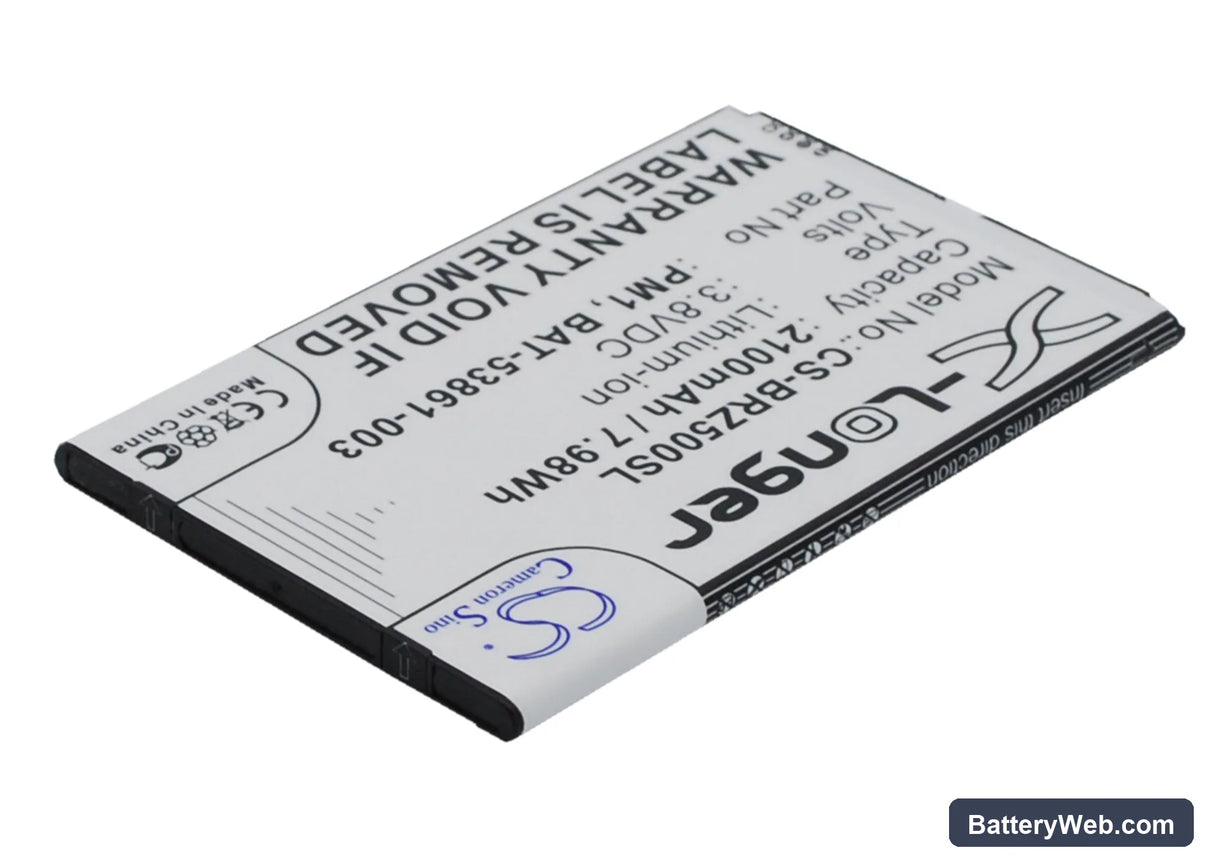

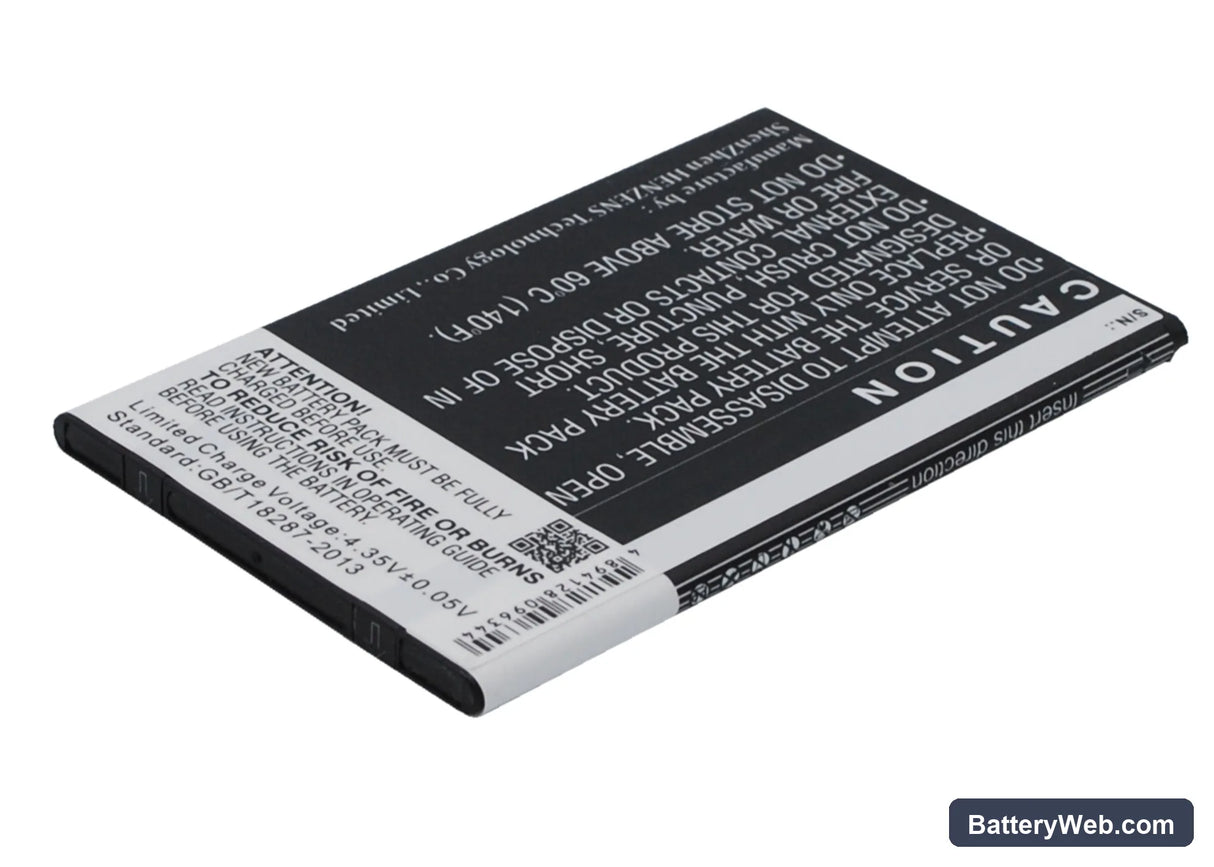

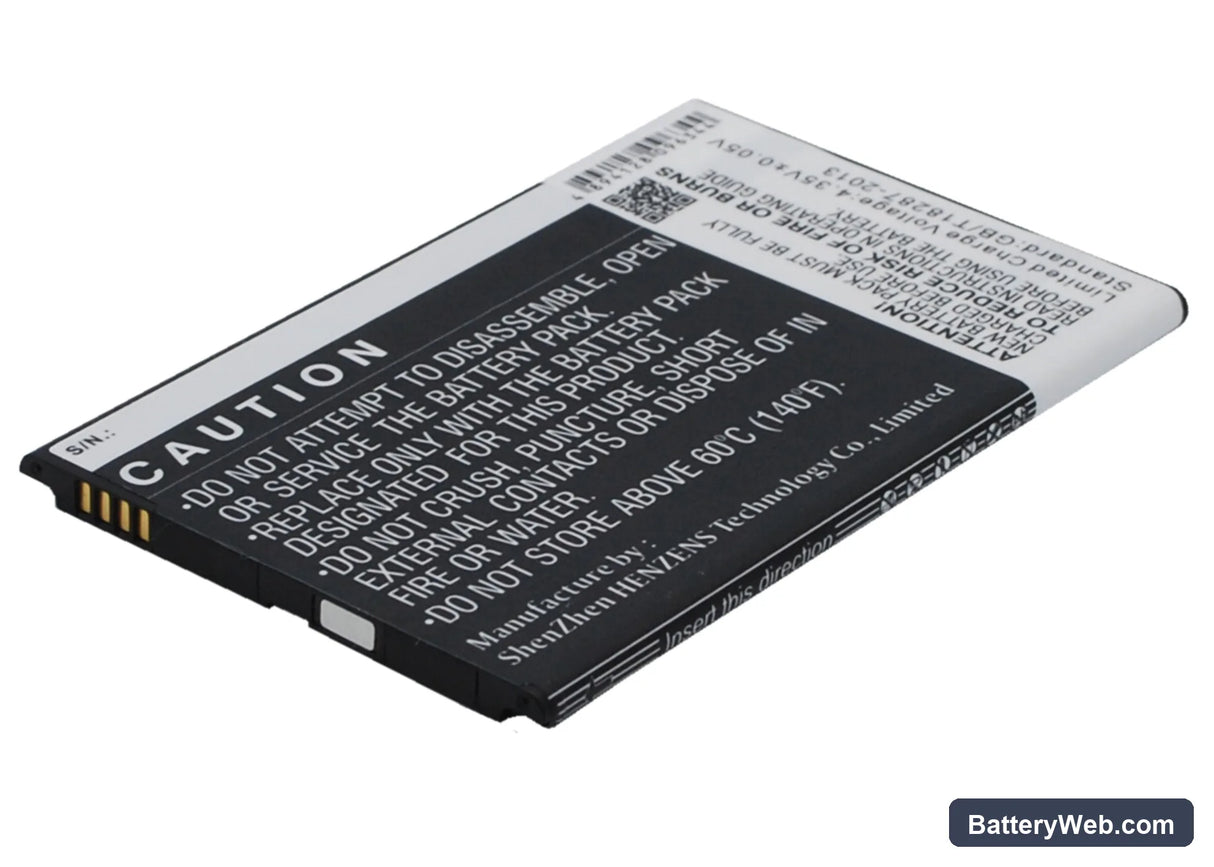

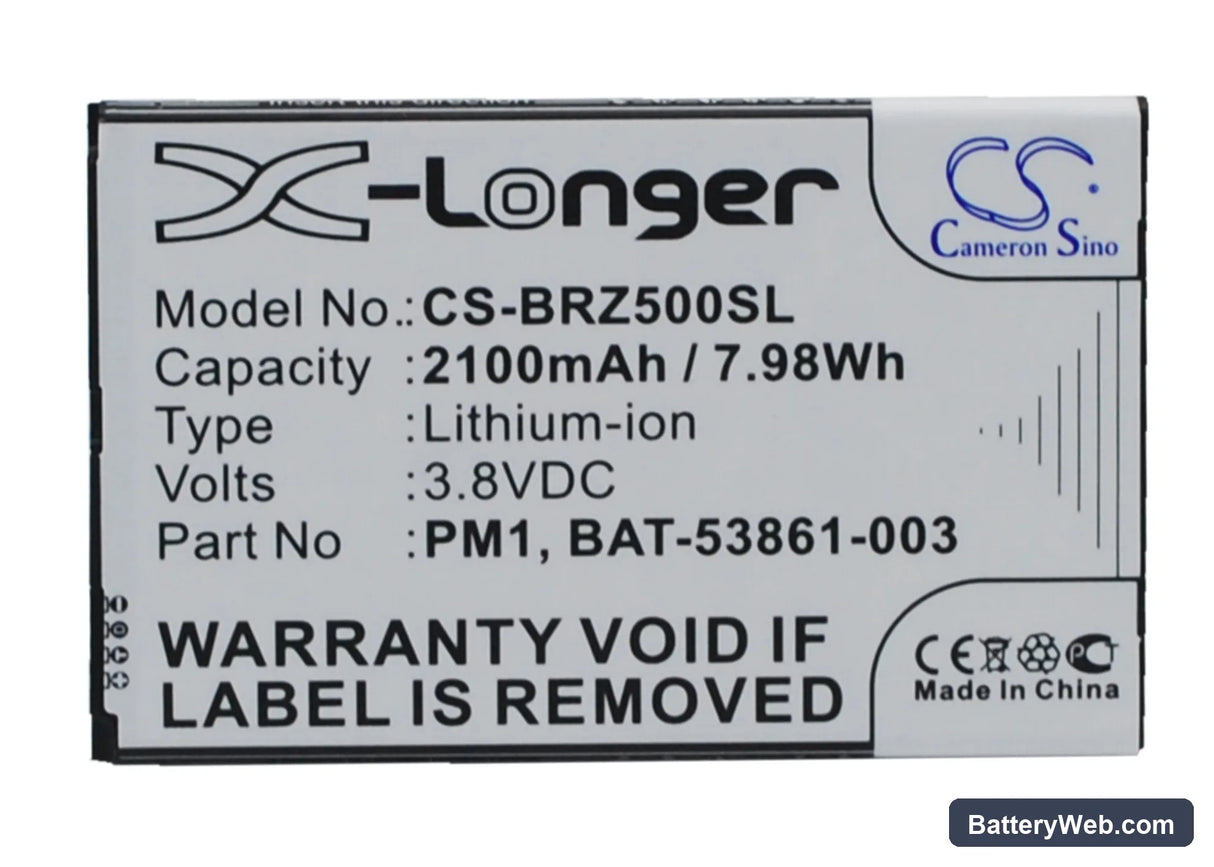

This is a 3.8V, 2100mAh Li-ion replacement battery for the BlackBerry Z5 smartphone. It matches the OEM part numbers PM1 and BAT-53861-003. Swap it in when the original cell no longer holds a usable charge or fails to power the device.

• Z5 platform fit: The Z5 uses the PM1 cell format — a slim 81.11 × 51.90 × 3.91 mm pack with a fixed connector pinout and BMS communication lines that match the phone's charge IC. No other BlackBerry BB10 model uses this exact footprint.
• Bench tested on actual hardware: We ran this cell through a full charge and discharge cycle on a Z5 unit. The BMS negotiated correctly with the charge IC, protection cut-off triggered at the expected low-voltage threshold, and the fuel gauge IC accepted the new cell without error flags on the first cycle.
• First-cycle fuel gauge reset: After installation, disable fast charging and run one complete discharge down to automatic shutdown, then charge to 100% uninterrupted. This gives the Z5's fuel gauge IC a clean discharge curve to map against the new cell before resuming normal use.

Why the Z5 reports wrong battery percentage after a cell swap

The Z5 uses a coulomb-counting fuel gauge IC that builds its capacity model from learned discharge curves of the old cell. When you install a new cell, those stored curves no longer match actual cell behaviour. The gauge reports percentage based on stale data, so readings can appear stuck, inflated, or suddenly drop. One full discharge-to-shutdown and uninterrupted recharge cycle forces the IC to relearn the curve against the new 2100mAh cell and restores accurate reporting.

Sudden shutdown at 20–30% on the replacement cell

This happens when the cell voltage collapses faster than the fuel gauge predicts under a combined modem and display load — a voltage cliff the old discharge model didn't anticipate. The Z5's processor cuts power when the rail drops below roughly 3.4V to protect the BMS, even though the gauge still shows charge remaining. The fix is completing that first full calibration cycle so the gauge maps the real voltage-to-capacity curve of the new cell. After calibration, the gauge triggers the low-battery warning at the correct percentage before the voltage cliff is reached.
