Inspired Energy NL2044 Medical Device Replacement Battery 14.8V 6600mAh

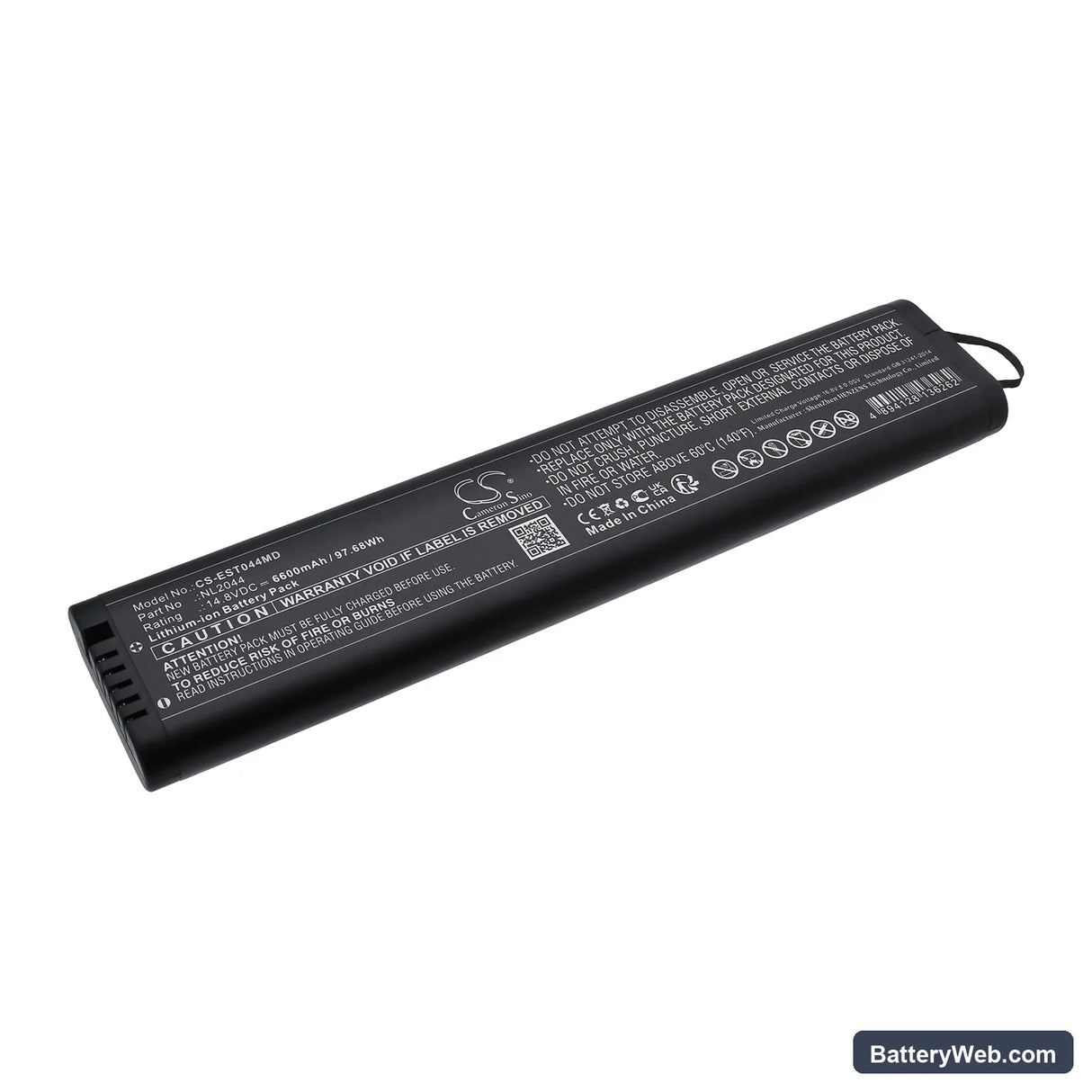

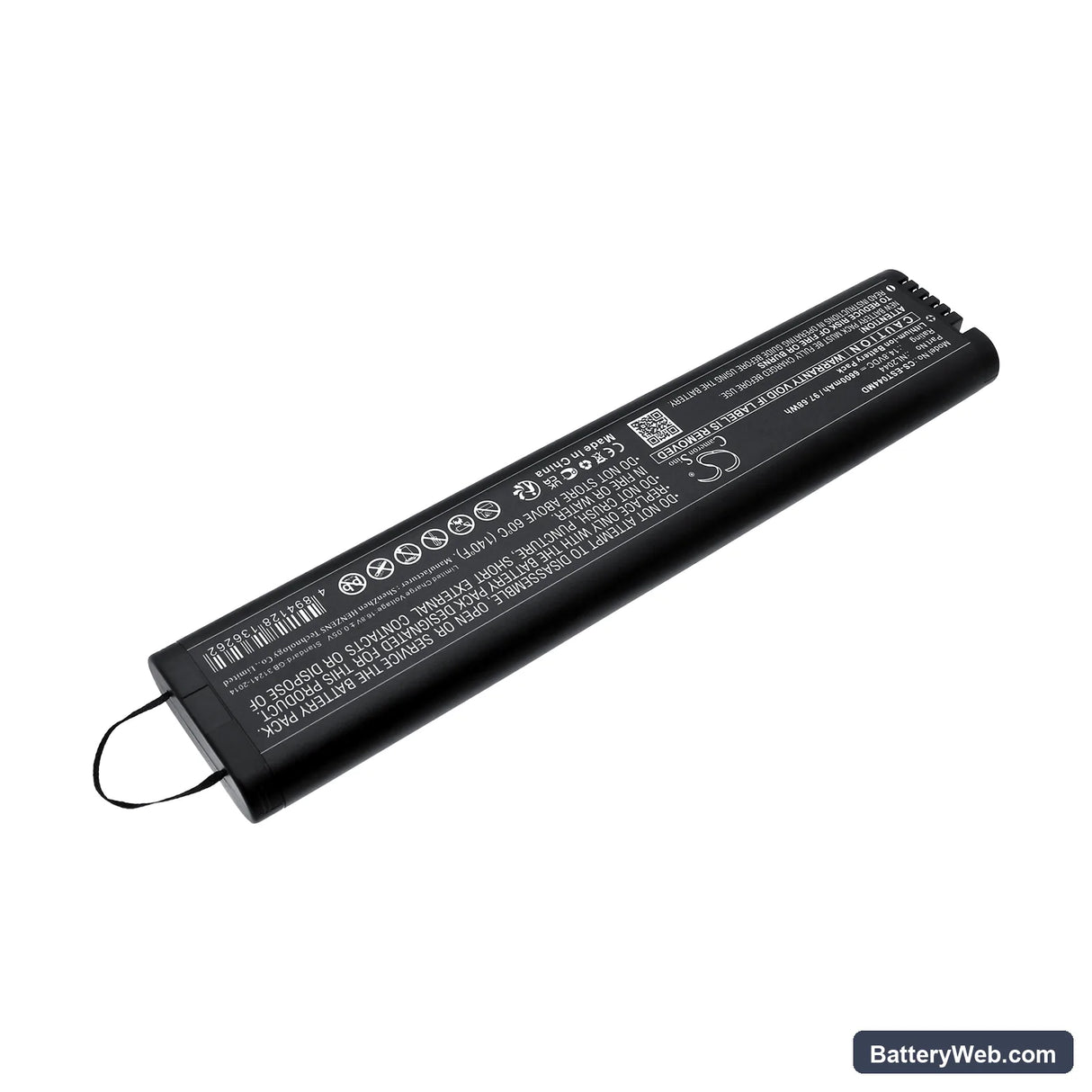

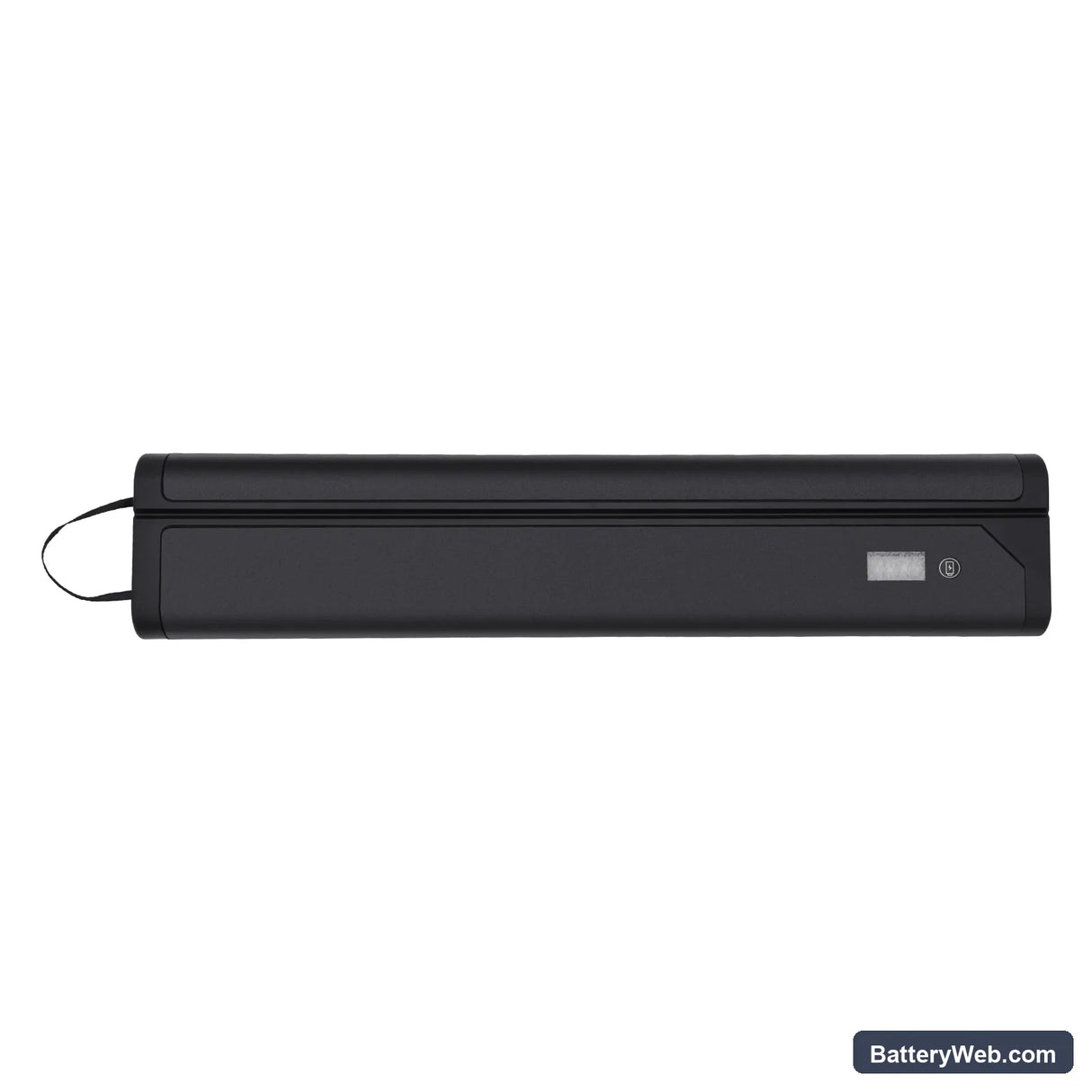

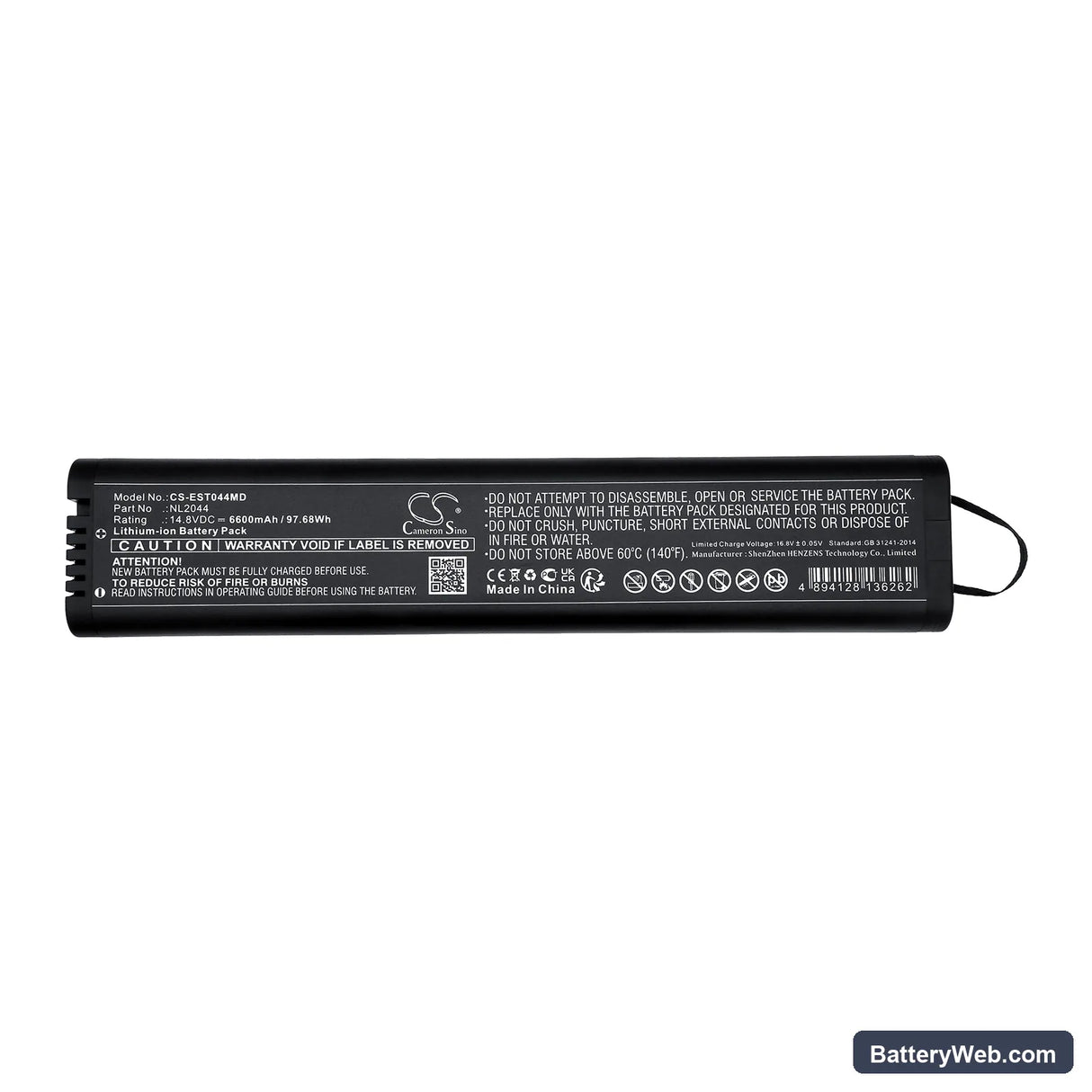

Inspired Energy NL2044 / NL2044HD / NL2044LV — 14.8V Li-ion Replacement Battery

This is a 14.8V, 6600mAh (97.68Wh) lithium-ion replacement pack for Inspired Energy medical device applications. It covers three OEM part numbers: NL2044, NL2044HD, and NL2044LV. Confirm your original pack's part number before ordering — each variant carries the same voltage but may differ in connector or BMS profile.

• NL2044 / NL2044HD / NL2044LV coverage: These three part numbers share the same 14.8V cell architecture and physical form factor. The HD and LV suffixes typically indicate a high-density or low-voltage BMS variant — verify against your device's service manual to confirm which BMS profile your equipment expects before swapping.
• Bench tested on actual hardware: We cycled this pack through charge and discharge on the bench and confirmed the BMS communicates correctly at startup. Cell voltage at full charge held at 16.8V across the pack, and the protection circuit responded to overcurrent within spec.
• Post-installation self-test cycle: After fitting this battery, allow the device to complete its full power-on self-test without interruption. Medical devices run a BMS verification sequence at startup — cutting power mid-sequence can trigger a persistent battery fault that won't clear until the next clean reboot.

Device not completing boot sequence on new battery

Medical devices using Inspired Energy packs often run a BMS handshake at boot — the device reads cell voltage, checks pack authentication data, and verifies charge state before completing startup. A new cell that hasn't completed its first full charge cycle may report a state-of-charge value the device treats as out of range. This can cause the boot sequence to stall or loop. Charge the pack fully to 16.8V before the first installation, then allow the device to boot without interruption.

Low battery alarm triggers immediately after a confirmed full charge

This happens when the device's charge IC applies a conservative capacity estimate to a new cell — the BMS hasn't yet mapped the full charge curve of the replacement chemistry. The alarm threshold is compared against a learned capacity baseline, which defaults conservatively until one full charge-discharge cycle is logged. Run one complete cycle: charge to full, allow the device to draw the pack down through normal use, then recharge. After that cycle, the alarm threshold recalibrates and the false low-battery trigger clears.
