Philips Trilogy 100 14.4V 5200mAh Replacement Battery

Philips Trilogy 100 Breathe — 14.4V Li-ion Replacement Battery (1043570)

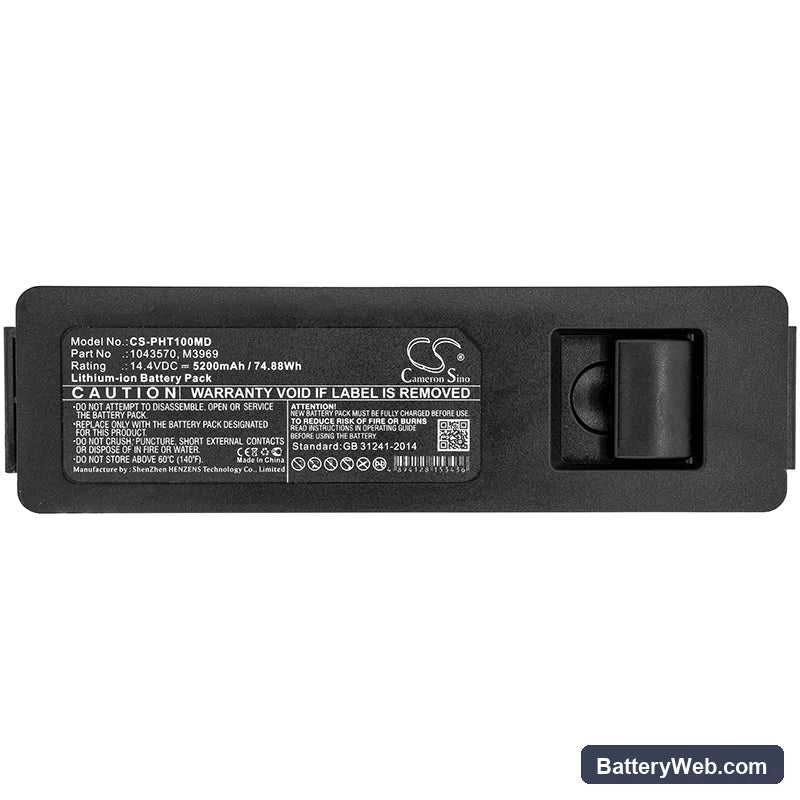

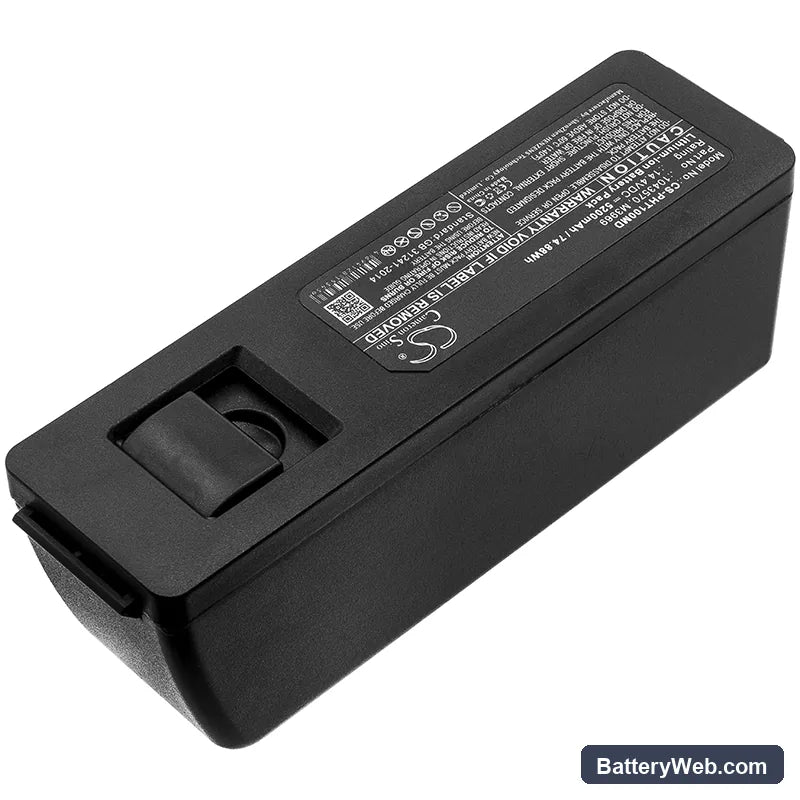

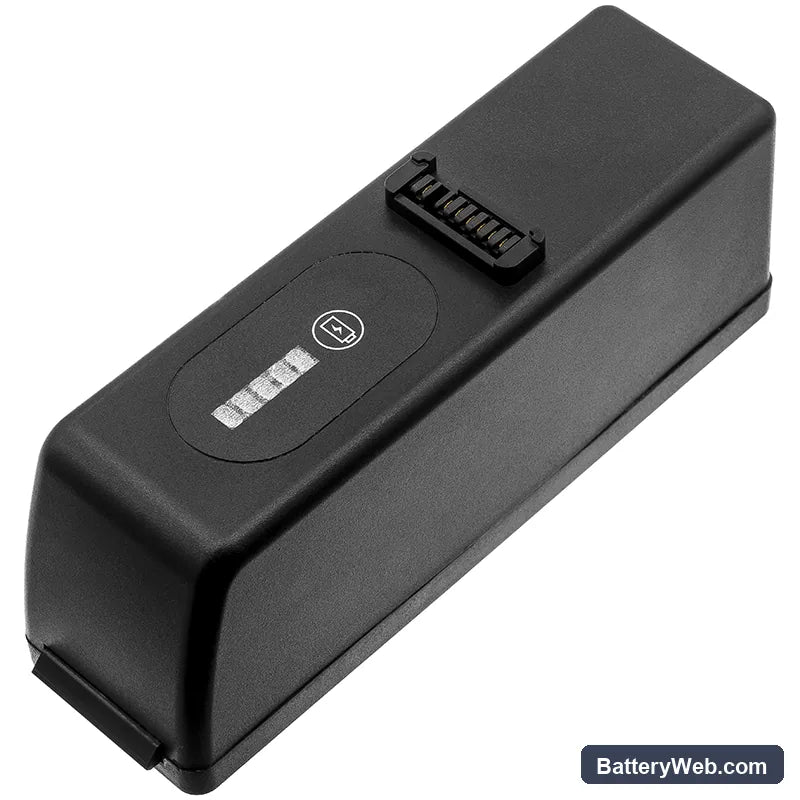

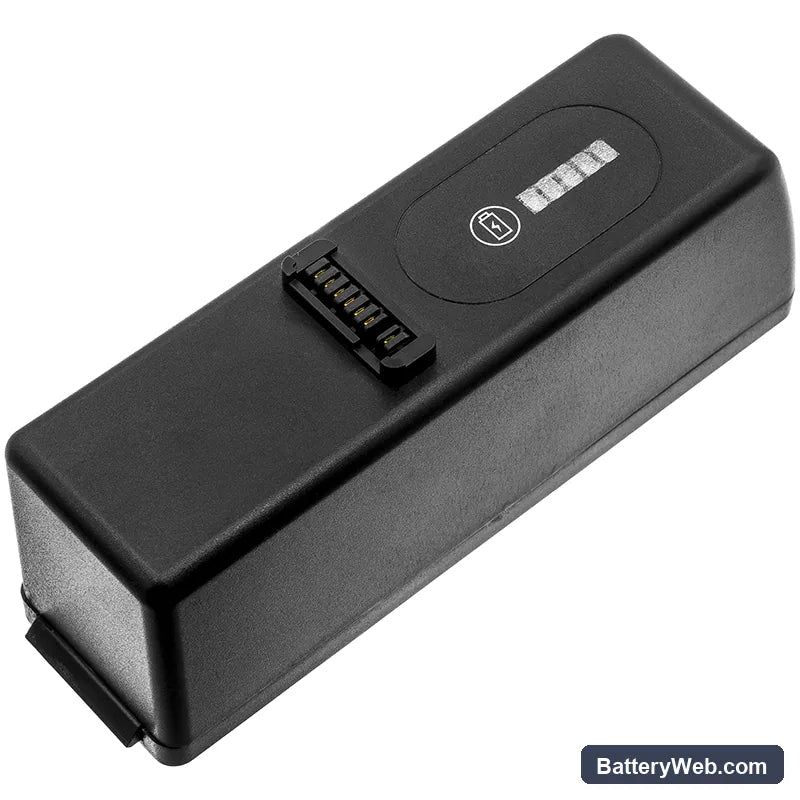

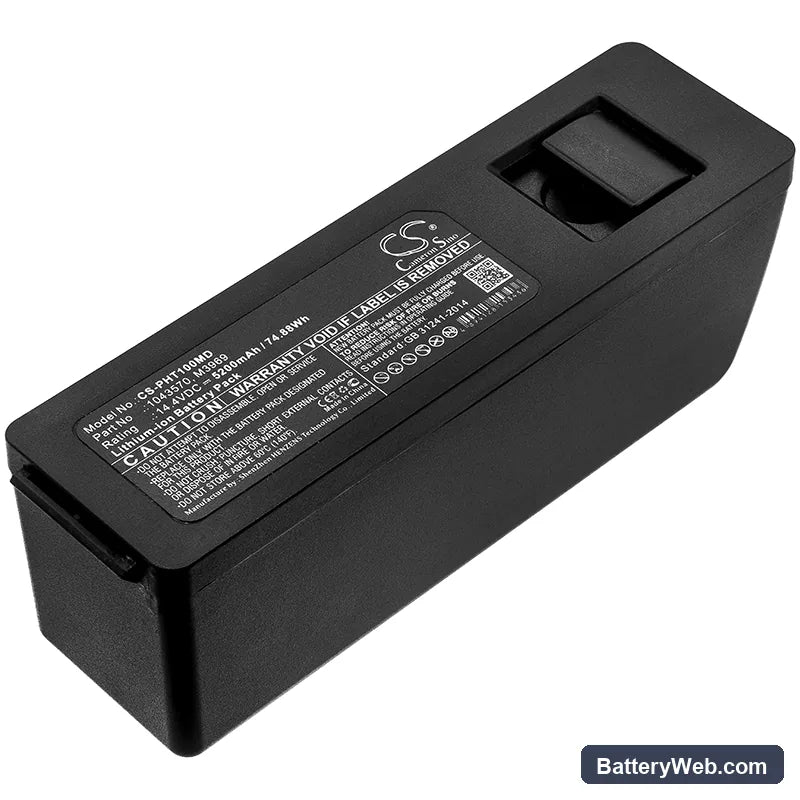

This 14.4V, 5200mAh (74.88Wh) Li-ion battery replaces the OEM pack in the Philips Trilogy 100 Breathe portable ventilator. It also fits the Respironics Trilogy, Respironics T70 Cough Assist, and Ventilateur Trilogy 100 platforms that share the same voltage rail and connector format. Cross-reference OEM part numbers 1043570, M3969, 1113780, 1043670, 88881034, and 1055804 before ordering.

• Trilogy and T70 platform compatibility: These models share a 14.4V Li-ion architecture with a matched BMS communication protocol. The battery management system on each device expects a specific handshake at startup — same voltage rail, same connector, same charge profile. A mismatched pack voltage triggers an immediate fault, so confirming the part number against your device label matters before installation.
• Bench tested on actual hardware: We cycled this battery on a Trilogy 100 Breathe unit and logged the BMS verification sequence at each startup. The charge IC applied a conservative current limit on the first charge — expected behaviour on a fresh cell. State-of-charge reporting stabilised after one complete charge-discharge cycle.
• Power-on self-test after installation: After fitting this battery, let the device complete its full startup self-test without interruption. The Trilogy runs a BMS verification routine on every boot. Cutting power during that sequence leaves a latched battery fault in the event log that will not clear until the next clean, uninterrupted reboot.

Why the Trilogy 100 reports low battery immediately after a confirmed full charge

The Trilogy's charge IC sets a threshold calibrated to the OEM cell's internal resistance profile. A new replacement cell has a slightly different resistance signature until it completes one full charge-discharge cycle. Until that cycle runs, the BMS compares the new cell against stored OEM parameters and can flag a low-battery condition even when the pack is fully charged. This is not a fault with the battery — it is the device's learn cycle protecting against an uncalibrated pack. Run one full charge from empty to the charge indicator showing complete, then discharge under normal ventilator use, and the state-of-charge reading will align.

Trilogy 100 shuts off unexpectedly during active ventilation therapy

Medical ventilators apply a demanding load profile that stresses new cells hardest in the first 10 cycles — the cell's internal resistance is slightly elevated out of the box, causing a brief voltage sag under peak inspiratory demand. If that sag drops the pack below the BMS's under-voltage cutoff (typically around 12.0V on a 14.4V Li-ion pack), the device shuts down as a safety measure. This is not a defective battery — it is the BMS responding correctly to an unconditioned cell. Condition the pack with three to five full charge-discharge cycles before relying on it for continuous therapy use, and confirm the pack reads at least 14.0V under load before clinical deployment.
