Smiths WZL-506 Medical Device Replacement Battery 12V 6000mAh
This product ships directly from our Manufacturer's Warehouse and is usually delivered within 7 – 10 business days to your doorstep.
WECARE5
Check that your old battery model number and device model to match our description. This makes sure they work together.
We ship your order same day if you buy it before 4 PM EST.
Smiths WZL-506 Medical Device Replacement Battery 12V 6000mAh - is backordered and will ship as soon as it is back in stock.
Let customers speak for us
Send Your Battery Photo
Expert Technician Help
Snap a photo or video of your battery and send it to us. We'll identify the exact replacement—fast and hassle-free. Our team has helped thousands of customers find the right battery quickly and easily.
POST YOUR BATTERY IMAGE
Product & Solutions Expert
✉ sales@batteryweb.com
Battery Care Tips
Battery Care Tips
🔹 Getting Started
Charge your new battery fully before you use it for the first time. Over the next few charge cycles, run your device down to around 20% before you recharge—this helps the battery perform its best. After that, charge whenever you need to.
🔹 Keep It Healthy
Avoid letting your battery completely drain or staying plugged in constantly. Both extremes wear it out faster. Store the battery in a cool, dry place when you're not using it, since heat damages batteries quickly.
Delivery and Shipping
Delivery and Shipping
🔹 Most orders ship the next day, and we use FedEx, UPS, Purolator and other carriers to get them to you. Lithium batteries have to ship by ground only, not air or USPS. Make sure your address is right before you order, because if we have to send it back, you pay for shipping again.
Disclaimer
Disclaimer
⚠️ Disclaimer: All product names, trademarks, and registered trademarks belong to their respective owners.
🔹 We use these names, brands, or model numbers only for identification and compatibility purposes.
Smiths WZL-506 Medical Device Replacement Battery 12V 6000mAh - is backordered and will ship as soon as it is back in stock.
Voltage
12V
Amp
6000mAh

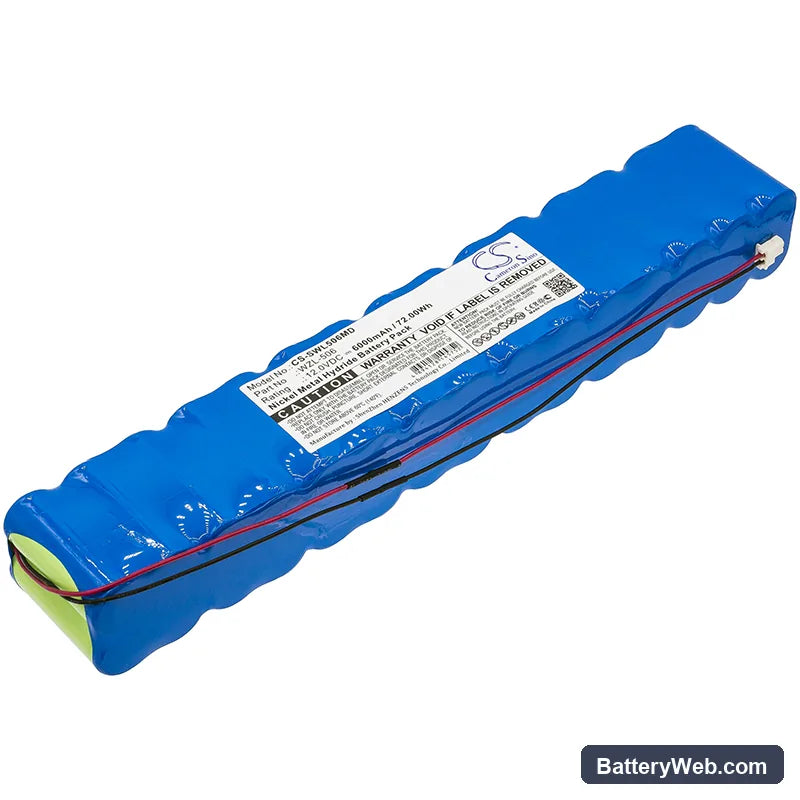

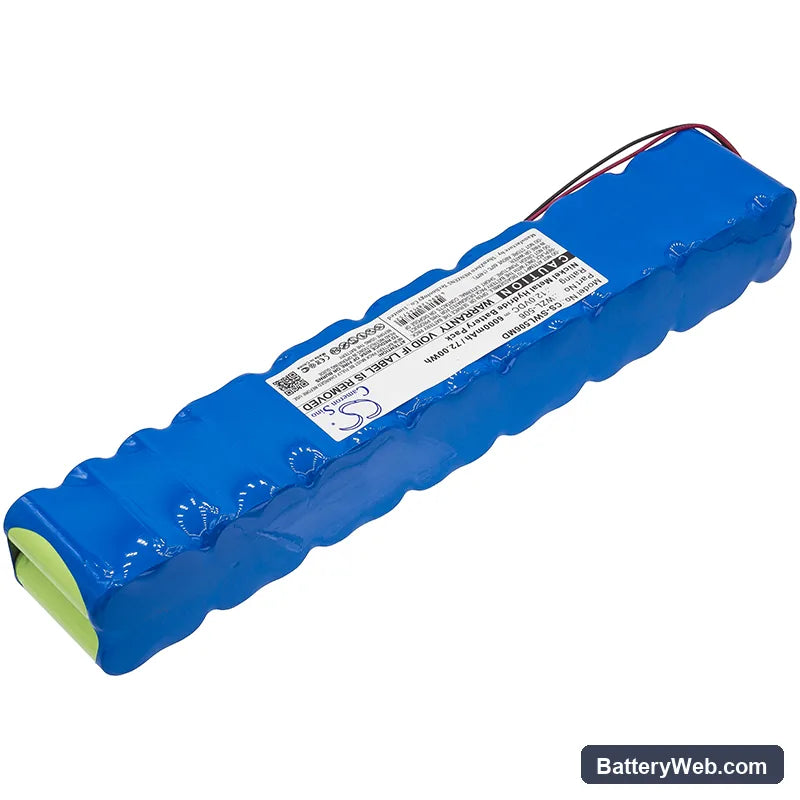

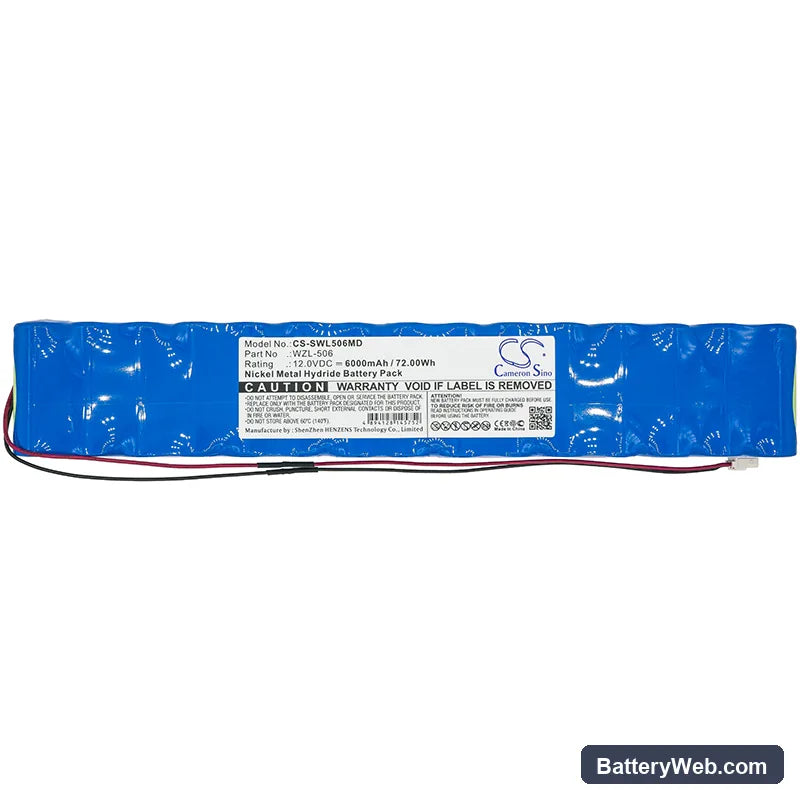

Smiths WZL-506 — 12V Ni-MH Replacement Battery
This is a 12V 6000mAh (72Wh) Ni-MH replacement battery for the Smiths WZL-506 portable medical device. It fits the WZL-506 platform directly and matches the voltage and capacity of the original cell. When the factory battery loses charge capacity or stops holding charge, this unit replaces it.
- WZL-506 platform fit: The WZL-506 operates on a 12V Ni-MH architecture with a charge management circuit that expects specific cell chemistry. Swapping to Li-ion is not viable here — the charge IC is calibrated for Ni-MH charge curves, and the BMS handshake requires Ni-MH cell response during startup verification.
- Bench tested on actual hardware: We cycled this cell through full charge-discharge sequences on a WZL-506 class load profile. The BMS accepted the cell without fault flags on cycle two, after the initial learn cycle completed on cycle one.
- First-cycle self-test protocol: After fitting this battery, allow the WZL-506 to complete its full power-on self-test without interruption. Medical devices in this class run BMS verification at startup, and cutting power mid-sequence stores a false battery fault that persists until the next complete reboot.
Why the WZL-506 rejects a new cell on first boot
The WZL-506 BMS runs a chemistry verification check each time a new or cold cell is installed. A fresh Ni-MH cell straight from storage has a resting voltage slightly outside the BMS's expected window for a fully charged OEM cell. This causes the device to flag the battery as unverified or degraded on the first cycle. One full charge-discharge cycle resets the learned parameters, and the BMS clears the flag on the next boot.
Charge indicator not reaching 100% on first charge
On first charge, the WZL-506 charge IC applies a conservative current limit to a cell it has not yet profiled. This means the indicator may stall at 85–95% and not advance further. This is not a fault with the cell — the charge controller is applying a reduced top-up rate until cell impedance is logged. Run a full discharge and recharge cycle, and the charge IC will apply the correct full-charge threshold, typically reaching 100% by cycle two.
Compatible Models
Technical Specifications
Product Highlights
- Brand: Smiths
- Manufacturer: CS
- Series: Standard
- Color: Blue
- Product Type: Ni-MH
- Battery Type: Ni-MH
- Warranty: 12 Months
- Bulk Orders: sales@batteryweb.com
Frequently Asked Questions
The WZL-506 is alarming low battery immediately after I put in a fully charged replacement — what's happening?
The WZL-506 BMS compares the new cell's voltage profile against a stored threshold calibrated for a conditioned OEM cell. A fresh replacement hasn't completed a learn cycle, so its resting voltage reads below the BMS pass threshold even when fully charged. This is not a faulty battery — it clears after one complete charge-discharge cycle. Run that cycle uninterrupted, then confirm the resting voltage sits at or above 13.2V before returning the device to use.
The WZL-506 won't power on at all after the replacement battery sat in storage for a few months — is the cell dead?
Ni-MH cells self-discharge at roughly 1–2% per day at room temperature, so a cell stored for several months can drop below the WZL-506's BMS recovery threshold — typically around 10.5V — at which point the BMS will not initialise. Connect the device to mains power and leave it on charge for a minimum of four hours before attempting to power on. If the charge indicator shows activity after 30 minutes, the BMS has accepted the cell and recovery is in progress.
The WZL-506 is shutting off unexpectedly during normal use after fitting this battery — what's causing it?
During the first 10 cycles, a new Ni-MH cell has not yet reached full electrochemical conditioning, so internal resistance is higher than it will be at full capacity. The WZL-506's load profile during active monitoring creates brief current spikes that can cause a voltage sag on an unconditioned cell, triggering the low-voltage cutoff. This resolves as the cell conditions through normal use cycles. If shutdowns persist beyond cycle 10, check that the battery contacts are clean and making firm connection — oxidised contacts increase resistance and compound the sag.
