Opticon H1 Barcode Scanner Replacement Battery 4.8V 1000mAh

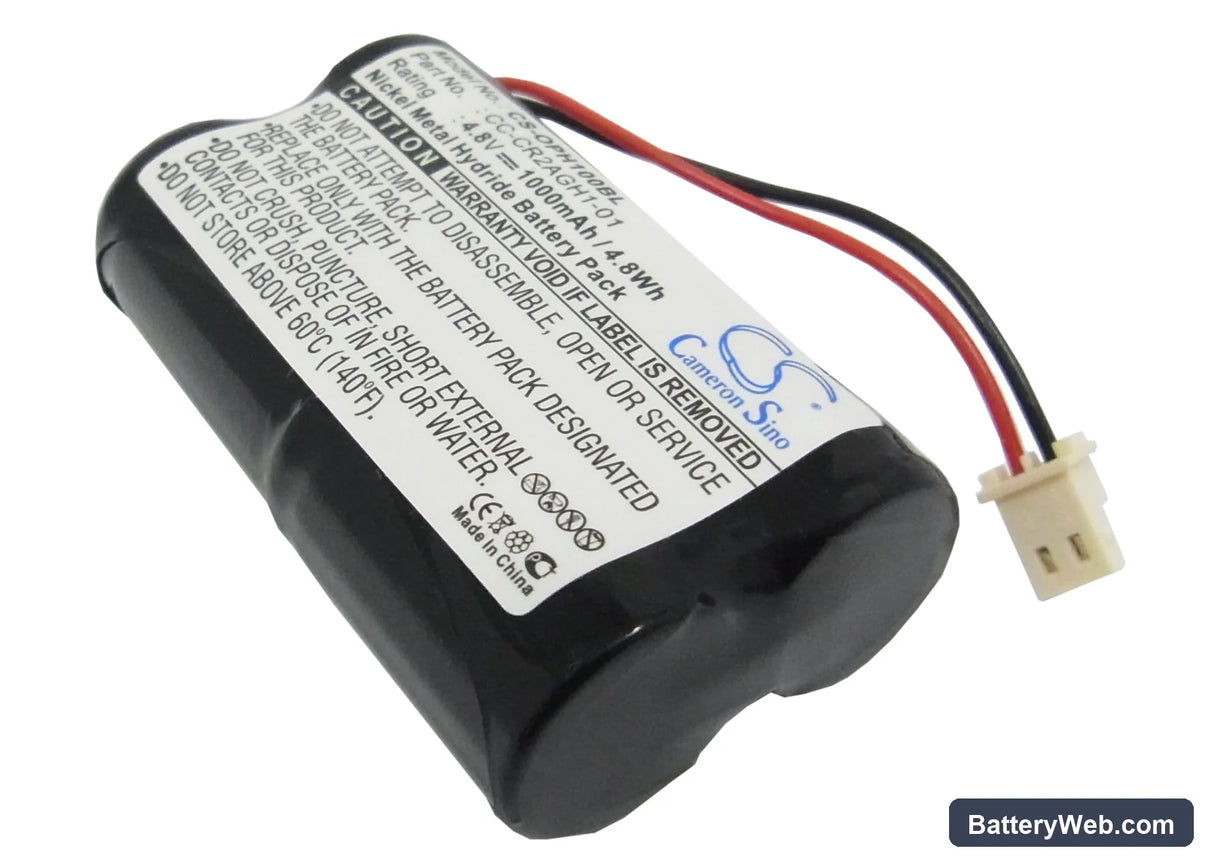

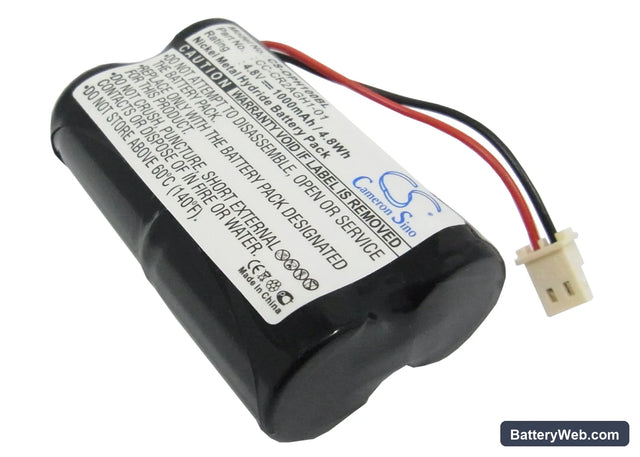

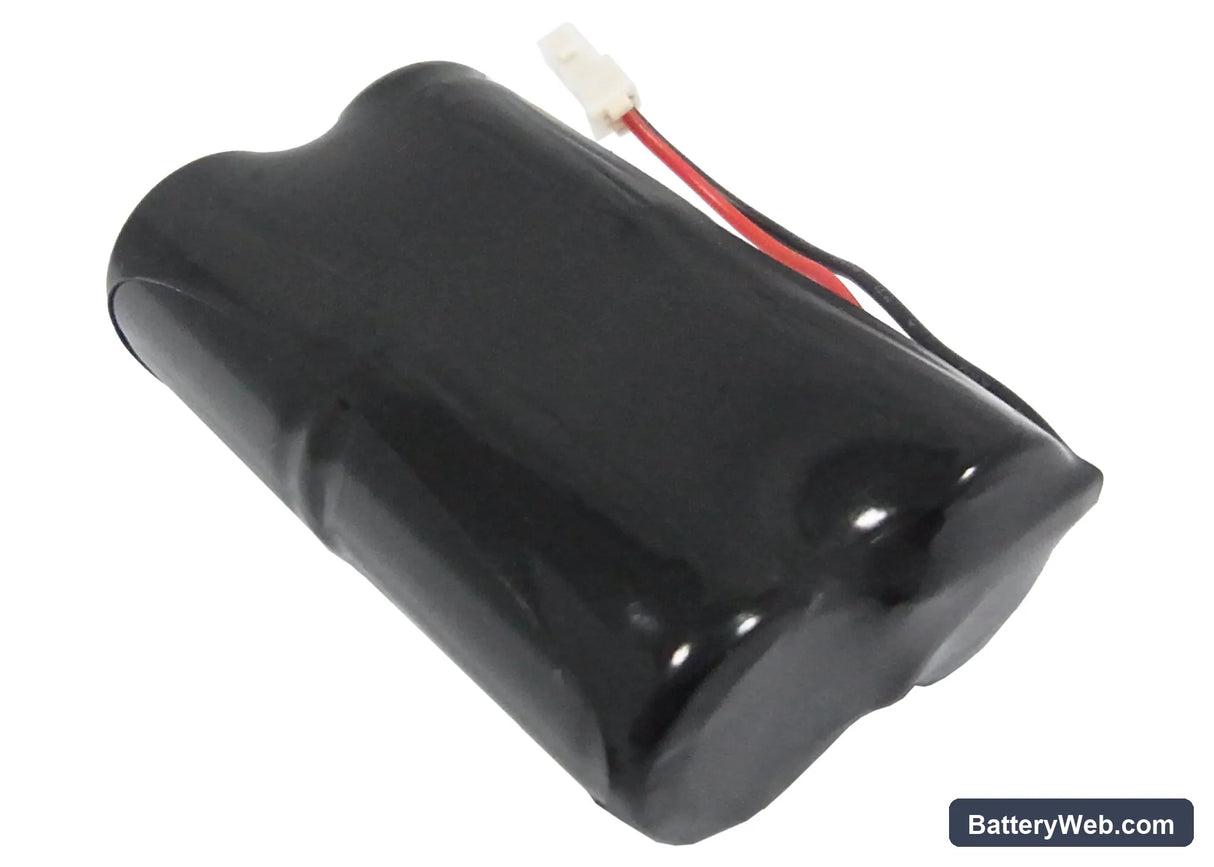

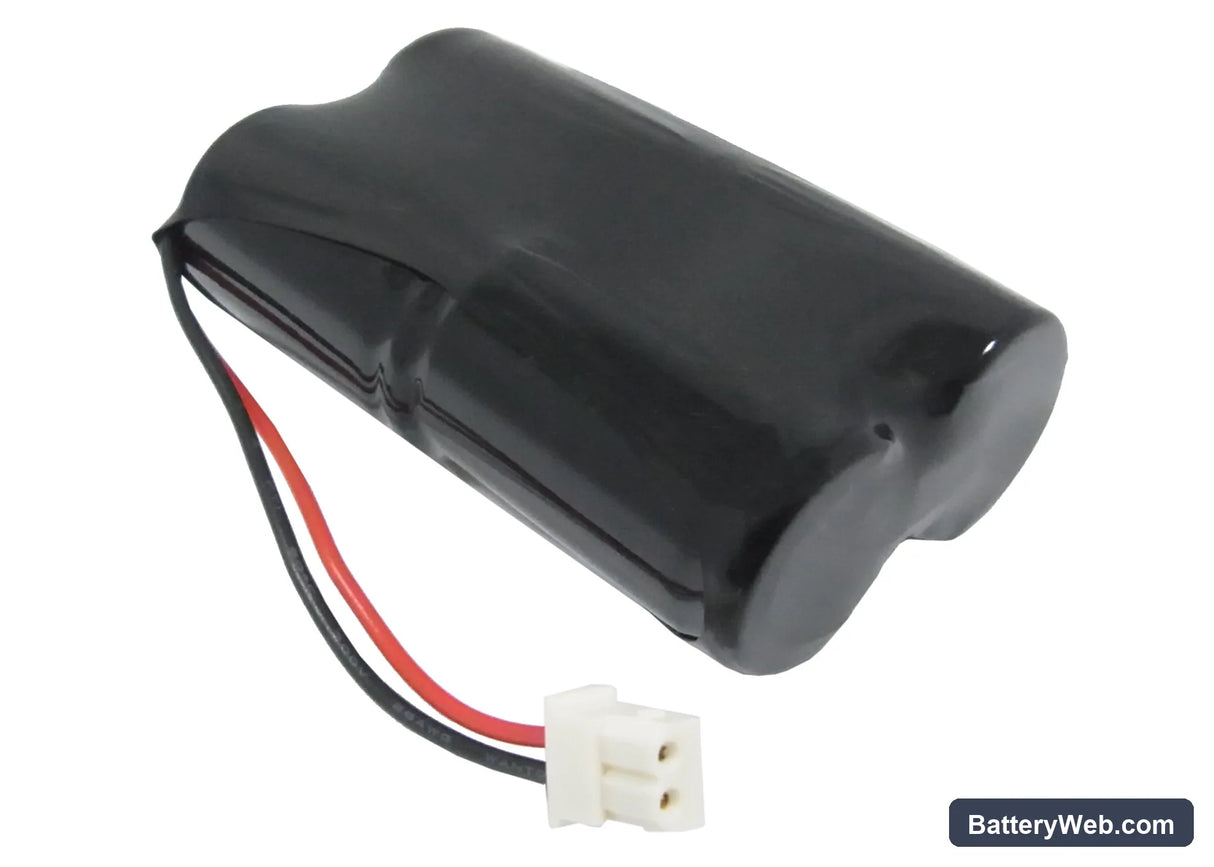

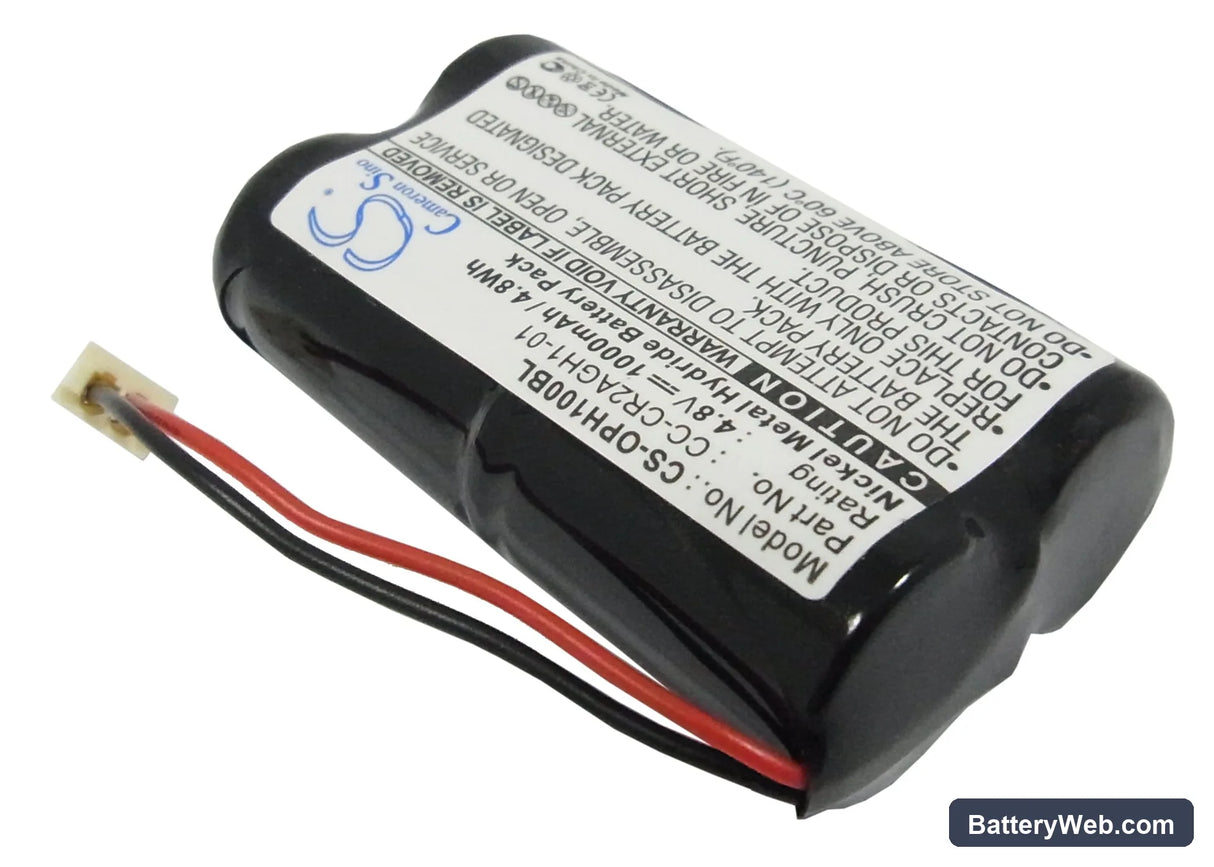

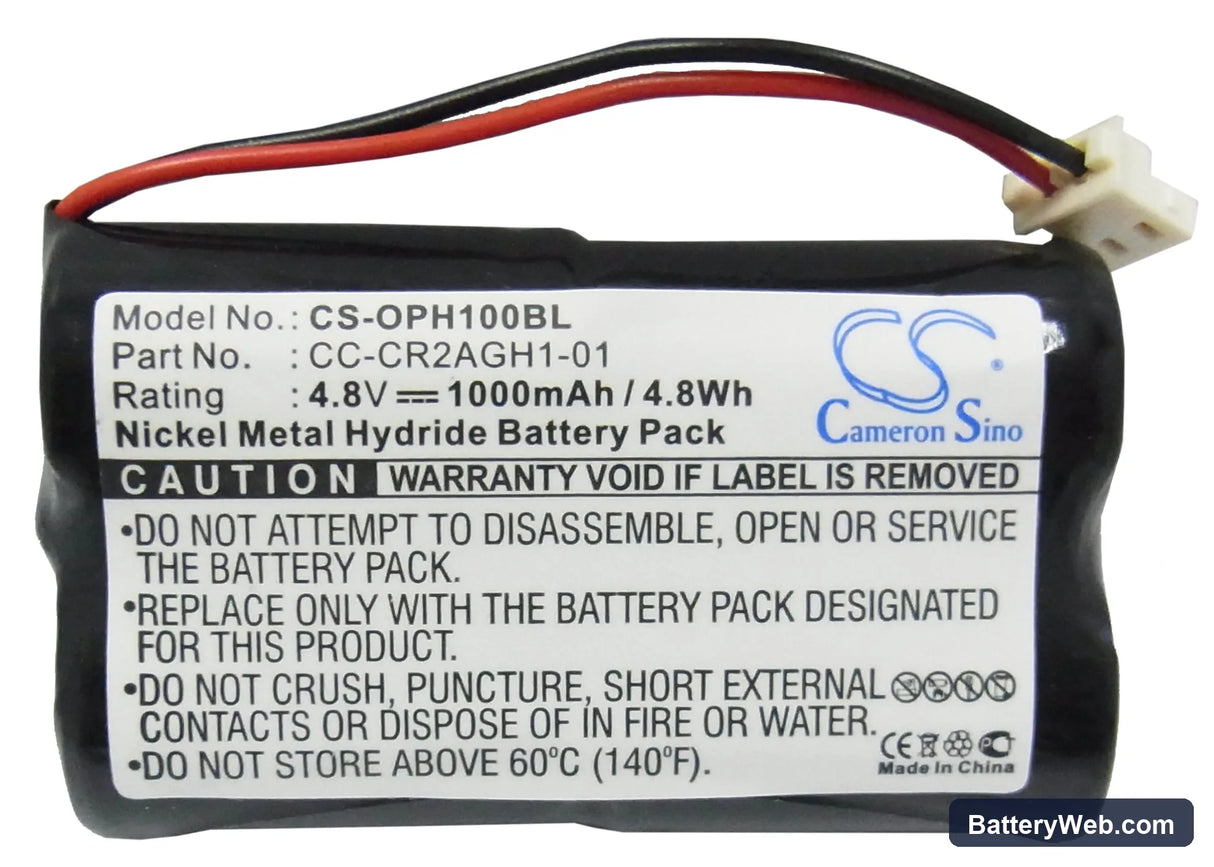

Opticon H1 — 4.8V Ni-MH Replacement Battery (CC-CR2AGH1-01)

This is a 4.8V, 1000mAh Ni-MH battery pack for the Opticon H1 handheld barcode scanner. It fits the H1 directly, restoring full scanning functionality in retail, warehouse, and inventory environments. Capacity figure is sourced from the product data — 4.8Wh total energy.

• H1 scanner platform fit: The H1 uses a compact Ni-MH cell pack at 4.8V to power both the scan engine and onboard processing logic. This pack matches that voltage rail and connector arrangement, so the device firmware and charge circuitry behave as expected with the original pack.
• Bench tested on actual hardware: We cycled this pack through charge and discharge on the H1 platform. The BMS accepted the pack without fault codes, and the scan trigger drew current cleanly from rest without voltage sag triggering a low-battery cutoff.
• First-shift preparation for pick-and-pack use: Place the scanner in its cradle for a full charge cycle before the first use on the floor. Scan trigger inrush current is highest when the cell is near minimum charge, and a fully charged pack prevents false cutoffs during the first burst-scan session of the shift.

Cradle showing a charging error after fitting a new pack

Charging errors on the H1 dock after a pack swap are almost always a contact resistance issue, not a cell fault. The dock uses spring-loaded contacts that pick up oxidation and debris over time. When contact resistance rises, the charger circuit sees an incomplete connection and flags an error rather than beginning a charge cycle. Wipe the gold contacts on both the pack and the cradle with a dry lint-free cloth, reseat the scanner firmly, and the error should clear within 30 seconds.

Scanner stops reading barcodes mid-shift even with battery showing charge

The H1 scan engine needs the voltage to stay above a minimum threshold to fire the laser or imager at full power. As a Ni-MH pack ages or if a new pack is installed without a full charge, voltage drops under scan trigger inrush even when the charge indicator still shows green. The result is a partial or failed read — the scanner appears on but the scan engine is brownout-limited. Charge the pack fully in the cradle until the charge LED goes solid, then retest; a healthy pack should hold above 4.4V under repeated trigger pulls.
