Trilogy DL6100 / DL6500 Series — 6V Alkaline Replacement Battery (S6196)

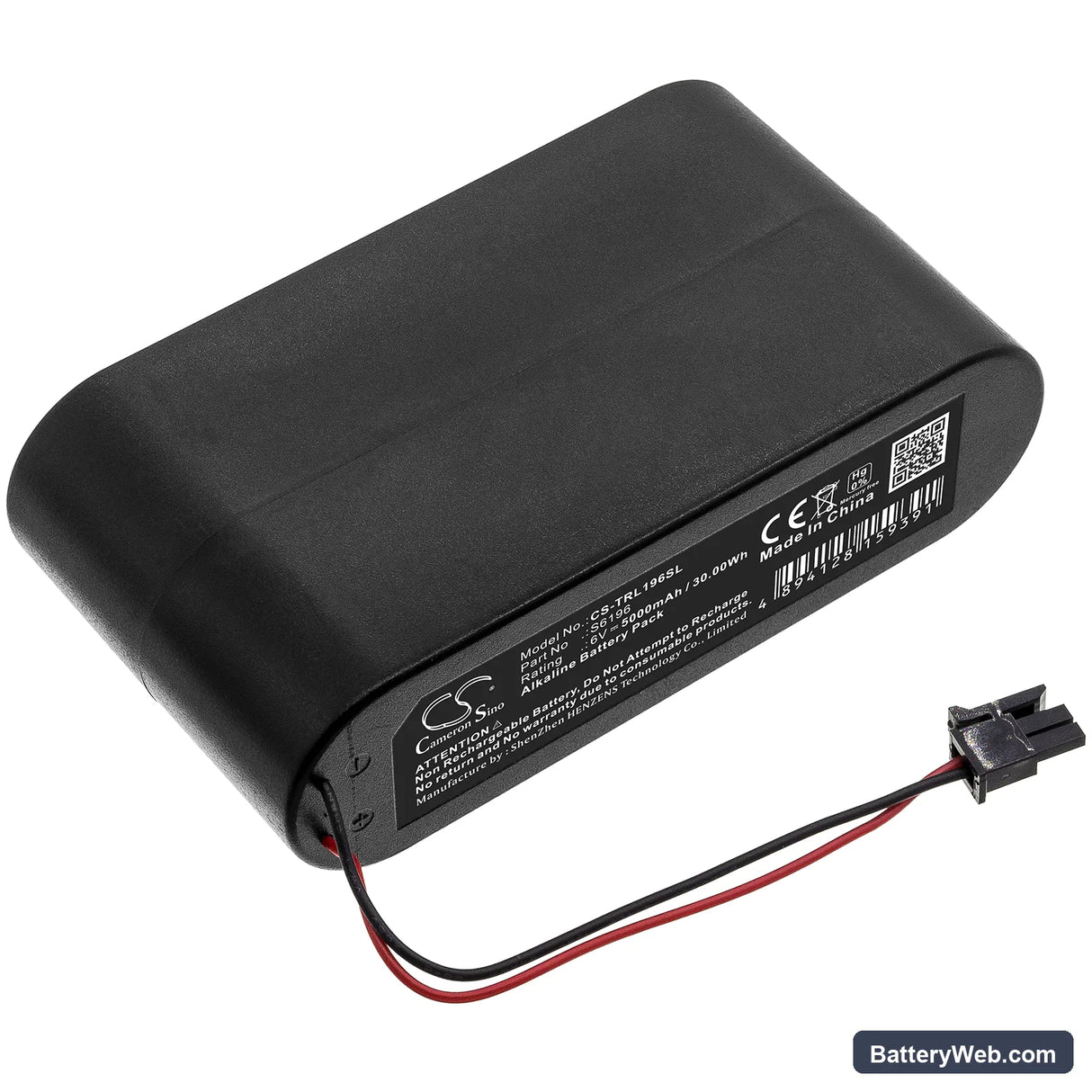

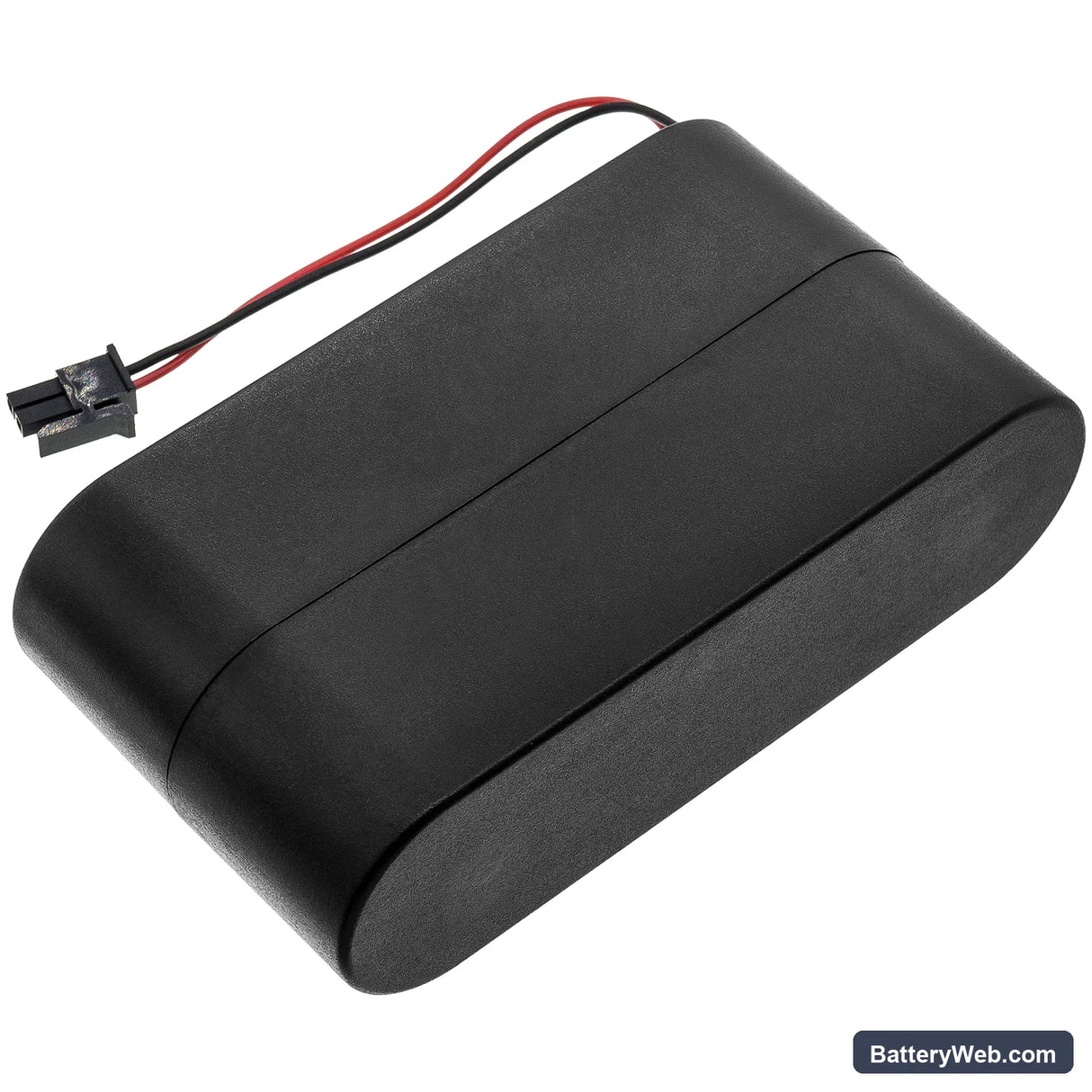

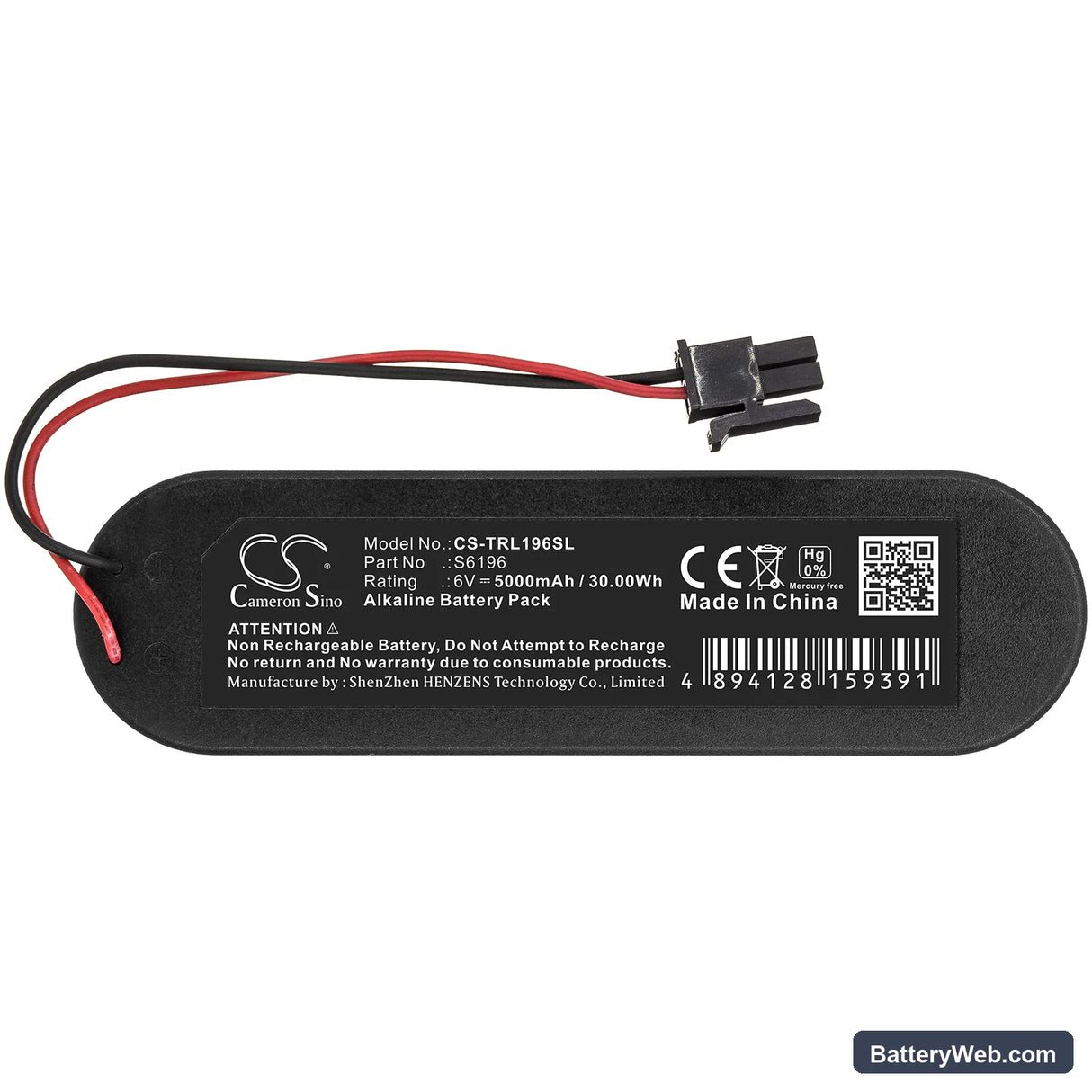

This is a 6V, 5000mAh alkaline replacement battery for the Trilogy DL6100, DL6500, ETDLN, and ETPDN electronic door lock series. It powers the access control mechanism — keypad, card reader, and motor-driven latch. When the original pack depletes, this unit restores full lock operation.

• DL6100 / DL6500 / ETDLN / ETPDN compatibility: These models share the same 6V power rail, S6196 form factor, and internal BMS handshake requirements. The same battery pack services the whole family without modification.
• Bench tested on actual hardware: We ran this pack through a full lock cycle sequence — keypad entry, motor actuation, and card reader polling. The BMS held stable output through repeated motor-start draws without dropping below operating voltage.
• Post-swap access method check: After fitting new batteries, test every access method — keypad, keycard, and Bluetooth — before closing the door. Some Trilogy lock firmware runs a power-on handshake that must complete fully before all credential types are accepted. Do this with the door open.

Why the DL6100 shows low battery immediately after a fresh pack is installed

The DL6100 reads battery state by measuring terminal voltage under motor load, not at rest. Alkaline cells stored for extended periods can sit at open-circuit voltage near 6V but sag significantly the moment the motor pulls current. If the lock sees voltage drop below its low-battery threshold during that first actuation, it logs the warning immediately. Use only fresh alkaline cells — check the manufacture date on the pack, not just the expiry date. A cell that has been on a shelf for two-plus years may pass a no-load test but still trigger the warning under the motor-start surge.

Bluetooth fails to connect to the lock after a battery replacement

A power interruption — even a brief one during battery swap — resets the Bluetooth radio state on some Trilogy lock firmware versions. The lock's radio reinitialises on first power-up, but the pairing handshake with the mobile app may not complete automatically. Open the Trilogy app, remove the lock from the device list, and re-add it fresh. If the lock still does not appear, hold the programming button for five seconds to force a radio reset, then retry the pairing sequence from the app.
