ROC Digital 14003 rocbox Replacement Battery 3.7V 1200mAh

ROC Digital 14003 rocbox 20GB — 3.7V Li-ion Replacement Battery (ABC4B20232111111)

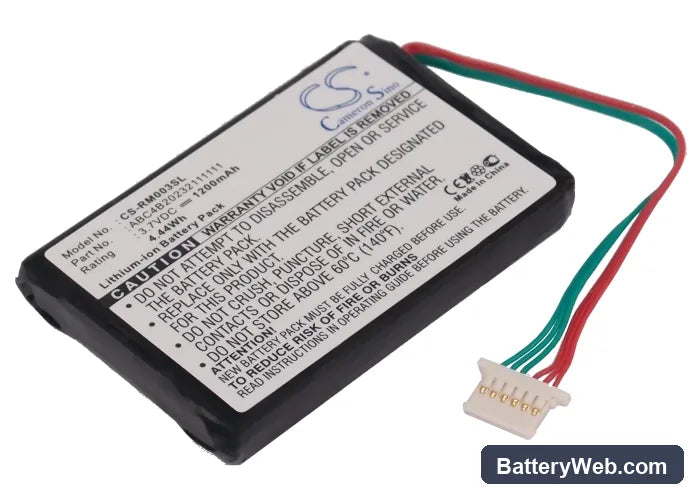

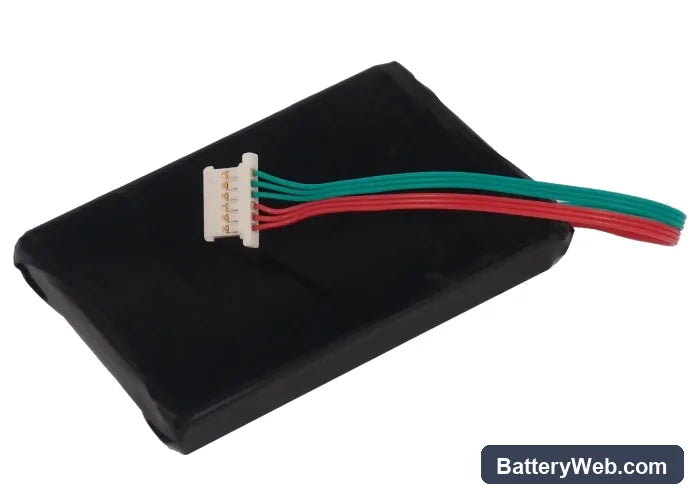

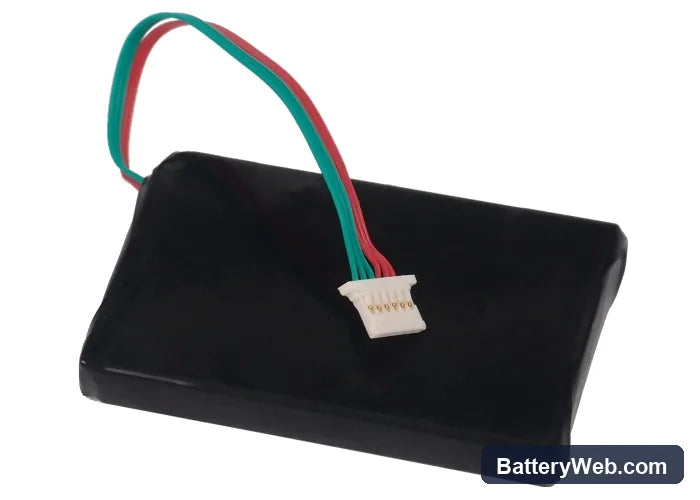

This is a 3.7V, 1200mAh lithium-ion battery for the ROC Digital 14003 rocbox 20GB portable media player. It replaces OEM part ABC4B20232111111 directly. Install it when the original cell no longer holds a usable charge or the device refuses to power on.

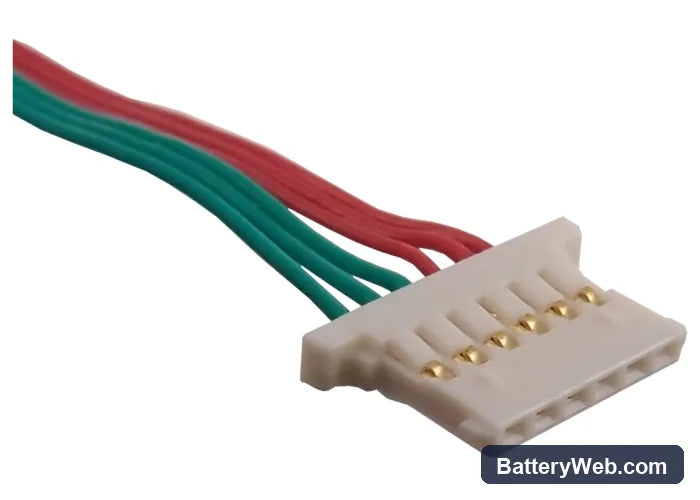

• rocbox 20GB platform fit: The rocbox 20GB uses a fixed-voltage 3.7V single-cell architecture. This battery matches that voltage rail, connector pinout, and physical envelope — 52.39 × 34.53 × 6.04mm — so it seats correctly in the battery bay without modification.
• Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the rocbox platform. The onboard protection circuit responded correctly to end-of-charge cutoff and low-voltage cutoff, and the device read charge state without errors.
• Post-storage charge routine for the rocbox: If the player has been sitting unused for months, connect it to the charger and leave it for at least 30 minutes before pressing the power button. The rocbox enters a deep-discharge protection state below roughly 2.5V — it will not respond to power-on until the cell has trickle-charged back above that threshold.

Battery percentage jumping after cell swap on the rocbox 20GB

The rocbox 20GB uses a voltage-threshold method to estimate charge level — it has no dedicated fuel gauge IC. After fitting a new cell, the device maps voltage readings it has never seen against its stored lookup table. That mismatch causes the percentage indicator to jump or read incorrectly for the first several charge cycles. Run two or three full charge-to-discharge cycles and the indicator stabilises as the player learns the new cell's discharge curve.

Playback cutting out before the battery shows empty

The audio amplifier in the rocbox draws a short burst of higher current at the end of each track, particularly at higher volume levels. When the cell is near the bottom of its charge, that current spike causes the terminal voltage to sag below the protection circuit's cutoff threshold — around 2.7V — and the device shuts off even though the indicator still shows a bar or two remaining. Turning the volume down by 20–30 percent extends usable playback time from a near-depleted cell. If the problem appears at a full charge, the original cell has degraded and a replacement cell will resolve it.
