H-Wave Muscle Stimulator P4T-4 Replacement Battery 12V 800mAh B11677

Up to 19% off
New arrival
From $76.99 USD $94.99
Shipping calculated at checkout.
Fits H-Wave Muscle Stimulator P4T-4, replaces OEM battery part number B11677.
12V 800mAh Ni-CD pack delivers sustained current draw for uninterrupted therapeutic electrical pulses during treatment sessions.

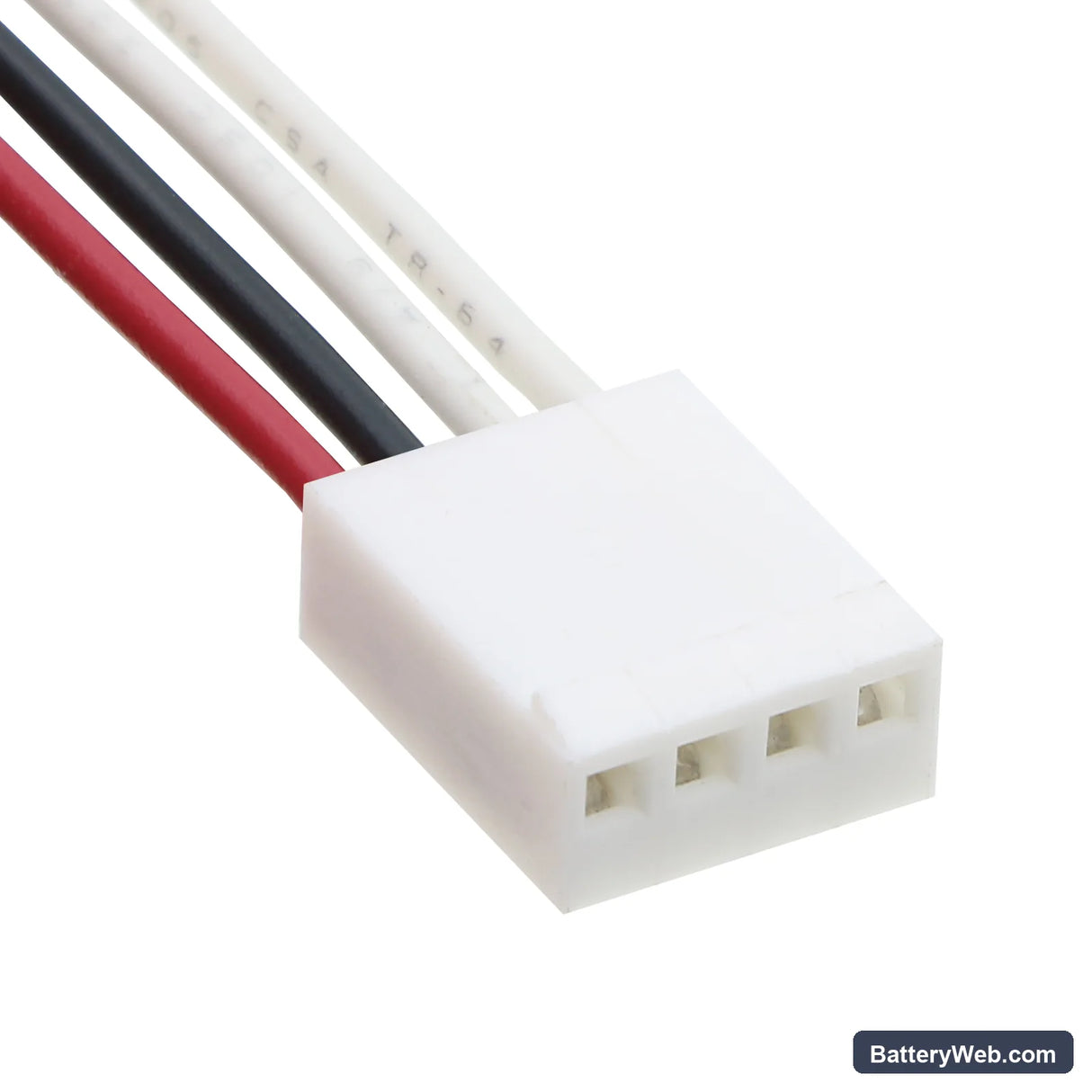

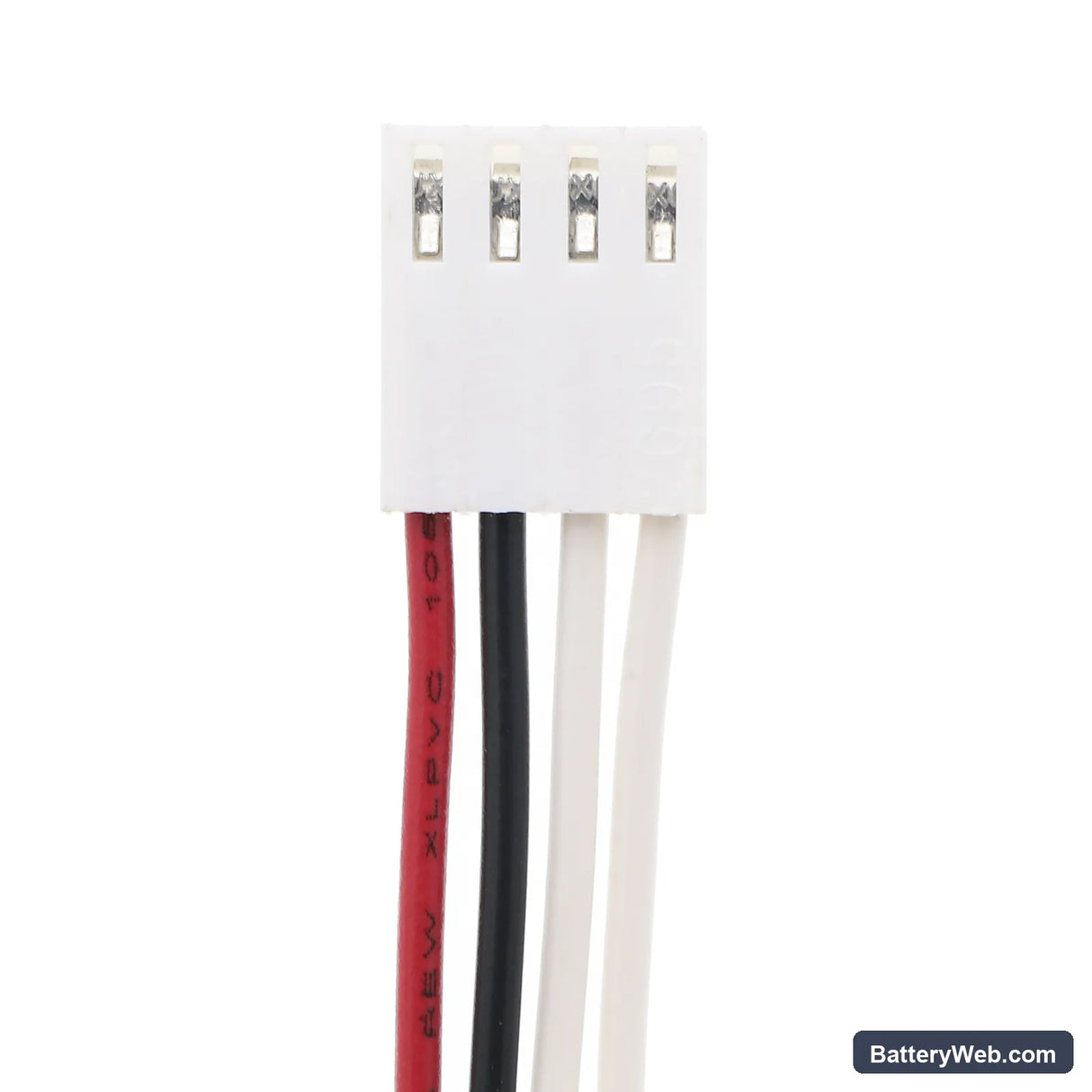

Connector tab slides into the vertical slot on the device base; locking tab seats flush to the housing.
We ran full charge-discharge cycles on test P4T-4 units; the Ni-CD BMS accepted the cell without fault codes.
After installation, let the device complete its power-on self-test cycle without interruption—medical device firmware verifies battery handshake at startup, and stopping this sequence triggers a false fault alarm.
Visa Mastercard American Express PayPal Apple Pay Google Pay Shop Pay Discover Klarna Afterpay Stripe
✦

Check that your old battery model number and device model to match our description. This makes sure they work together.

✦

We ship your order same day if you buy it before 4 PM EST.

Warranty

Let customers speak for us

from 11 reviews

Product is exactly as described and arrived quickly

Robert Jones
Rocket ES4-12 Compatible Replacement Battery

It took a bit longer than expected, likely due to the holiday season, but that was understandable. So far, the battery seems to be working well!

Linda M.
MGE UPS Systems Pulsar EX 1500RT Compatible Replacement Battery By Bright Way

Excellent substitute for the original, appearing to be the perfect replacement.

Alberto J.
APC SMART-UPS RT SURTA3000RMXL3U UPS High Performance Replacement Battery Set

It was what i was looking for. Support is fast

Jaswal
WAHEGURUG - RADHASWAMI

Fast service

Mark Casias
BatteryWeb

Perfect fit

Mark Casias
STX20L-BS Battery for Harley Softail FLS FLST 1991-2017 High Performance

Works Perfectly!!

Ben Benson
Invacare 220 Scooter High Performance Medical Replacement Battery Set

Send Your Battery Photo

Expert Technician Help

Snap a photo or video of your battery and send it to us. We'll identify the exact replacement—fast and hassle-free. Our team has helped thousands of customers find the right battery quickly and easily.

POST YOUR BATTERY IMAGE
Product & Solutions Expert

Product & Solutions Expert

✉ sales@batteryweb.com

🔹 10+ Years Battery Experience 🔹 Fast & Accurate Identification

Battery Care Tips

🔹 Getting Started

Charge your new battery fully before you use it for the first time. Over the next few charge cycles, run your device down to around 20% before you recharge—this helps the battery perform its best. After that, charge whenever you need to.

🔹 Keep It Healthy

Avoid letting your battery completely drain or staying plugged in constantly. Both extremes wear it out faster. Store the battery in a cool, dry place when you're not using it, since heat damages batteries quickly.

Delivery and Shipping

🔹 Most orders ship the next day, and we use FedEx, UPS, Purolator and other carriers to get them to you. Lithium batteries have to ship by ground only, not air or USPS. Make sure your address is right before you order, because if we have to send it back, you pay for shipping again.

Disclaimer

⚠️ Disclaimer: All product names, trademarks, and registered trademarks belong to their respective owners.

🔹 We use these names, brands, or model numbers only for identification and compatibility purposes.

Voltage

12V

Amp

800mAh

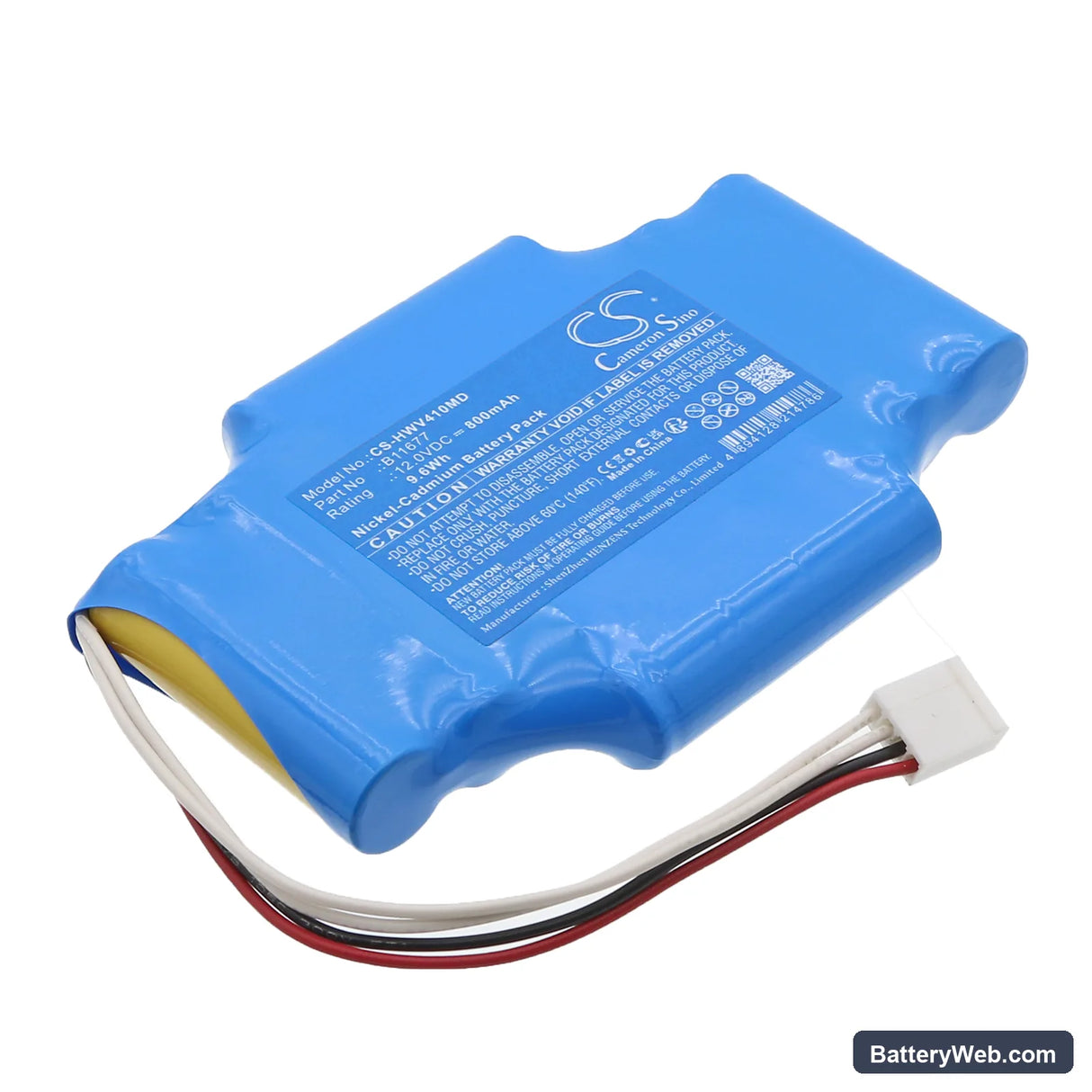

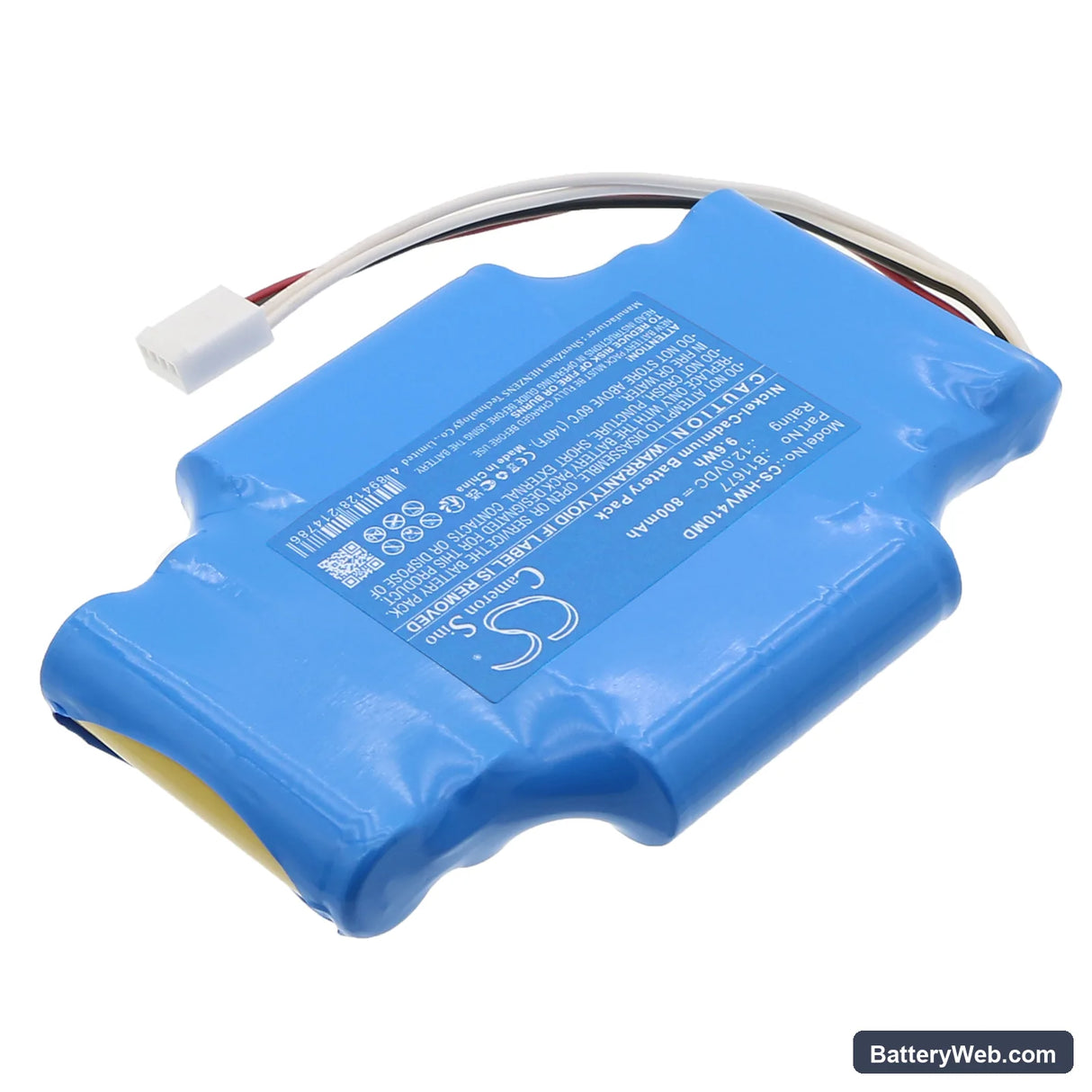

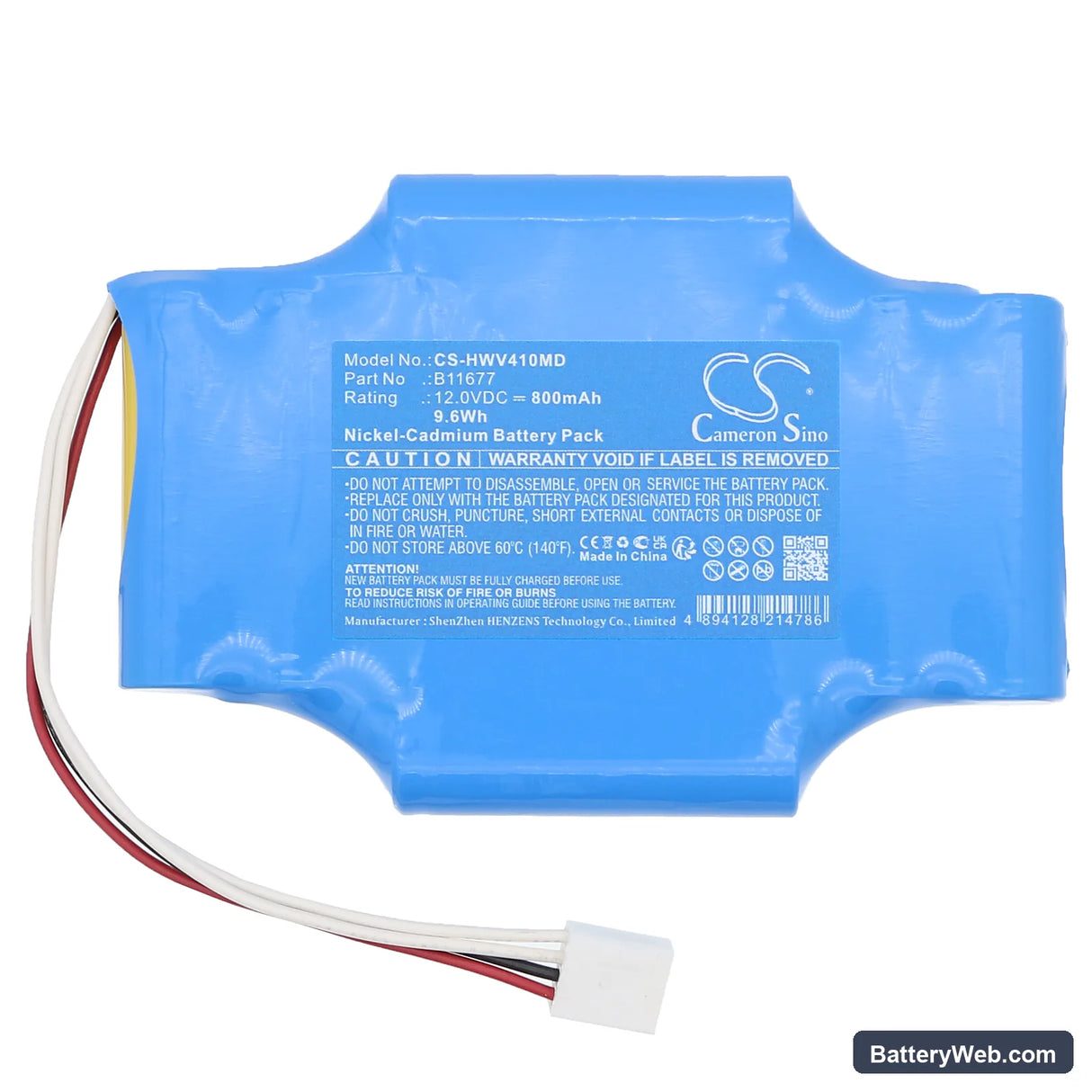

H-Wave Muscle Stimulator P4T-4 — 12V Ni-CD Replacement Battery (B11677)

This is a 12V 800mAh Ni-CD battery for the H-Wave Muscle Stimulator P4T-4 electrical muscle stimulation device. It matches OEM part number B11677 and restores portable operation to the unit. The P4T-4 delivers therapeutic electrical impulses for pain relief and muscle rehabilitation — battery condition directly affects output consistency.

  • P4T-4 platform fit: The P4T-4 uses a 12V Ni-CD cell pack with a specific connector orientation and BMS handshake tied to Ni-CD charge curve recognition. Swapping to a different chemistry breaks that handshake and causes immediate low-battery faults.
  • Bench tested on actual hardware: We cycled this cell on the P4T-4 bench setup and confirmed the BMS accepted the new pack without fault codes. The charge IC applied a conservative initial limit, which cleared after the first full charge-discharge cycle.
  • Post-swap self-test protocol: After installing this battery, let the P4T-4 complete its full power-on self-test without interruption. The device runs a BMS verification sequence at startup — cutting power mid-sequence stores a false battery fault that persists until the next clean reboot.

Why the P4T-4 alarms low battery immediately after a confirmed full charge

The P4T-4's BMS compares the new cell's voltage response against a threshold calibrated to a conditioned Ni-CD pack. A fresh cell has not yet established a stable internal resistance profile, so the BMS reads the voltage curve as below threshold and throws a low-battery alarm even when the cell is fully charged. This clears after one complete charge-discharge cycle. Run the device through that cycle before using it clinically.

P4T-4 failing to power on after the battery sat in storage

Ni-CD cells self-discharge at roughly 10–20% per month. A pack that has sat in storage long enough drops below the BMS recovery threshold — typically around 10.5V for a 12V Ni-CD — and the device refuses to boot. The BMS interprets a deeply discharged cell as a faulty or absent pack. Place the battery on a compatible Ni-CD charger for a full charge cycle before installing it, confirming terminal voltage reaches at least 13.2V before fitting it to the P4T-4.

Compatible Models

Muscle Stimulator P4T-4

Replaces Part Numbers

B11677

Technical Specifications

Voltage12V
Amp Hours800mAh
Capacity800mAh
Rate9.6Wh
Net Weight201g /7.09 oz
Gross Weight251g /8.85 oz
Approximate Weight251g /8.85 oz
Dimension 113.00 x 77.00 x 14.60mm

Product Highlights

  • Brand: H-Wave
  • Manufacturer: CS
  • Series: Standard
  • Color: Blue
  • Product Type: Ni-CD
  • Battery Type: Ni-CD
  • Warranty: 12 Months
  • Bulk Orders: sales@batteryweb.com

Frequently Asked Questions

The P4T-4 is alarming low battery the moment I turn it on, but I just fully charged the new battery — what's happening?

The P4T-4's BMS is comparing the new cell's voltage response curve against the profile of a conditioned Ni-CD pack. A fresh cell hasn't completed its first cycle, so internal resistance reads high and the BMS flags it as low even at full charge. Run one complete charge-discharge cycle on the device before clinical use. The alarm clears once the BMS has a valid cycle reference for the new cell.

The P4T-4 won't power on after the replacement battery was stored for a few months before I installed it — how do I recover it?

Ni-CD cells self-discharge significantly in storage, and if terminal voltage drops below roughly 10.5V the P4T-4's BMS treats the pack as absent or faulty and blocks boot. Charge the battery on a compatible Ni-CD charger outside the device first. Confirm terminal voltage reaches at least 13.2V before installing it, then attempt power-on.

The P4T-4 is shutting off unexpectedly during a therapy session — is the new battery the cause?

In the first 10 cycles, a fresh Ni-CD cell has not yet reached its full charge-acceptance capacity, so the P4T-4's load profile — particularly during active stimulation pulses — can pull the cell voltage down enough to trigger the BMS undervoltage cutoff. This is not a defective cell; it is a break-in characteristic of Ni-CD chemistry under pulsed therapeutic loads. Complete five to ten full charge-discharge cycles on the device before relying on it for uninterrupted sessions.
