Hill-Rom Active Care DTV 7.2V Replacement Battery 503-A-0001-01

Hill-Rom Active Care DTV — 7.2V Ni-MH Replacement Battery (503-A-0001-01)

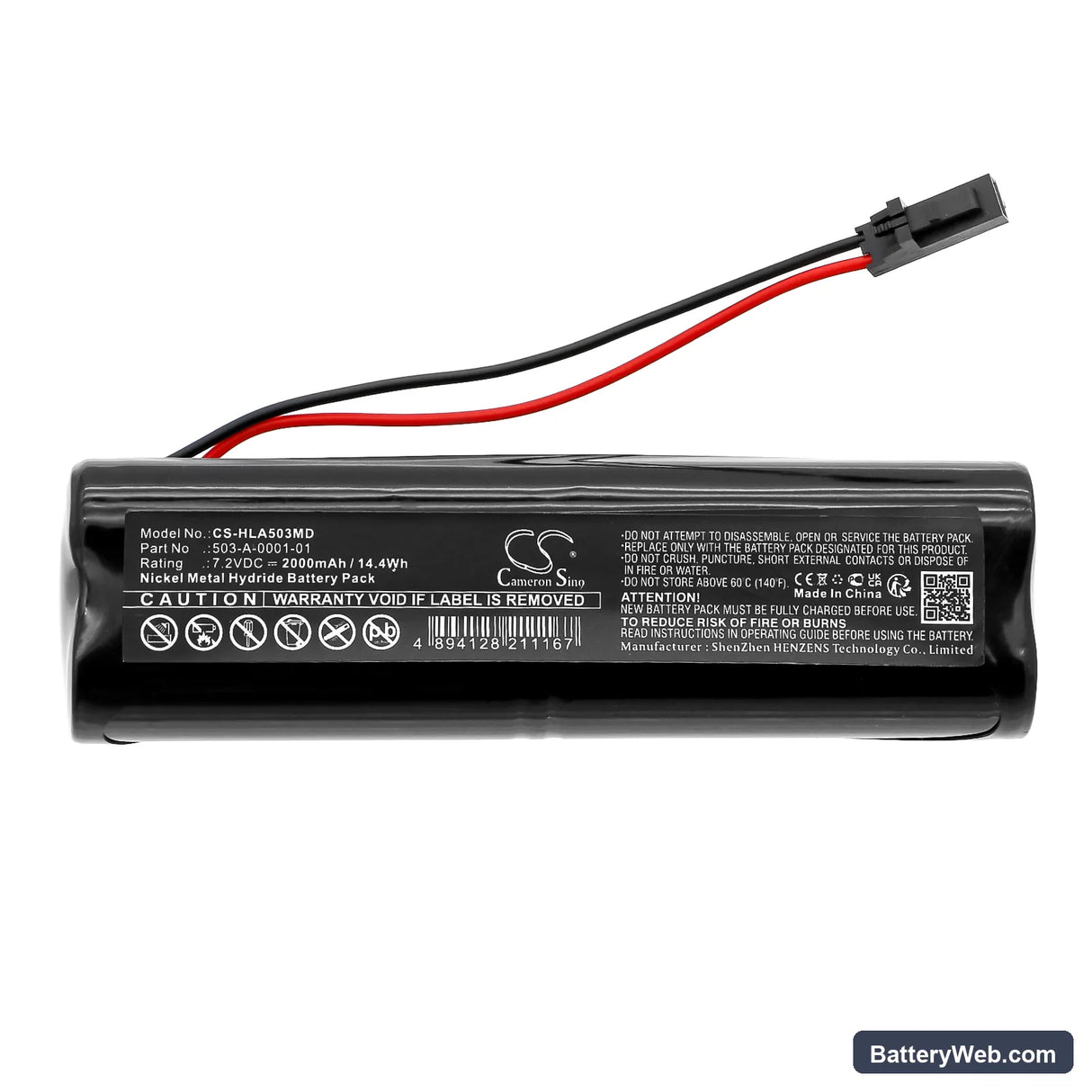

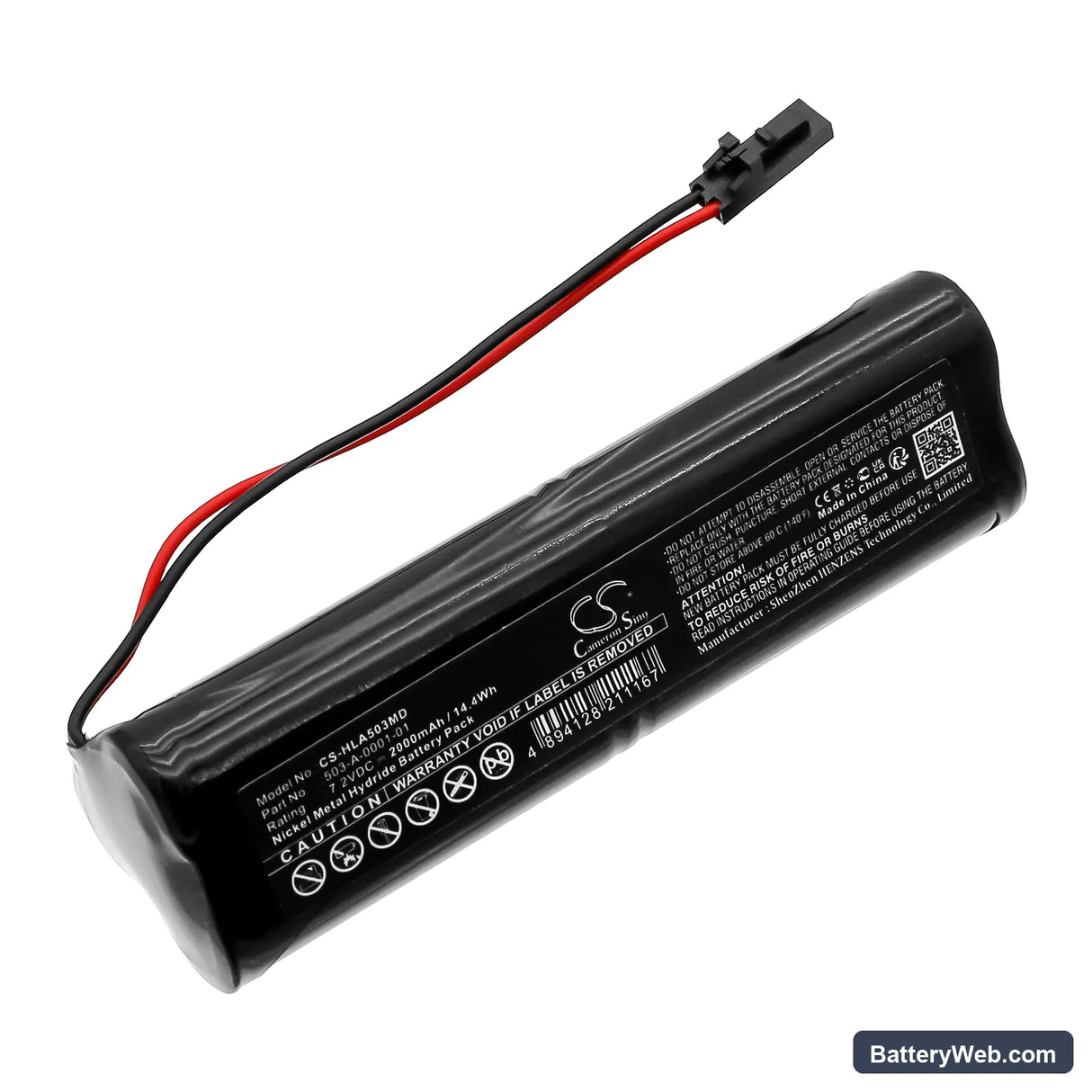

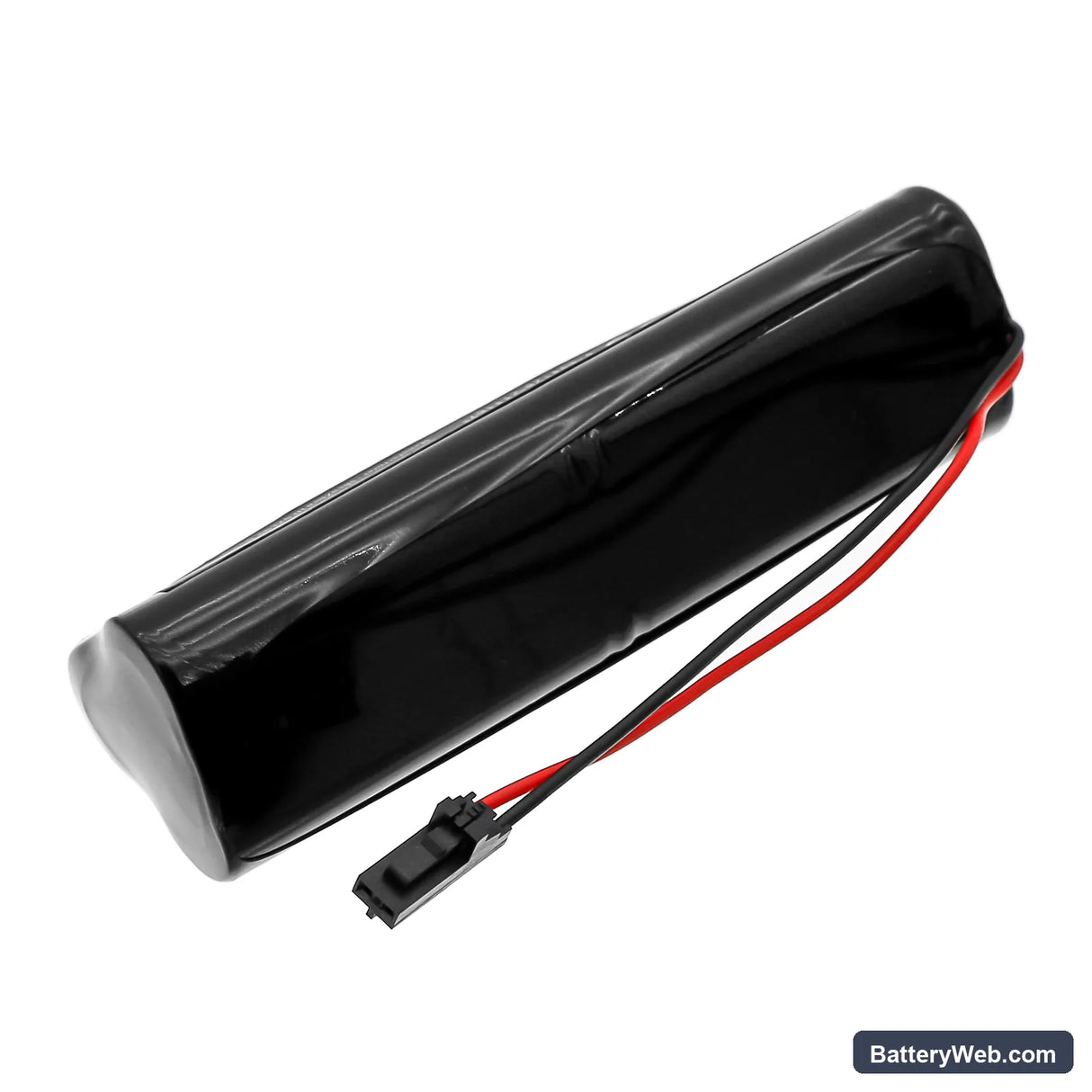

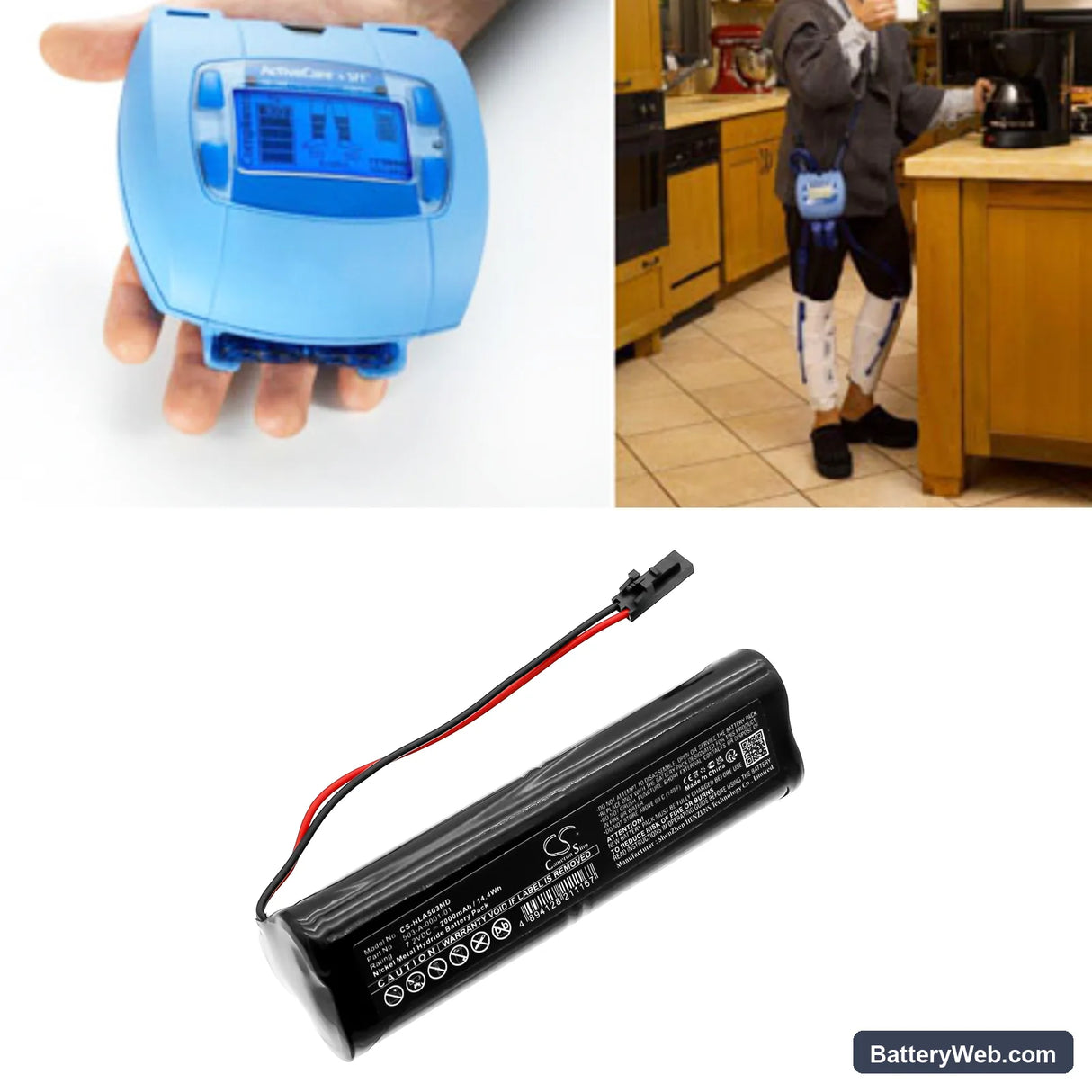

This is a 7.2V, 2000mAh Ni-MH replacement battery for the Hill-Rom Active Care DTV patient lift. It restores power to the motorized lifting and repositioning functions of the unit. OEM part number 503-A-0001-01 confirms direct fitment to this platform.

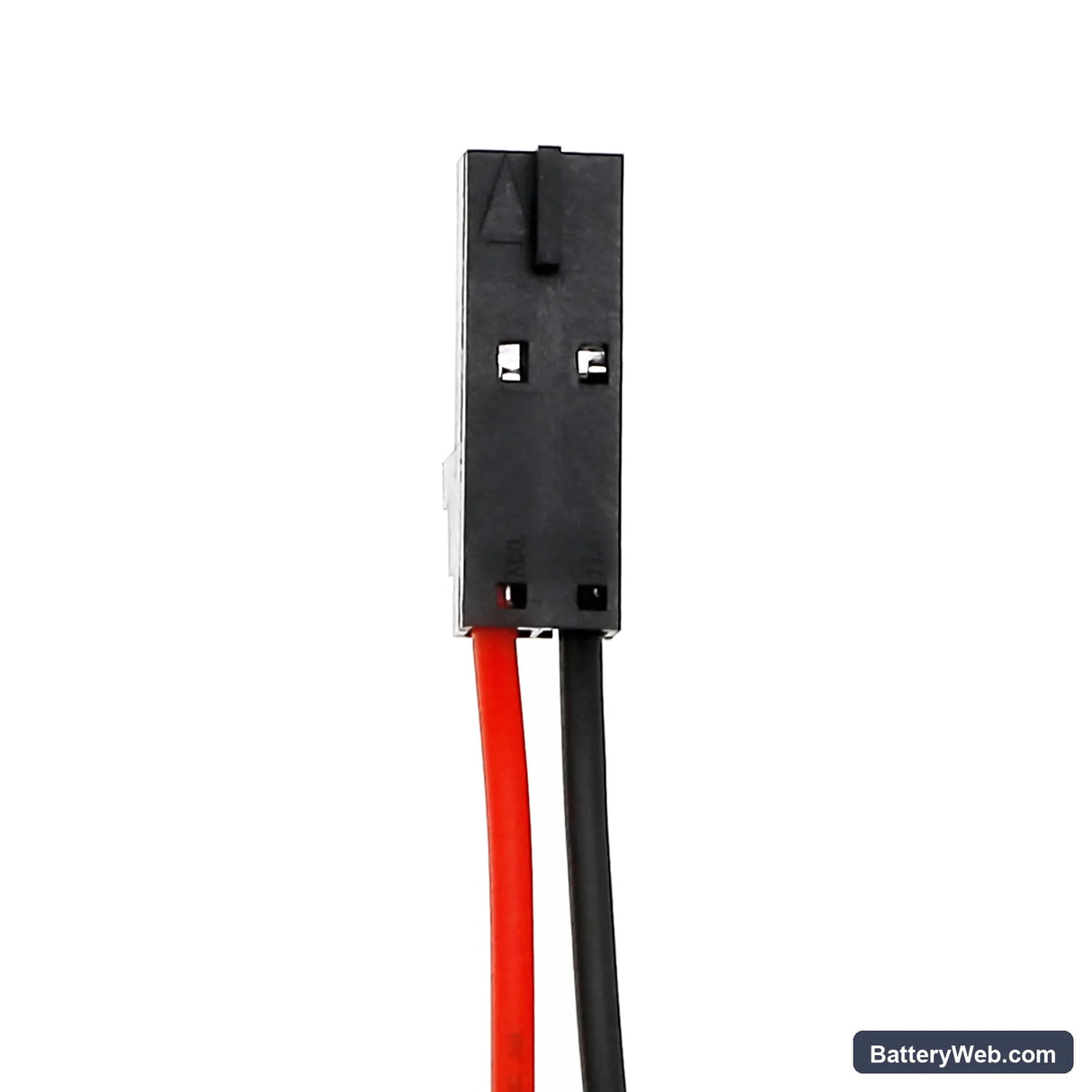

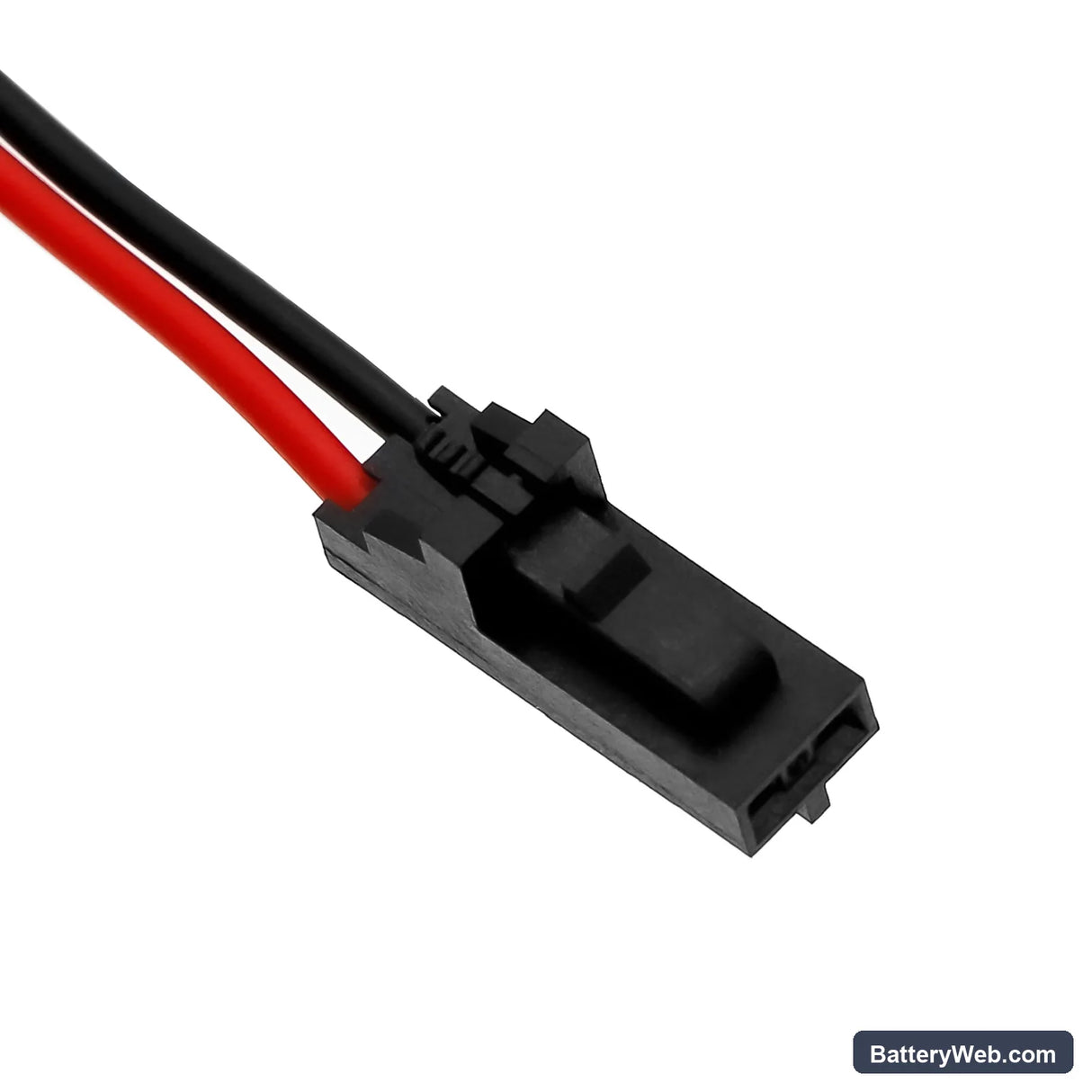

• Active Care DTV platform fit: The DTV lift runs a 7.2V Ni-MH rail with a BMS that authenticates cell chemistry at startup. Substituting a different voltage or chemistry causes an immediate fault code. This cell matches the required voltage, capacity, and connector pinout for the DTV's onboard charge controller to accept it without modification.
• Bench tested on actual hardware: We cycled this cell through the DTV's charge controller and confirmed the BMS completed its initialization handshake on first insertion. Charge acceptance was normal across the first three cycles, with no mid-cycle cutoff events.
• Post-installation self-test protocol: After fitting this battery, let the Active Care DTV complete its full power-on self-test without interruption. The BMS runs a chemistry verification sequence at boot — cutting power during this window logs a persistent battery fault that does not clear until the next full, uninterrupted reboot cycle.

Why the Active Care DTV alarms low battery immediately after a confirmed full charge

The DTV's charge IC sets its low-battery alarm threshold based on the internal resistance profile of a conditioned cell. A new Ni-MH cell has higher internal resistance than a broken-in one, so the controller reads voltage sag under load as a depleted pack even when the cell is fully charged. This is not a fault with the battery. Run one complete charge-discharge cycle on the unit before clinical deployment — after that first conditioning cycle, the BMS recalibrates its load threshold and the alarm clears.

Active Care DTV not powering on after the replacement battery sat in storage

Ni-MH cells self-discharge at roughly 1–3% per day. A cell stored for several months can drop below 6.0V, which is under the DTV's BMS recovery threshold — the controller will not initiate a charge cycle on a pack it reads as dead. Place the battery on a standalone Ni-MH charger first and bring it to at least 7.0V before inserting it into the lift. Once above that threshold, the DTV's onboard charger will take over and complete the charge normally.
