Honor Play 7T Pro Replacement Battery HB416491EFW 3.87V

Honor Play 7T Pro / X40i — 3.87V Li-Polymer Replacement Battery (HB416491EFW)

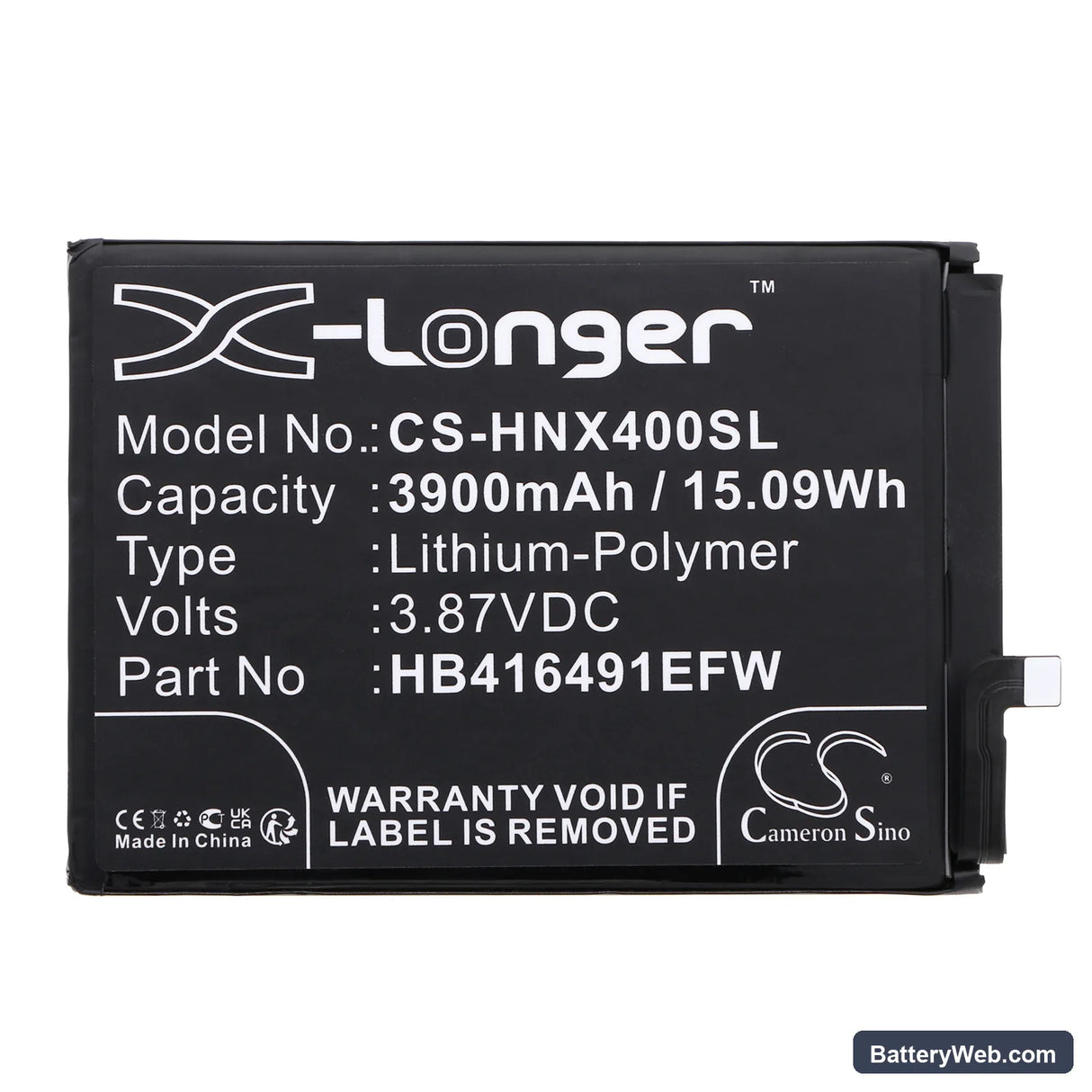

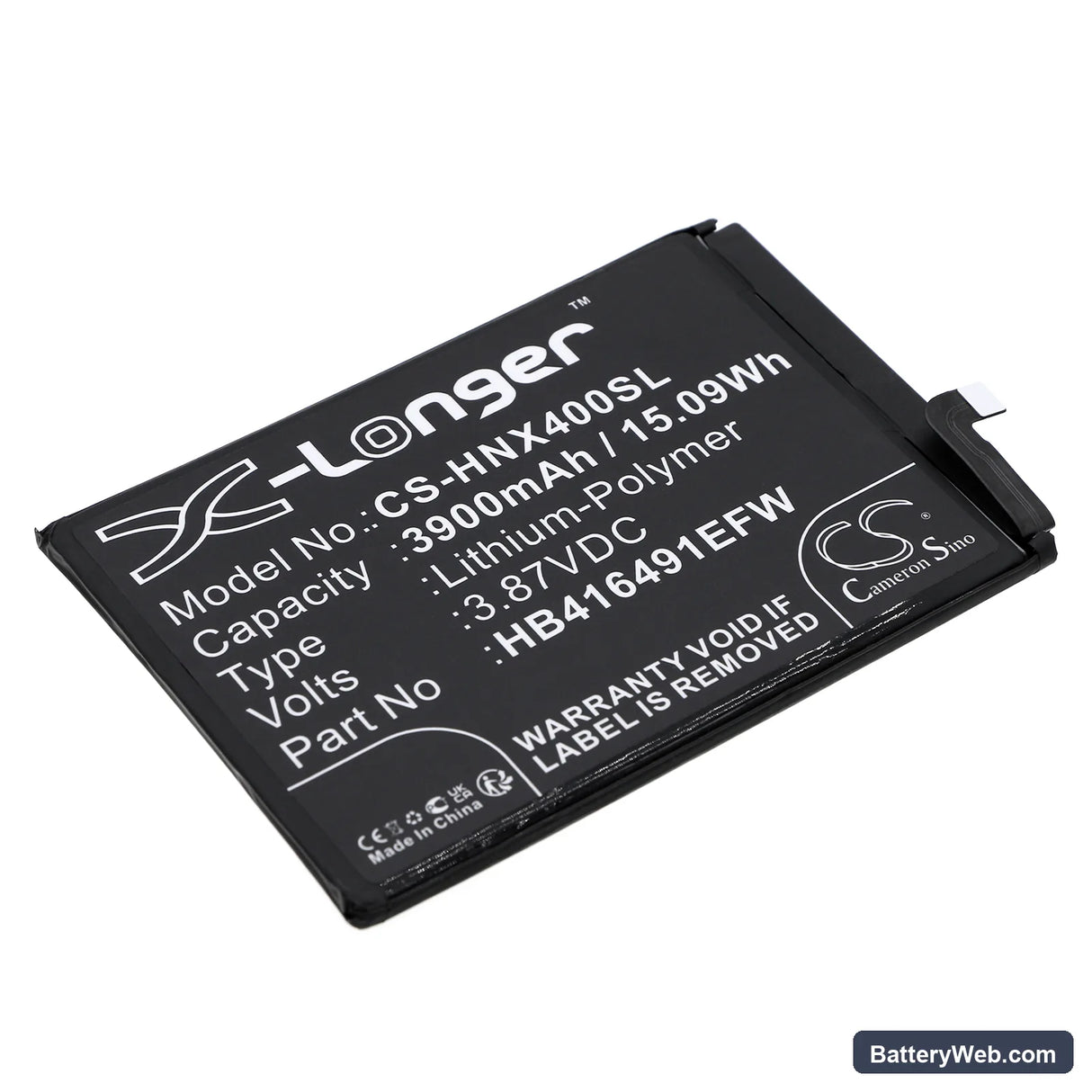

This 3.87V, 3900mAh (15.09Wh) Li-Polymer cell replaces the original HB416491EFW battery in the Honor Play 7T Pro, DIO-AN00, and X40i. It restores power to the display, processor, modem, and connectivity stack. Dimensions are 89.70 × 63.50 × 4.00mm — measure your original cell before fitting if the phone has been serviced before.

• Play 7T Pro / DIO-AN00 / X40i platform fit: These three models share the same battery bay dimensions, connector pinout, and BMS handshake protocol. The HB416491EFW part number covers all three — the charge IC communicates over the same data line, so the fuel gauge registers correctly without any firmware workaround.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on a Play 7T Pro unit. The BMS accepted the cell on first connection, charge current ramped normally through CC and CV phases, and the protection circuit tripped correctly at the low-voltage cutoff threshold.
• Fuel gauge recalibration on first use: On first use after installation, disable fast charging and run one complete discharge-to-charge cycle at standard current. This gives the fuel gauge IC a clean reference against the new cell's discharge curve before high-current charging pushes energy into an uncalibrated state register.

Sudden shutdown at 20–30% on the Honor Play 7T Pro

This is a voltage cliff failure. Under peak modem or display load, the cell cannot sustain the voltage rail — it drops below the SoC threshold faster than the fuel gauge predicted. The OS sees an apparent 20–30% state of charge, but actual cell voltage has already fallen to the cutoff point. One full calibration cycle — discharge to auto-shutdown, then charge uninterrupted to 100% — resets the coulomb counter and eliminates most cliff shutdowns. If the problem persists after two cycles, check that the battery connector is fully seated and making clean contact on all four pins.

USB-PD fast charge not activating on the first cycle after swap

After a cell replacement, the charge IC on some Honor units delays fast-charge protocol negotiation until it confirms the new cell's impedance is within an expected range. On the first cycle, the phone may charge at standard 5V/1A regardless of what charger is connected. This is not a fault with the replacement cell or the charger. Fully discharge the battery and complete one standard charge cycle — the IC re-evaluates cell impedance on the next session and fast charging resumes normally from approximately the second or third cycle onward.
