HB466589EFW Huawei Nova 8i Compatible Battery 3.87V 4200mAh

Huawei Nova 8i / NEN-L22 / NEN-LX1 — 3.87V Li-Polymer Replacement Battery (HB466589EFW)

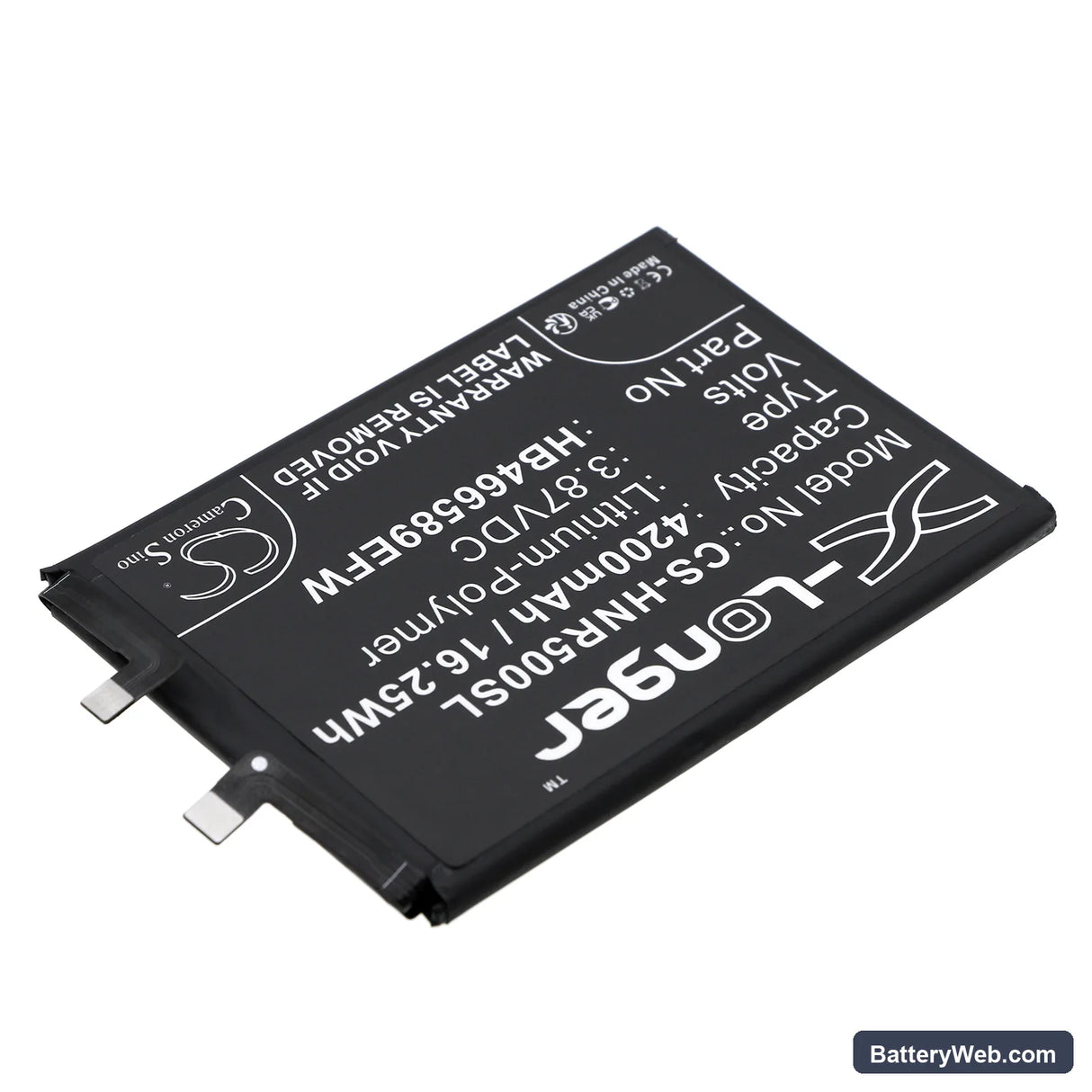

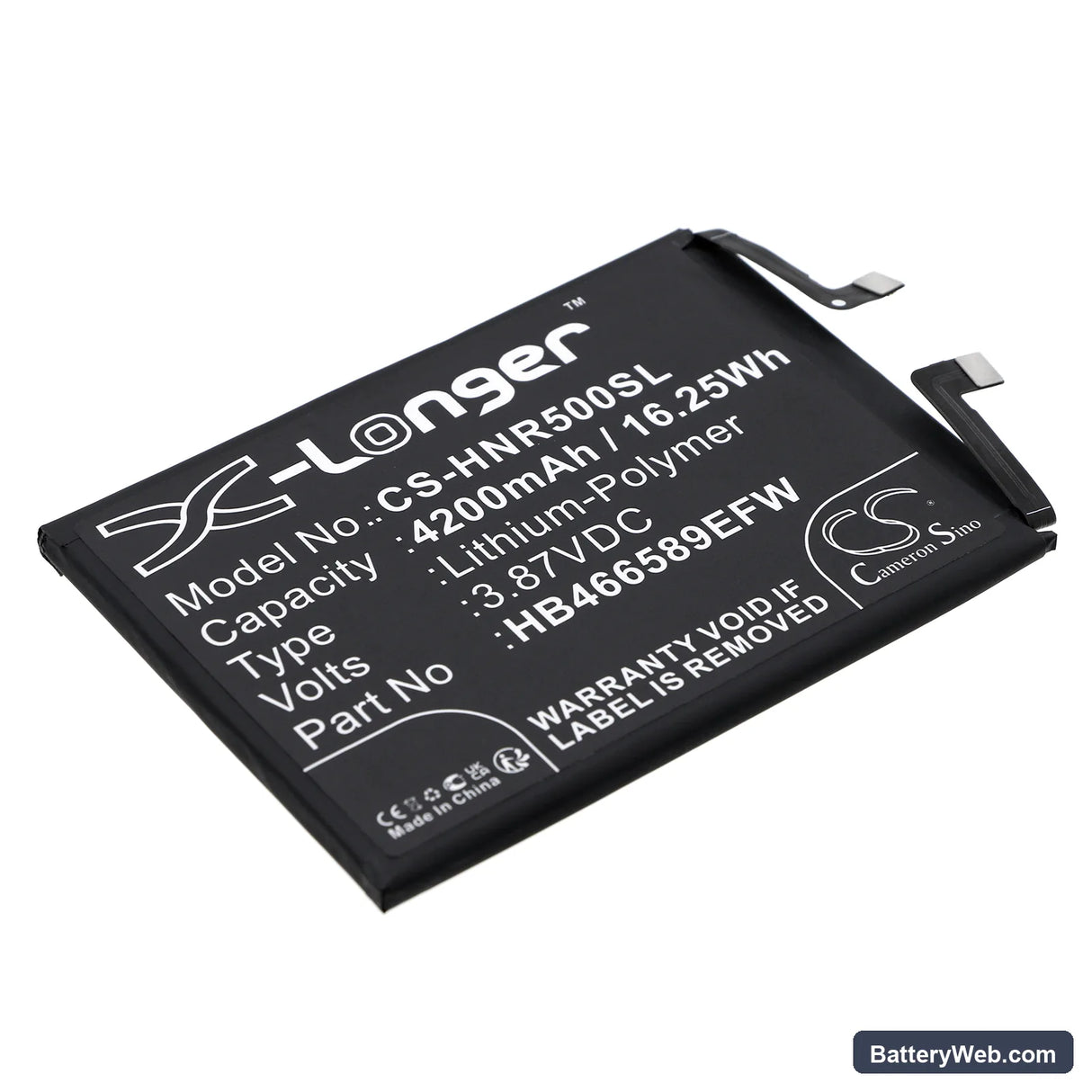

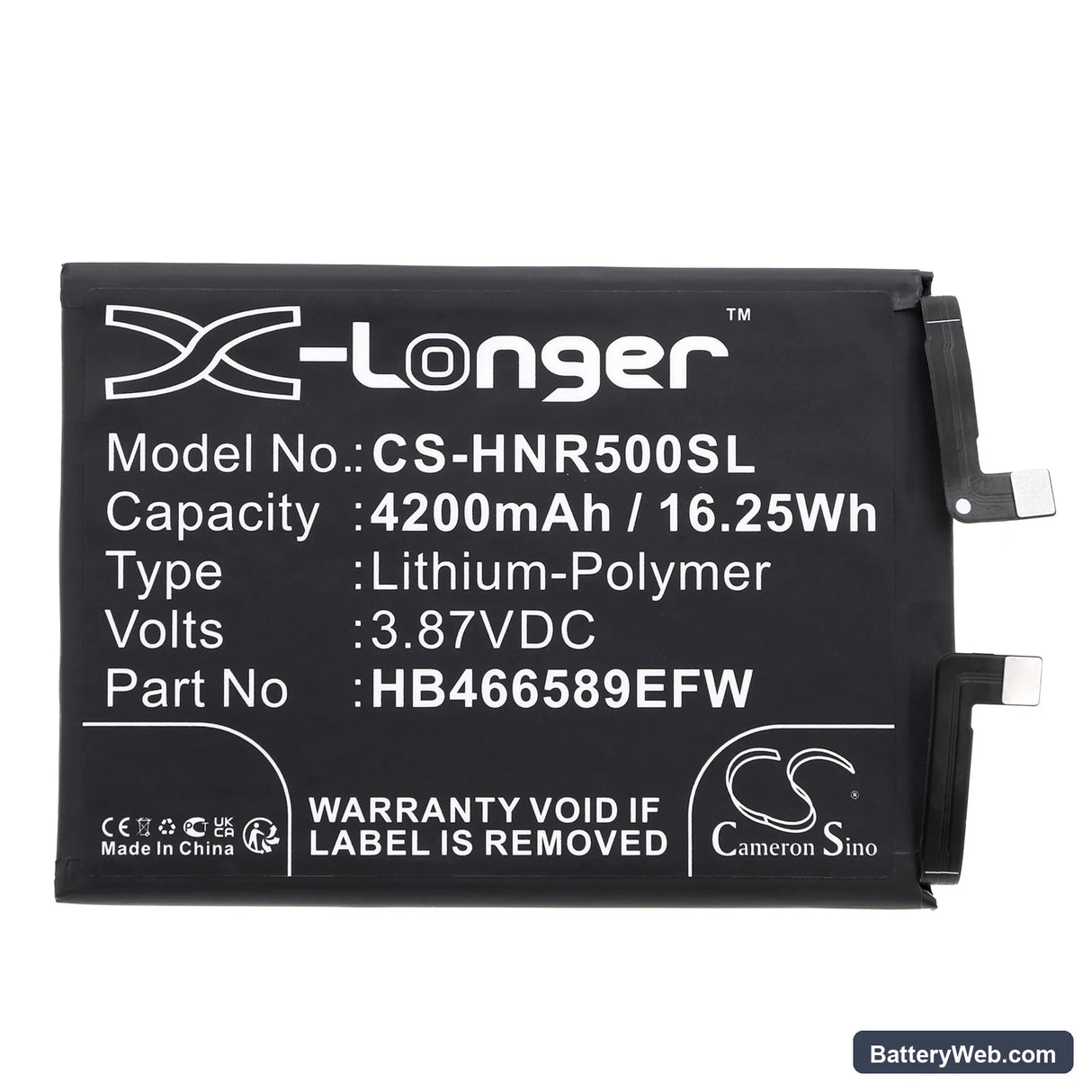

This is a 3.87V, 4200mAh (16.25Wh) Li-Polymer cell for the Huawei Nova 8i smartphone, including NEN-L22 and NEN-LX1 variants. It replaces part number HB466589EFW and fits the original battery bay without modification. Install it when the original cell no longer holds charge or causes unexpected shutdowns.

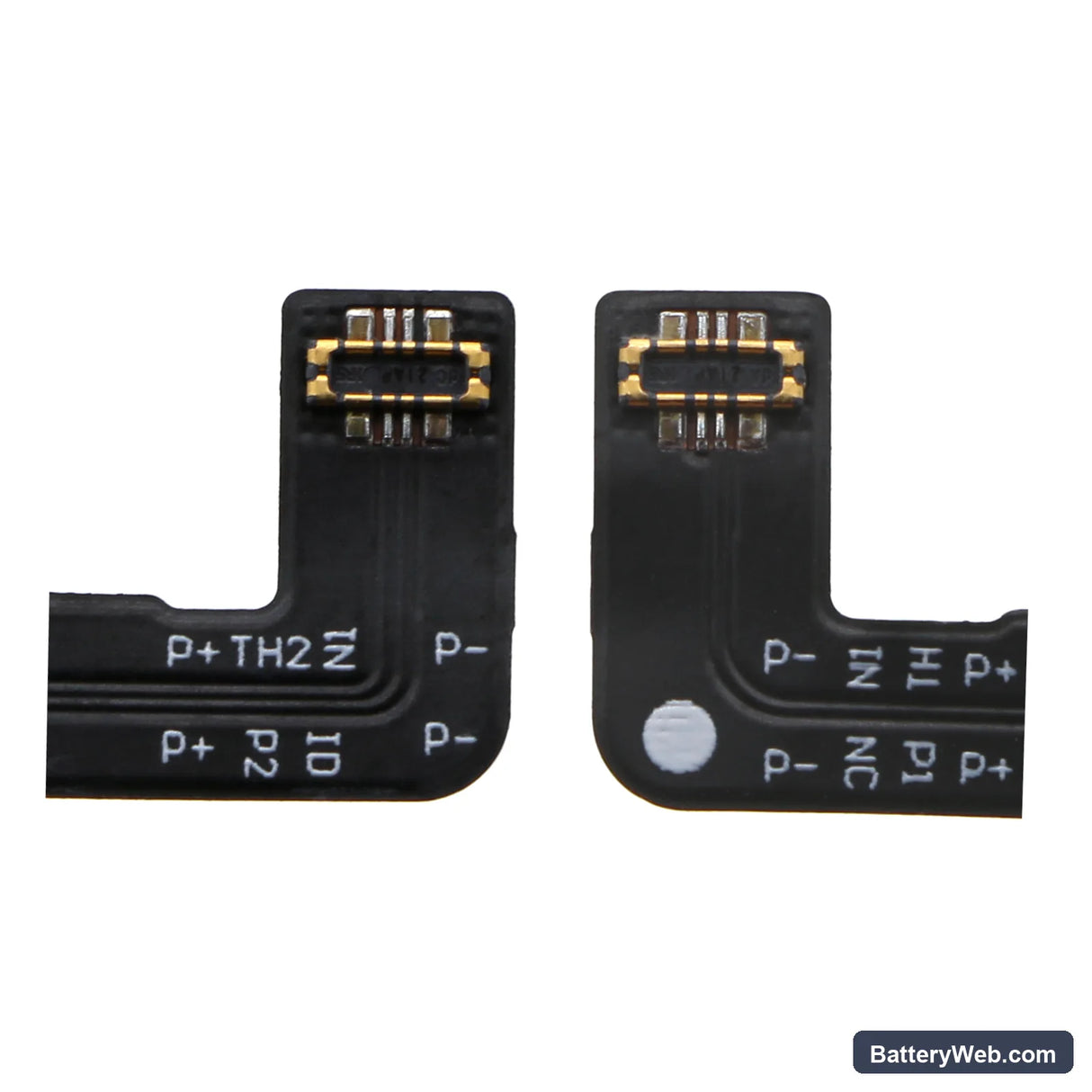

• Nova 8i variant coverage (NEN-L22, NEN-LX1): Both regional variants share the same battery bay dimensions, connector pinout, and BMS handshake protocol — a single HB466589EFW cell covers all three model strings without adapter or rewiring.
• Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on Nova 8i hardware. The BMS accepted the cell on first connection, charge termination triggered correctly at 4.35V, and protection circuitry responded normally to load events.
• Fuel gauge recalibration on first use: On first use after installation, disable fast charging and run one complete discharge-charge cycle at standard rate. This lets the fuel gauge IC map the new cell's discharge curve before high-current charging pushes current into an uncalibrated coulomb counter.

Sudden shutdown at 20–30% on the Nova 8i after a cell swap

This happens when the fuel gauge IC is still reading the old cell's voltage-to-capacity curve. The new cell hits a voltage cliff under modem or display load — voltage drops below the system threshold even though the percentage reads higher. The phone cuts power to protect the SoC. One full discharge-to-shutdown followed by an uninterrupted charge to 100% forces the coulomb counter to re-anchor to the new cell. After that cycle, shutdowns at 20–30% stop.

Huawei SuperCharge not activating on the first cycle after replacement

Huawei's proprietary fast charge protocol requires the charge IC to confirm cell impedance is within an acceptable window before it steps up current. On a fresh cell, impedance reads higher than a broken-in cell, so the IC defaults to standard 5V charging on the first cycle. This is a protection response, not a fault with the battery or charger. After one full standard-rate charge cycle, impedance drops into the accepted range and SuperCharge activates normally on subsequent sessions.
