Motorola Moto G Stylus 2023 Compatible Battery PG50 4800mAh

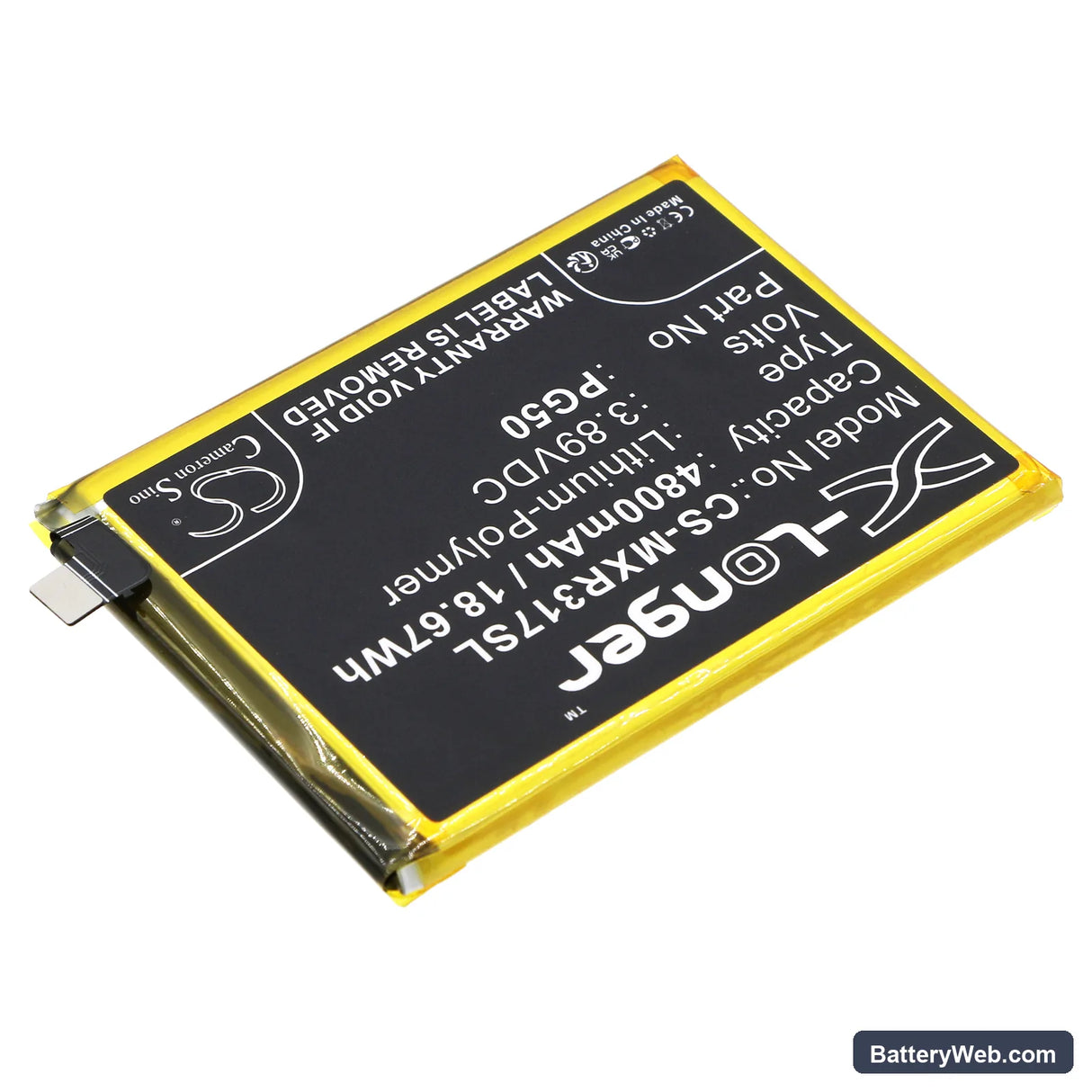

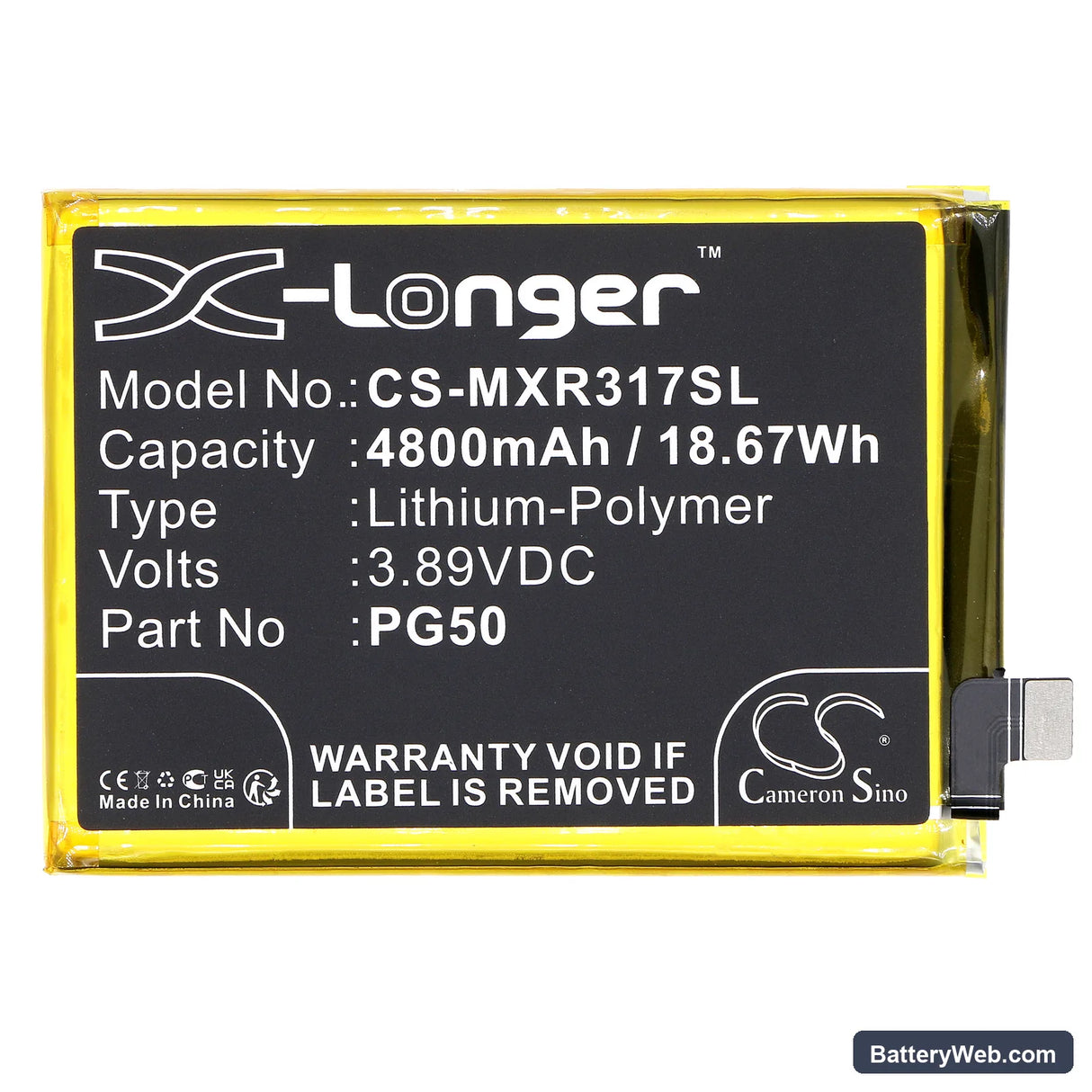

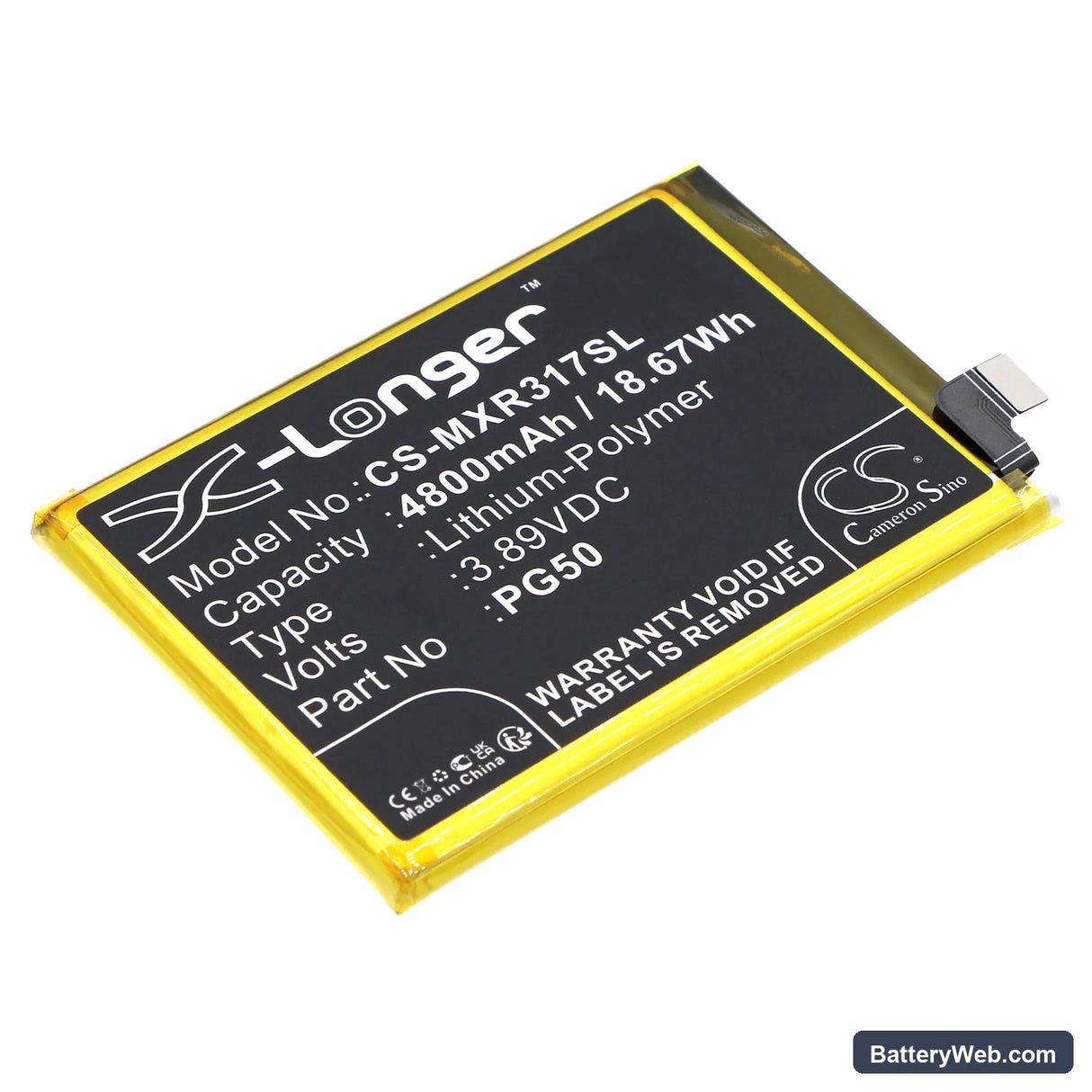

Motorola Moto G Stylus 2023 — 3.89V Li-Polymer Replacement Battery (PG50)

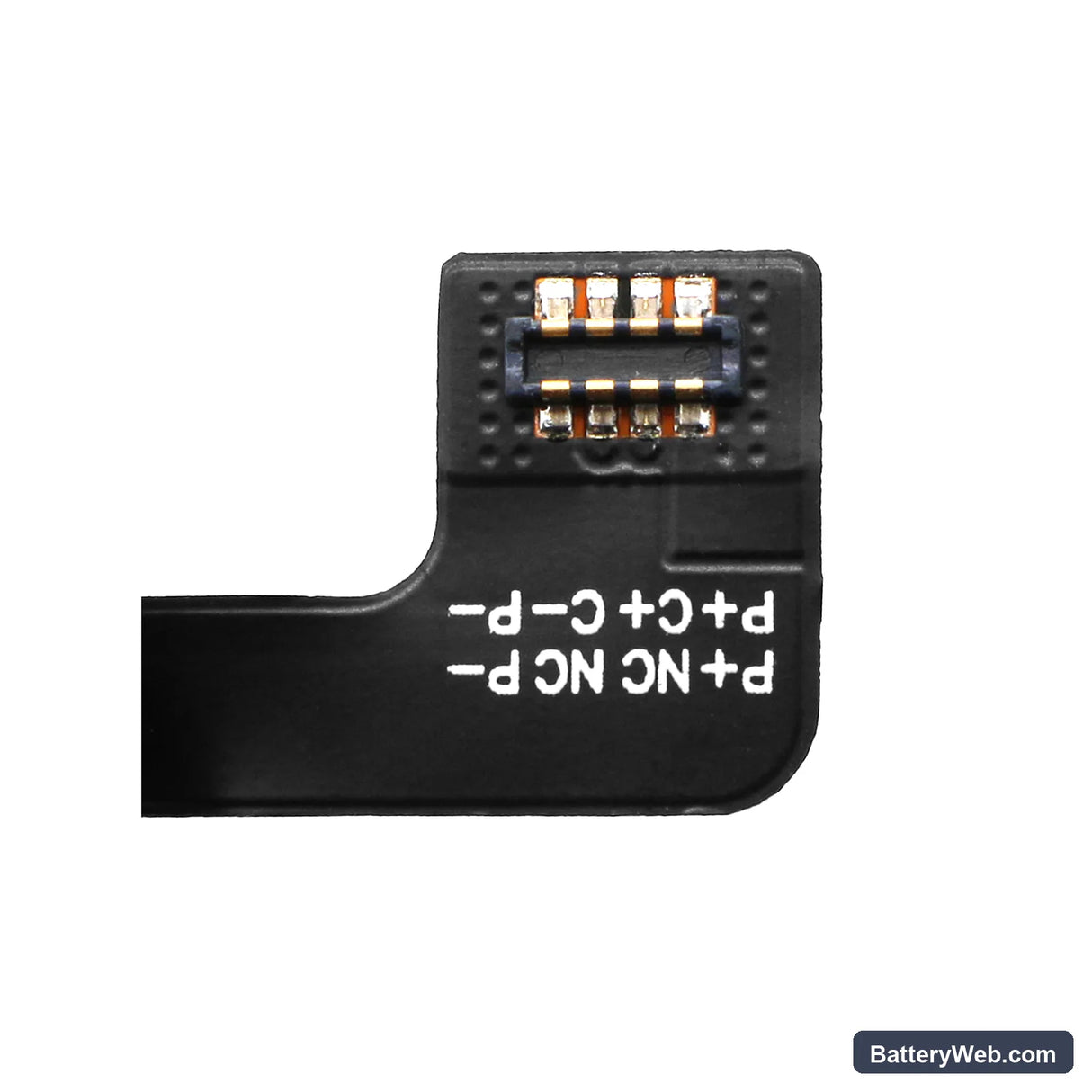

This 3.89V, 4800mAh Li-Polymer cell replaces the OEM PG50 battery in the Motorola Moto G Stylus 2023, Moto G Stylus 5G, and XT2317 variants. It slots into the same footprint at 80.70 × 58.30 × 5.60mm and connects to the same charge IC and fuel gauge circuitry as the original. Capacity is rated at 18.67Wh.

• Moto G Stylus 5G 2023 compatibility: The XT2317 platform shares a single battery connector pinout and BMS handshake voltage across the 4G and 5G Stylus 2023 variants. The 5G modem draws higher sustained current, so the cell's 4800mAh rating covers both thermal envelopes without triggering low-voltage cutoff under modem load.
• Bench tested on actual hardware: We cycled this cell through full charge and discharge on an XT2317 unit. The BMS accepted charge current cleanly, the fuel gauge reported accurate state-of-charge after one full cycle, and the protection circuit tripped correctly at the low-voltage threshold — no false cutoff events during testing.
• First-cycle calibration tip: After installation, disable fast charging in the device settings for the first complete discharge-charge cycle. The fuel gauge IC — a coulomb counter — needs one full reference cycle to map the new cell's discharge curve before high-current charging pushes current into an uncalibrated register. Skip this step and percentage readings can drift by 10–15%.

Sudden shutdown at 20–30% on the replacement cell

This is a voltage cliff issue, not a capacity defect. Under heavy load — 5G modem active, display at full brightness, stylus BLE polling — the cell voltage can sag below the BMS cutoff threshold while the fuel gauge still reads 20–30%. The fuel gauge IC is calibrated to the old cell's internal resistance curve, so it underestimates how quickly voltage drops under load on the new cell. One full discharge-charge cycle with 5G and screen active resets the coulomb counter against the actual cell curve and eliminates the phantom shutdown. If shutdowns persist after two full cycles, check that the battery connector is fully seated — a partially connected cell causes intermittent voltage dropout under load.

USB-PD fast charge not activating after cell swap

On first charge after installation, some units will not enter fast charge mode — the charger negotiates standard 5V/0.9A instead of the higher voltage profile. This happens because the charge IC re-evaluates BMS handshake parameters at power-up with a new cell attached and defaults to a conservative current limit until it completes one full charge cycle. Plug in the original Motorola charger rather than a third-party USB-PD adapter for the first charge — proprietary charge protocol recognition is more consistent with the OEM charger on cycle one. Fast charge should activate automatically from cycle two onward once the charge IC has logged a completed charge event against the new cell.
