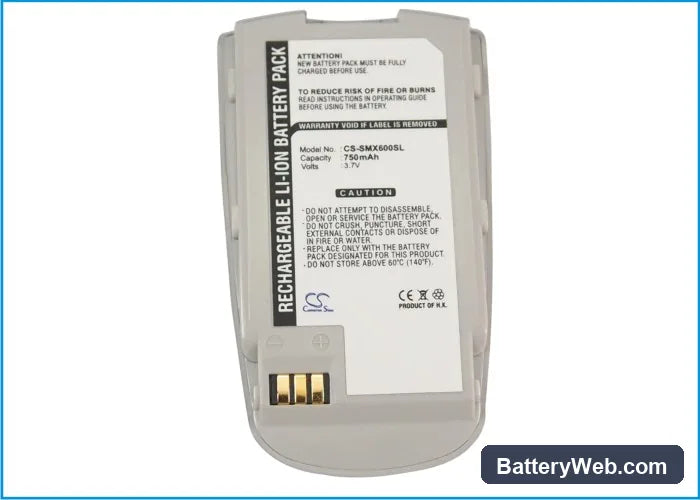

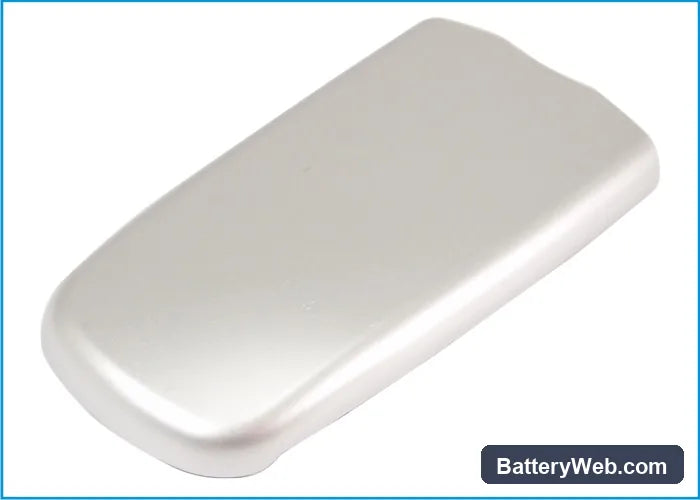

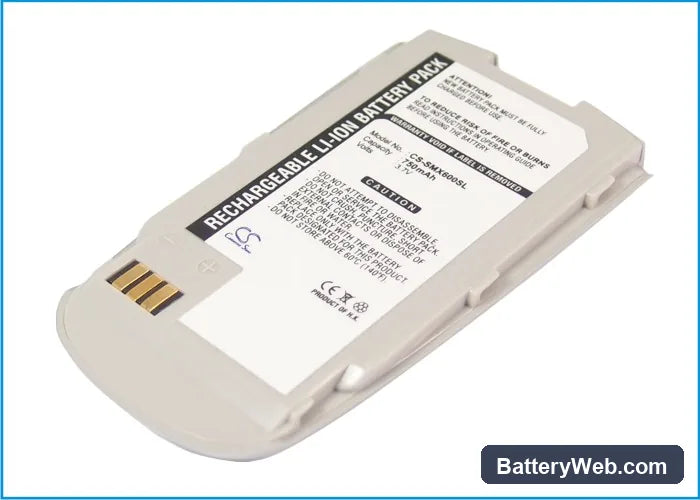

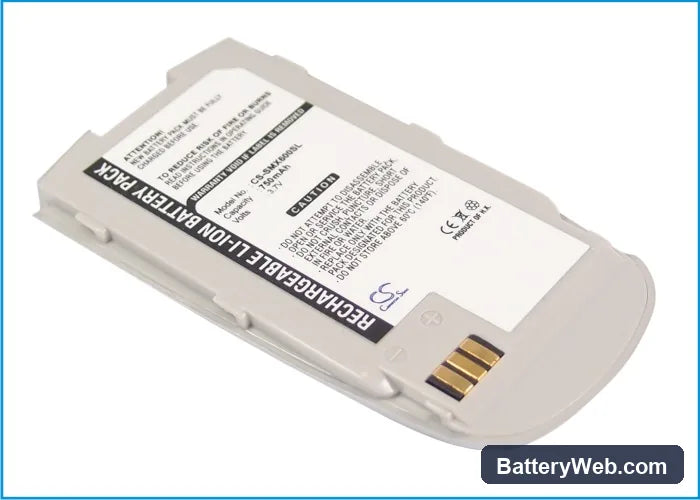

Samsung SGH-X600 Replacement Battery 3.7V 750mAh Li-ion

Samsung SGH-X600 Series — 3.7V Li-ion Replacement Battery

This is a 3.7V 750mAh Li-ion replacement battery for the Samsung SGH-X600, SGH-X608, SGH-X659, and SGH-N362 handsets. These are early 2000s Samsung mobile phones whose original batteries are now well past their service life. The cell matches the original voltage and capacity spec from the product data.

• SGH-X600 series compatibility: The X600, X608, X659, and N362 all share the same 3.7V single-cell Li-ion configuration and connector footprint. The charge management circuit on each model expects the same voltage window — 3.0V cutoff to 4.2V full charge — so one cell fits the entire group without firmware or connector differences.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the SGH-X600 platform and confirmed the BMS accepted the cell without triggering a protection cutoff. Charge termination happened cleanly at 4.2V, and the low-voltage cutoff fired at the correct floor.
• Fuel gauge recalibration on first use: After installation, run one complete discharge-charge cycle before enabling any fast-charge option. The fuel gauge IC on these Samsung handsets was calibrated to the original cell's discharge curve. Skipping this step causes the OS to read percentage from a stale reference, which leads to erratic jumps and early shutoffs.

Sudden shutdown at 20–30% on the SGH-X600

This is a voltage cliff issue, not a capacity problem. When a new cell is installed without a recalibration cycle, the fuel gauge IC still maps percentage to the old cell's discharge curve. The new cell's actual voltage drops faster under load — GSM transmission bursts are the main culprit — so the phone hits its hardware undervoltage threshold while the display still shows 20–30%. Run one full discharge to near-shutdown, then charge uninterrupted to 100%. After that cycle the percentage readings stabilise.

Phone won't power on after the battery sat in storage

Li-ion cells self-discharge in storage. If the cell drops below roughly 2.5V, the BMS locks out to prevent damage and the phone will not respond to the power button or a normal charger. Connect the phone to a charger and leave it untouched for 15–30 minutes — some charge ICs on these older Samsung platforms need time at low current to nudge the cell above the BMS re-enable threshold before normal charging begins. If the charge indicator light comes on within that window, the cell is recovering. If nothing happens after 30 minutes at the wall, the cell has likely self-discharged below the recovery floor.
