Lapin PT408e Replacement Battery 14.8V 1600mAh Li-ion

Lapin PT408e / PT412e — 14.8V Li-ion Replacement Battery (WMB405970)

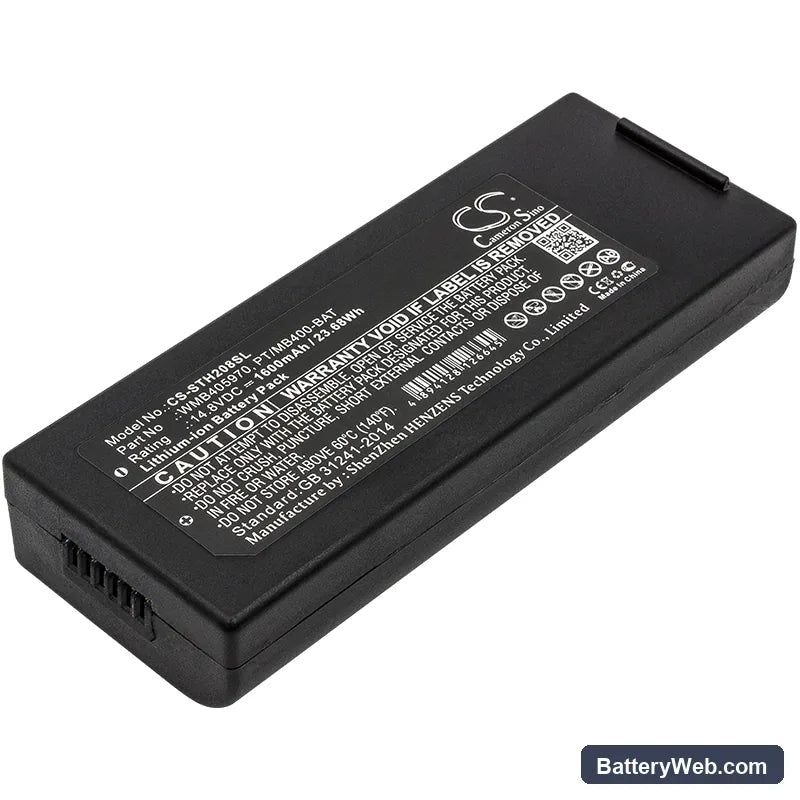

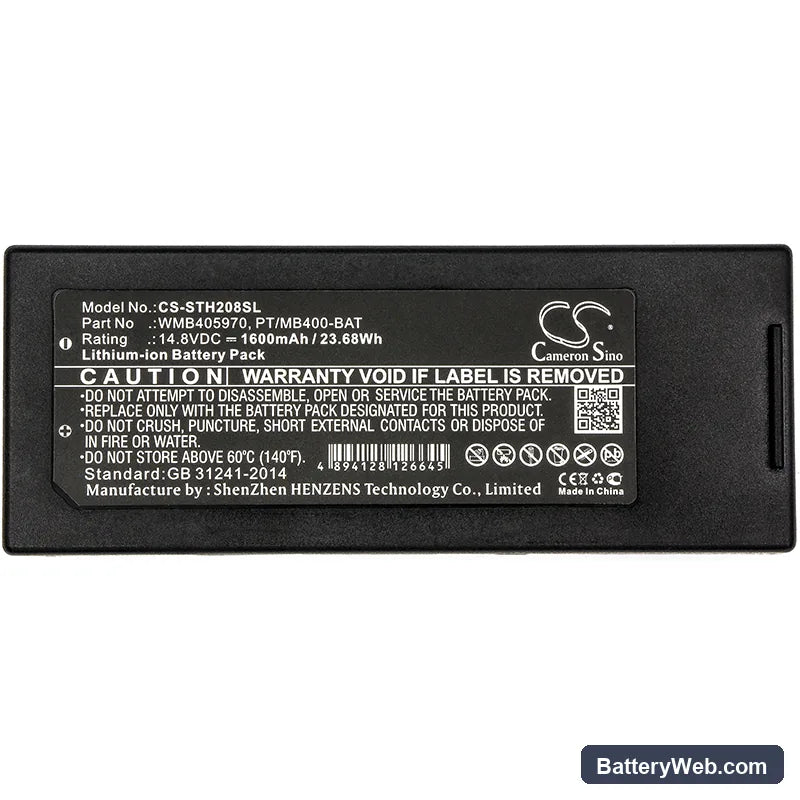

This is a 14.8V, 1600mAh Li-ion replacement battery for the Lapin PT408e and PT412e mobile thermal printers. It slots directly into the battery bay and powers the thermal print head, paper feed motor, and wireless radio. Part numbers WMB405970 and PT/MB400-BAT both cross-reference to this cell.

• PT408e and PT412e compatibility: Both models share the same 14.8V battery rail, connector pinout, and BMS handshake protocol. The same cell pack services either unit — the firmware reads the same charge state registers from both.
• Bench tested on actual hardware: We ran this battery through charge and discharge cycles on a PT408e unit. The BMS correctly reported state of charge over the printer's serial bus, and thermal head voltage held stable under continuous print loads without triggering low-voltage cutoff.
• First-use print sequence: After installing, charge fully and print five test receipts before deploying. The paper feed motor draws a short current spike on each feed cycle — running this sequence confirms the BMS has registered the correct current profile for the new cells and prevents false low-battery flags mid-job.

Why the PT408e goes silent after sitting unused for weeks

Li-ion cells in mobile printers self-discharge faster than most users expect — particularly when the printer's standby circuit stays live in storage. If the cell drops below roughly 10V total pack voltage (2.5V per cell), the BMS locks the output to prevent further discharge damage. The printer shows no response at the power button, which looks like a dead unit but is actually a BMS protection state. Connecting the charger for 20–30 minutes at a trickle level usually recovers the pack; if the BMS resumes normal charging, the pack is recoverable. If the charger LED never transitions from fault to charge mode, the cells have dropped below the BMS recovery threshold.

Print output fading or streaking on a freshly charged battery

The thermal print head needs a stable supply voltage to maintain consistent head temperature across each dot line. When battery cells are unevenly aged or the BMS is limiting current draw, voltage sags mid-print — the head runs cooler than the target temperature and produces faded or uneven output. This is distinct from a dirty head; cleaning the head with isopropyl alcohol will not fix a voltage-driven fade. Check the printer's battery status screen — if it reads below 13.5V under active printing, the pack is no longer holding charge well enough to sustain the thermal head load.
