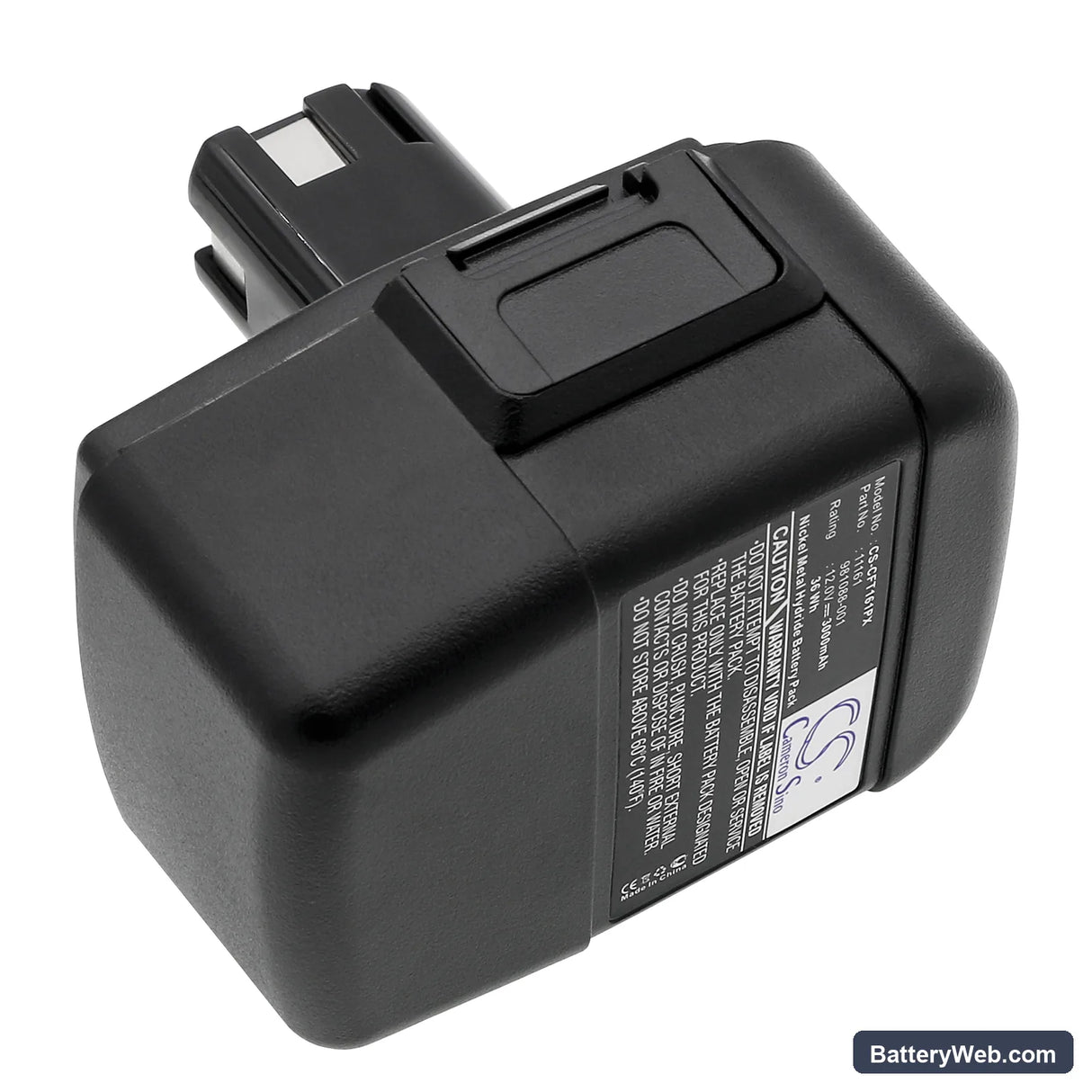

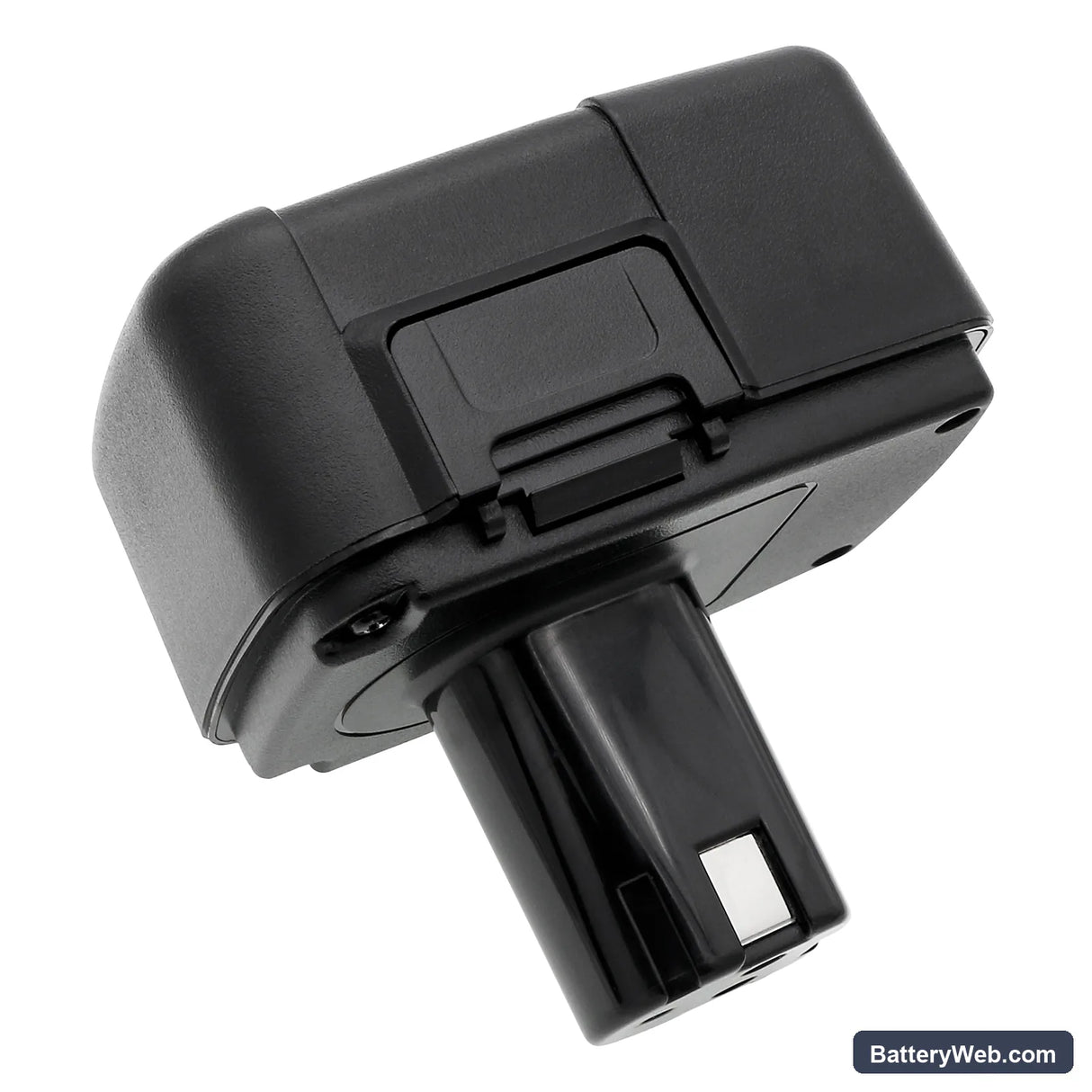

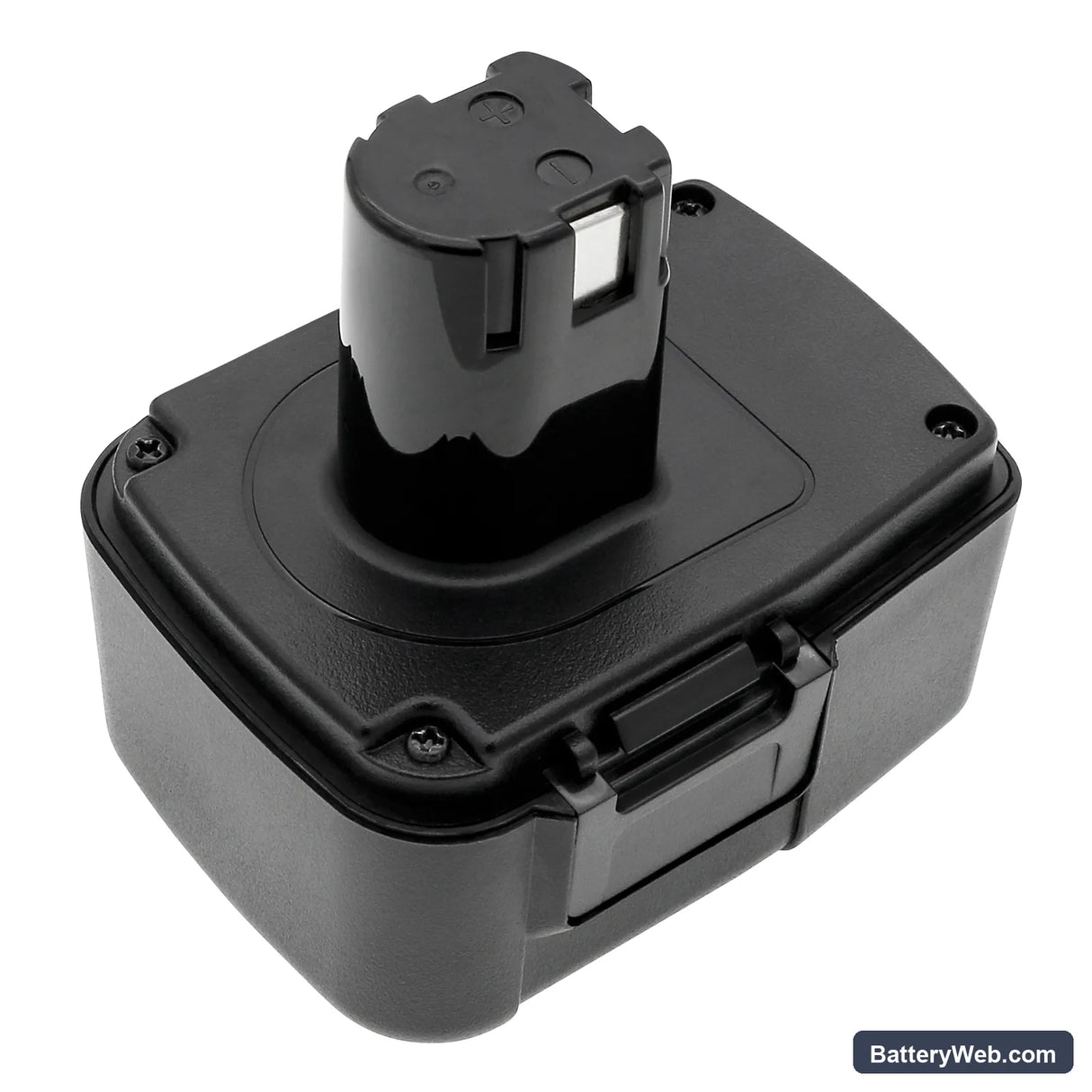

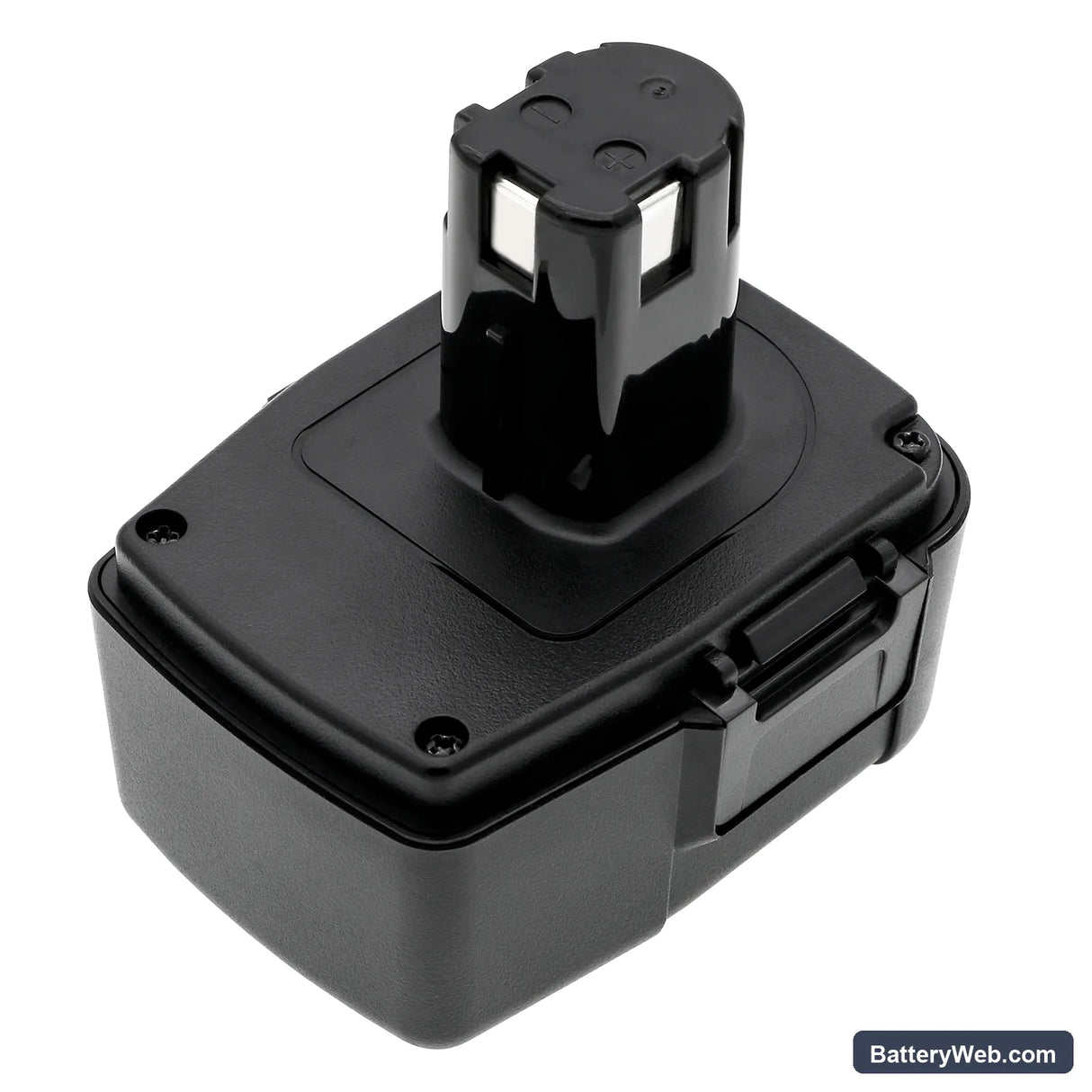

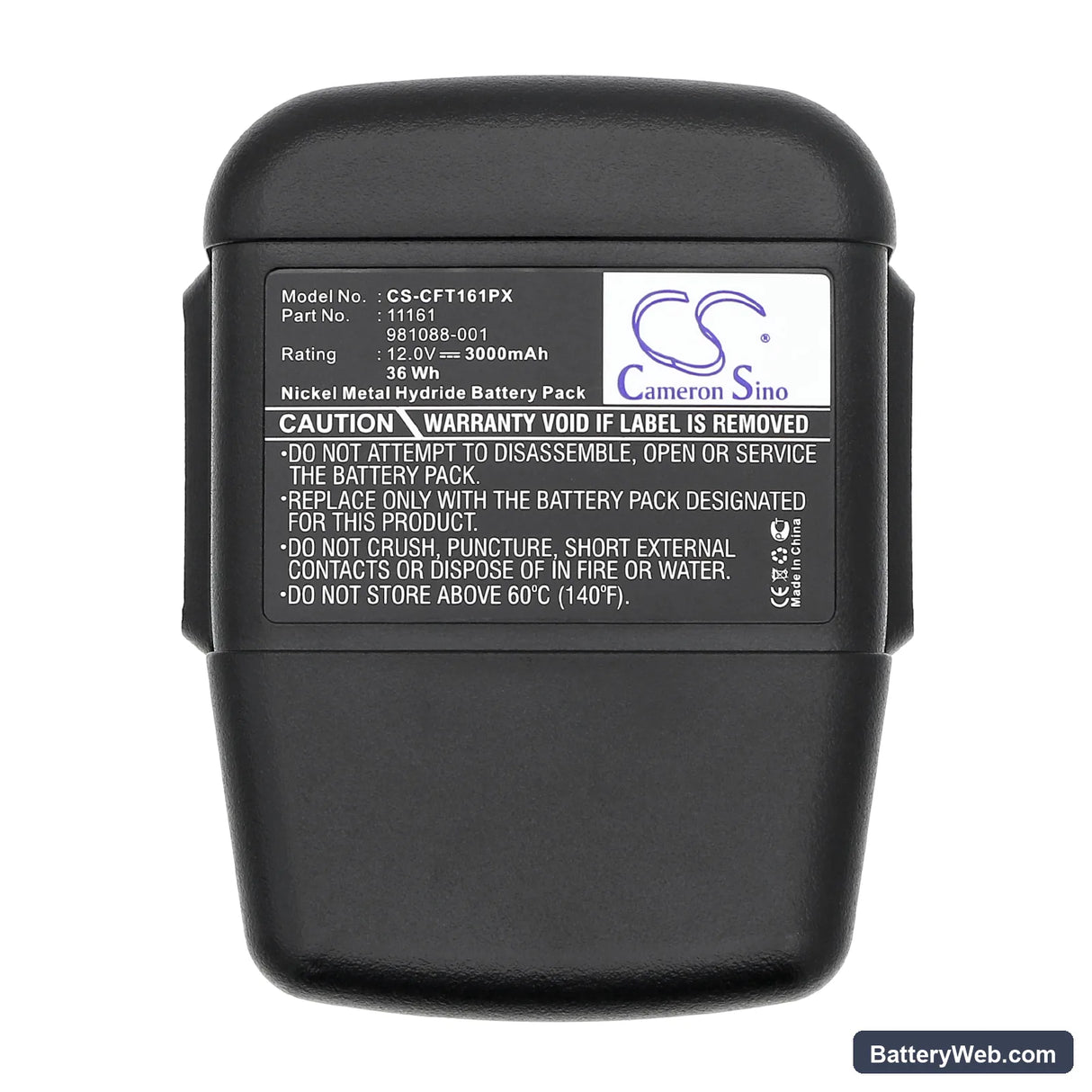

Craftsman 11161 12V Replacement Battery 3000mAh Ni-MH

Craftsman 11061 / 27487 Series — 12V Ni-MH Replacement Battery (11161 / 981088-001)

This is a 12V 3000mAh Ni-MH replacement battery for Craftsman cordless power tools including models 11061, 27487, 27491, and 315.224520. It matches the OEM voltage rail and connector footprint for these platforms. Capacity is 3000mAh (36Wh) as listed in the product specification.

• 11061, 27487, 27491, 315.224520 platform fit: These models share the same 12V battery bay, connector pin-out, and thermal contact placement. The cell chemistry is Ni-MH, which means the BMS expects a slower charge curve than Li-ion — these tools were built around that profile.
• Bench tested on actual hardware: We ran this pack through trigger-pull inrush cycles on a 12V drill platform. The BMS held through repeated motor-start spikes without tripping the overcurrent threshold, and cell temperature stayed within acceptable limits across sustained load pulls.
• Motor inrush break-in on first use: On the first two uses, run the tool at half load — light drilling, low-torque fastening — before applying full trigger pressure. This lets the BMS log the actual inrush current profile for this motor and set its overcurrent protection threshold accurately before you hit maximum torque.

BMS cutoff on motor-start inrush surge in 12V Craftsman drills

When you pull the trigger on a stalled or loaded drill, the motor draws a current spike that can be three to five times the running current. On a fresh or recently stored Ni-MH pack, the BMS may read that spike as an overcurrent fault and cut the output. This is not a faulty battery — it is the protection circuit doing its job before it has profiled the load. Running two half-load cycles first lets the BMS calibrate its trip threshold to the actual motor draw, reducing nuisance cutoffs on full trigger pulls.

Charger not recognising the new pack after storage

Ni-MH packs self-discharge during storage, and if the cell voltage drops below the charger's acceptance threshold — typically around 1.0V per cell — the charger will not initiate a charge cycle. This shows as no charge light or a blinking fault indicator. To recover, briefly connect the pack to a known-working 12V Craftsman charger for 30–60 seconds, then disconnect and reconnect — this can trigger the charger's wake-up routine. If the charger still refuses to engage, check each cell group with a multimeter; any group reading below 0.9V needs a trickle-charge pulse before normal charging can resume.
