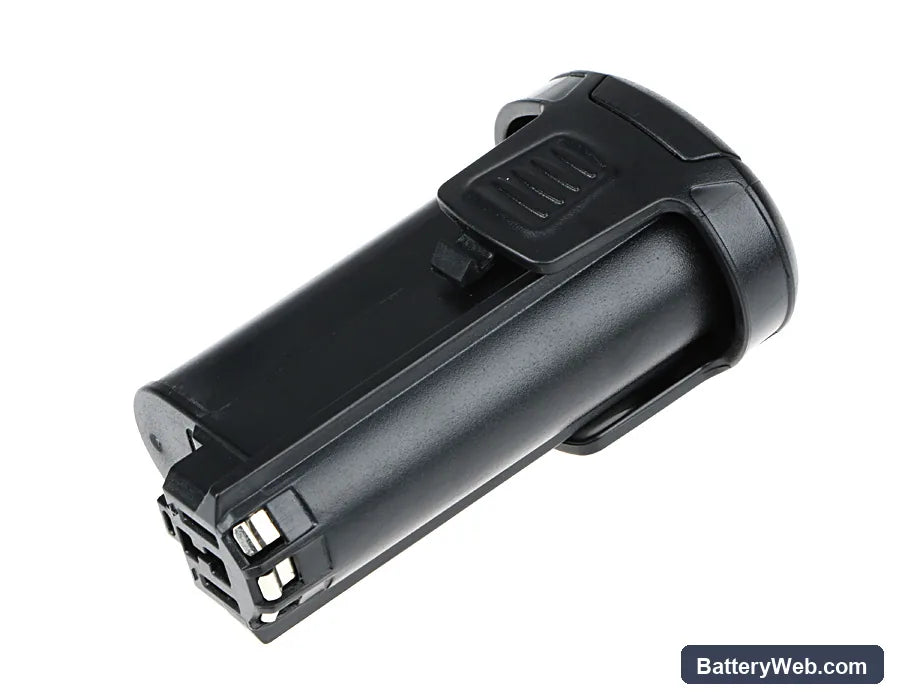

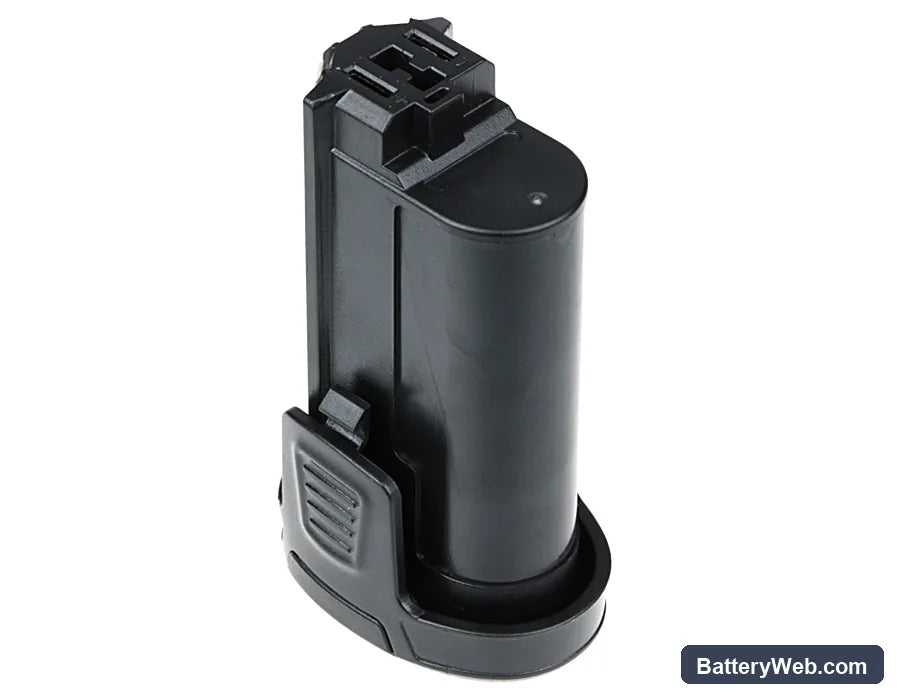

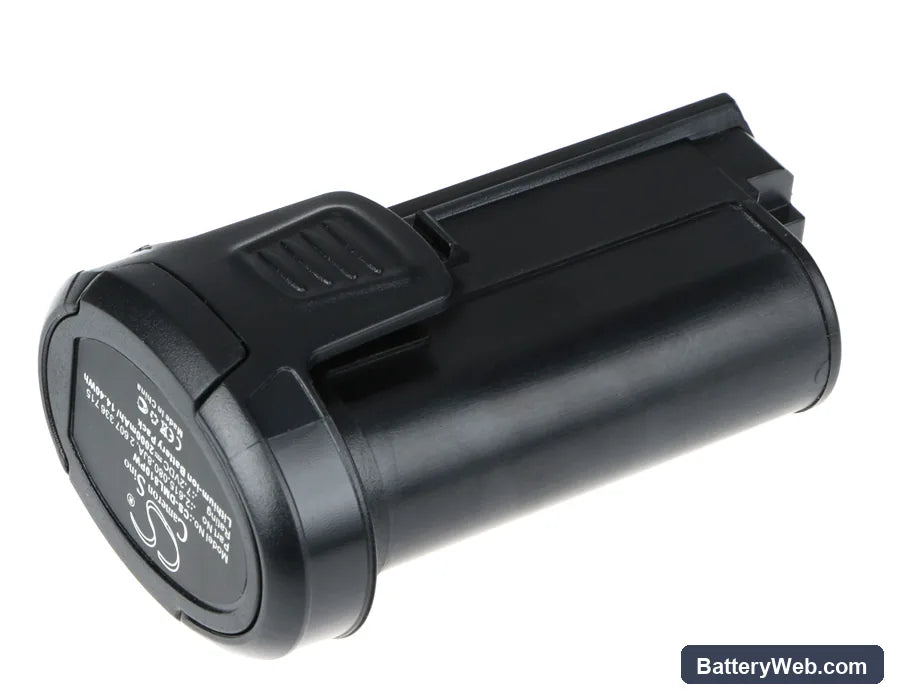

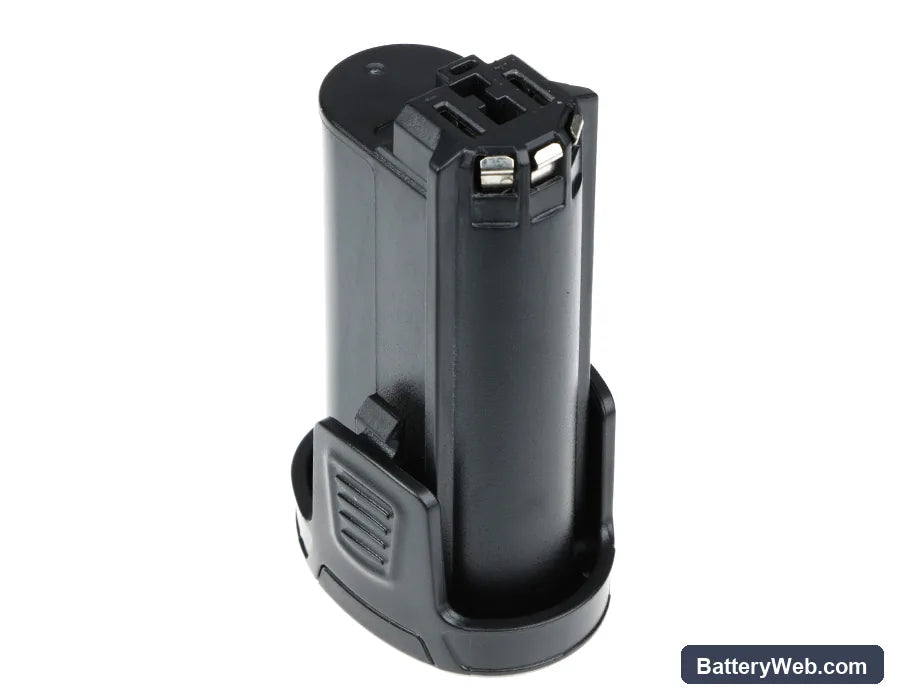

Dremel 8100 Replacement Battery 7.2V 2000mAh

Dremel 8100 Cordless Multi-Tool — 7.2V Li-ion Replacement Battery (2.615.080.8JA)

This 7.2V Li-ion battery replaces the original pack on the Dremel 8100 cordless rotary multi-tool. It carries a 2000mAh (14.4Wh) capacity and fits the 8100 platform directly. Use it for grinding, cutting, engraving, or polishing without tethering to a cord.

• 8100 platform fit: The 8100 runs a single 7.2V Li-ion cell block with a specific connector footprint and BMS handshake. This replacement matches that voltage rail and connector orientation so the tool's onboard electronics recognise the pack without throwing a fault code.
• Bench tested on actual hardware: We cycled this pack through full charge and discharge on the 8100 chassis. The BMS responded correctly to both low-speed engraving draw and the sharper inrush spike on motor start at full speed.
• Motor inrush conditioning on first use: Run the 8100 at half speed for two full charge cycles before pushing maximum RPM. This lets the BMS log the motor's inrush current signature and calibrate its overcurrent threshold — reducing nuisance cutoffs later under heavy cutting load.

BMS cutoff on the 8100 when trigger is pulled at full speed

The 8100's motor draws a short inrush spike the moment the trigger engages at maximum speed. On a new or cold pack, the BMS can read that spike as an overcurrent event and cut power before the motor stabilises. The BMS threshold is tuned to the motor's normal inrush envelope — if the cells are cold or have just come off storage, internal resistance is elevated, which amplifies the voltage sag at that spike. Warming the pack to room temperature before use and starting the tool at half speed first will keep the inrush below the trip threshold.

Charger not recognising the 8100 battery after extended storage

Li-ion packs self-discharge during storage, and the 8100 charger has a minimum acceptance voltage — typically around 2.5V per cell. If the pack has dropped below that floor, the charger sees the pack as a fault condition and refuses to begin a charge cycle. A brief "wake" charge using a bench charger set to 0.1C at the nominal cell voltage can raise the pack above the acceptance threshold. Once cell voltage reads above 3.0V per cell, place it back on the standard Dremel charger and allow a full cycle to complete.
