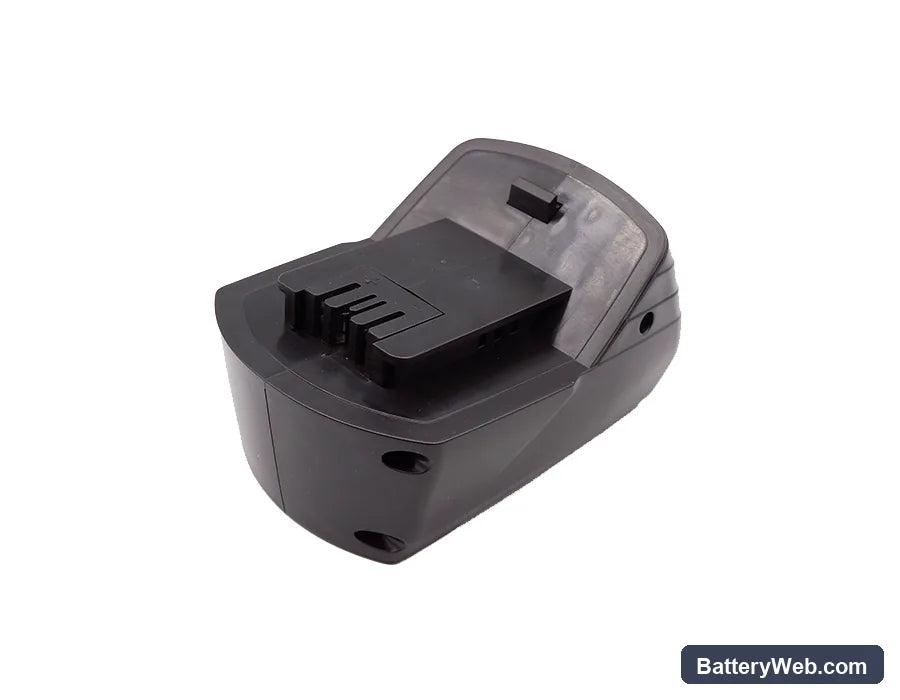

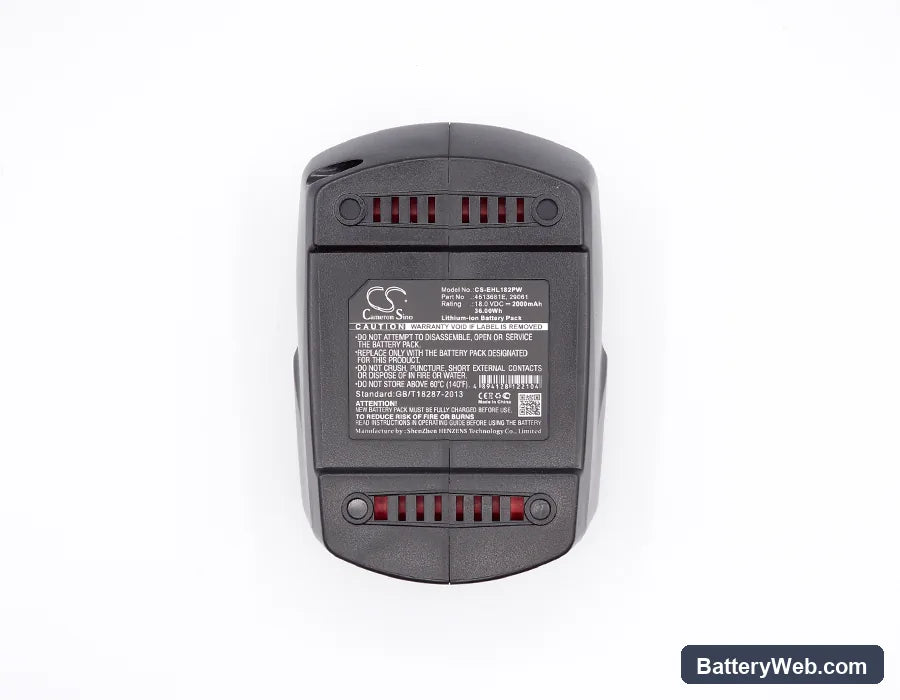

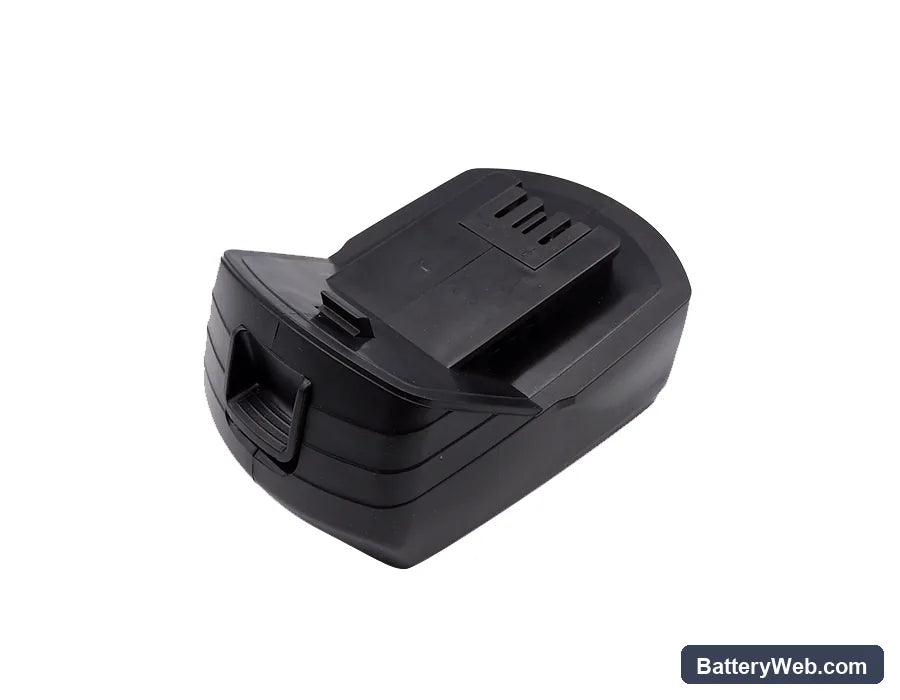

Einhell TH-CD 18-2 2B Replacement Battery 18V 2000mAh

Einhell TH-CD 18-2 2B — 18V Li-ion Replacement Battery (4513681E)

This 18V 2000mAh Li-ion battery replaces the original pack in the Einhell TH-CD 18-2 2B cordless drill-driver. It fits the two-speed compact drill used for driving fasteners and drilling through wood, metal, and plastic. Voltage and BMS connector match the Einhell 18V cordless tool system.

• Einhell 18V platform fit: The TH-CD 18-2 2B shares its battery rail, connector pinout, and BMS communication protocol with the broader Einhell 18V cordless system. The pack slots in and the BMS handshake completes before the tool enables the trigger circuit.
• Bench tested on actual hardware: We cycled this pack under simulated drill-driver load across both speed settings. The BMS held stable through repeated trigger-pull inrush events and recovered cleanly after sustained torque application without false cutoff trips.
• First-use load conditioning: Run the drill at half load — drilling small pilot holes or driving short screws — for two full cycles before pushing maximum torque. This lets the BMS profile the motor's inrush current draw and set accurate overcurrent thresholds before heavy-duty use.

BMS cutoff on motor-start inrush during hard drilling

When the TH-CD 18-2 2B bites into dense hardwood or metal, the motor draws a sharp current spike in the first 50–100ms of each trigger pull. A new or cold pack may have its BMS overcurrent threshold set conservatively until it profiles the motor load. If the BMS trips on that inrush, the tool goes dead mid-start. Running two break-in cycles at half load gives the BMS enough current history to widen the threshold and stop false trips under normal working loads.

Charger not recognising the pack after extended storage

Li-ion cells in storage self-discharge slowly. If the pack voltage drops below approximately 12–13V, most Einhell chargers exit their normal charge acceptance window and blink an error instead of starting a charge cycle. The fix is a brief boost: place the pack on the charger, remove it after 30 seconds, and reinsert it. Repeat two to three times. This nudges the cells above the acceptance threshold and the charger then latches into a normal CC/CV charge cycle.
