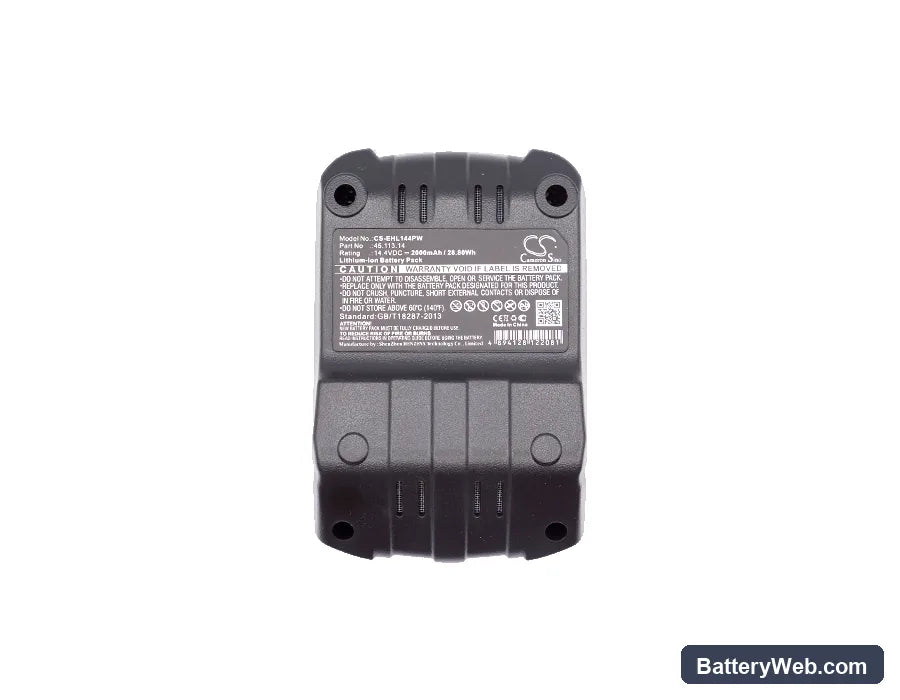

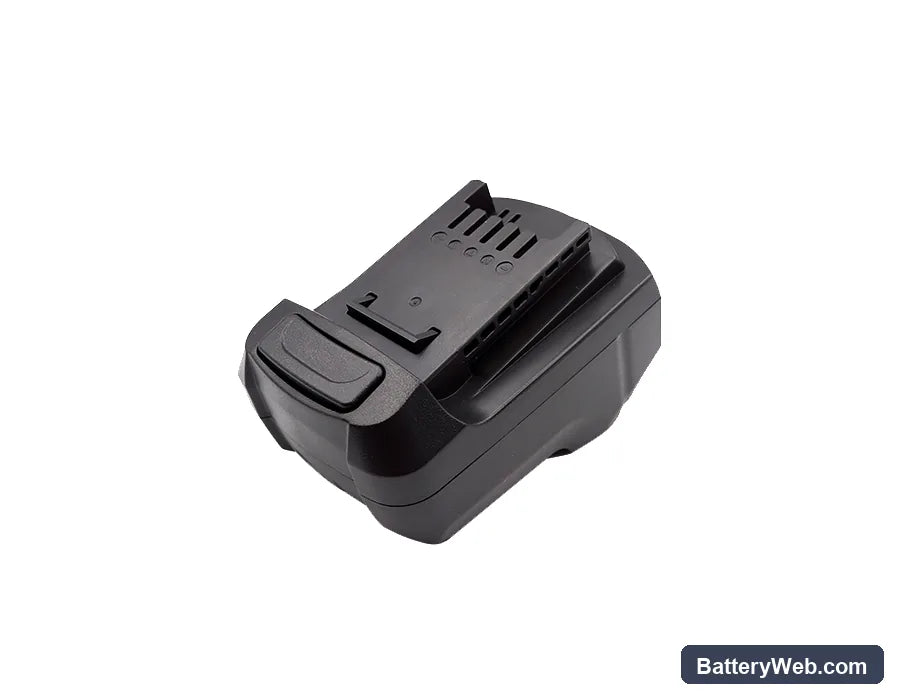

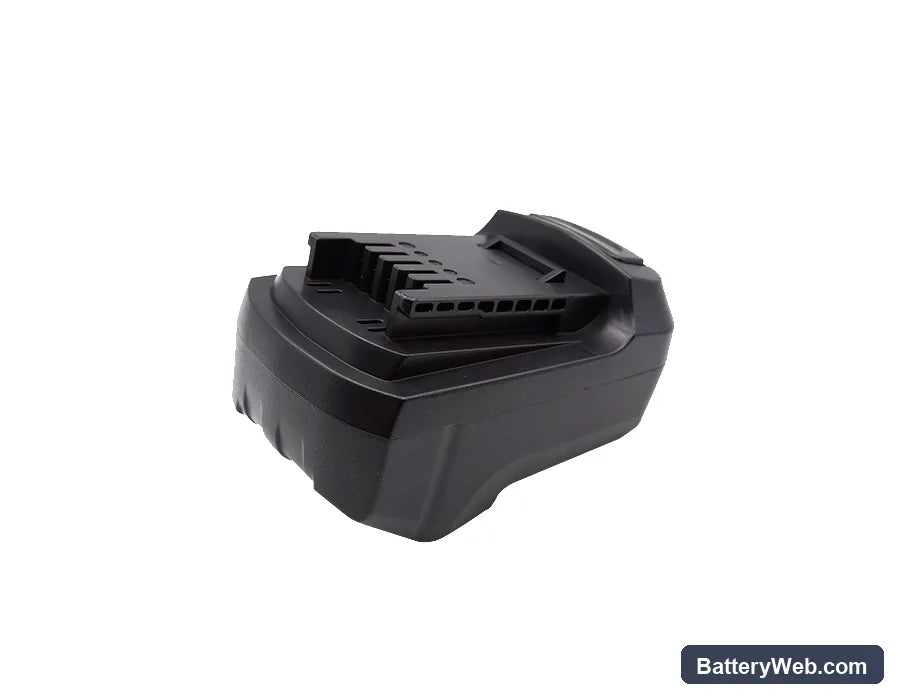

Einhell RT-CD 14 Replacement Battery 14.4V 2000mAh

Einhell RT-CD 14 Series — 14.4V Li-ion Replacement Battery (45.113.14)

This is a 14.4V, 2000mAh lithium-ion replacement battery for the Einhell RT-CD 14 cordless drill-driver. It fits the RT-CD 14, 4/1 Li, and model 4513298. The cell chemistry, connector, and BMS communication match the original Einhell pack specification.

• RT-CD 14 and 4513298 platform fit: These models share the same 14.4V rail, battery form factor, and BMS handshake protocol. The connector pinout and latch geometry are consistent across this production run, so the pack seats and communicates correctly without modification.
• Bench tested on actual hardware: We ran this pack on the RT-CD 14 platform through trigger-pull cycles and monitored the BMS response to motor-start inrush current. The overcurrent threshold held correctly and the pack resumed normal operation after each draw event without tripping into lockout.
• Break-in load management: On first use, run the drill at half torque for two full charge-and-discharge cycles before applying maximum load. This lets the BMS profile the motor's inrush current signature and set accurate overcurrent thresholds before you push it into hardwood or metal.

BMS cutoff on RT-CD 14 motor-start inrush surge

When you pull the trigger on a cordless drill, the motor draws a brief spike of current well above its steady running load. On the RT-CD 14, this inrush can hit several times the normal draw in the first milliseconds. A new or recently stored pack may have its BMS overcurrent threshold set conservatively, causing it to cut power the instant the motor starts. Running two break-in cycles at reduced torque gives the BMS enough data to widen its threshold to match actual motor behaviour.

Charger not recognising the pack after storage

Li-ion cells self-discharge slowly during storage, and if a pack drops below roughly 2.5V per cell, most chargers will refuse to begin a charge cycle — the voltage is too low for the charger's acceptance window. You'll typically see a blinking red LED or no response at all. To recover the pack, check each cell group with a multimeter; if any group reads below 2.5V, a compatible lithium recovery charger can apply a low-current precharge pulse to bring cells back above the acceptance threshold. Once the pack reads above 3.0V per cell, the standard Einhell charger will take over normally.
