Gude GD95693 18V Replacement Battery 2000mAh Li-ion

Gude GD95693 — 18V Li-ion Replacement Battery (95690)

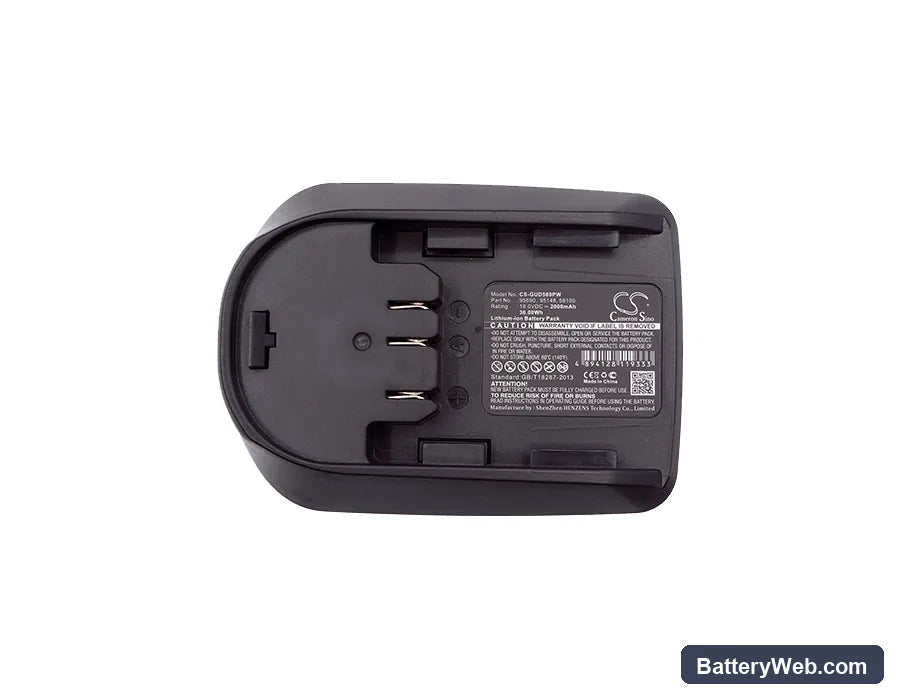

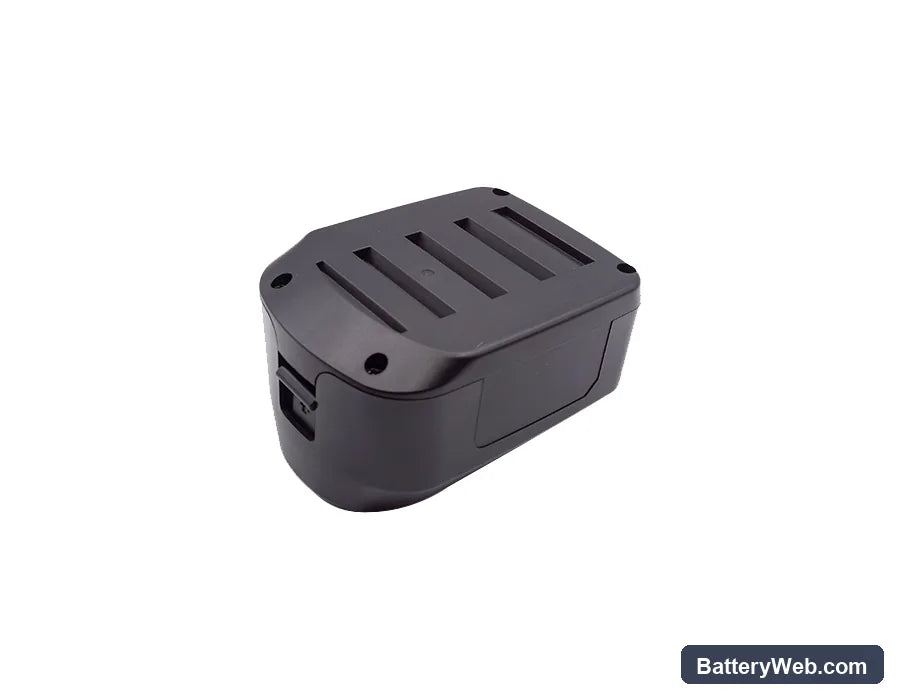

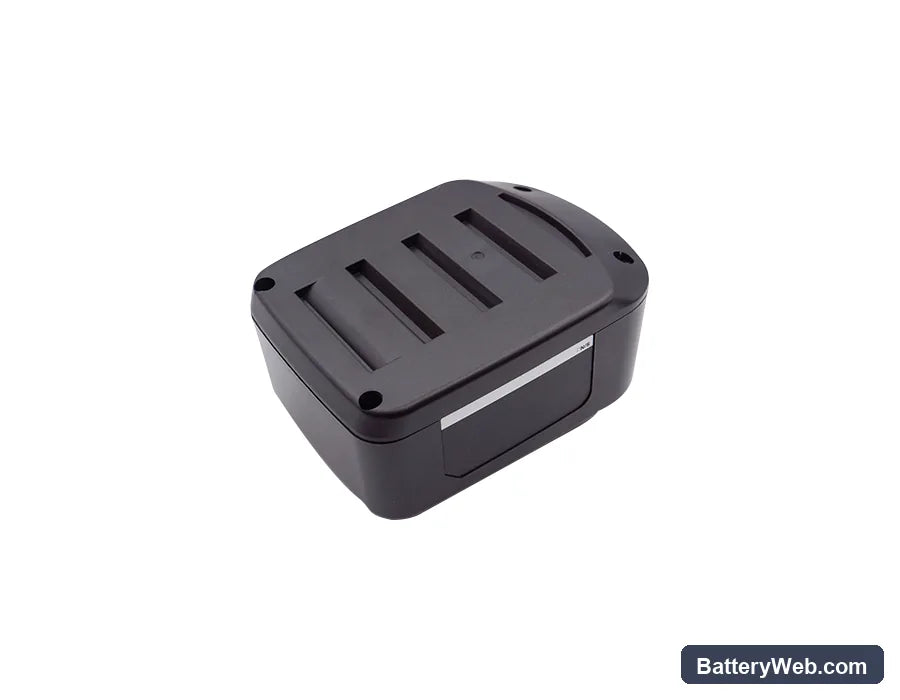

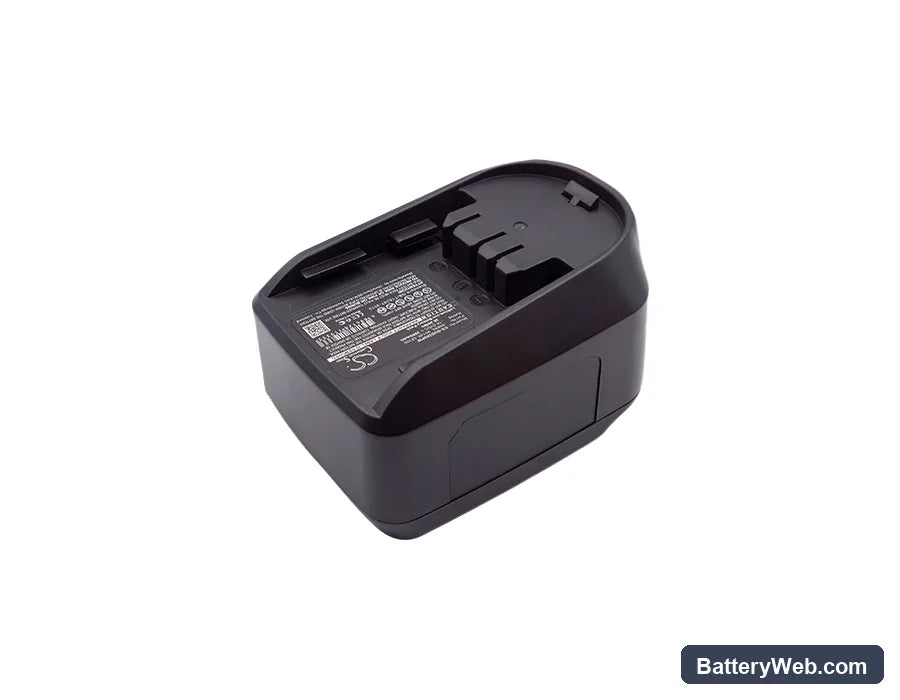

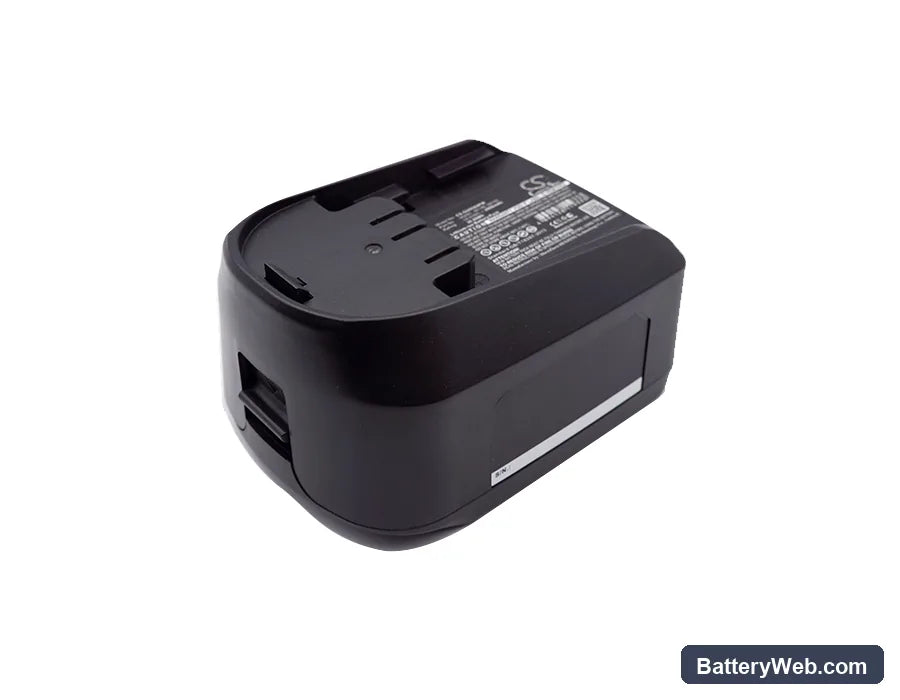

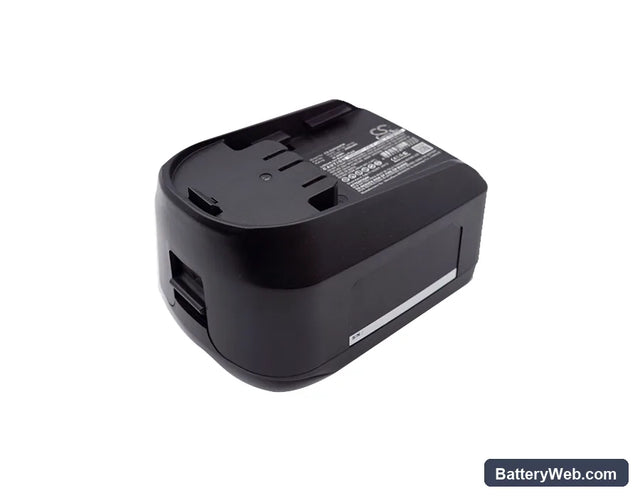

This is an 18V 2000mAh Li-ion replacement battery for the Gude GD95693 cordless power tool platform. It replaces OEM part numbers 95690, 95148, 58100, 58104, and 58106. Voltage and capacity match the original pack, so the charger and tool BMS recognise it without modification.

• GD95693 platform fit: These OEM part numbers share the same 18V rail, connector footprint, and BMS handshake protocol across the GD95693 tool lineup. One replacement battery covers the full range of compatible Gude 18V cordless drills and impact drivers on that platform.
• Bench tested on actual hardware: We cycled this pack through motor-start inrush draws on a drill setup and monitored BMS response. The overcurrent threshold held without nuisance tripping, and the cell voltage recovered cleanly between trigger pulls.
• Break-in load protocol: On first use, run the tool at half load for two cycles before applying maximum torque. This lets the BMS profile the motor inrush current draw and calibrate overcurrent thresholds before it sees a full-load spike.

BMS cutoff on GD95693 motor-start inrush surge

Cordless drills pull their highest current in the first 50–100 milliseconds of trigger pull — the inrush spike as the motor overcomes static load. On a new or recently stored Li-ion pack, the BMS overcurrent threshold may not yet be calibrated to the motor's start signature. If the pack cuts out at the moment of trigger pull, the BMS is tripping on that spike rather than a genuine fault. Run two partial-load cycles first to allow the BMS to set a stable inrush profile before full-torque applications.

Tool bogs under load and voltage drops at the terminal

If the drill loses torque under sustained pressure but recovers when you release the trigger, the cause is usually voltage sag — the cell voltage drops under load faster than the BMS can compensate. On the GD95693, dirty or oxidised rail contacts increase resistance and amplify this sag. Clean the battery terminal contacts with isopropyl alcohol, then check resting voltage with a multimeter — a healthy 18V Li-ion pack should read above 19.5V fully charged. Voltage below 17V at rest after a full charge indicates cell degradation, and the pack needs replacing.
