Kobalt K18LD-26A — 18V Li-ion Replacement Battery (616300)

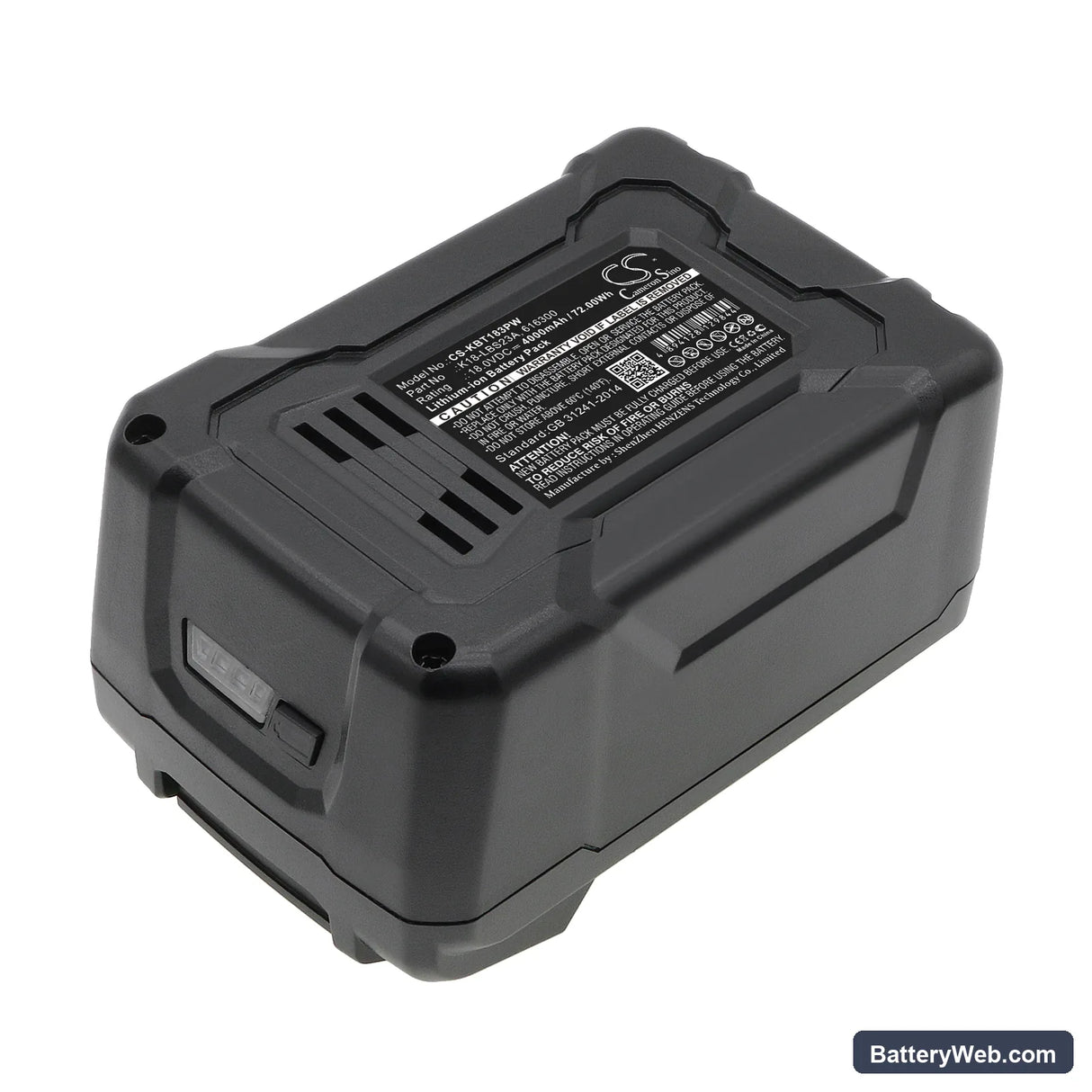

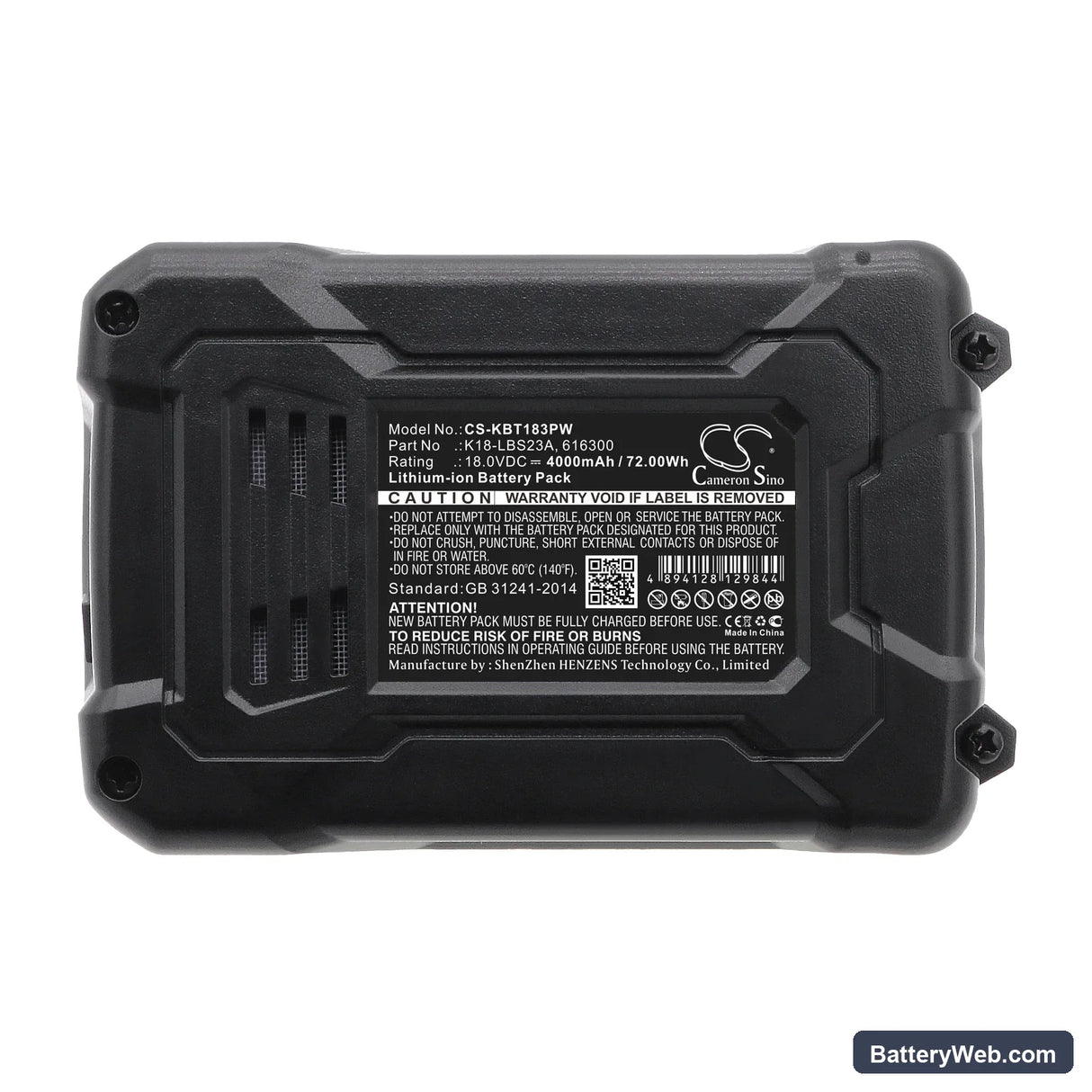

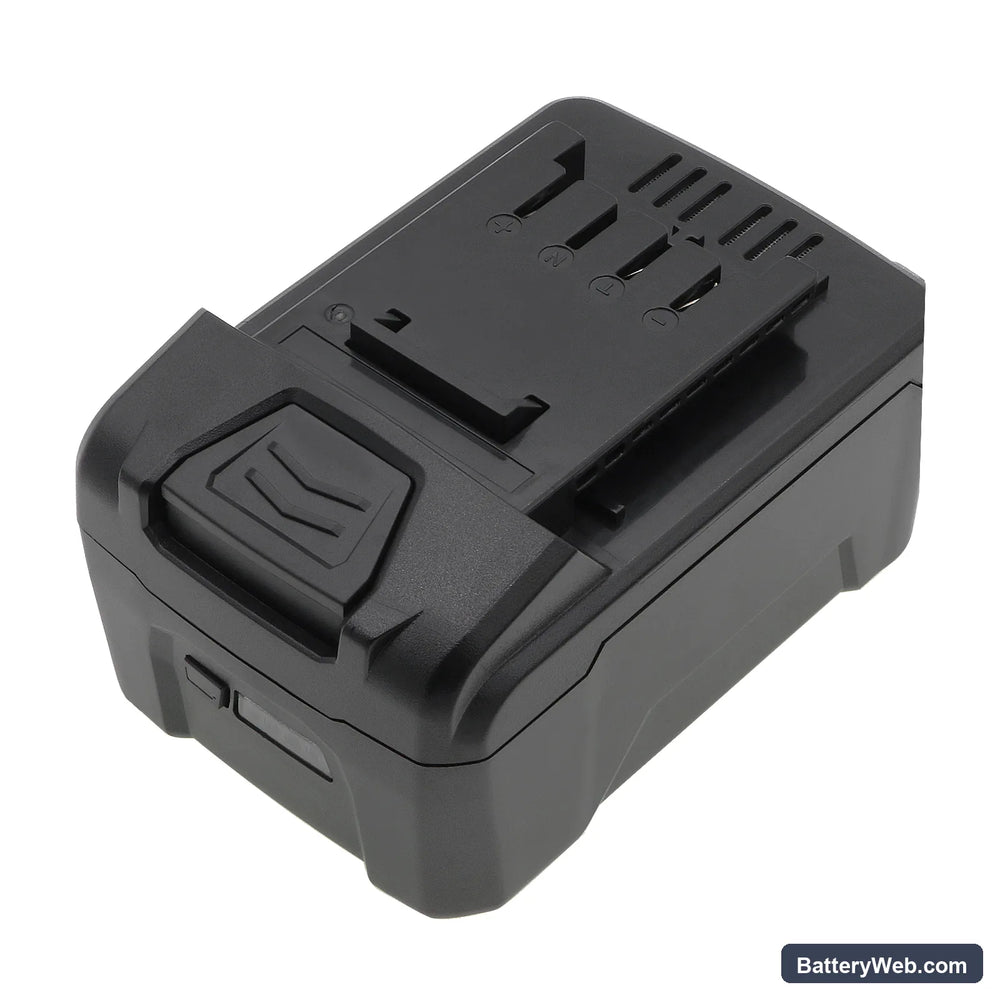

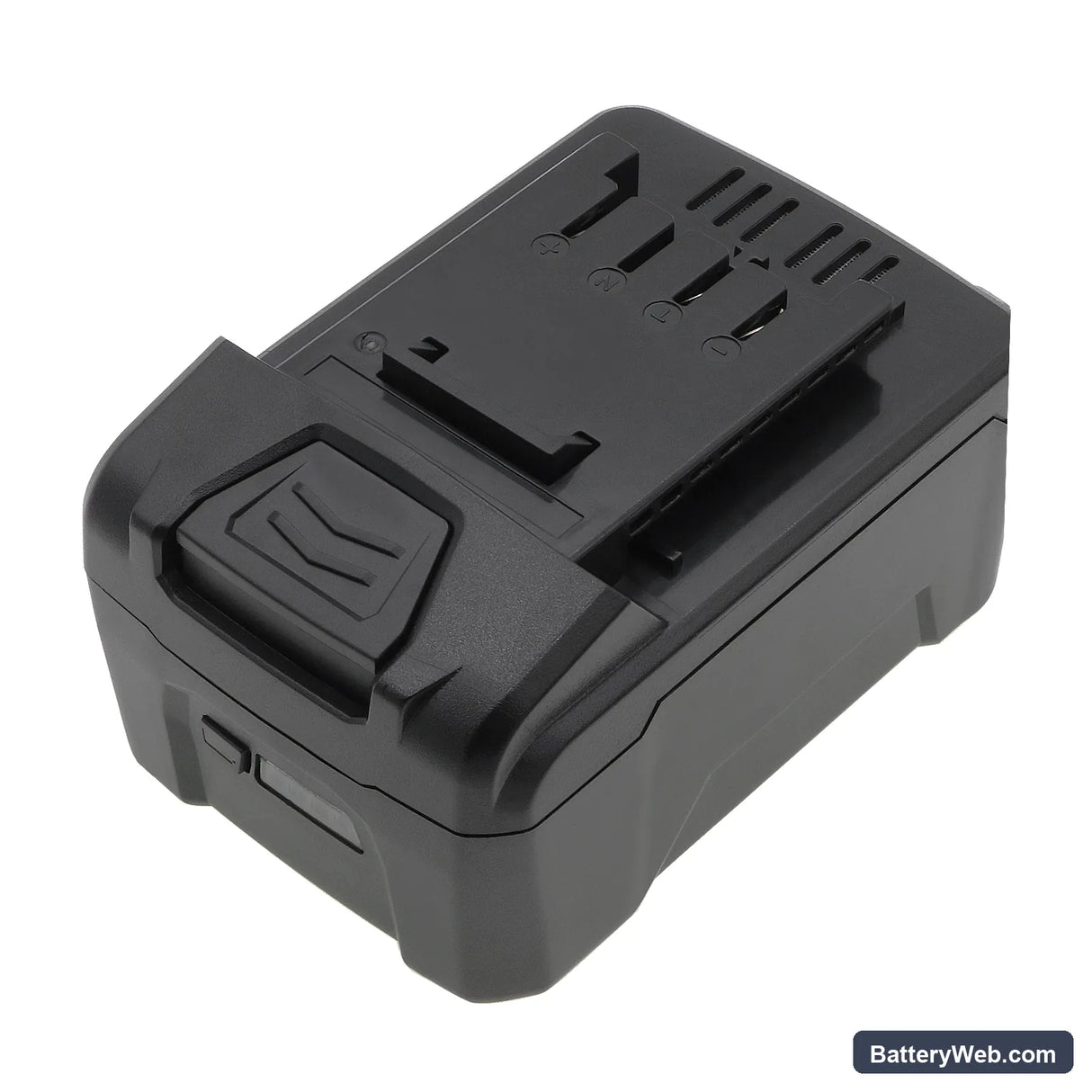

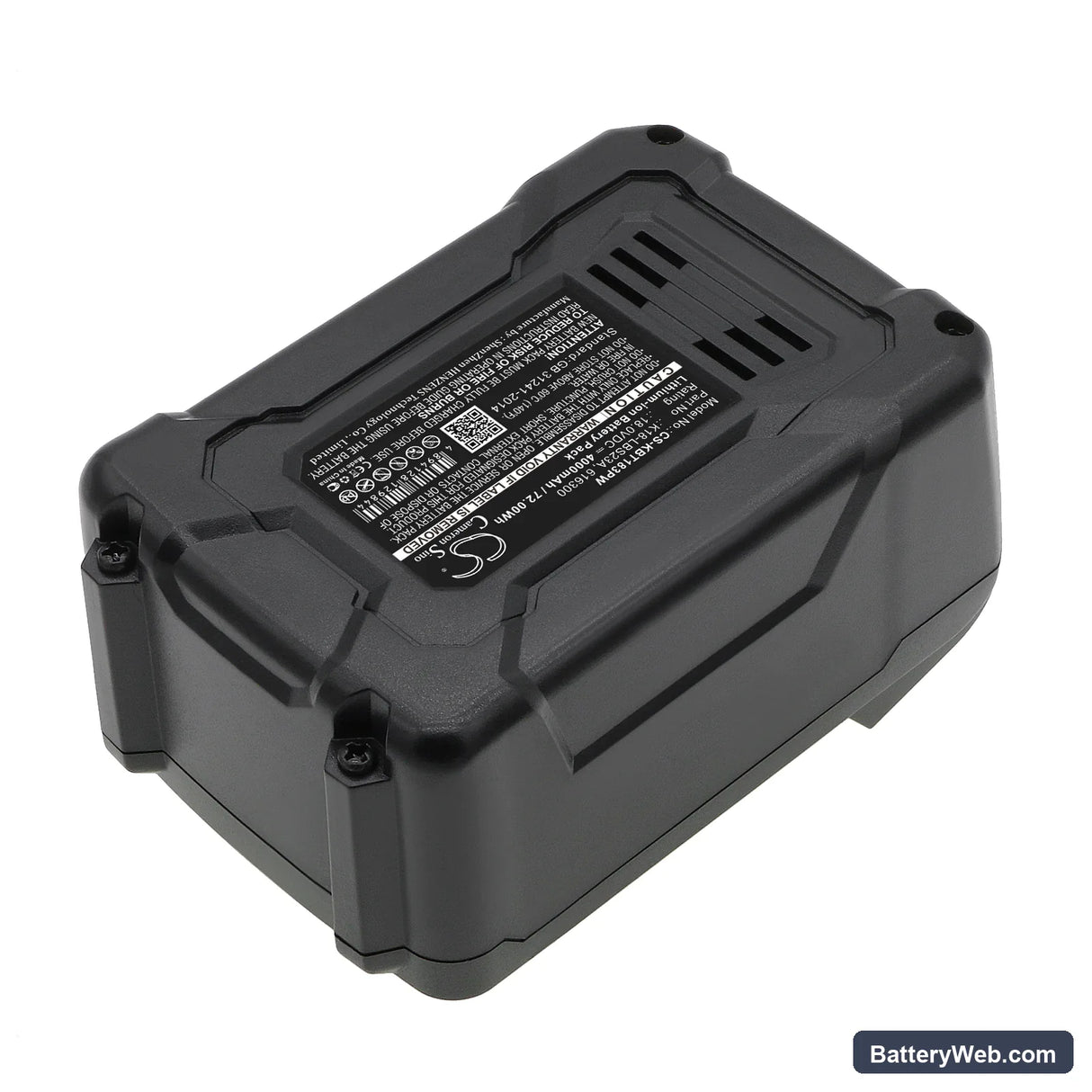

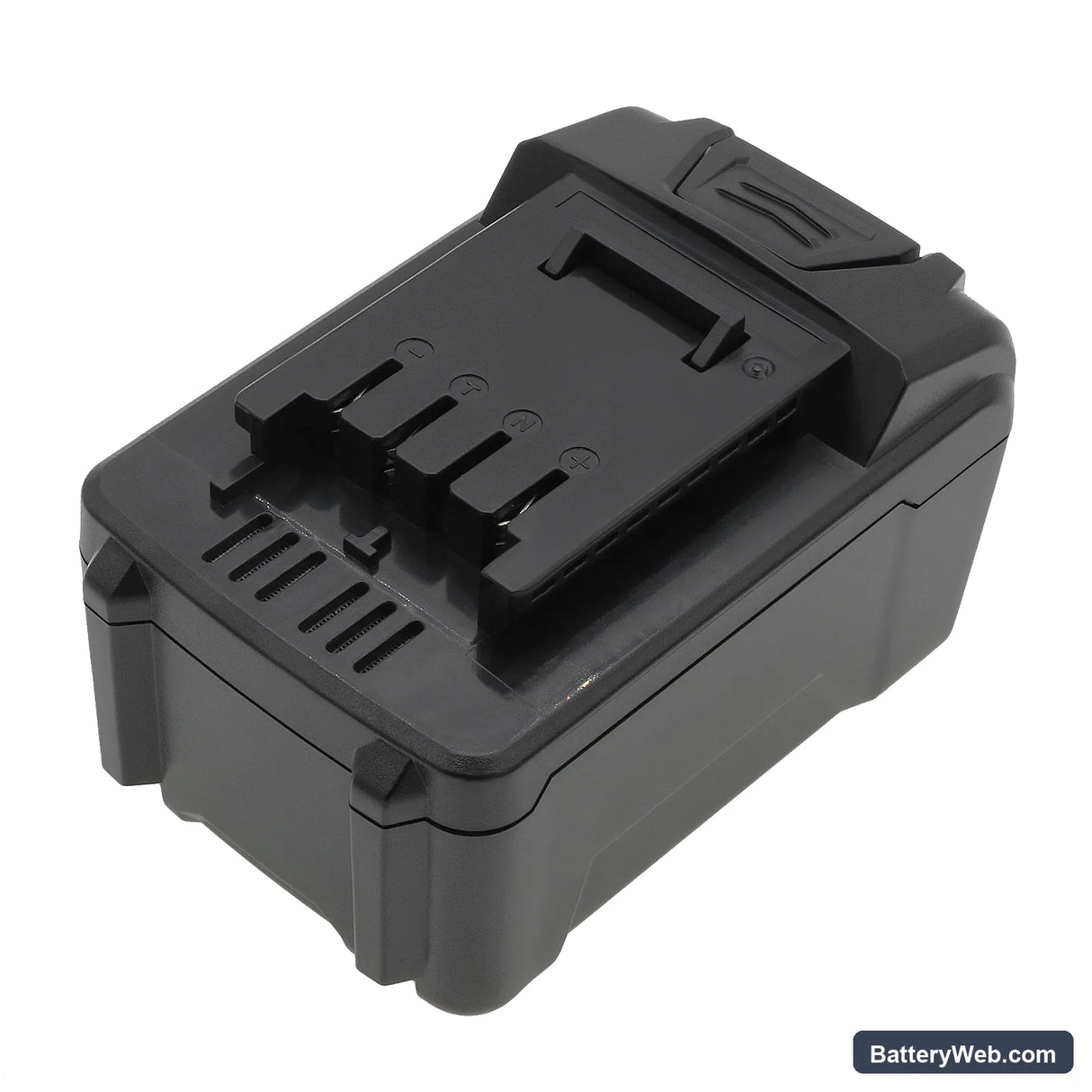

This is an 18V, 4000mAh (72Wh) Li-ion replacement battery for the Kobalt K18LD-26A cordless drill and compatible 18V Kobalt power tools. It uses OEM part number 616300 and K18-LBS23A as cross-reference identifiers. Swap it in when your original pack can no longer hold a working charge through a full job.

• Kobalt 18V platform fit: The K18LD-26A shares a common 18V battery rail and connector format with other Kobalt 18V tools. The cell configuration matches the OEM voltage curve, so the charger handshake and BMS communication run the same as the original pack.
• Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the K18LD-26A platform. The BMS held overcurrent protection thresholds through repeated motor-start inrush draws and did not trip under standard drill and driver loads.
• Break-in load sequence: On first use, run the tool at half load for two cycles before applying full torque. This lets the BMS log the motor's inrush current signature and calibrate overcurrent thresholds before you push the pack hard.

BMS cutoff on drill motor-start inrush surge

When you pull the trigger on a cordless drill, the motor draws a current spike in the first few milliseconds — often two to three times the running current. A freshly installed or recently stored battery may have its BMS protection threshold set conservatively, causing it to interpret this spike as a fault and cut the output. This is not a defective battery. Let the pack sit on the charger until the indicator shows full, then run the tool at low speed before going to full trigger. After one or two cycles, the BMS recalibrates and the cutout stops.

Charger blinking red and refusing to accept the new pack

Kobalt 18V chargers reject packs where any cell group has dropped below the charger's acceptance threshold — typically around 2.5V per cell. This happens when a battery has been stored discharged for an extended period. If the charger blinks red immediately and never begins a charge cycle, the pack's resting voltage is too low for the charger to engage. Connect the battery and leave it on the charger for 20–30 minutes anyway — some chargers include a trickle pre-charge mode that will bring cells back above the acceptance floor before switching to the main charge algorithm. If the charger still shows red after 30 minutes, measure the pack terminal voltage with a multimeter; it should read at least 15V across the 18V rail to trigger normal charging.
