IBM N6210 RAID Controller Replacement Battery 7.2V 6800mAh

IBM N6210 — 7.2V Li-ion Replacement Battery

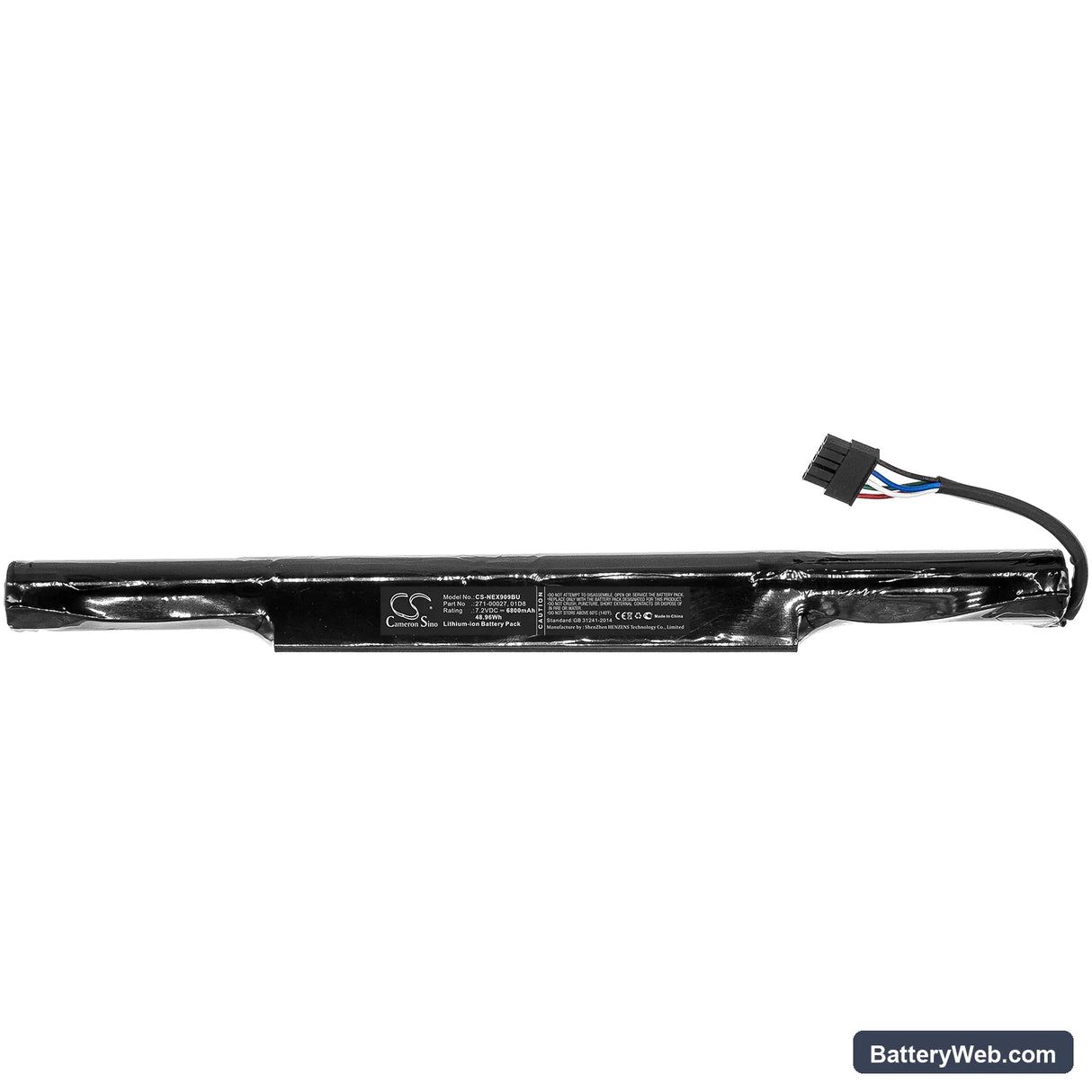

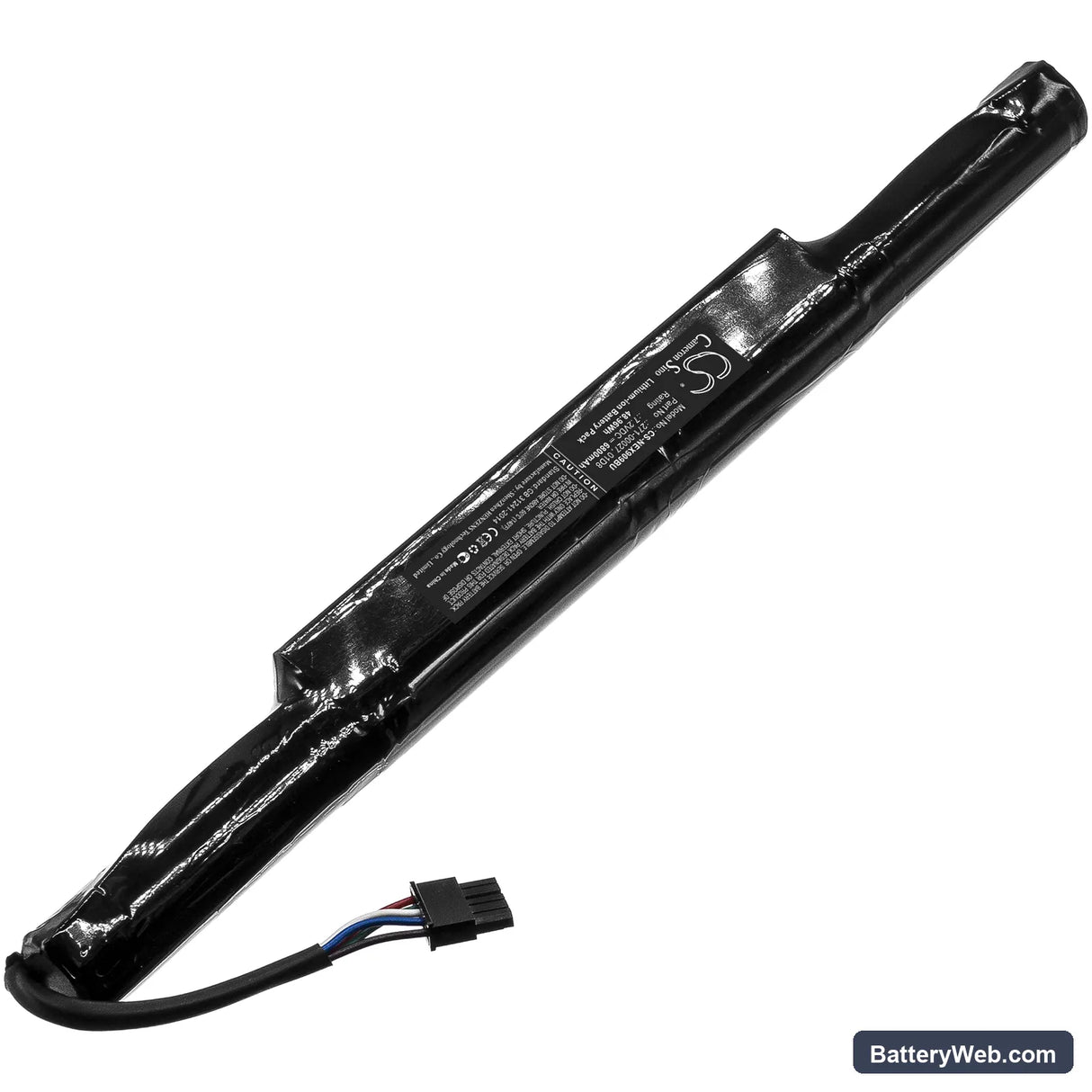

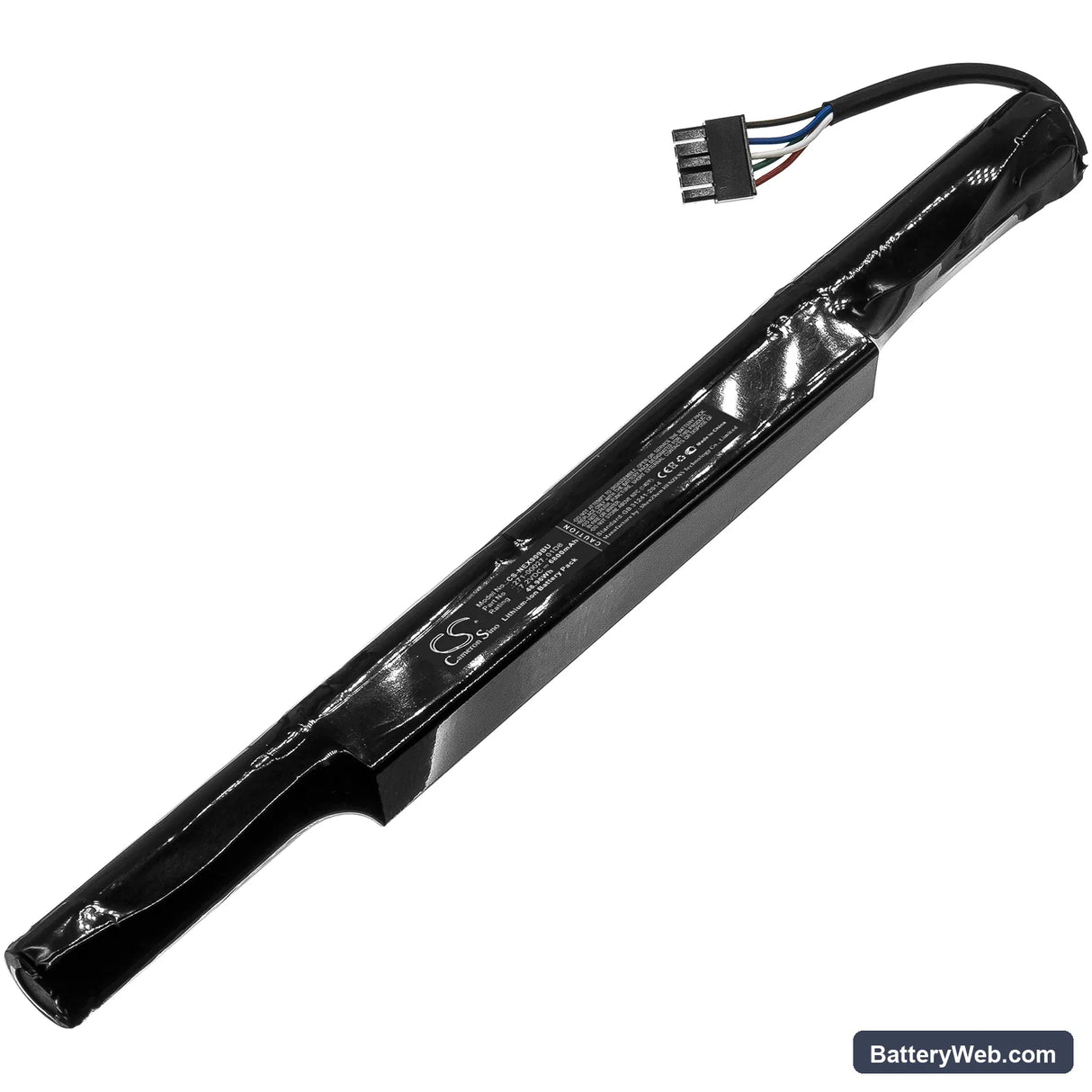

This 7.2V 6800mAh (48.96Wh) Li-ion battery replaces the backup power cell in the IBM N6210 RAID controller module. It maintains cache protection during unexpected power loss, giving the controller enough power to flush write-pending data to storage before shutdown. Without a functional battery, the controller falls back to write-through mode and write performance drops significantly.

• N6210 controller fit: The N6210 module uses a single lithium-ion cell pack at 7.2V to back its onboard cache. The BMS handshakes with the controller firmware to confirm cell voltage and capacity before the controller authorises write-back mode. A mismatch in voltage range or a missing handshake keeps the system locked in write-through regardless of physical installation.
• Bench tested on actual hardware: We cycled this battery through full charge and discharge on the bench. The BMS reported cell voltage within the expected 7.2V nominal range, and the protection circuit triggered correctly at both high-voltage and low-voltage cutoff thresholds.
• Learn cycle after installation: After fitting this battery, trigger a learn cycle from the controller management interface — in ONTAP use system controller battery show, in StorCLI use /cx bbu show. The controller stays in write-through mode until the learn cycle completes and calculates a new backup window estimate against the fresh cell. This takes 24–72 hours under normal operating load.

RAID controller staying in write-through mode after battery swap

Replacing the physical battery does not automatically restore write-back mode. The controller firmware must run a full learn cycle to recalibrate the backup window against the new cell's actual capacity. Until that cycle completes and the backup window estimate meets the controller's minimum threshold, write-back stays disabled. On IBM systems running ONTAP, check progress with system controller battery show and confirm the state moves from "learning" to "ready."

Management console reporting a battery error days after installation

The N6210 controller runs its battery health assessment on a timed interval — not at boot and not at the moment of installation. If the scheduled assessment fires before the learn cycle finishes, the controller logs a battery error because the backup window estimate is still undefined. This is not a faulty cell. Wait for the learn cycle to complete fully, then allow one scheduled assessment to run. If the error clears, the battery is functioning correctly; if it persists, check that cell voltage at the connector reads between 7.0V and 8.4V with a multimeter.
