Garmin Forerunner 225 Compatible Battery 3.7V 180mAh

Garmin Forerunner 225 / 235 / 630 / 735XT — 3.7V Li-Polymer Replacement Battery (361-00086-00)

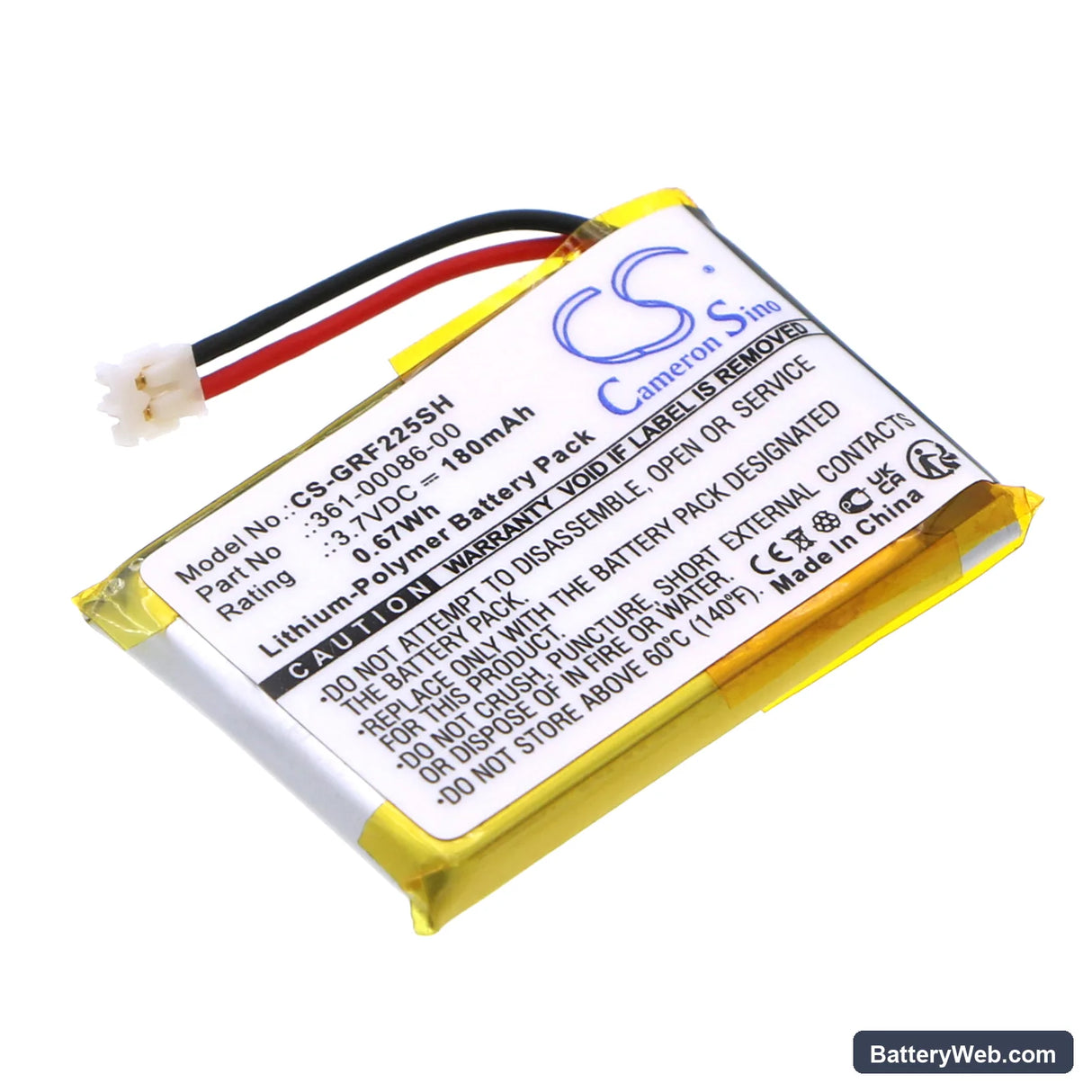

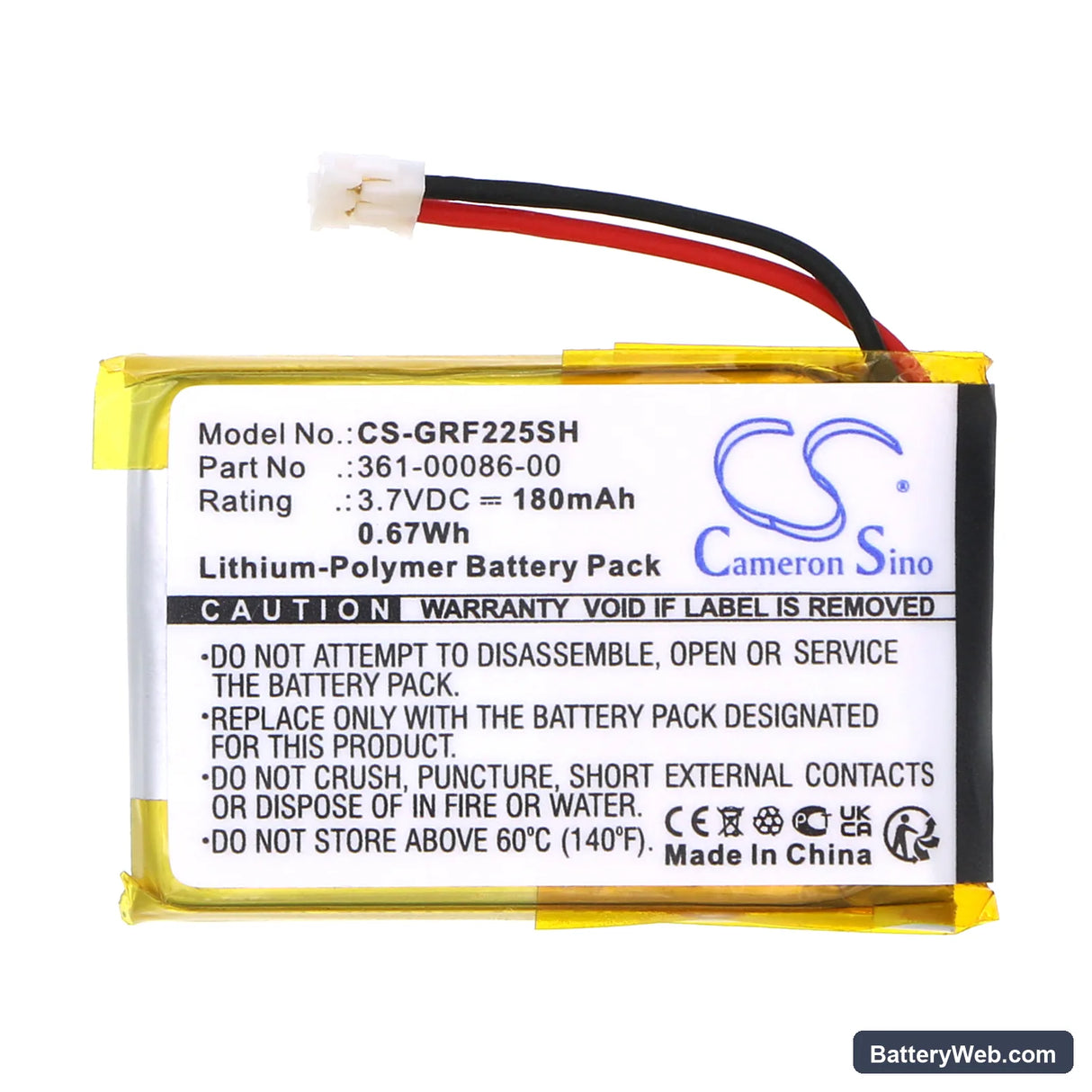

This is a 3.7V, 180mAh Li-Polymer cell that replaces the original battery in the Garmin Forerunner 225, 235, 630, and 735XT GPS running watches, along with 14 additional compatible models. The OEM part numbers covered include 361-00086-00, 361-00072-10, 361-00086-10, 361-00072-00, and 361-00086-23. If your watch no longer holds a charge after repeated charge cycles, this cell restores full functionality to the GPS, optical heart rate sensor, and fitness tracking features.

• Forerunner series cell compatibility: The Forerunner 225, 235, 630, and 735XT share the same 29.00 x 19.42 x 3.38mm cell footprint, voltage rail, and connector pinout. The BMS on each of these watches handshakes with the same cell impedance profile, so one replacement cell covers all models in this group without modification.
• Bench tested on actual hardware: We ran this cell on a Forerunner 235 and a 735XT. The BMS accepted the new cell without error codes on both units. The fuel gauge IC on each watch re-initialised correctly after a full charge cycle from near-zero.
• Fuel gauge reset after swap: After fitting this cell, place the watch on its magnetic charger immediately and charge it to 100% before use. The fuel gauge IC on Forerunner platforms loses its reference point when the old cell is disconnected. Without a full charge cycle from near-zero, the gauge cannot recalibrate and will report inaccurate state-of-charge readings.

Why the Forerunner 735XT BMS trips during GPS + HR simultaneous acquisition

The 735XT draws current from two sensor subsystems at the same time when GPS lock and optical heart rate monitoring are both active from a cold start. On a degraded original cell, the combined inrush pulls voltage below the BMS cutoff threshold, which triggers a protective shutdown. A new cell with full charge capacity handles this inrush without dropping below the cutoff. If the watch shuts off at the start of an outdoor run, this is the most likely cause — not a firmware fault.

Magnetic charge contacts not reading after reassembly

After a battery swap, the watch back can shift by fractions of a millimetre, which is enough to misalign the charge contact pads with the magnetic charger pins. The charger will sit on the watch but report no charge state in Garmin Connect. Re-seat the watch back, apply even pressure around the perimeter, and confirm the back is fully flush before clipping the charger on. If charging still does not register, clean the contact pads with isopropyl alcohol and confirm the charger cable reads 5V at the pins before ruling out a contact issue.
