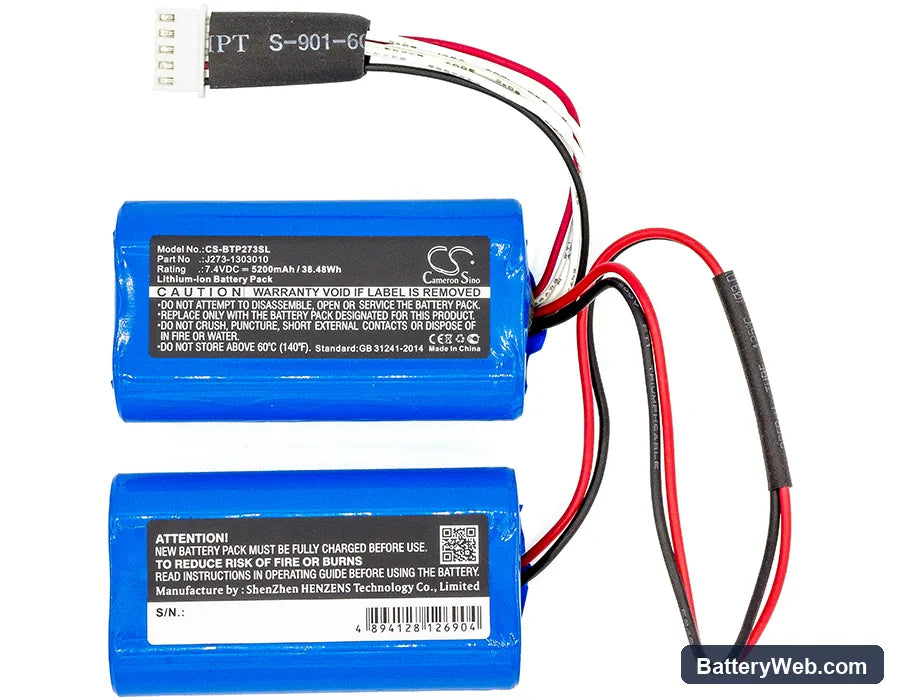

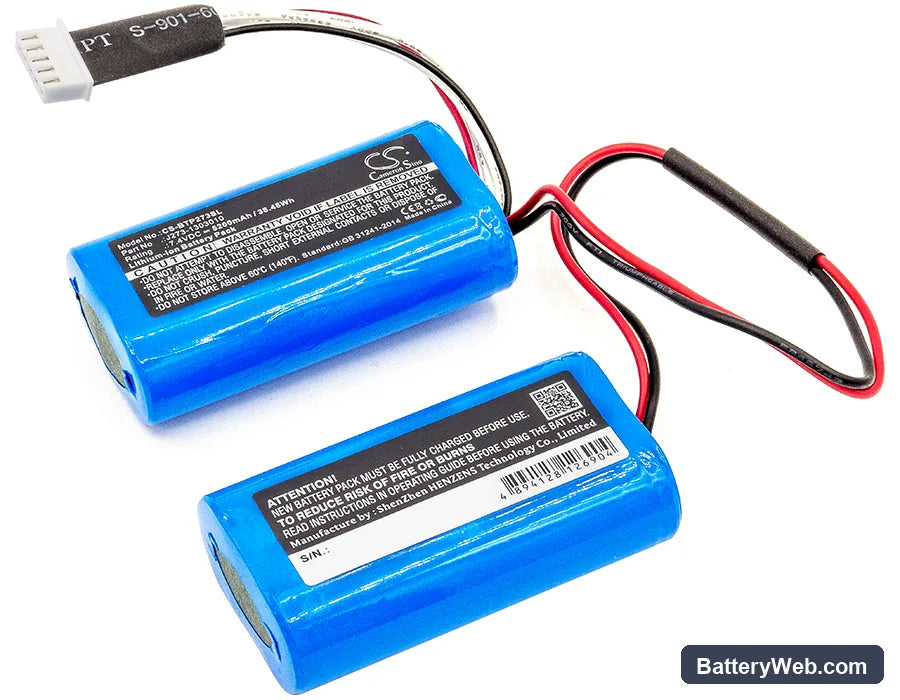

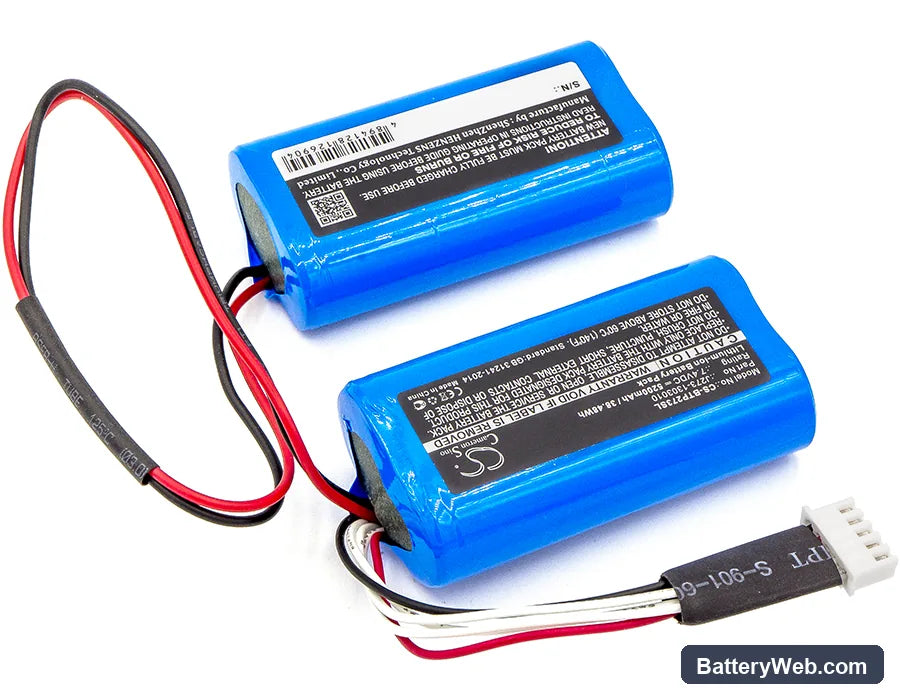

Beats Pill XL Replacement Battery 7.4V 5200mAh J273-1303010

Beats Pill XL / J273 — 7.4V Li-ion Replacement Battery (J273-1303010)

This 7.4V, 5200mAh Li-ion battery replaces the factory pack in the Beats Pill XL portable Bluetooth speaker. It fits the Pill XL and J273 platform and matches the original cell format, connector, and BMS handshake. Capacity is taken directly from the product specification — 38.48Wh total energy.

• Pill XL and J273 platform fit: Both model designations share the same cell arrangement, PCM pinout, and charge termination logic. One battery covers the full production run without modification.
• Bench tested on actual hardware: We cycled this pack through charge and discharge on a Pill XL unit. The BMS accepted charge at the standard 4.2V per cell ceiling and held cutoff at the low-voltage threshold without triggering false shutdowns under the combined amplifier and Bluetooth radio draw.
• Monthly discharge cycle for Pill XL users: The Pill XL often sits plugged in on a desk between uses. Let the battery drain below 20% at least once a month before recharging — constant top-off charging without a full discharge causes fuel gauge drift and accelerates capacity fade in the Li-ion cells.

Why the Pill XL reads full charge but audio cuts early

The Pill XL fuel gauge reads the battery's state of charge from voltage curves calibrated to a fresh cell. After repeated shallow cycles — topping off before the pack drops below 50% — the gauge loses accuracy and reports full when actual capacity is well below that. The amplifier still draws full current on audio peaks, and the degraded cell can't sustain that draw. The result is an early cutoff that looks like a charge display bug but is actually a capacity and calibration problem. A new cell resets the baseline the gauge works from.

Pill XL won't wake from USB even after an overnight charge

If the pack has been stored deeply discharged, the cell voltage can drop below the minimum threshold the USB-C power delivery circuit will accept — typically under 2.5V per cell. At that point the charger sees the battery as a fault condition and won't initiate a charge cycle. Some units recover if held on a 5V USB source for 15–20 minutes, which allows a trickle pre-charge to bring cells back above the PD acceptance floor. If the pack still shows no response after that period, the cell is likely below safe recovery voltage and needs replacement.
