JBL Pulse 5 Replacement Battery 3.7V 7800mAh GSP-1S3P-CH4D

JBL Pulse 5 — 3.7V Li-ion Replacement Battery (GSP-1S3P-CH4D)

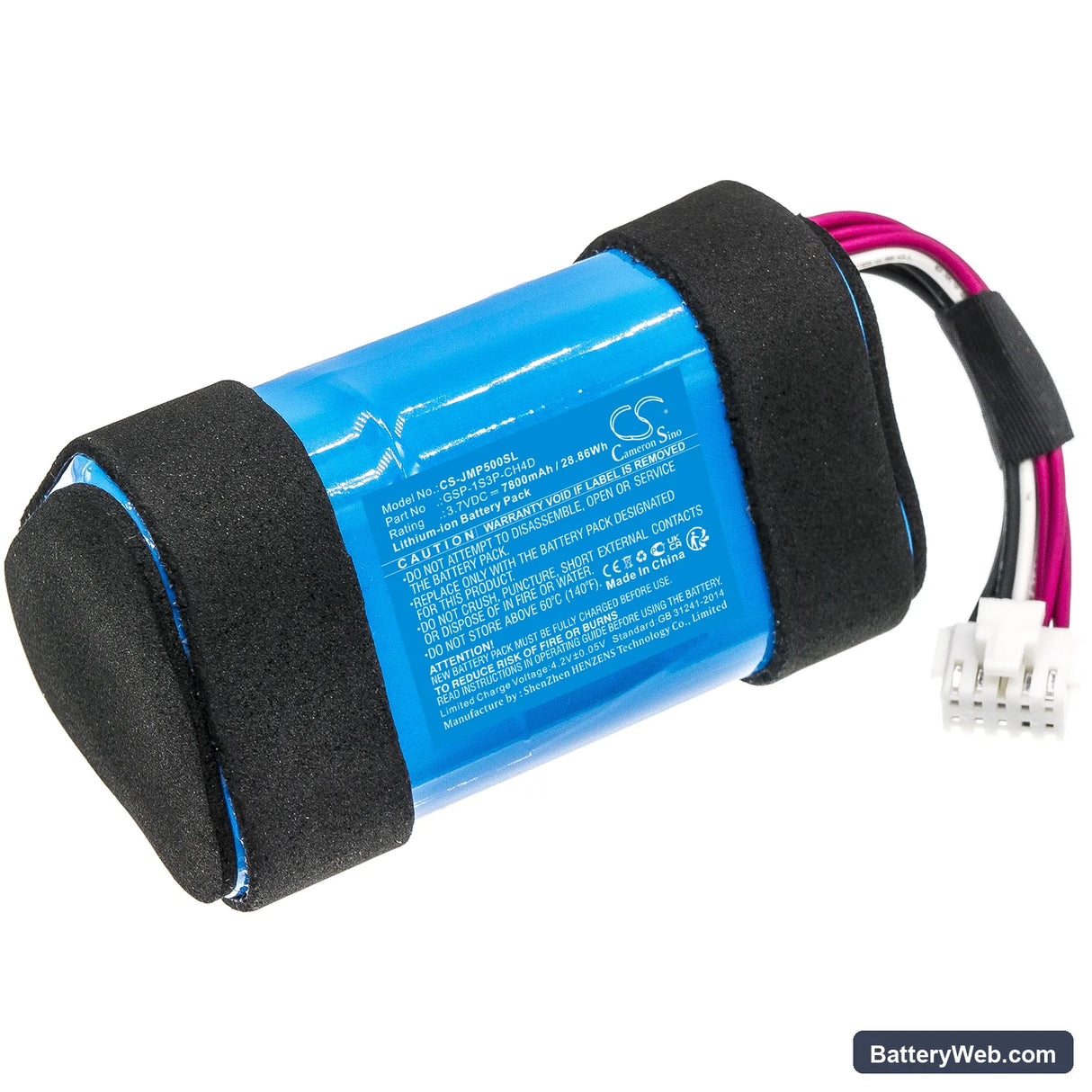

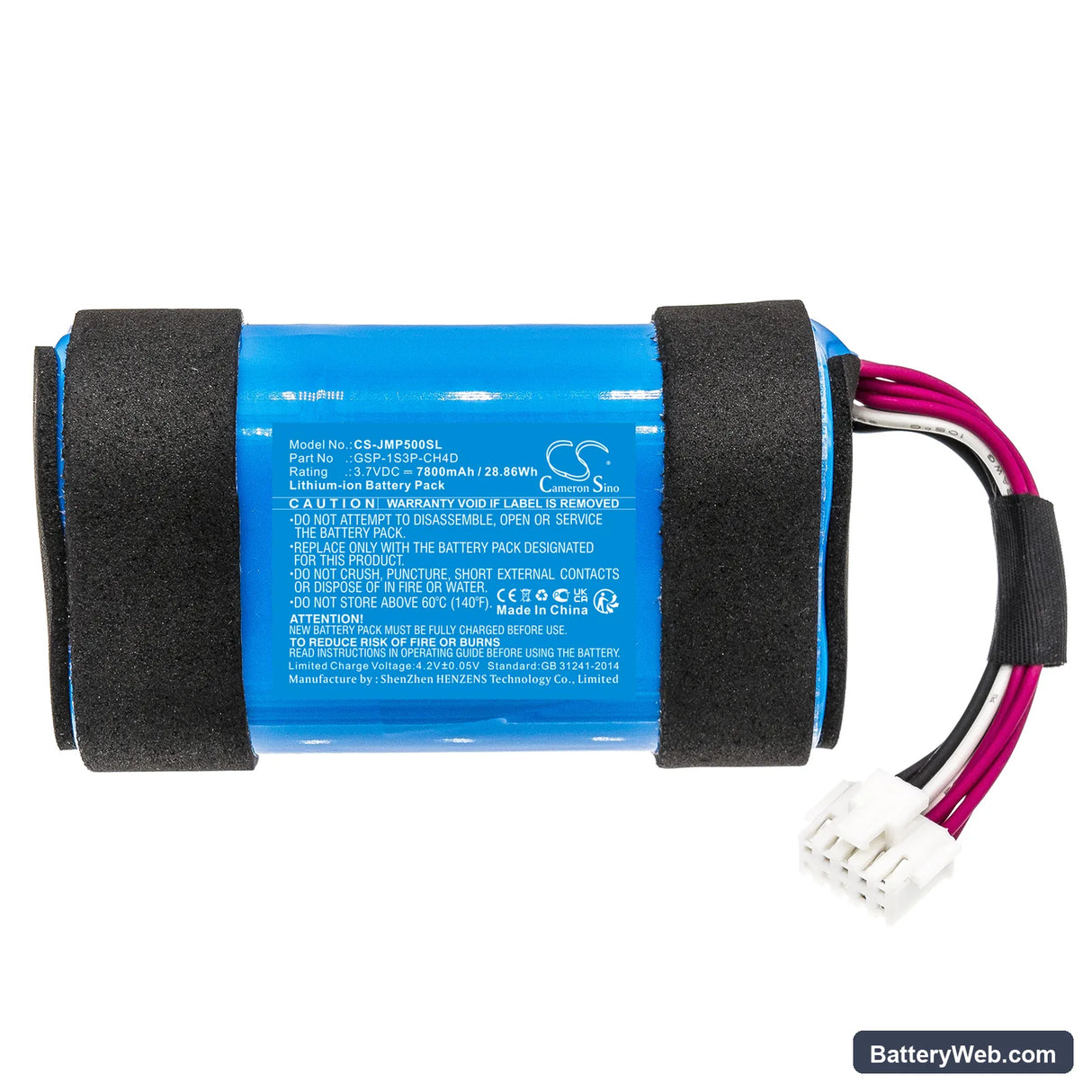

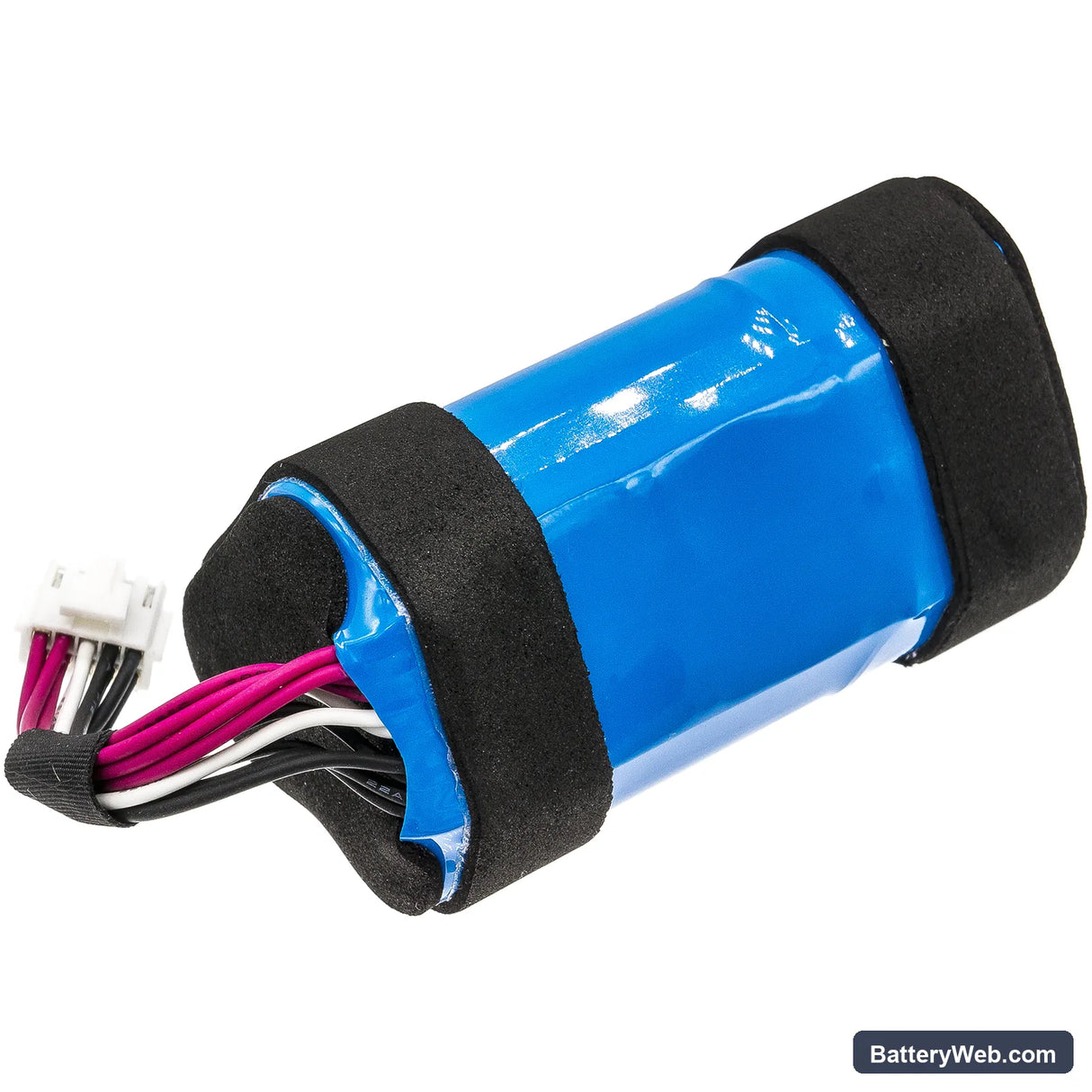

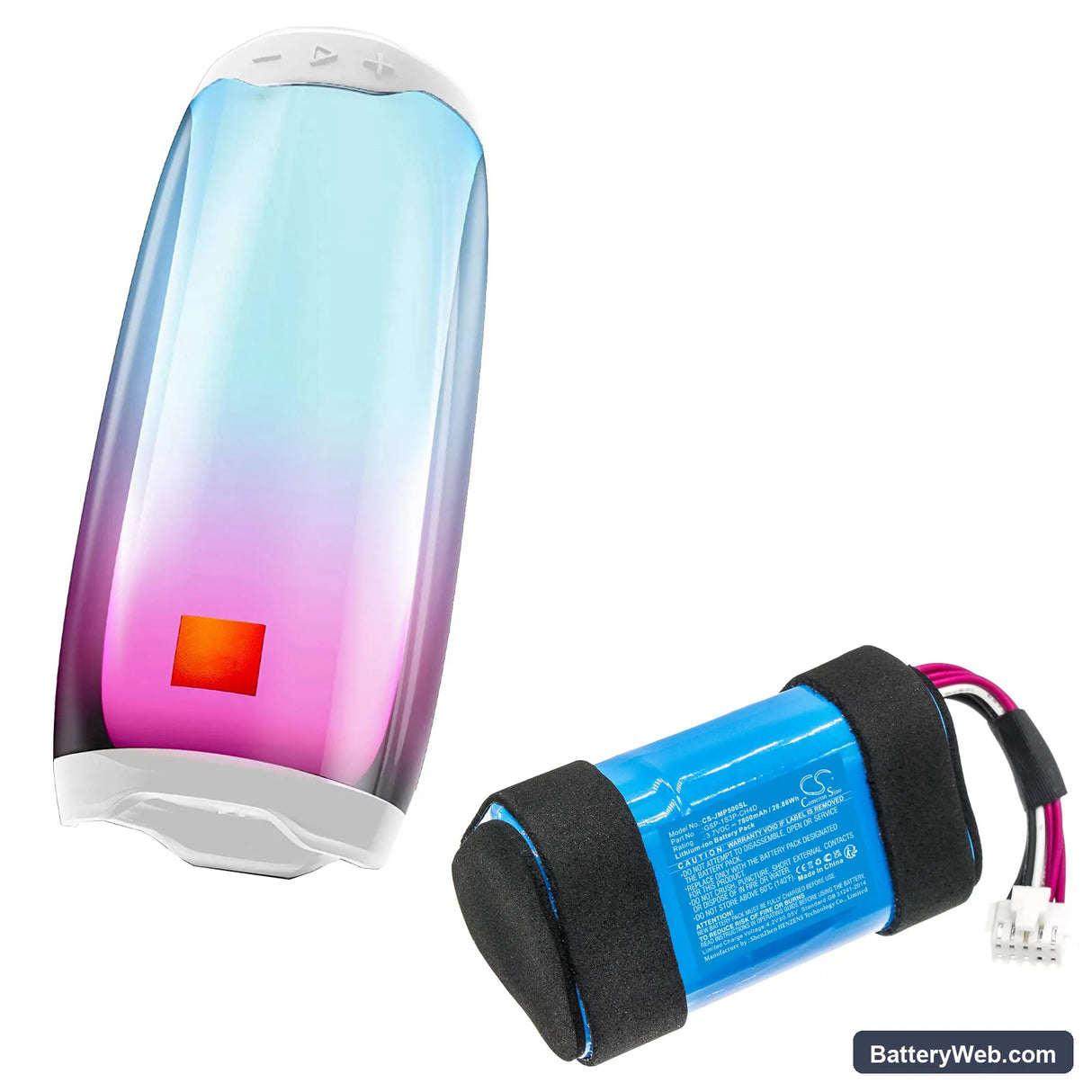

This is a 3.7V, 7800mAh (28.86Wh) Li-ion replacement battery for the JBL Pulse 5 portable Bluetooth speaker. It fits the Pulse 5 directly, matching the OEM part number GSP-1S3P-CH4D. Replace this when the original cell no longer holds a useful charge or fails to power the speaker at all.

• Pulse 5 cell match: The Pulse 5 runs a single-cell 3.7V pack with a protection circuit that monitors cell voltage and temperature. This replacement uses the same nominal voltage and capacity, so the onboard fuel gauge reads correctly after a full charge cycle.
• Bench tested on actual hardware: We ran the battery through charge and discharge cycles on the Pulse 5 board. The BMS accepted the cell without tripping low-voltage lockout, and the charge IC completed a full CC/CV cycle to 4.2V without flagging a fault.
• Monthly discharge routine for Pulse 5 users: Letting the speaker run down below 20% at least once a month prevents fuel gauge drift. The Pulse 5 is frequently used at a desk or countertop where it gets topped off constantly — that shallow cycling pattern accelerates capacity fade on the Li-ion cell faster than occasional deep use would.

Why the Pulse 5 reads full charge but audio cuts out early

The Pulse 5 fuel gauge estimates remaining capacity based on voltage curves learned from previous cycles. When the cell degrades or a new cell hasn't been calibrated, the gauge loses accuracy and the speaker shuts down from BMS undervoltage while still showing bars on screen. The fix is a full charge to 4.2V followed by an uninterrupted discharge to automatic shutoff — this recalibrates the gauge to the actual cell capacity. Do this twice after fitting a new cell for the most accurate readings.

Audio distorting before the battery indicator reaches empty

At high volume, the Pulse 5 amplifier draws a sharp current spike. If the cell has aged or is discharging under a combined amplifier and radio load, internal resistance causes voltage to sag below the amplifier's clean operating threshold before the battery indicator triggers low. The result is clipping distortion — the audio sounds crushed or crackles — even though the indicator still shows charge remaining. Fitting a fresh cell with lower internal resistance brings the voltage back above the amplifier threshold under load. If distortion persists on a new cell, check that the USB-C port is delivering a full charge to 4.2V.
