Skullcandy Soundmine Compatible Battery 3.7V 800mAh

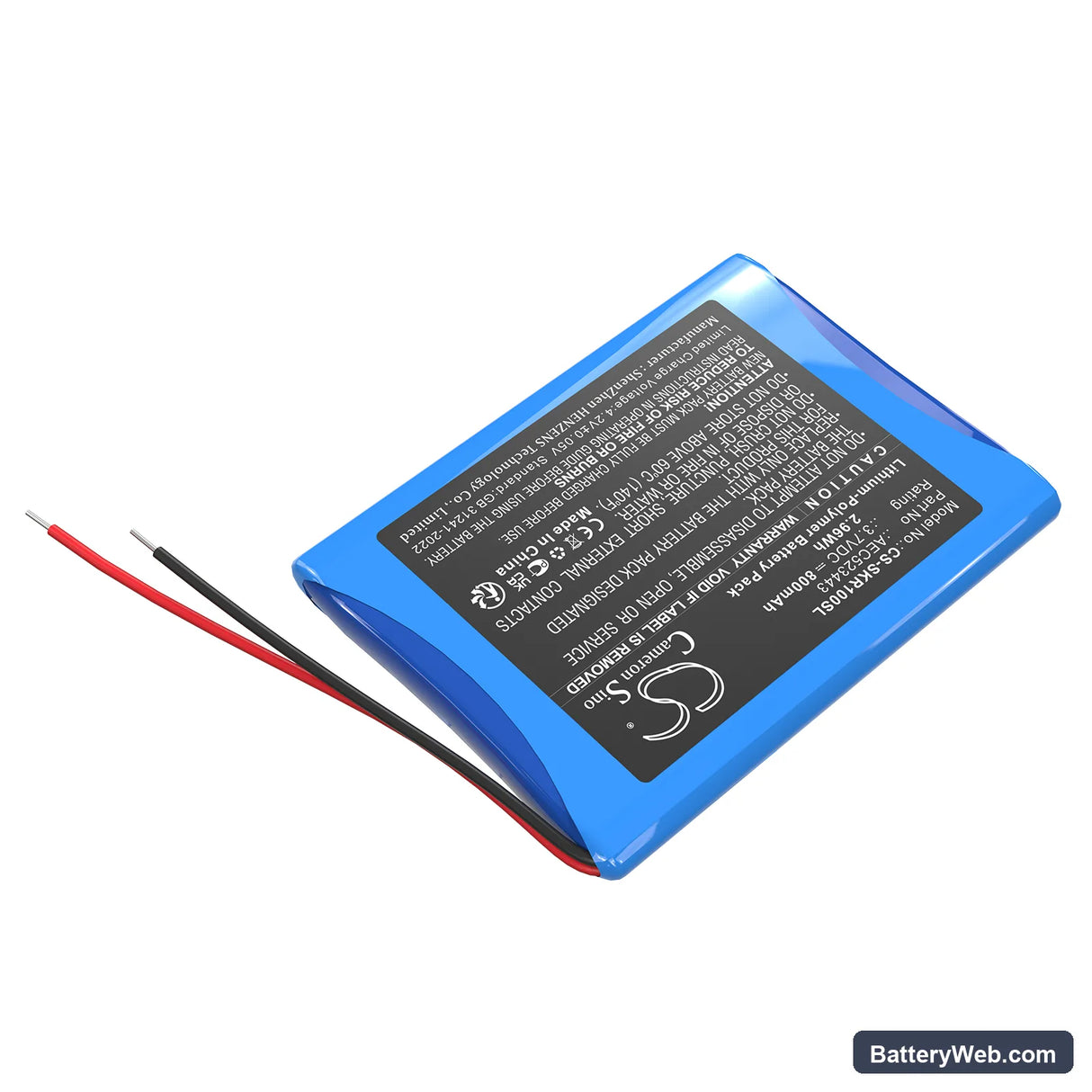

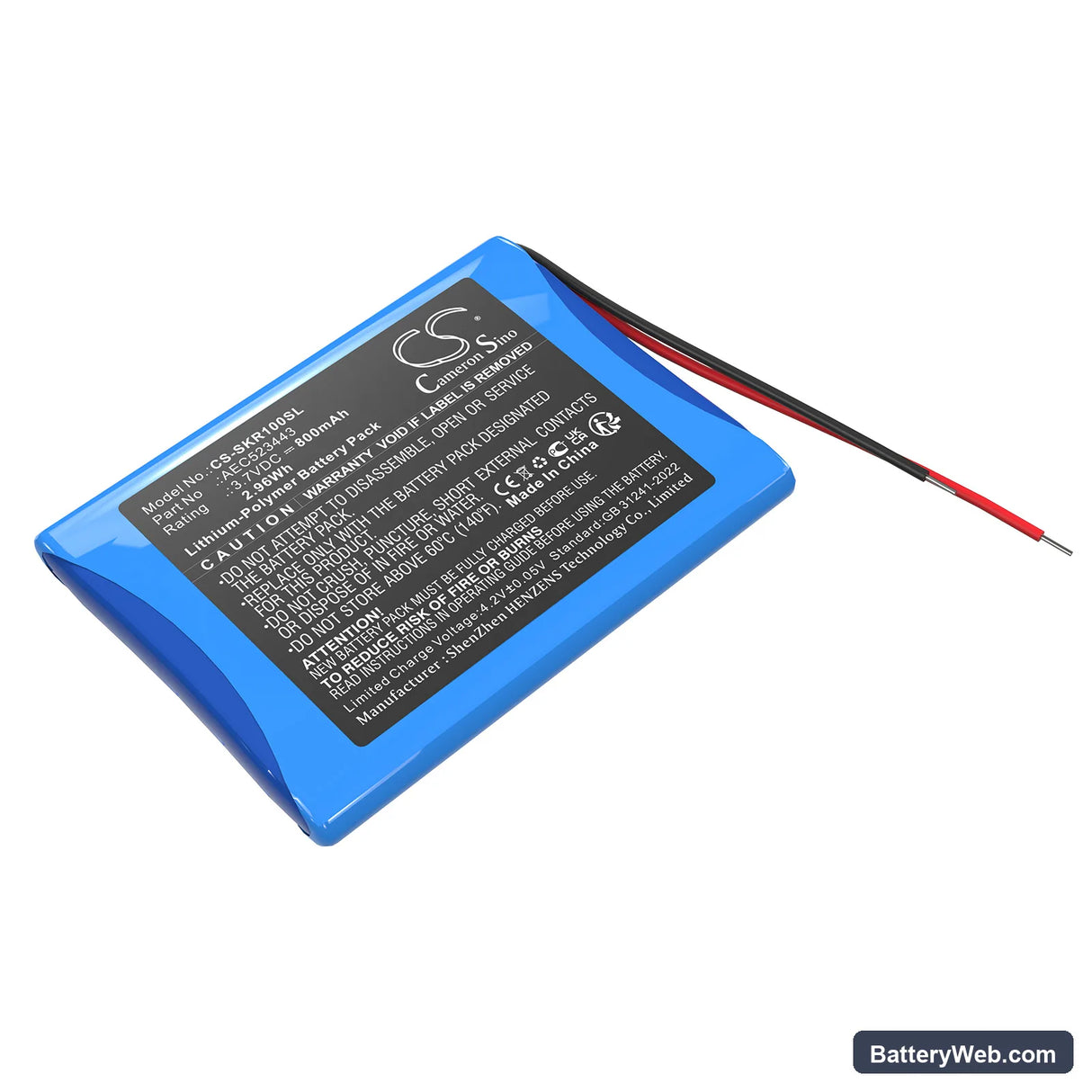

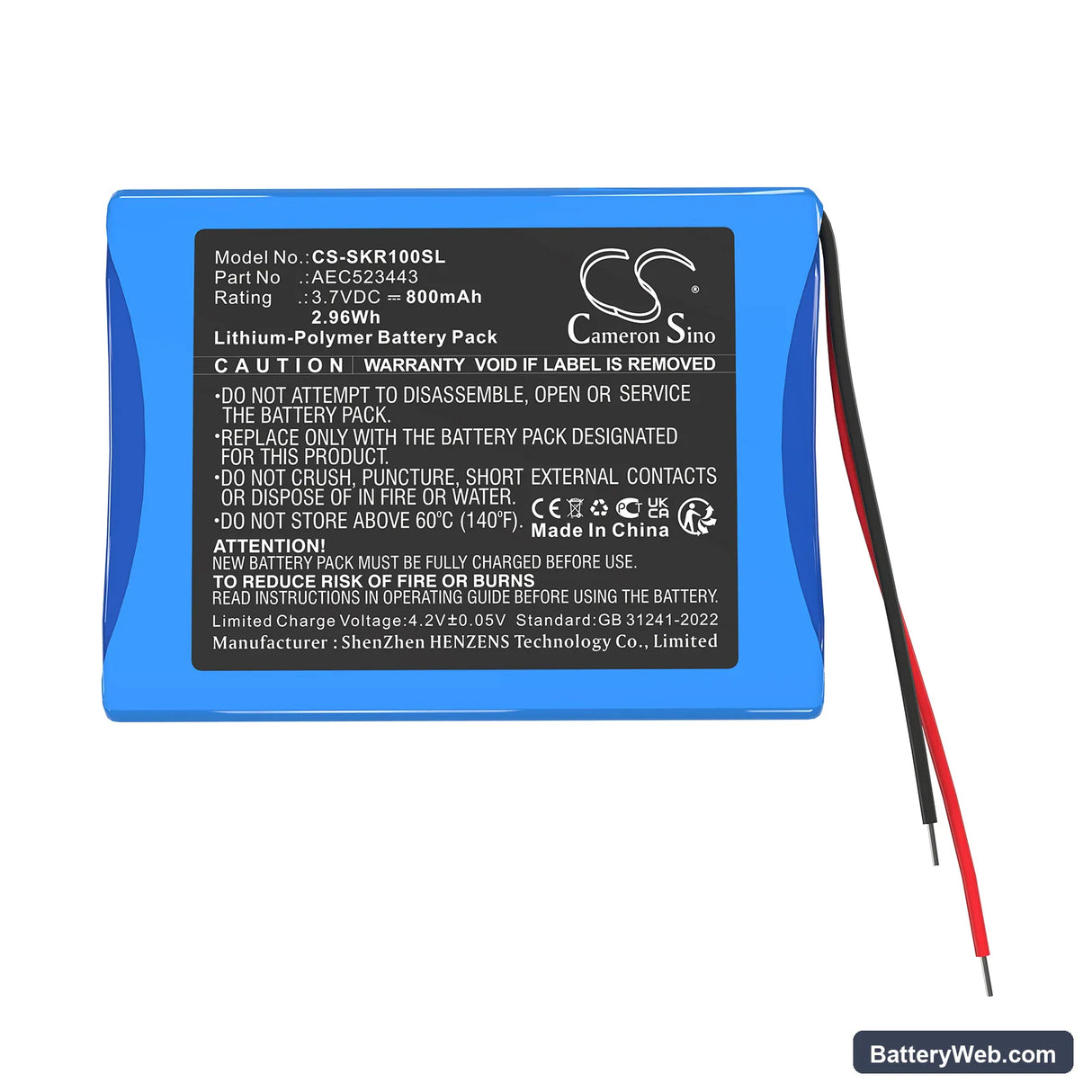

Skullcandy Soundmine / Ringer 2XL — 3.7V Li-Polymer Replacement Battery (AEC523443)

This is a 3.7V, 800mAh Li-Polymer replacement battery for the Skullcandy Soundmine and Ringer 2XL portable Bluetooth speakers. It matches OEM part number AEC523443 and fits models X7RGFZ-842, 2XL Ringer, and RINGER 2XL. Capacity is rated at 800mAh (2.96Wh) — use that figure when comparing against your original cell.

• Soundmine and Ringer 2XL platform fit: These models share the same compact Li-Polymer cell format, 3.7V nominal rail, and flat-pack connector pinout. The BMS on each speaker expects the same charge cutoff voltage, so one cell covers the full compatibility group without modification.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the Soundmine platform. The BMS accepted charge from the standard USB input, held the protection cutoff at the correct low-voltage threshold, and passed current cleanly to both the amplifier and Bluetooth radio circuits.
• Monthly discharge routine for Soundmine users: Let the speaker play down past 20% at least once a month before recharging. Constant top-off charging — plugging in at 60–70% every day — causes fuel gauge drift and accelerates capacity fade on the Li-Polymer cell faster than normal use would.

Audio distorting before the battery indicator reaches empty

As the Li-Polymer cell discharges, internal resistance rises. Under the combined current draw of the amplifier and Bluetooth radio, terminal voltage sags below what the amp needs to drive the output stage cleanly. The result is clipping distortion — the speaker sounds broken, but the battery indicator still shows one bar. If you hear audible distortion at moderate volume with charge remaining, the cell's usable voltage range has narrowed. A fresh cell holds above 3.5V through that same load, which keeps the amplifier out of its clipping region.

Soundmine not waking from USB when deeply discharged

If the speaker sits unused for several weeks, the cell can drop below the minimum voltage the BMS needs to accept a USB charge signal — typically under 2.5V on this cell chemistry. The speaker shows no charge indicator and appears completely dead. To recover it, hold the USB cable in place for 10–15 minutes without pressing any buttons; the BMS uses a trickle pre-charge stage to bring the cell back up to the 2.9–3.0V threshold before switching to normal charge rate. Once the LED activates, the charge cycle is running normally.
