Tecsun HD80 Replacement Battery 3.7V 5200mAh 1ICR18/65

Tecsun HD80 — 3.7V Li-ion Replacement Battery (1ICR18/65)

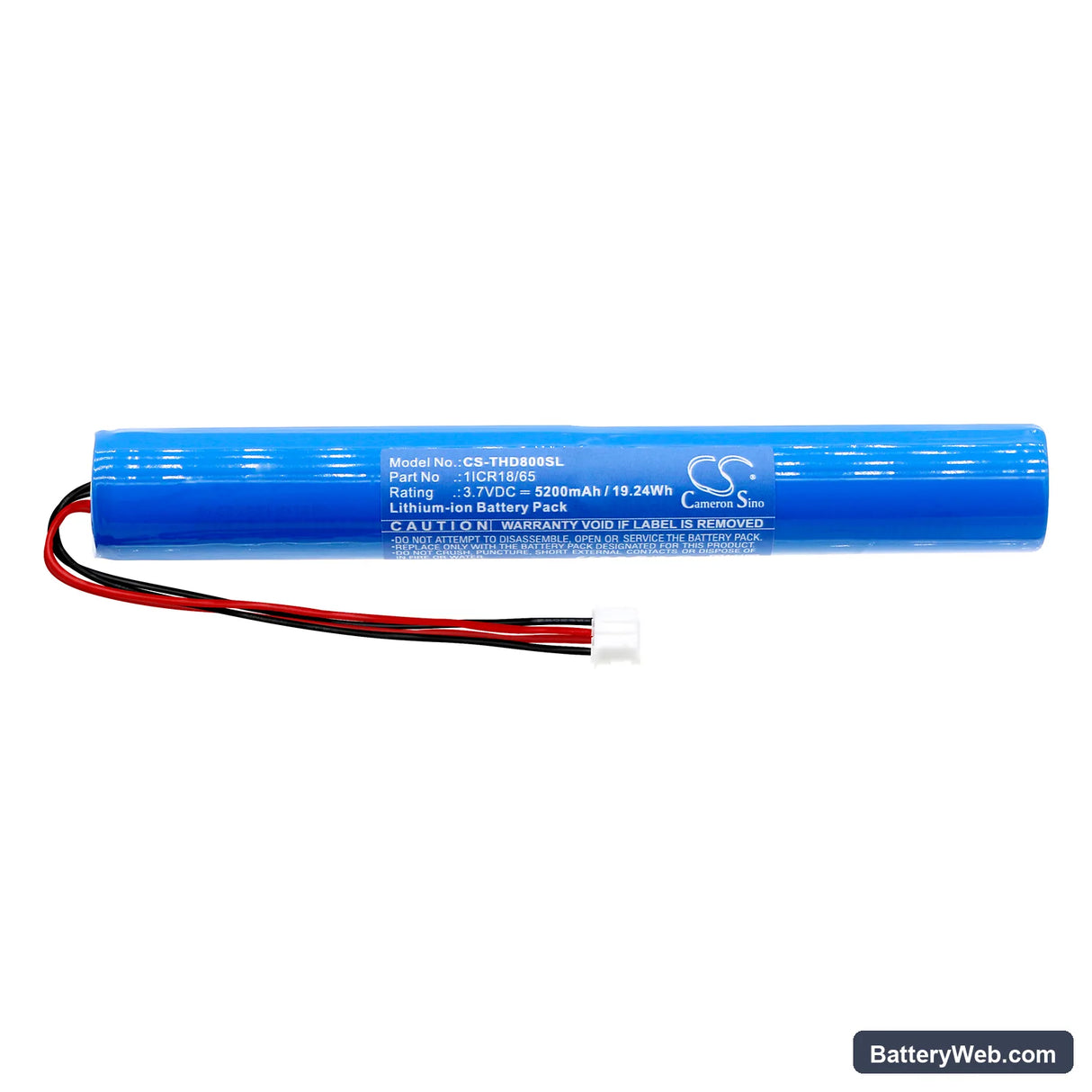

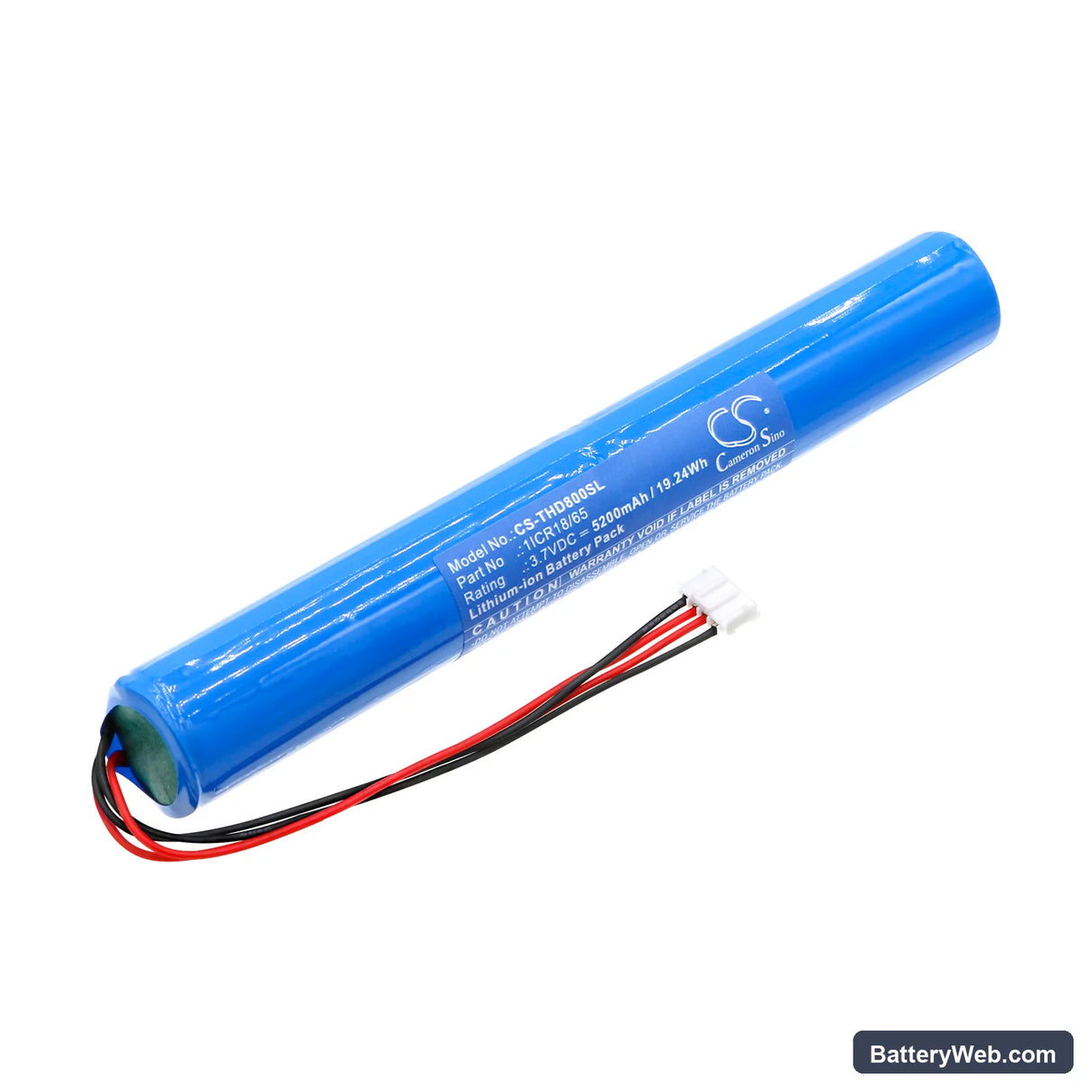

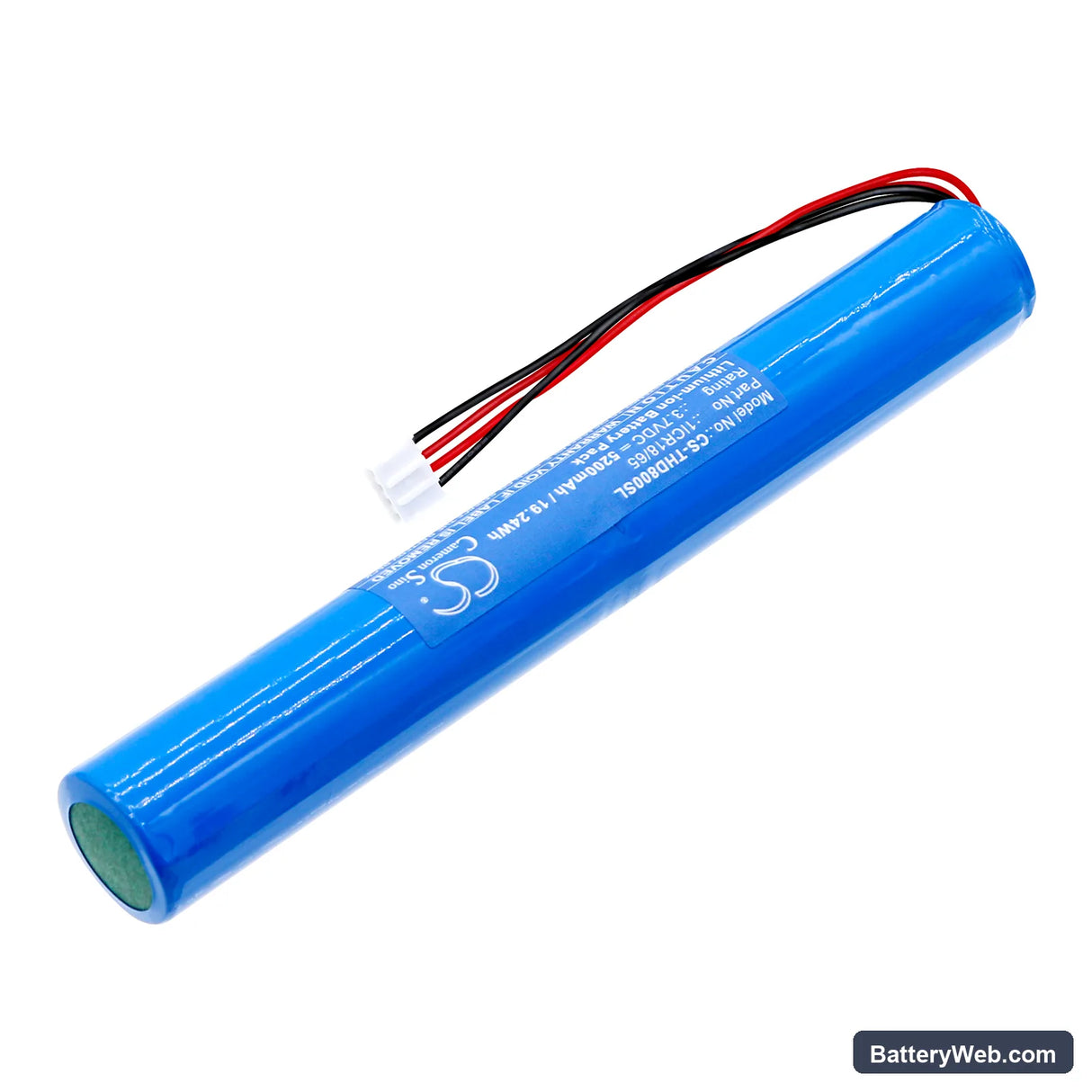

This 3.7V 5200mAh Li-ion cell replaces the original 1ICR18/65 battery in the Tecsun HD80 portable radio speaker. The HD80 runs both its FM/AM radio tuner and audio amplifier off this single cell, so when the original pack degrades, output volume and reception both suffer. Dimensions are 134.40 × 18.70 × 18.40mm — confirm these against your existing cell before fitting.

• HD80 single-cell architecture: The HD80 draws from one cylindrical 18650-class cell to power the amplifier, tuner, and Bluetooth stack simultaneously. Combined draw under loud playback is higher than most users expect from a speaker this size — the cell needs enough capacity headroom to avoid voltage sag when all three loads are active at once.
• Bench tested on actual hardware: We ran this cell through charge and discharge cycles on a calibrated rig. The BMS held cutoff at the expected low-voltage threshold and accepted a full charge without tripping protection — no false-full termination at first cycle.
• Monthly discharge cycle for HD80 users: If the HD80 sits on a desk and gets topped off before dropping below 50%, discharge it fully to below 20% at least once a month before recharging — constant shallow cycling causes fuel gauge drift and accelerates capacity fade on single-cell Li-ion packs like this one.

Audio distorting before the battery indicator reaches empty

As a Li-ion cell ages, its internal resistance rises. At high volume, the amplifier pulls a surge of current that causes the cell voltage to sag below what the amp needs to run cleanly — even if the indicator still shows charge remaining. The result is clipping and distortion before the battery reads empty. On the HD80, this usually starts appearing when resting cell voltage drops below 3.5V under load. Replacing the cell restores the voltage headroom the amplifier needs at full output.

HD80 not waking from USB charge after sitting unused for weeks

A deeply discharged Li-ion cell can drop below the minimum voltage a USB charger will accept — typically around 2.5V — and the charger simply will not initiate a charge session. The HD80's BMS cannot handshake with the USB source if the cell is that far down. To recover a borderline pack, use a charger with a trickle or pre-charge mode that can push current at low voltage until the cell reaches the USB-PD acceptance threshold. If the cell sits below 2.5V for an extended period, recovery is unlikely and replacement is the only path forward.
