AAronia Spectran E-0205 Replacement Battery 7.2V 2000mAh

AAronia Spectran Handheld Spectrum Analyzer V1 — 7.2V Ni-MH Replacement Battery (E-0205)

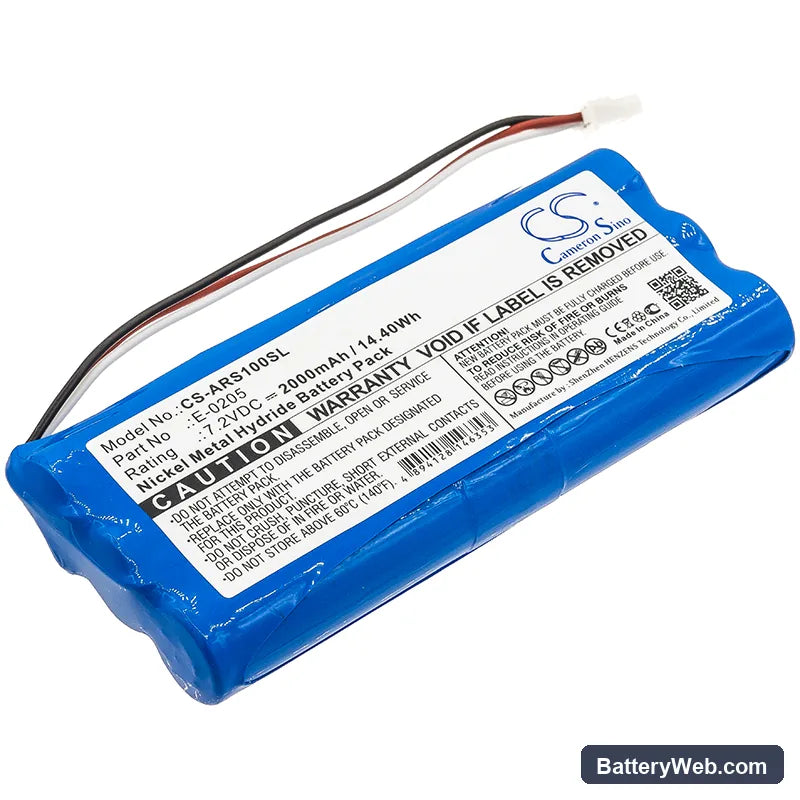

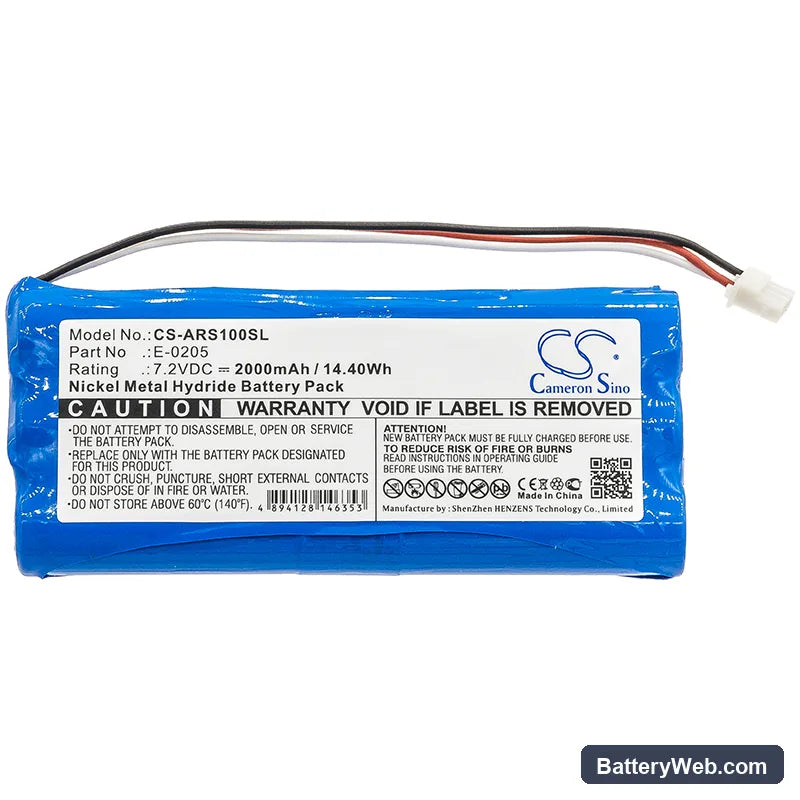

This is a 7.2V, 2000mAh Ni-MH replacement battery for the AAronia Spectran Handheld Spectrum Analyzer series, carrying OEM part number E-0205. It fits the Spectran V1, V4, NF, and base Spectran handheld models. The pack slots directly into the analyzer's battery bay and supplies the sustained low-ripple current the RF front-end requires during active frequency scanning.

• Spectran V1, V4, NF, and base model compatibility: These four analyzers share the same battery bay geometry, connector pinout, and 7.2V nominal rail. The BMS handshake is identical across the series, so one pack covers the full platform without modification.
• Bench tested on actual hardware: We cycled this pack through the Spectran's scan routine at active RF frequencies and monitored BMS response under the current draw spikes that occur when the analyzer sweeps high-frequency bands. The protection circuit held within spec and did not trip during consecutive full sweeps.
• Pre-deployment calibration cycle: After installing this pack, run a full calibration cycle through the Spectran's instrument menu before heading into the field. The analyzer maps battery state during calibration — skipping it causes premature low-battery warnings during your first measurement session, even with a fully charged pack.

BMS lockout after the Spectran sat unused in a carry case for months

Ni-MH cells self-discharge at roughly 1–2% per day without active storage management. A Spectran left in a carry case for several months can drain the pack below the BMS recovery threshold — typically around 5.4V for a 7.2V six-cell pack — triggering a lockout that prevents charging. When the charger shows no activity and the analyzer will not power on, the pack is not necessarily dead. Applying a slow pre-charge at 0.1C through a compatible Ni-MH charger with a recovery mode can bring cell voltage back above the lockout threshold, after which normal charging resumes.

Spectran shutting down mid-scan during an active logging session

During sustained logging, the Spectran draws continuous current through both the RF front-end and the data-capture subsystem simultaneously. If the pack has accumulated shallow-cycle degradation — repeated partial charges without full cycling — usable capacity compresses toward the top of the charge curve, and voltage sags earlier than expected under load. The BMS reads this sag as a low-voltage condition and cuts the output before the display registers a low-battery warning. Running a full discharge-to-cutoff followed by a full charge cycle once every 30 charge cycles helps reset the pack's usable voltage window and reduces mid-session cutoffs.
