Spectra Precision Ranger 3 Series — 11.1V Li-ion Replacement Battery (890-0163)

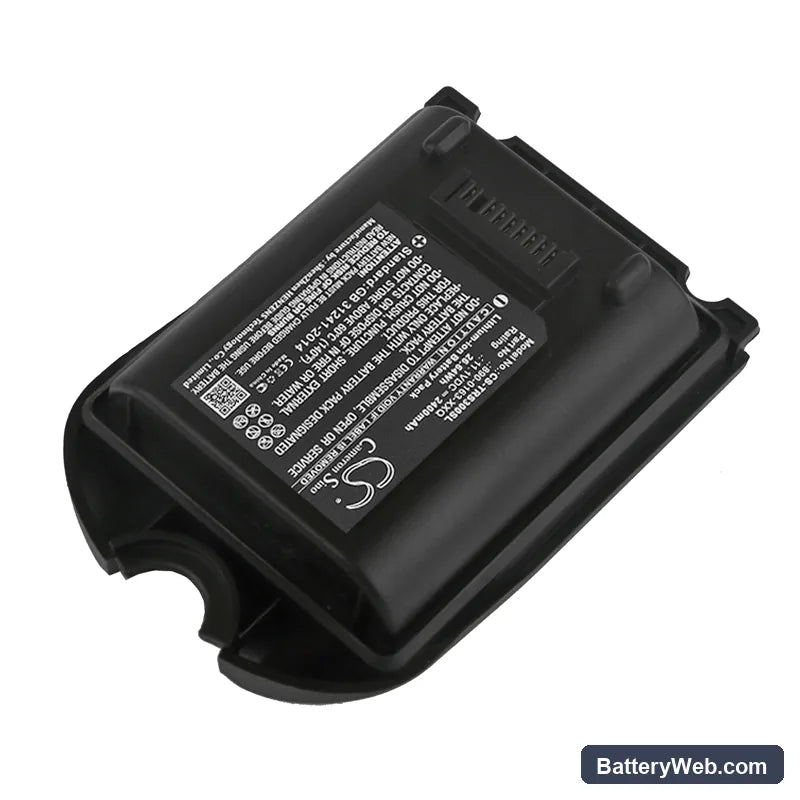

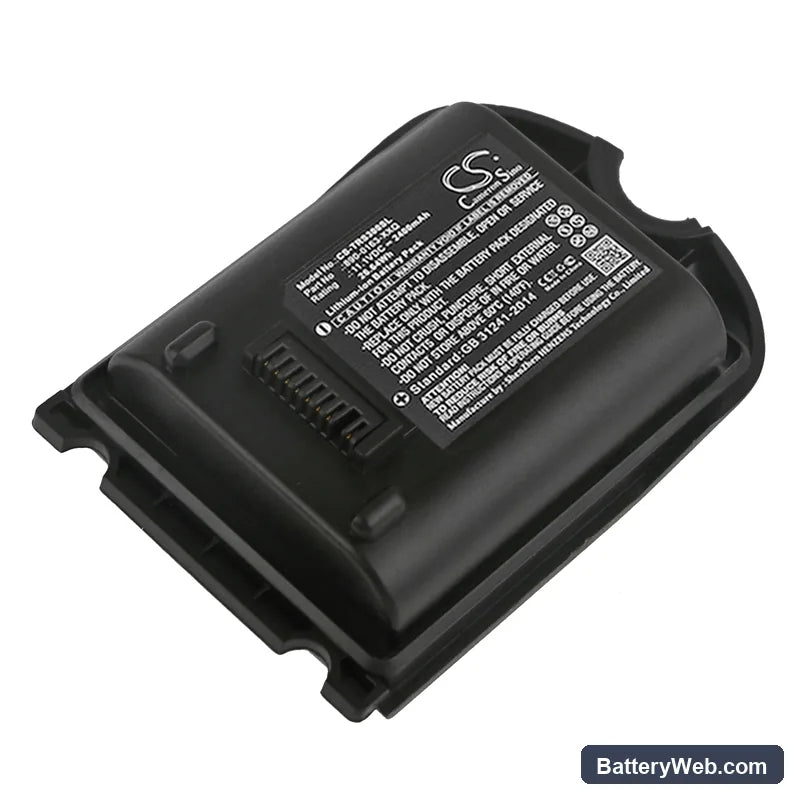

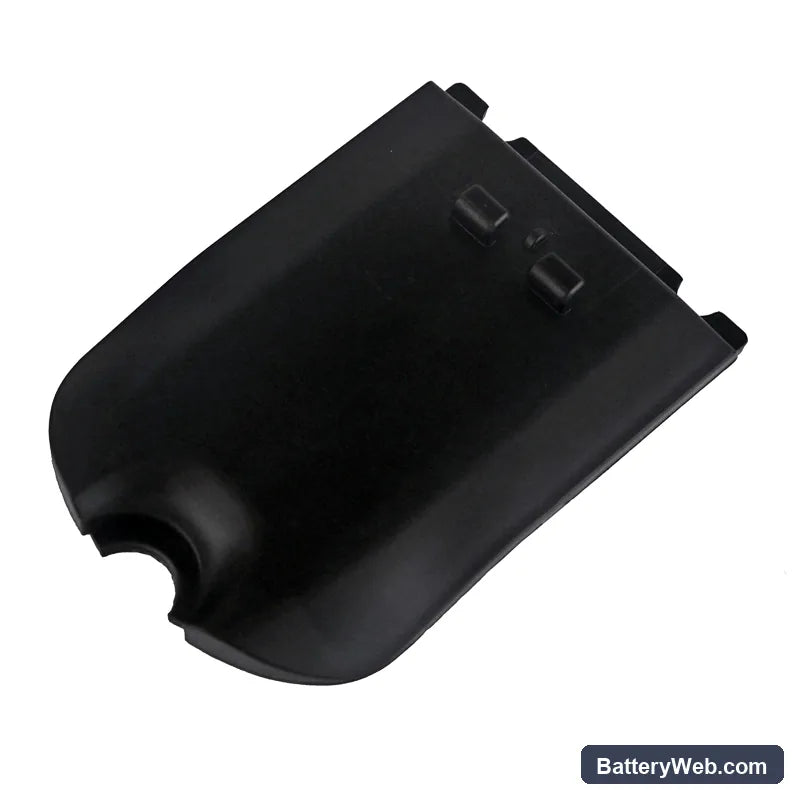

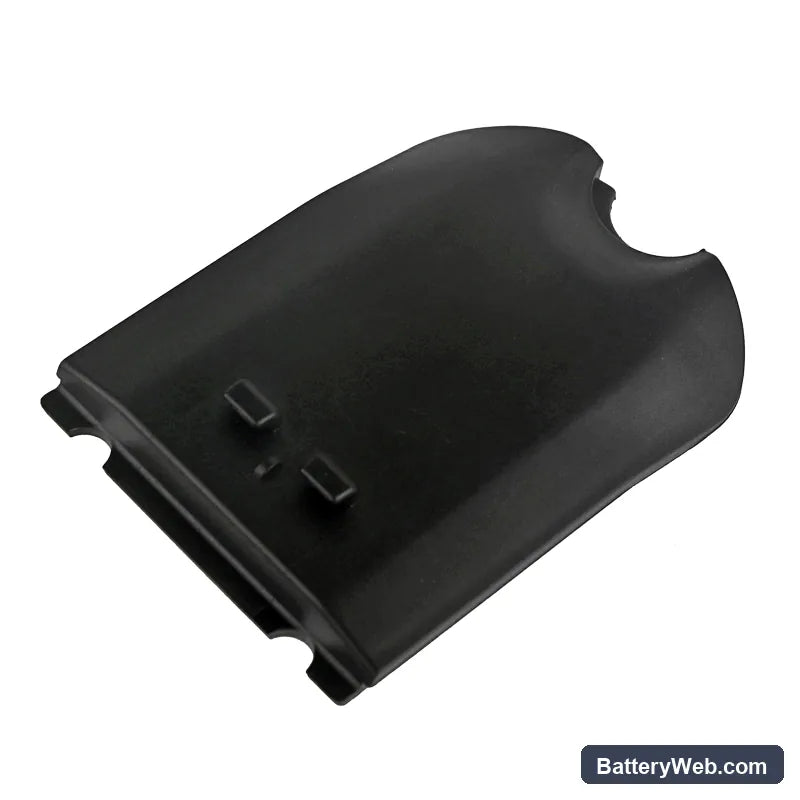

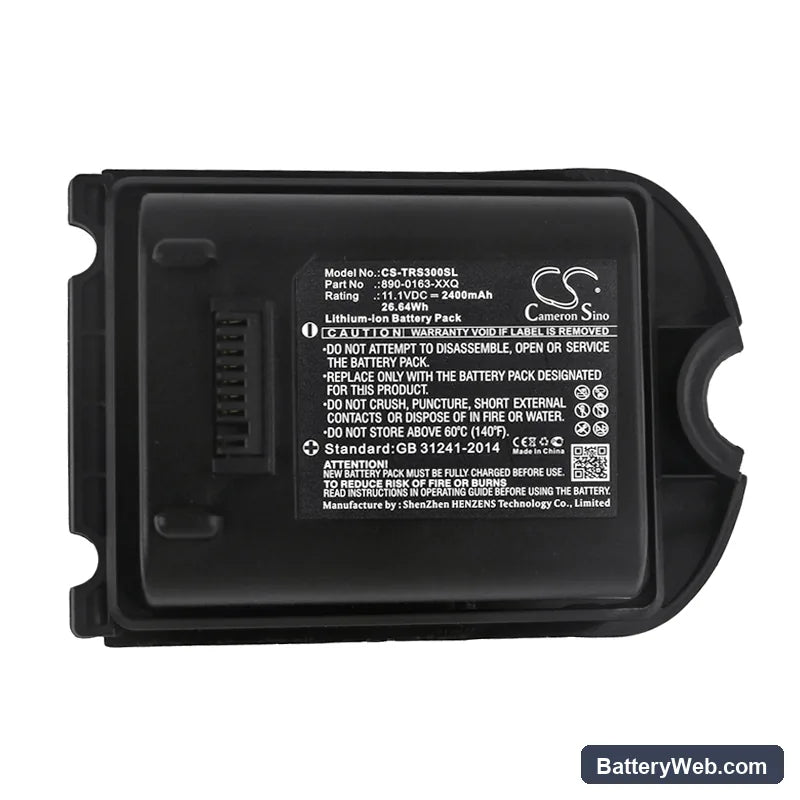

This 11.1V, 2400mAh Li-ion battery replaces the original pack in the Spectra Precision Ranger 3, Ranger 3XR, Ranger 3RC, and Ranger 3XC data collectors. It slots into the same bay and communicates with the instrument's power management system using the same BMS handshake as the factory cell. Capacity is 2400mAh (26.64Wh) — drawn directly from product specification, not estimated.

• Ranger 3 platform compatibility: All four Ranger 3 variants share the same 11.1V battery bay, connector pinout, and BMS communication protocol. One cell revision covers the full lineup without any hardware modification.
• Bench tested on actual hardware: We ran this pack through power-up, GPS lock, and active data logging cycles on the Ranger 3. The BMS negotiated correctly at first boot, and there were no mid-session cutoffs under sustained sensor and display load.
• First-use calibration on the Ranger 3: After installing a new pack, run a full calibration cycle through the instrument menu before heading to the field. The Ranger 3 maps battery state during calibration — skip this step and the instrument's low-battery threshold will be miscalibrated, triggering premature warnings on your first measurement session.

BMS lockout after the Ranger 3 sat unused in a carry case for months

Li-ion cells self-discharge over time. A Ranger 3 left in a case for several months can drain the pack below the BMS recovery threshold — typically around 2.5V per cell. At that point, the BMS locks out charge current entirely as a protection measure. Standard chargers will show no activity or report an error because the pack voltage is too low to trigger normal charge mode. To recover the pack, use a charger with a trickle or recovery mode that feeds a low current (around 0.1C) until cell voltage climbs above 3.0V per cell, then switch to normal charge.

Ranger 3 shuts down during USB data transfer to a PC

USB data transfer pulls current from both the processor and the USB port simultaneously — this combined draw can spike high enough to trip the BMS cutoff on a partially discharged pack. The instrument powers off mid-transfer, and the session data may not have written cleanly to the host PC. Charge the battery to at least 11.4V before initiating any USB sync session. If cutoffs persist at that voltage, check the USB cable — a high-resistance cable increases total draw and lowers the trip threshold.
