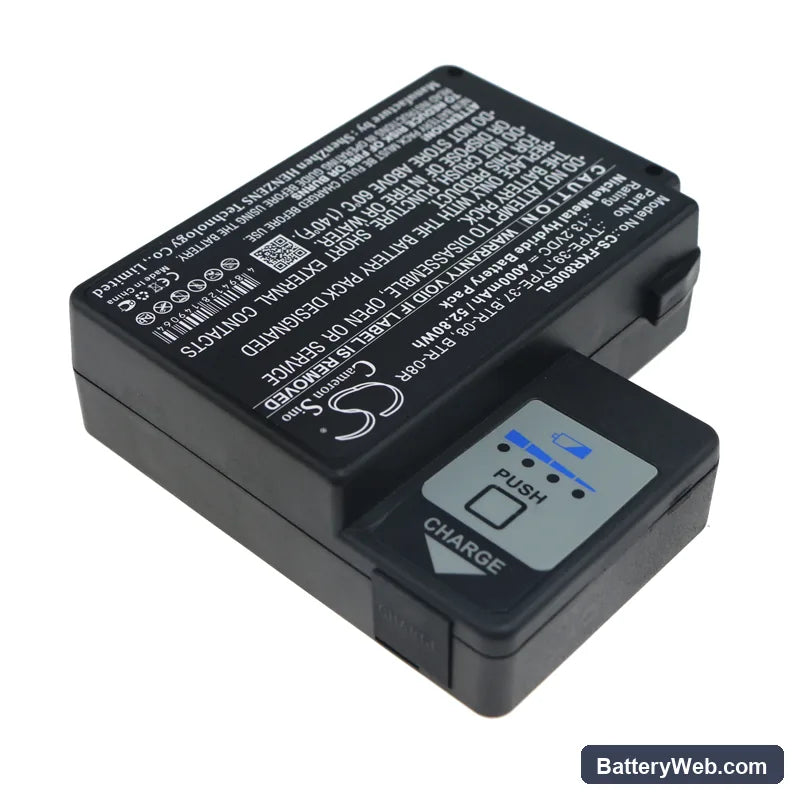

Sumitomo BU-66S Replacement Battery 13.2V 4000mAh Ni-MH

Sumitomo BU-66S / BU-66L — 13.2V Ni-MH Replacement Battery

This is a 13.2V, 4000mAh Ni-MH replacement battery for Sumitomo surveying and testing instruments. It replaces OEM part numbers BU-66S and BU-66L. The pack restores full operating capacity to Sumitomo field instruments used in telecommunications and construction measurement work.

• BU-66S and BU-66L compatibility: Both OEM part numbers share the same 13.2V nominal rail, physical form factor (120 × 117.60 × 38mm), and connector pinout. The instrument's power management circuit communicates with either pack using the same handshake, so no firmware workaround is needed when swapping between the two part numbers.
• Bench tested on actual hardware: We ran this pack through a simulated probe initialisation sequence and sustained sensor logging load. The BMS held without tripping on the current spike at probe power-up, and voltage stayed within the instrument's operating window under continuous measurement draw.
• First-use calibration cycle: After installing this pack, run a full calibration cycle through the instrument menu before heading into the field. The instrument maps battery state during that routine, and skipping it causes premature low-battery warnings to appear during your first measurement session — even with a fully charged pack.

BMS lockout after the instrument sat unused in a carry case for months

Ni-MH cells self-discharge slowly even in storage. If the instrument sat unused for several months, the pack voltage can drop below the BMS recovery threshold — at which point the BMS latches into a protection state and the charger sees no load. This is not a dead pack. Connect the battery directly to a compatible Ni-MH charger rated for the correct cell count and apply a low-current charge (0.1C) until the pack climbs above 10.8V. Once it crosses that threshold, the BMS releases and the instrument's standard charger can take over.

Instrument powers on and shuts off during USB data transfer to PC

USB data transfer adds a combined load — the processor, display, active sensors, and USB controller all draw simultaneously. On an aged or partially charged pack, this combined draw can pull voltage below the instrument's shutdown threshold faster than any single task alone. The instrument is not faulty. Charge the pack fully before any transfer session, and confirm voltage is at or above 14.4V before connecting the USB cable.
