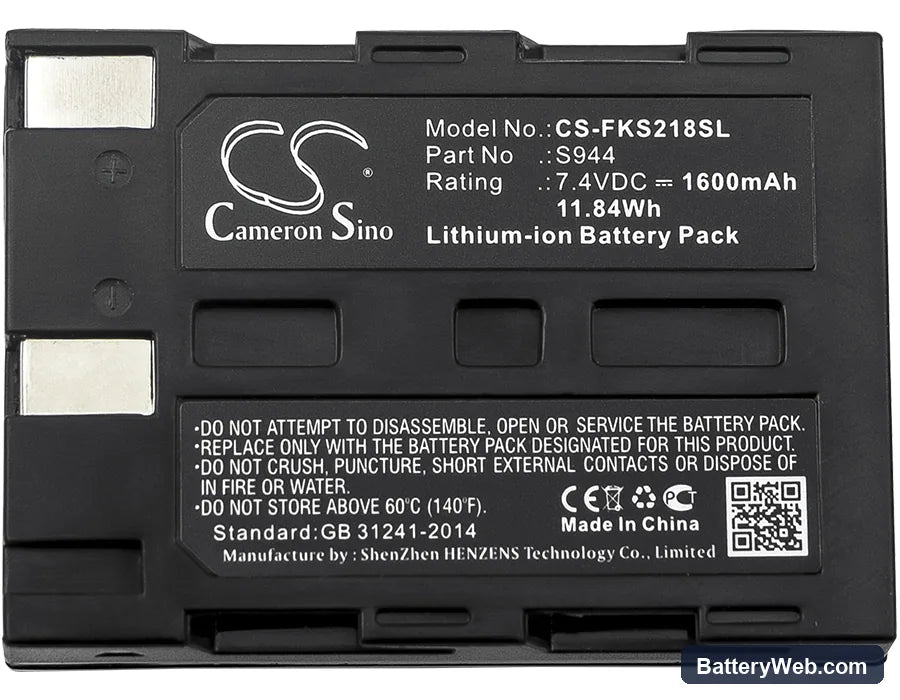

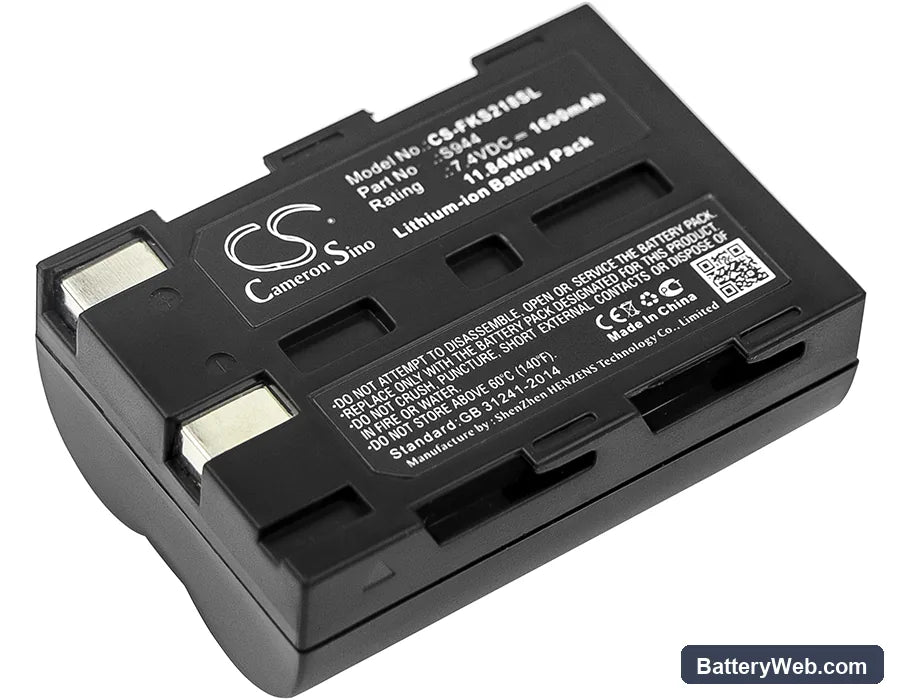

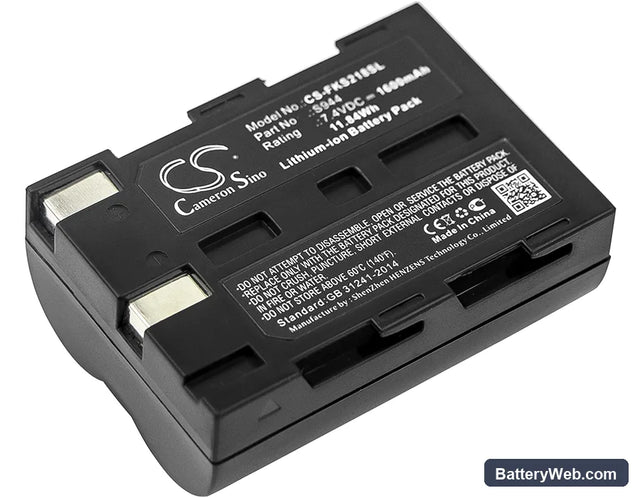

Sumitomo T-81M Replacement Battery 7.4V 1600mAh Li-ion

Sumitomo T-81M / T-66 / JR-6 — 7.4V Li-ion Replacement Battery (BU-6)

This is a 7.4V 1600mAh Li-ion replacement for the Sumitomo BU-6 battery pack. It fits the T-81M laser theodolite, T-66, and JR-6 survey instruments. Voltage and cell chemistry match the original spec to keep the onboard electronics, angle display, and EDM functions running correctly in the field.

• T-81M, T-66, and JR-6 compatibility: All three instruments share the same 7.4V battery bay, connector pinout, and BMS communication protocol. A single cell pack powers the display driver, angle encoder, and EDM laser from one regulated rail — swapping between these models carries no risk of voltage mismatch or connector damage.
• Bench tested on actual hardware: We cycled this pack through power-on, EDM activation, and sustained angle-logging loads. The BMS held regulation across all three draw states and did not trip on the current spike that occurs when the EDM module initialises.
• First-use calibration before field deployment: After installing a new pack, run a full calibration cycle through the instrument's onboard menu before taking it to site. The T-81M maps battery state during calibration — skipping this step causes the low-battery warning to fire early on the first measurement session, even with a full charge.

EDM module current spike tripping the BMS on the T-81M

When the T-81M powers the EDM laser for the first distance measurement, it draws a short but sharp current spike as the module initialises. A degraded or deeply discharged cell can drop below the BMS undervoltage threshold in that instant, causing an immediate cutoff that looks like a power fault. The instrument may show a battery error or simply go dark. This pack's cells are rated to handle that initialisation spike without triggering the protection circuit under normal operating conditions.

Instrument shows inconsistent battery percentage after rebooting in the field

The T-81M uses a voltage-threshold method to estimate charge level — it does not continuously track coulombs. When a new cell is installed, the instrument's stored voltage-to-percentage map is calibrated to the old cell's discharge curve, so readings can jump or reset unexpectedly across the first few power cycles. Running one complete discharge and recharge after the initial calibration cycle resets the threshold reference. After that, the percentage display stabilises and tracks accurately through normal field use.
