Trimble TSC7 Replacement Battery 7.4V 3100mAh 121300

Trimble TSC7 Data Collector — 7.4V Li-ion Replacement Battery (121300)

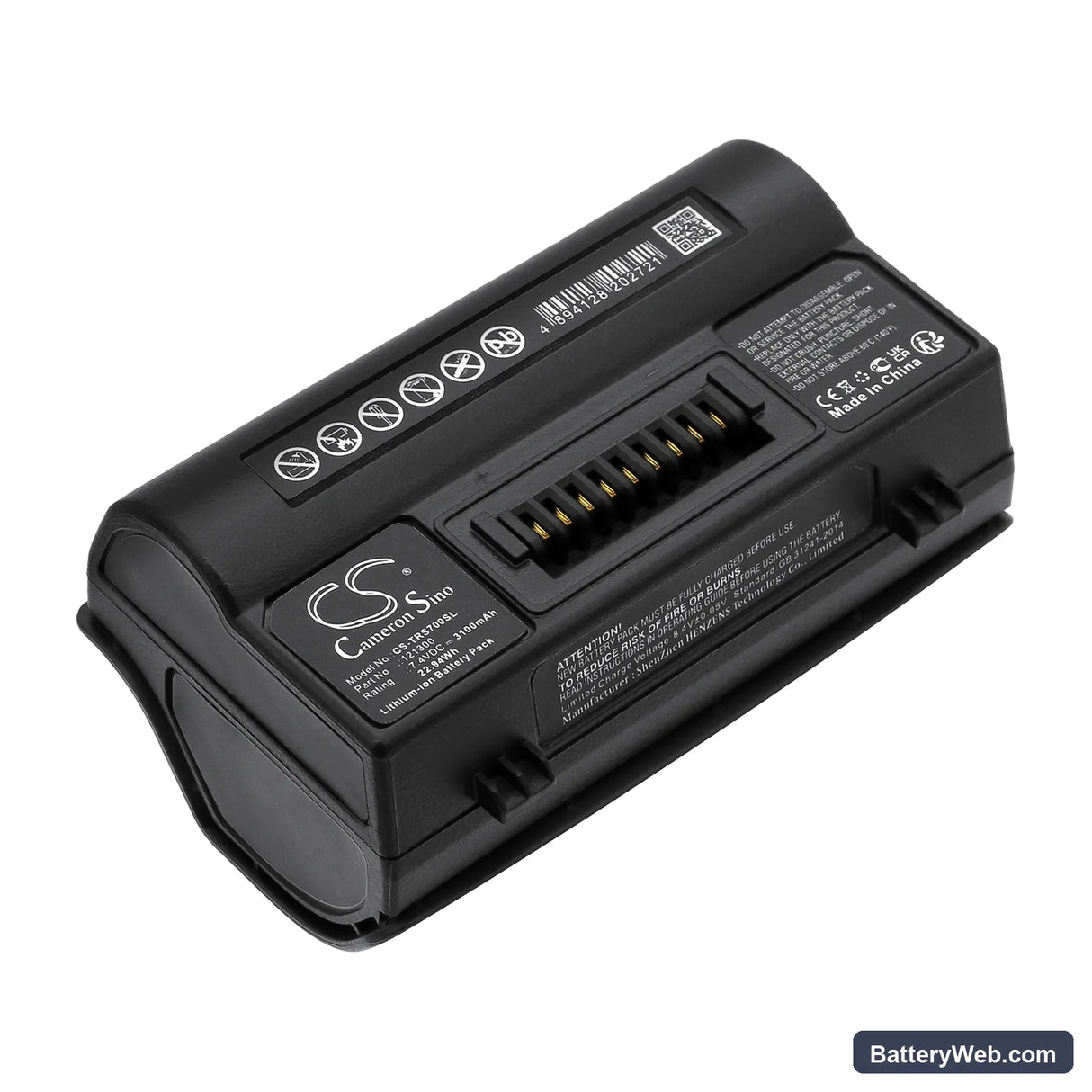

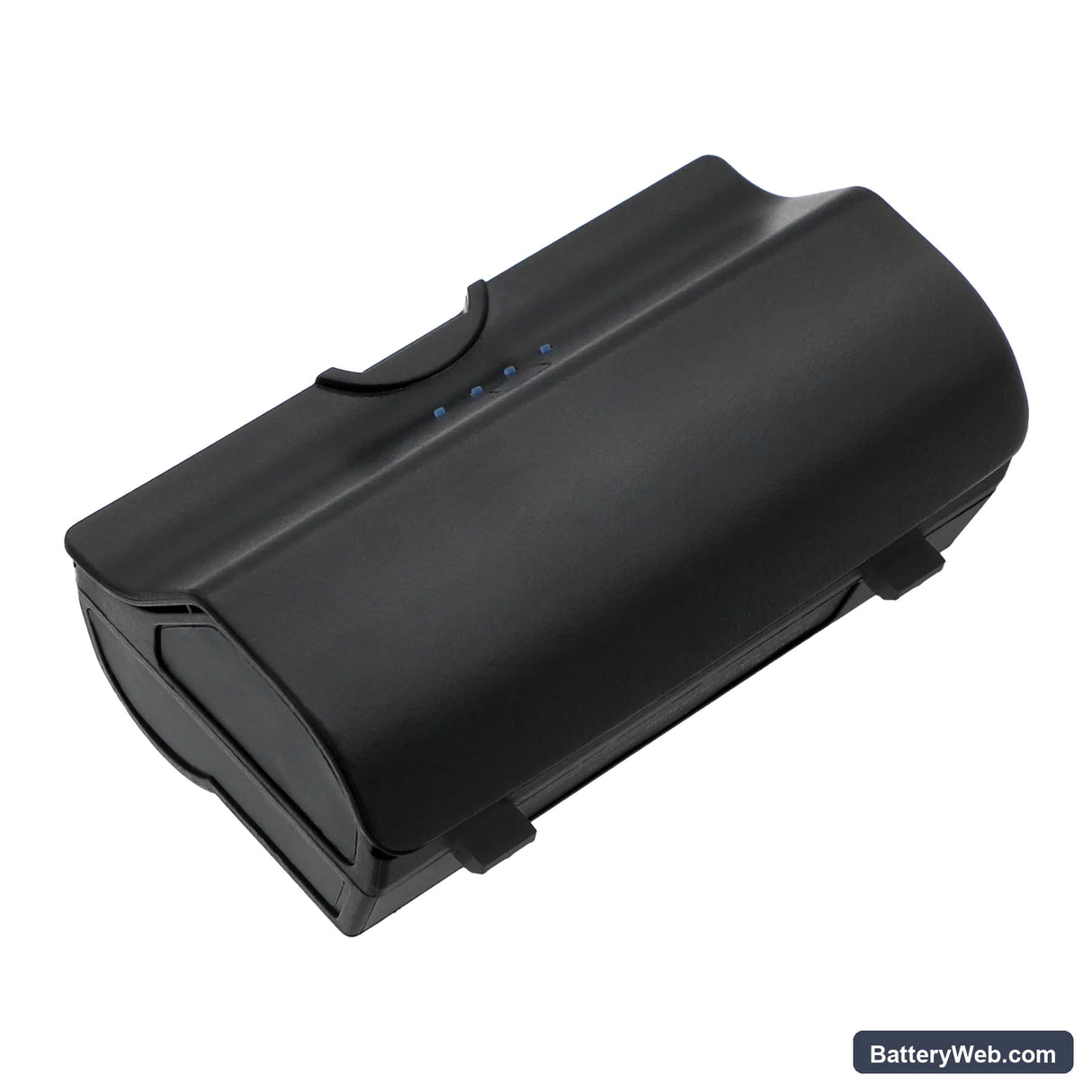

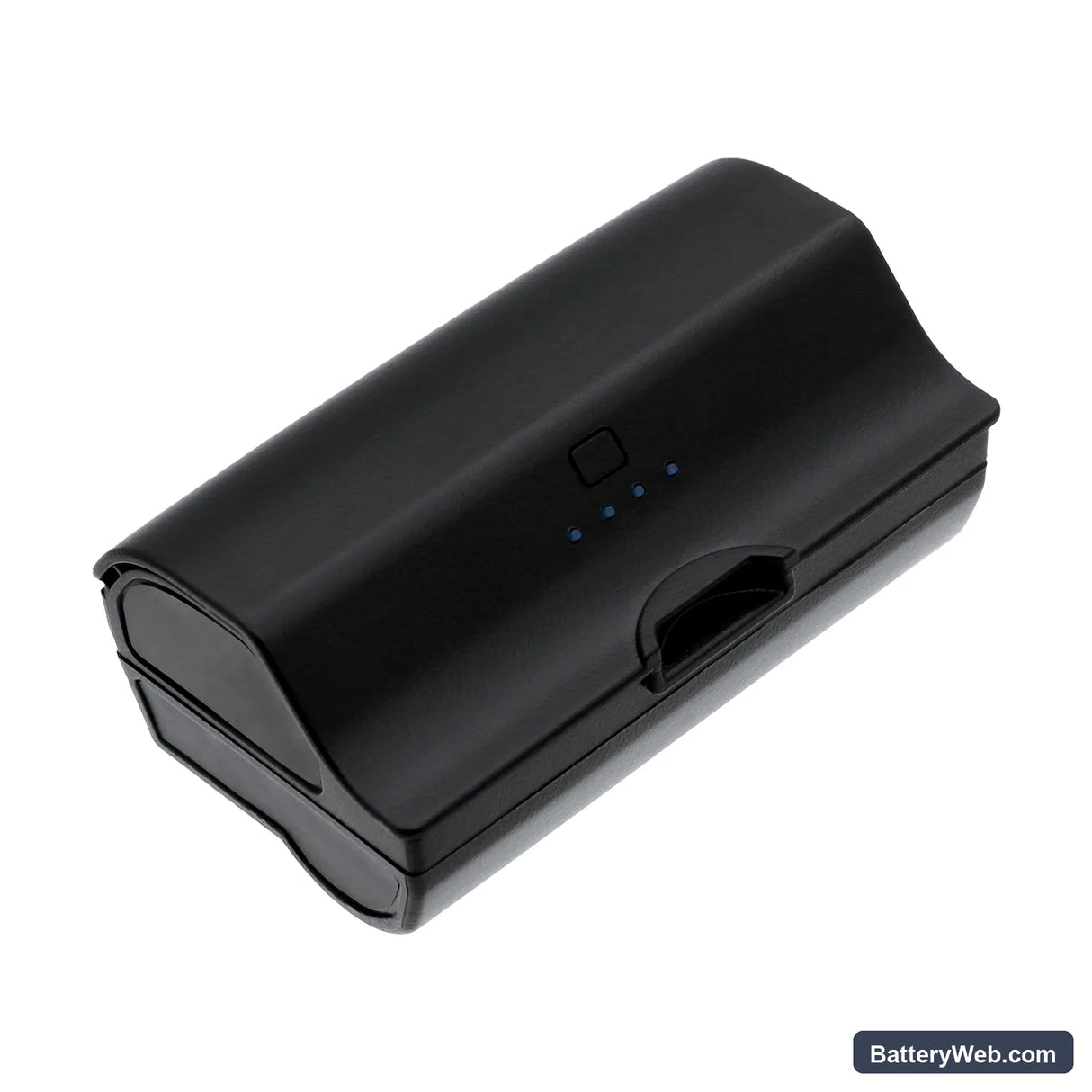

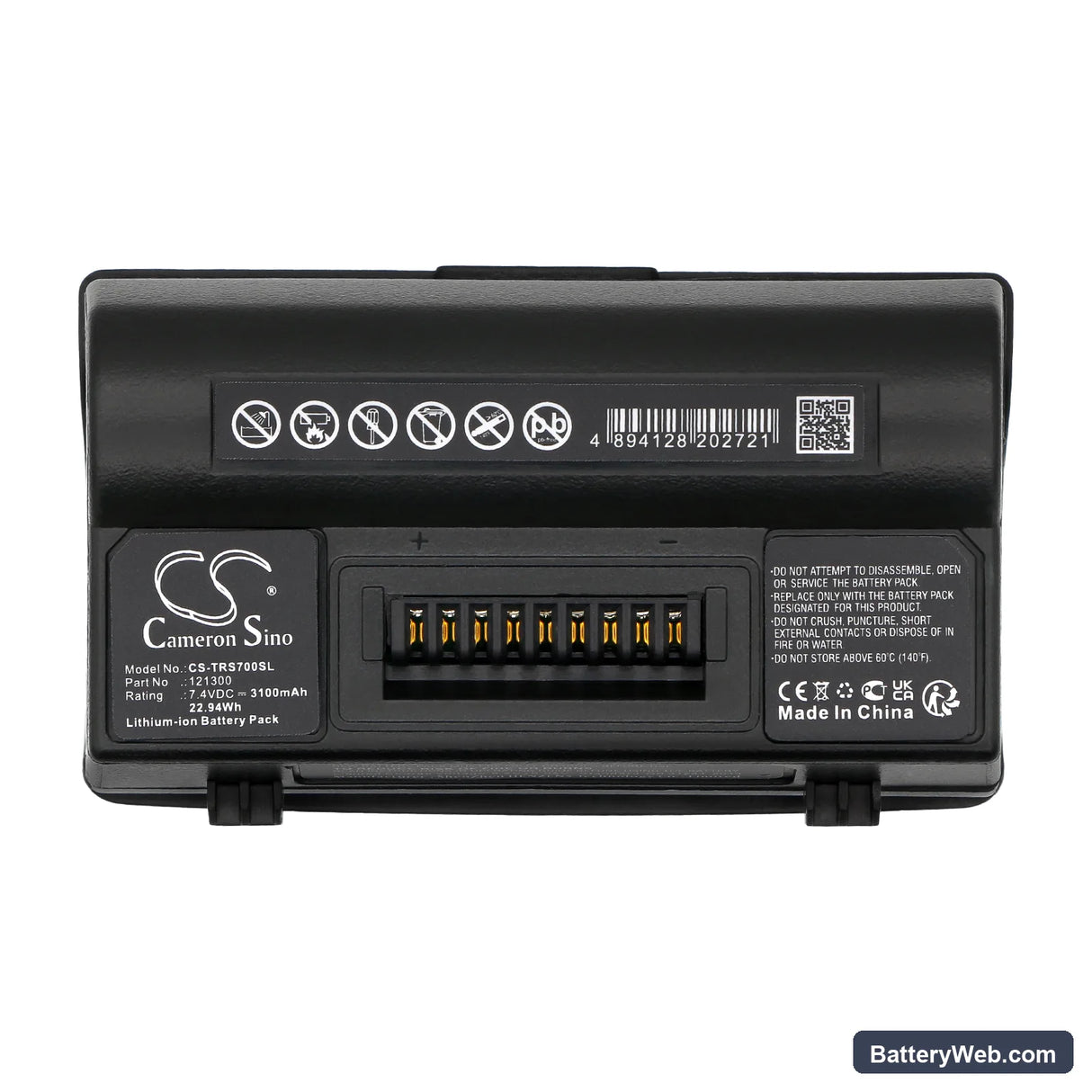

This 7.4V, 3100mAh Li-ion battery replaces the OEM pack in the Trimble TSC7 and TSC7 Data Collector handheld surveying controllers. It matches the original connector, BMS handshake protocol, and physical form factor of part numbers 121300 and 121320. Voltage and capacity are rated at 7.4V / 22.94Wh.

• TSC7 and TSC7 Data Collector fit: Both models run the same 7.4V power rail, use the same battery bay connector, and expect the same BMS communication handshake. One pack covers both variants — no adapter or firmware change required.
• Bench tested on actual hardware: We ran this pack on the TSC7 through GNSS acquisition, active Bluetooth pairing, and sustained data logging. The BMS held stable voltage output under combined radio and processor load, and the battery indicator reported state-of-charge accurately throughout.
• First-use calibration on the TSC7: After installing this pack, run a full calibration cycle through the TSC7 system menu before field deployment. The instrument maps battery state during calibration. Skipping this step causes the low-battery warning to fire early on your first survey session — before actual depletion.

BMS cutoff when the TSC7 initialises its GNSS receiver at startup

When the TSC7 powers on, the internal GNSS receiver and radio module draw a brief, sharp current spike during initialisation. On a partially depleted or newly installed pack, this spike can push the BMS over its overcurrent threshold and trigger an immediate cutoff — the device appears to power on, then shuts off within seconds. This is not a fault with the battery. The fix is to ensure the pack is above 7.0V before the first cold-start boot. Charge to full before the initial power-on if the pack has been stored.

TSC7 battery percentage jumping erratically at reboot

A new Li-ion pack has a voltage-to-capacity curve the TSC7's fuel gauge has not yet mapped. At reboot, the device reads open-circuit voltage and estimates charge state — but without a reference discharge cycle completed, it assigns an inaccurate percentage. The indicator can jump from 80% to 45% between two restarts on a fully charged pack. Run the battery down to the auto-shutdown threshold once, then charge fully without interruption. After that single cycle, the percentage readout stabilises.
