Wacom Intuos5 Touch Replacement Battery 3.7V 1050mAh

Wacom Intuos5 Touch PTH-450 Series — 3.7V Li-ion Replacement Battery (1UF553450Z-WCM)

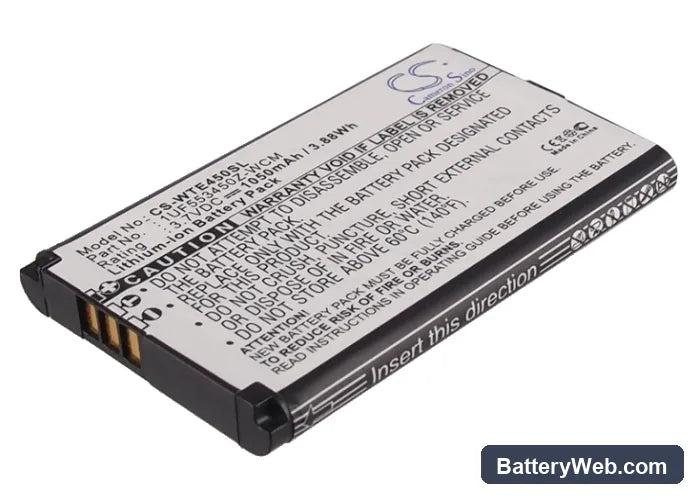

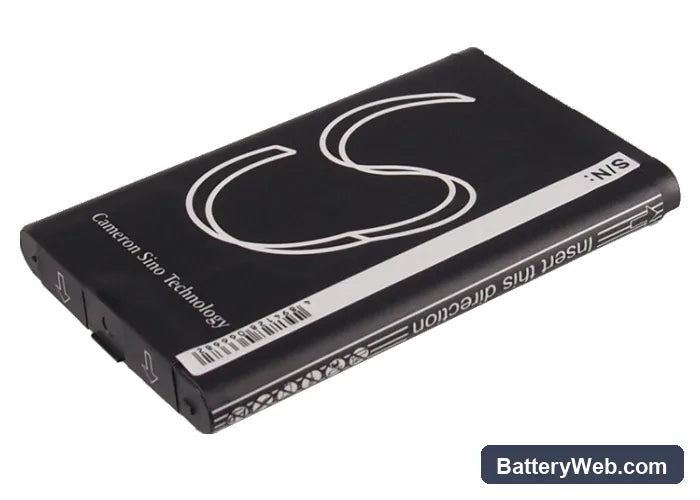

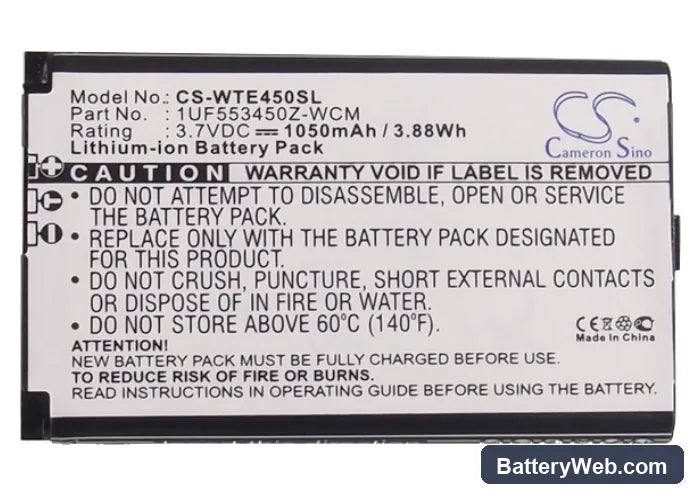

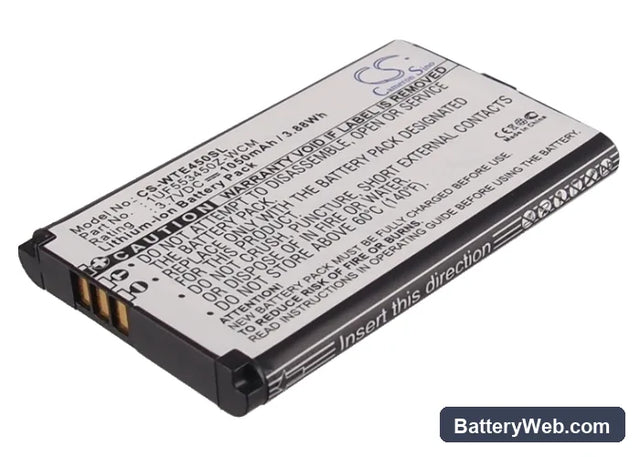

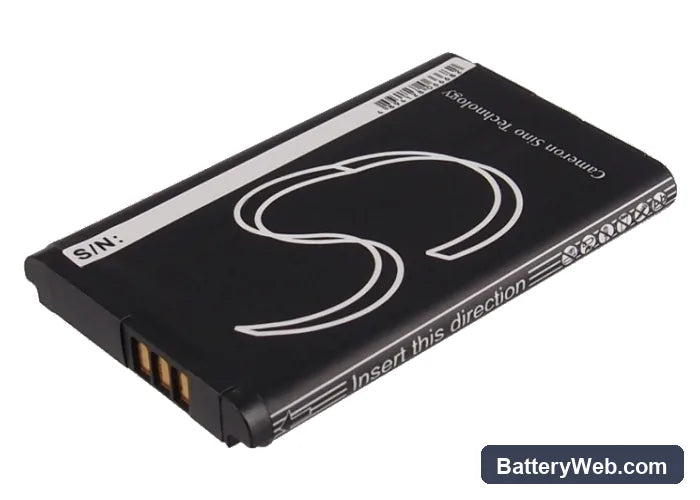

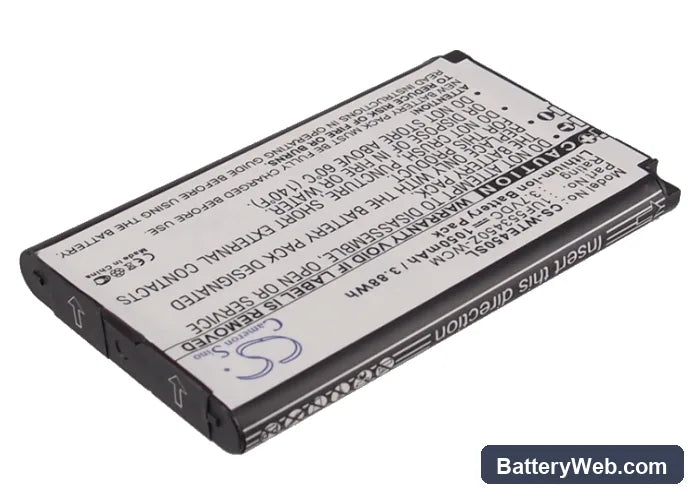

This 3.7V, 1050mAh Li-ion cell replaces the internal battery in the Wacom Intuos5 Touch pen tablet. It fits the PTH-450-XX, PTH-450-DE, PTH-450-EN, and over 35 additional Intuos5 Touch variants. The battery restores wireless operation to the tablet when the original cell no longer holds a usable charge.

• PTH-450 series compatibility: All PTH-450 variants share the same internal battery bay, connector pinout, and BMS communication protocol. A single cell — the 1UF553450Z-WCM — covers the full lineup without modification.
• Bench tested on actual hardware: We ran this cell through charge and discharge cycles on a PTH-450 unit. The BMS accepted the new cell, negotiated correctly with the charge IC, and reported state-of-charge without fault flags.
• Fuel gauge recalibration after swap: After installing this cell, run the tablet wirelessly until it shuts off automatically, then charge it uninterrupted to 100%. This forces the fuel gauge IC to recalibrate against the new cell's actual capacity curve and clears the inaccurate percentage readings that commonly appear after a battery swap.

Intuos5 Touch shutting down at 20–30% battery remaining

This happens when the fuel gauge IC is still calibrated to the old, degraded cell. The gauge maps a dying cell's voltage curve — which collapsed steeply at low charge — onto the new cell. The tablet sees the voltage drop past its low-battery threshold earlier than it should and triggers an emergency shutdown. One full discharge-to-shutoff followed by an uninterrupted charge to 100% rewrites the calibration reference. After that cycle, the shutdown point should sit at or below 5%.

Intuos5 Touch battery percentage dropping faster than expected from 100%

Fast percentage drop from a full charge is almost always fuel gauge drift — the charge IC recorded a capacity figure from the old degraded cell and is now projecting discharge rate against that lower baseline. The new 1050mAh cell has more usable capacity than the gauge expects, so it burns through percentage points faster in its model than in reality. Run one complete cycle: wireless use to automatic shutoff, then a full uninterrupted charge. The gauge re-anchors to the actual cell capacity and percentage drain stabilises.
