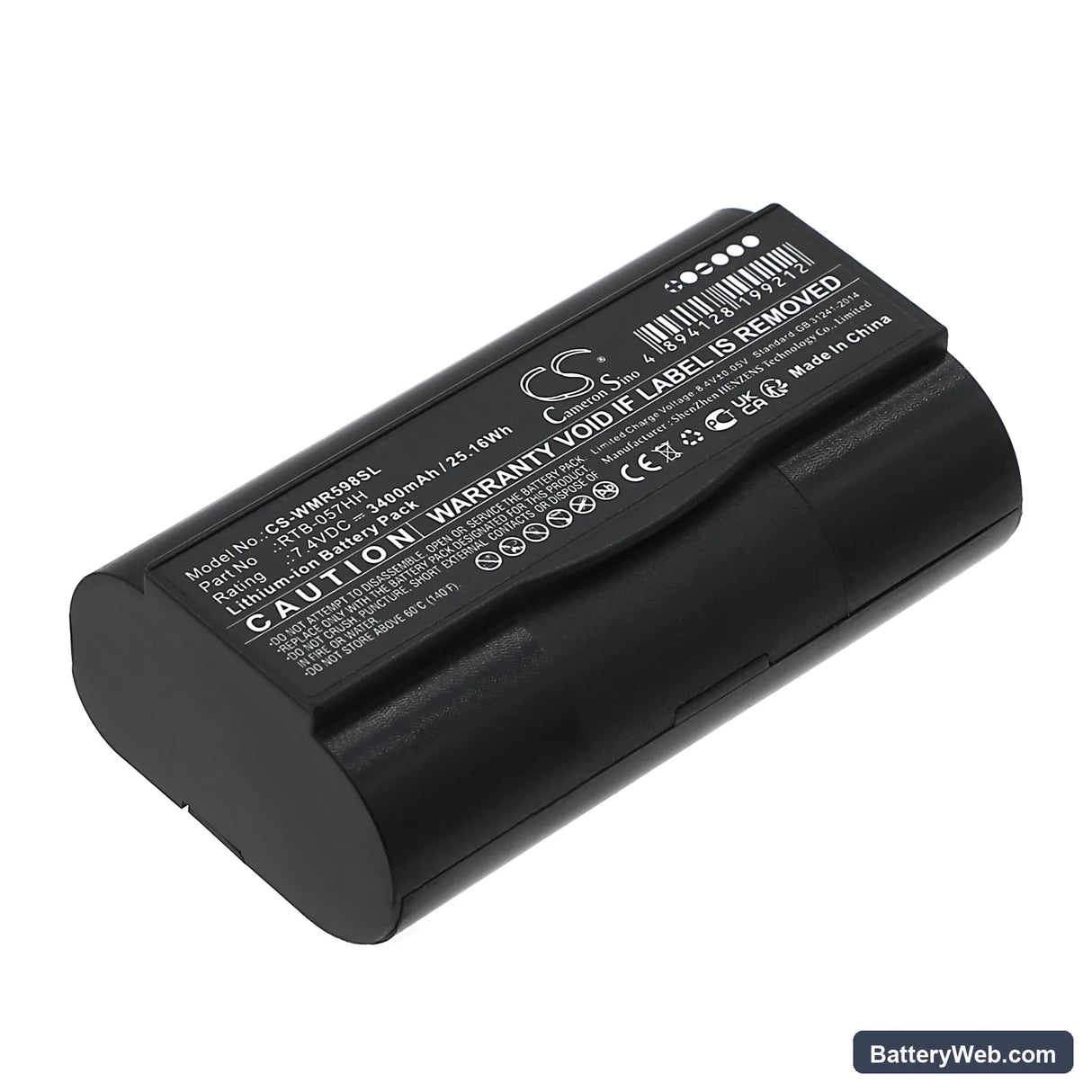

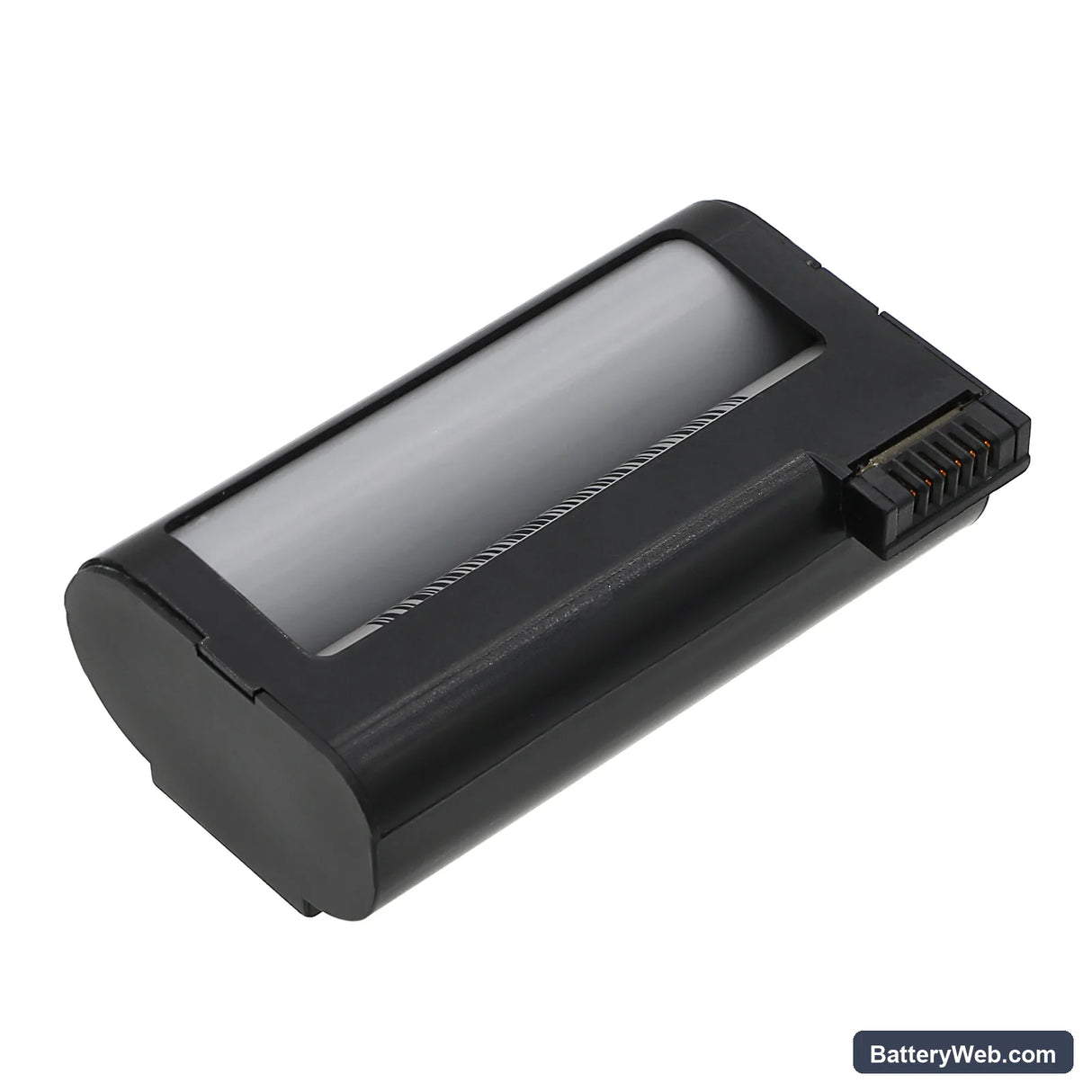

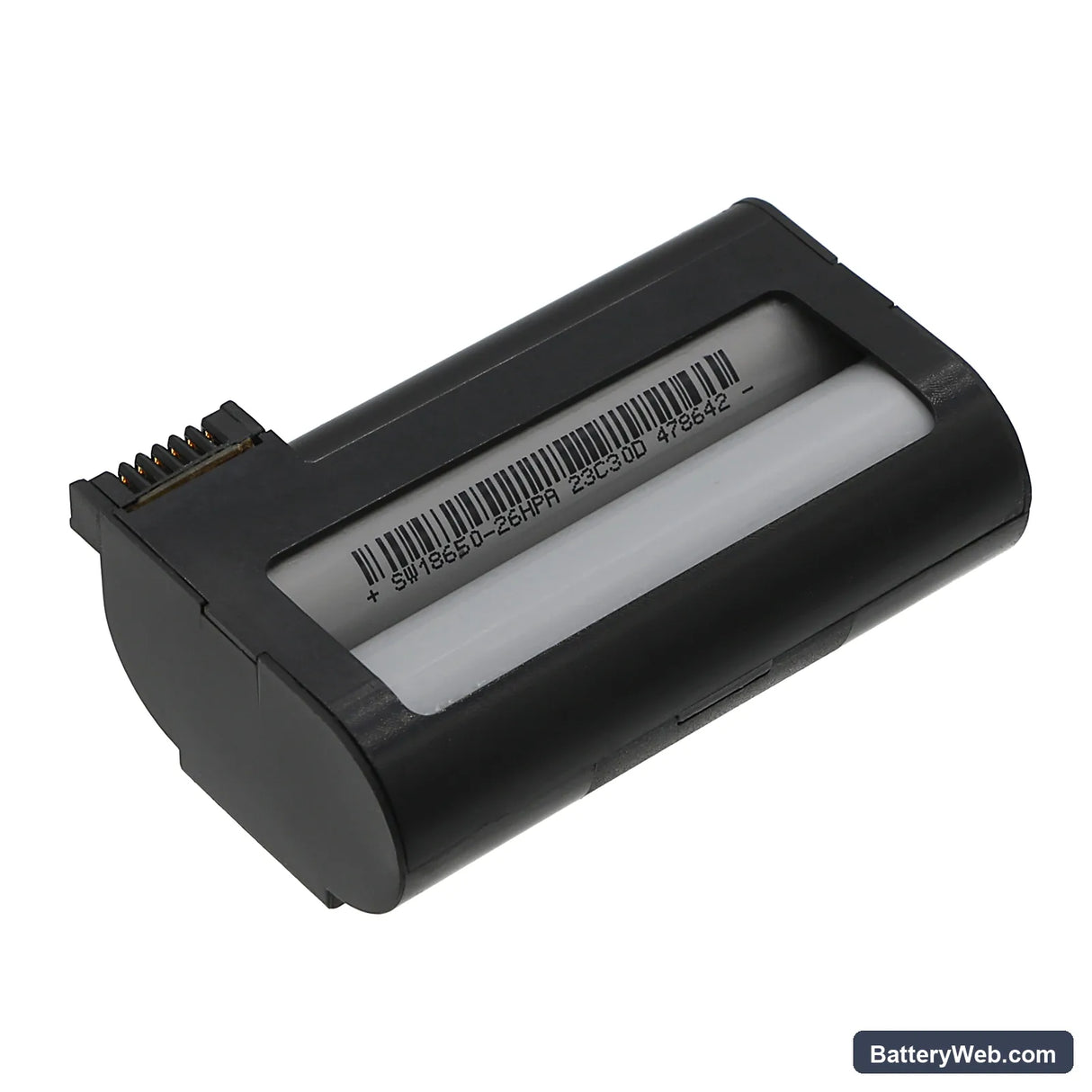

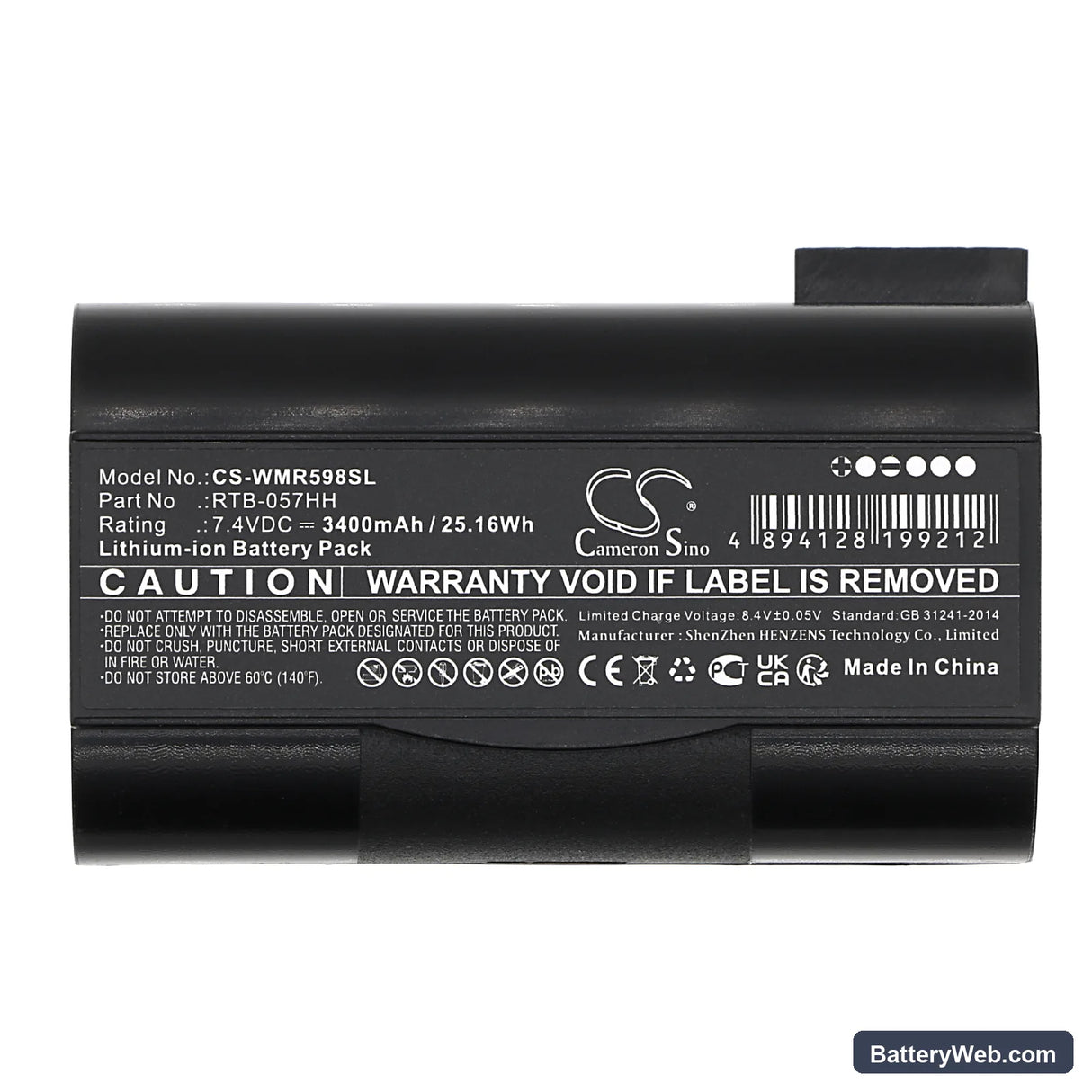

Winmate R05I98H-RTD1 Replacement Battery 7.4V 3400mAh RTB-057HH

WINMATE R05I98H-RTD1 — 7.4V Li-ion Replacement Battery (RTB-057HH)

This 7.4V 3400mAh Li-ion battery replaces part number RTB-057HH in the WINMATE R05I98H-RTD1 rugged tablet. The R05I98H-RTD1 is an industrial-grade mobile computing device used in field and warehouse environments. Capacity is 3400mAh (25.16Wh) — matched to the original cell specification.

• R05I98H-RTD1 fit confirmation: The RTB-057HH footprint is specific to this tablet line. The connector pinout carries both power and BMS data lines — the tablet's charge controller reads cell status through those signal pins, so fit and pinout must be exact for the OS to accept the battery and report charge state correctly.
• Bench tested on actual hardware: We cycled this battery through a full charge and discharge on test equipment replicating the R05I98H-RTD1 charge IC behaviour. The BMS responded correctly at both low-voltage cutoff and full-charge termination with no fault flags triggered.
• Fuel gauge recalibration after installation: After fitting this battery, run the tablet down to automatic shutoff, then charge it uninterrupted to 100% without using the device. This forces the fuel gauge IC to map its voltage curve against the new cell and clears the inaccurate percentage readings that appear immediately after a battery swap.

R05I98H-RTD1 shutting down between 15–25% remaining

This is a voltage sag issue, not a defective battery. The R05I98H-RTD1 draws combined load from the display backlight and active WiFi or cellular simultaneously. At lower states of charge, cell voltage drops faster under that combined draw than the fuel gauge IC anticipates. The tablet's protection circuit interprets the voltage dip as a critically low cell and triggers a shutdown before the percentage counter reaches zero. One full recalibration cycle — discharge to shutoff, uninterrupted charge to 100% — teaches the fuel gauge where the actual voltage cliff sits on this cell, and the early shutdowns stop.

Fast charging unavailable after replacing the RTB-057HH

The R05I98H-RTD1 charge controller negotiates charge rate during the first accepted charge cycle after a new battery is detected. Until that cycle completes, the tablet defaults to standard charge current as a safety fallback — it will not handshake at higher rates with an uncalibrated cell. Plug into the original charger and let the tablet charge fully from near-zero without interruption. After that first complete cycle, the charge controller re-negotiates rate on the next session and fast charging becomes available again.
