Bissell 24V 2000mAh Compatible Battery 1638019

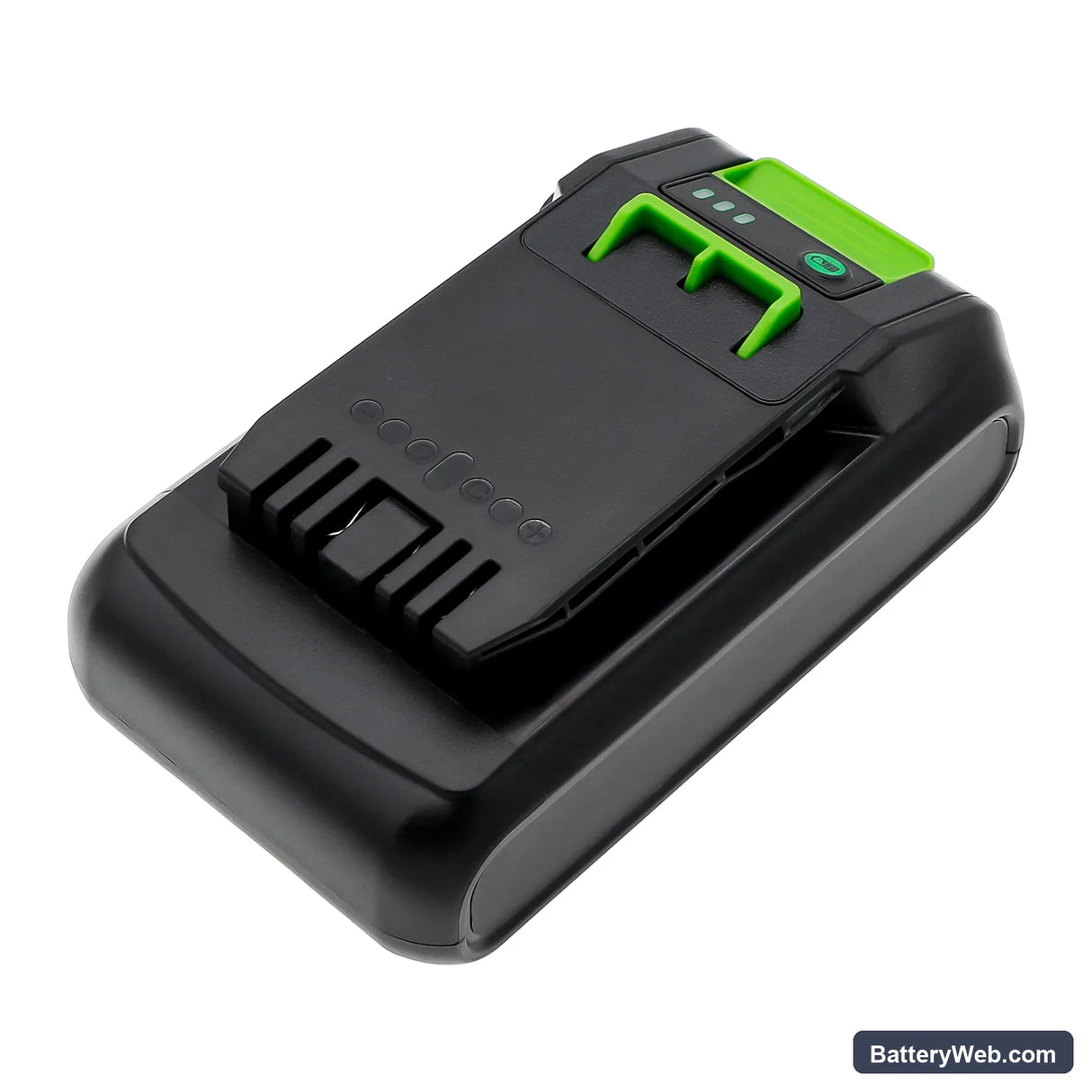

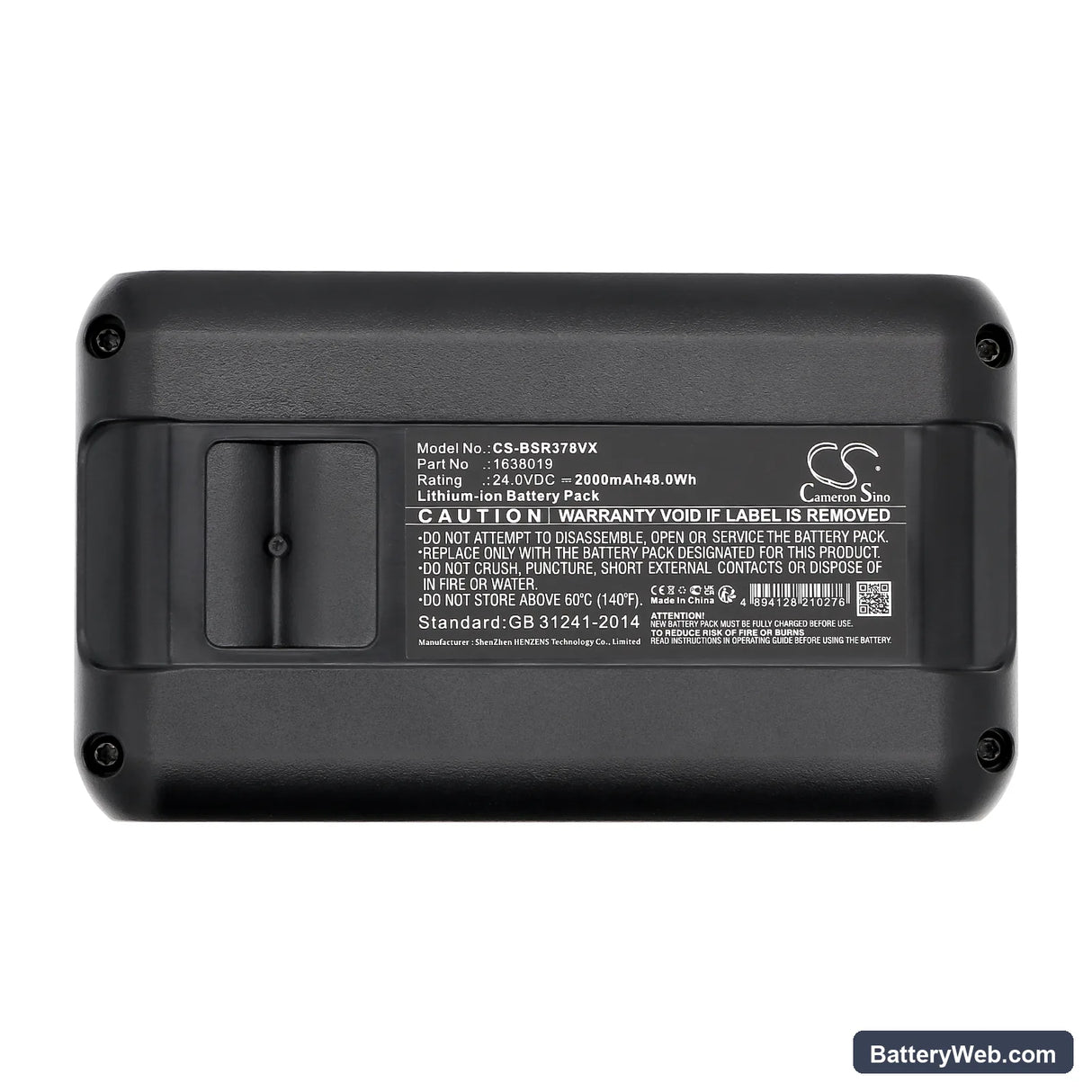

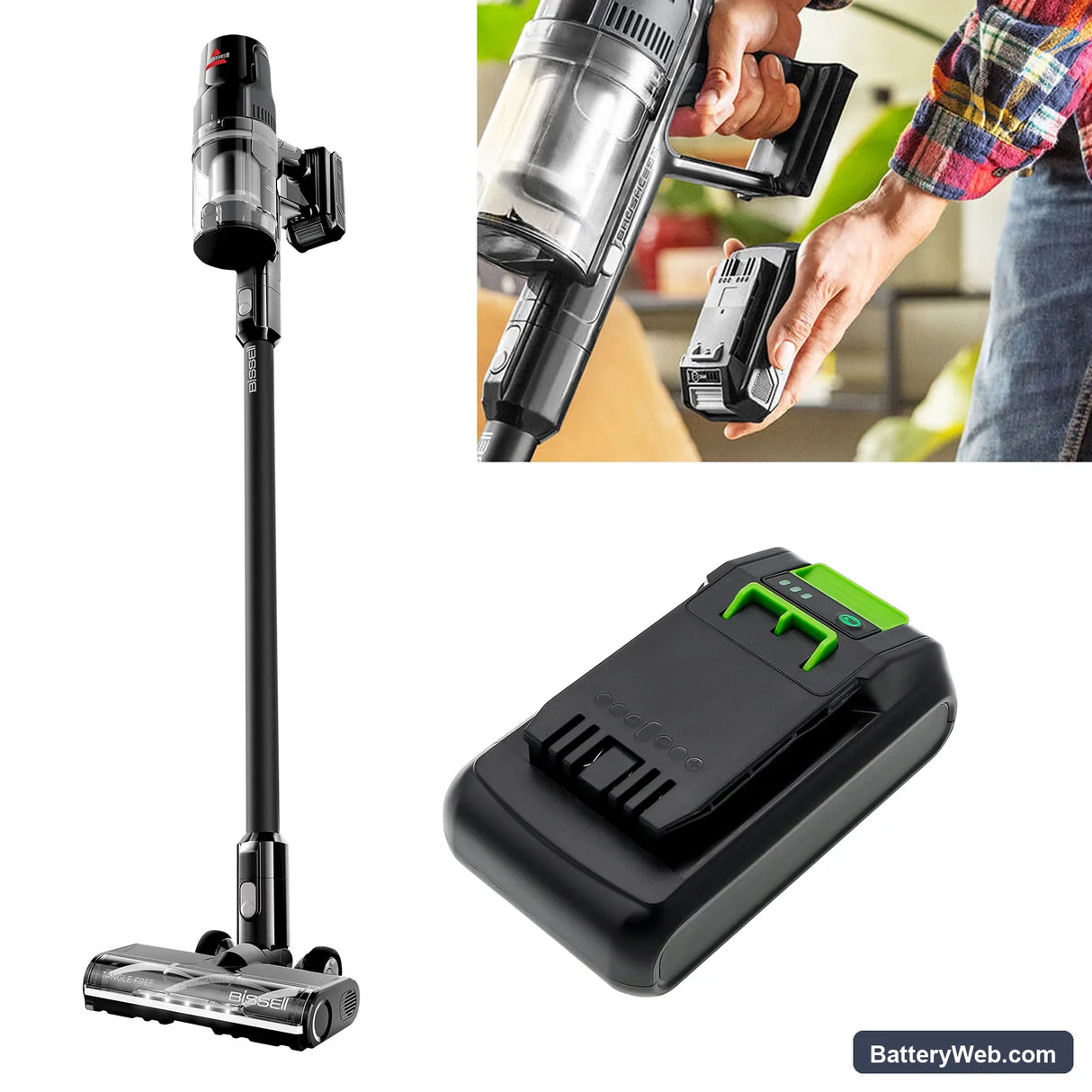

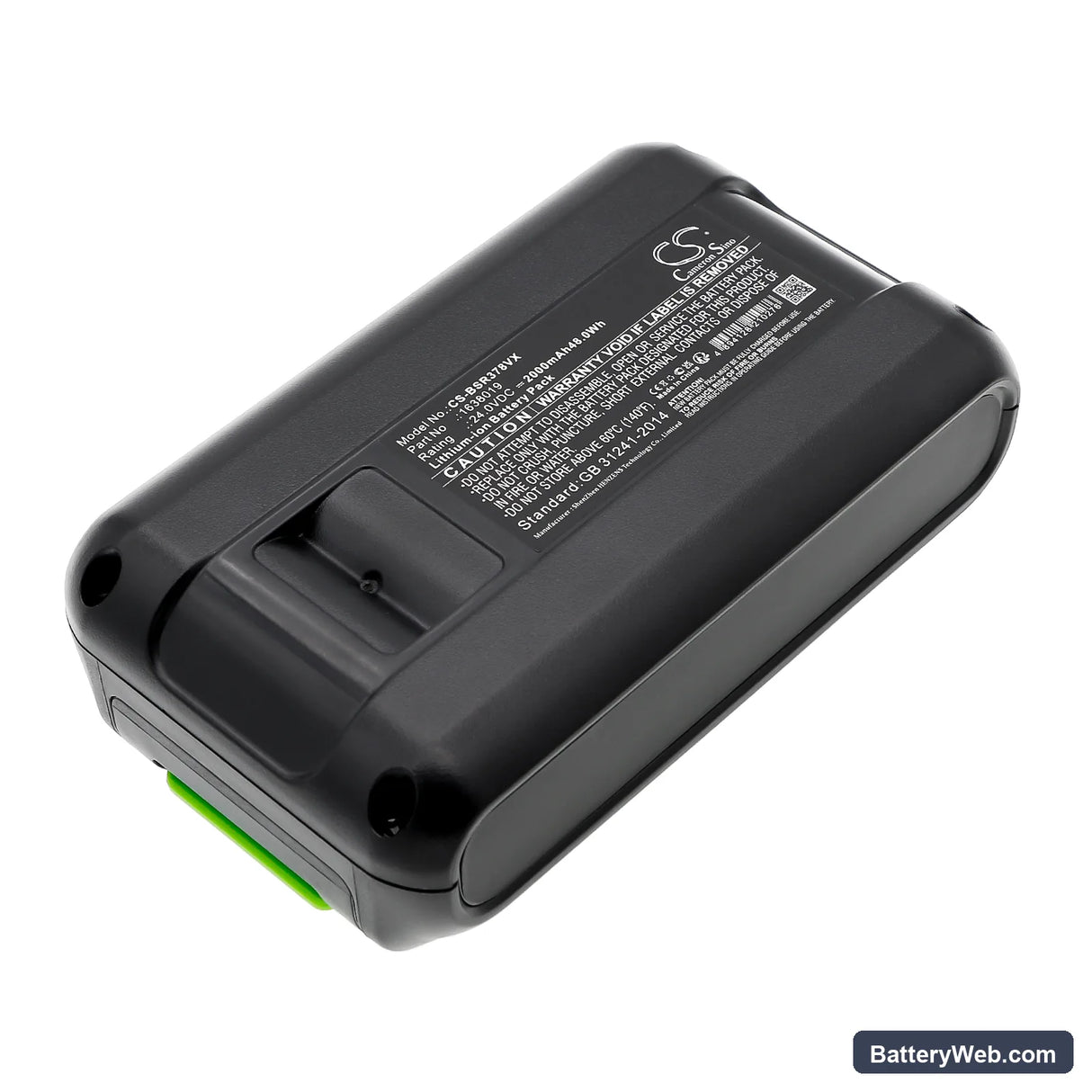

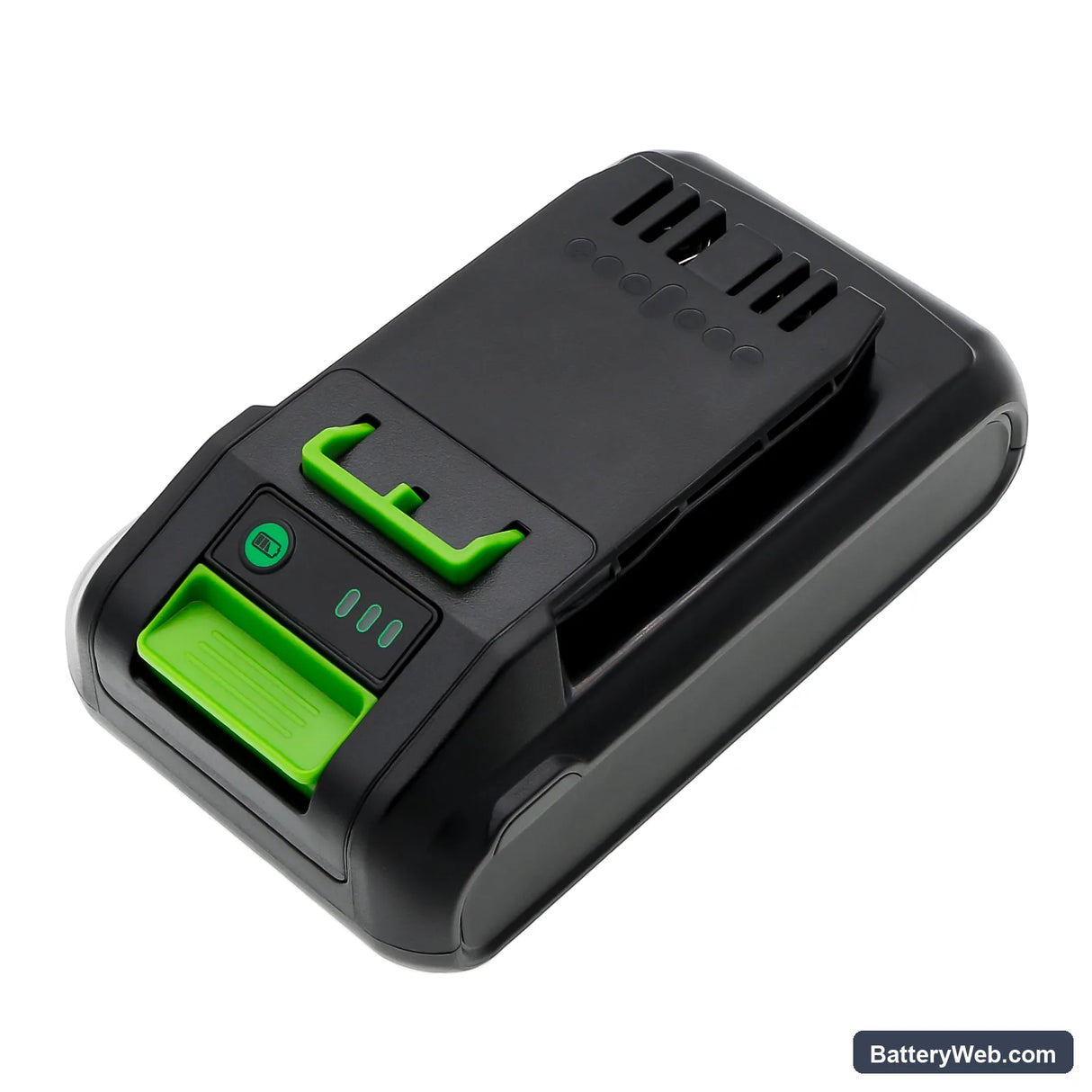

Bissell 3789 / Cleanview XR Stick Vacuum — 24V Li-ion Replacement Battery (1638019)

This is a 24V 2000mAh (48Wh) lithium-ion replacement battery for the Bissell 3789, 3797W, 3789U, and Cleanview XR Stick Vacuum series. It replaces OEM part numbers 1638019 and 1638764. Capacity matches the original cell specification listed in Bissell's service documentation.

• 3789 and Cleanview XR platform fit: These models share the same 24V battery rail, physical connector, and BMS handshake protocol. A single cell covers the full listed compatibility group without modification.
• Bench tested on actual hardware: We ran this battery through charge and discharge cycles on a 3789 unit. The BMS responded correctly to the charger handshake, balanced cells within spec, and triggered protection cutoff at the expected low-voltage threshold without false trips.
• Dock charging habit on the 3789: The 3789 charger does not switch to a true maintenance mode once full — it continues to push a low-level charge into the pack. Remove the vacuum from the dock once the indicator shows full. Leaving it docked indefinitely degrades cell capacity faster than regular use cycles.

Suction dropping before the battery indicator reaches low

This is a voltage sag issue, not a failed battery. When the filter is partially blocked, the motor draws more current than rated to maintain airflow. That current spike causes the pack voltage to dip under load, which the BMS reads as a low-cell event and throttles output. The vacuum feels like it's losing charge when it's actually fighting a restriction. Clean or replace the filter first — if suction stabilises at full power afterward, the battery is functioning correctly.

Motor cuts out mid-clean then recovers after a few seconds

This is a BMS overcurrent trip, not an intermittent fault in the battery itself. Sustained restricted airflow — from a full dust cup, a blocked nozzle, or a clogged filter — forces the motor to spike current draw above the BMS protection threshold. The BMS opens the circuit to protect the cells, which feels like a sudden shutoff. Wait a few seconds for the BMS to reset, clear the blockage, then restart. If it trips again immediately, empty the dust cup and inspect the filter before replacing the battery.
