Black&Decker HSV520J01 Replacement Battery 18V 3000mAh

Black&Decker HSV520J01 — 18V Li-ion Replacement Battery (HD5BFN-5023FB-WR-CE/71)

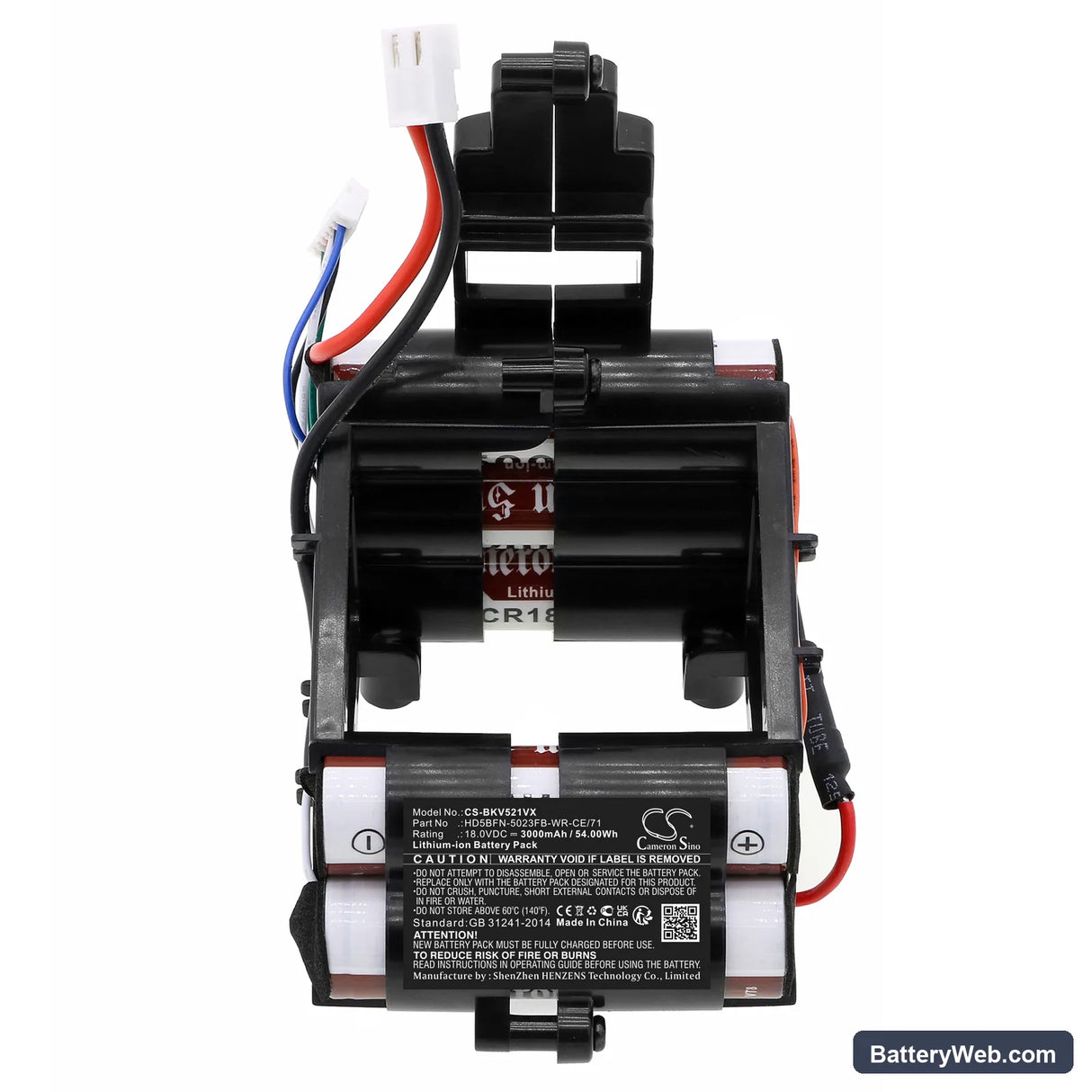

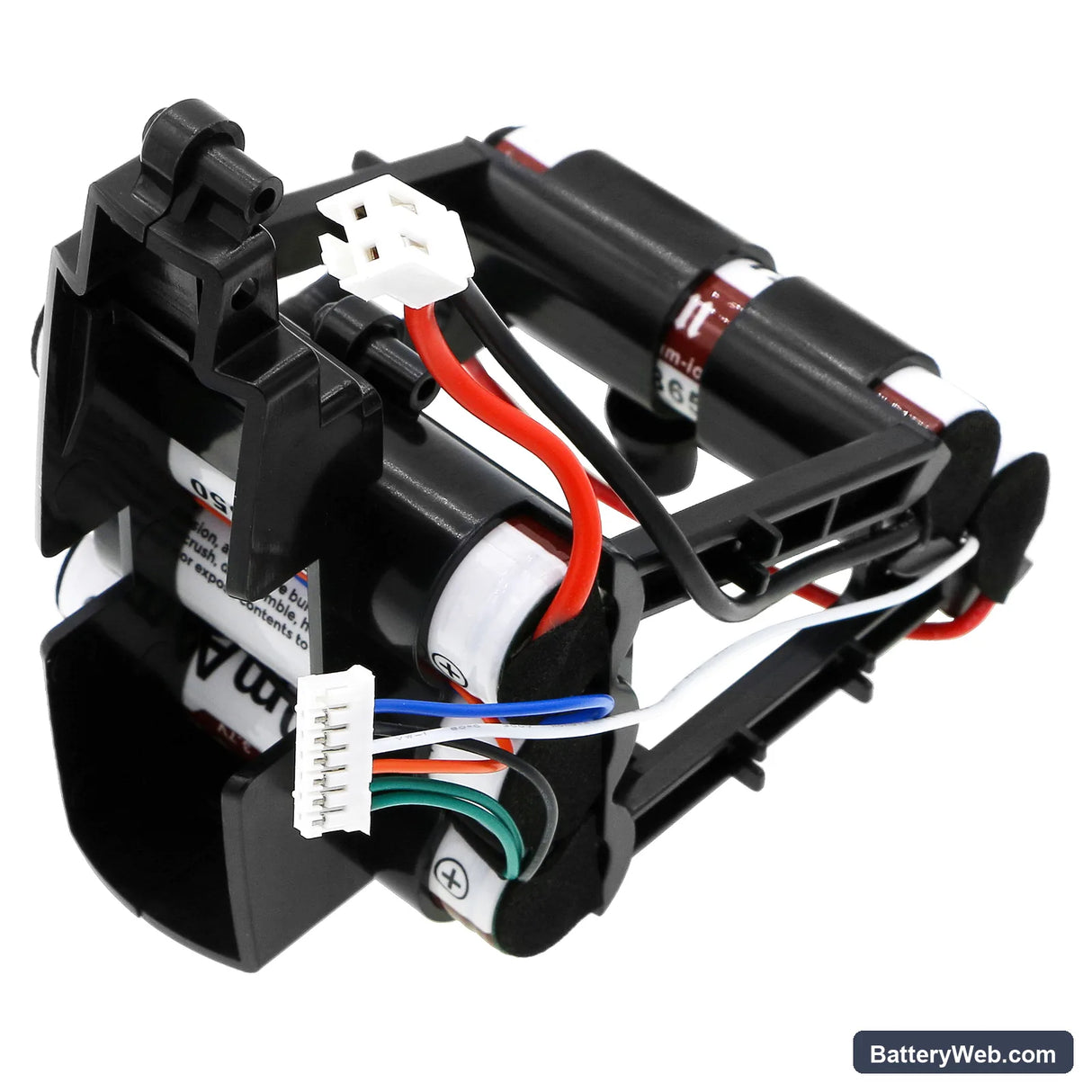

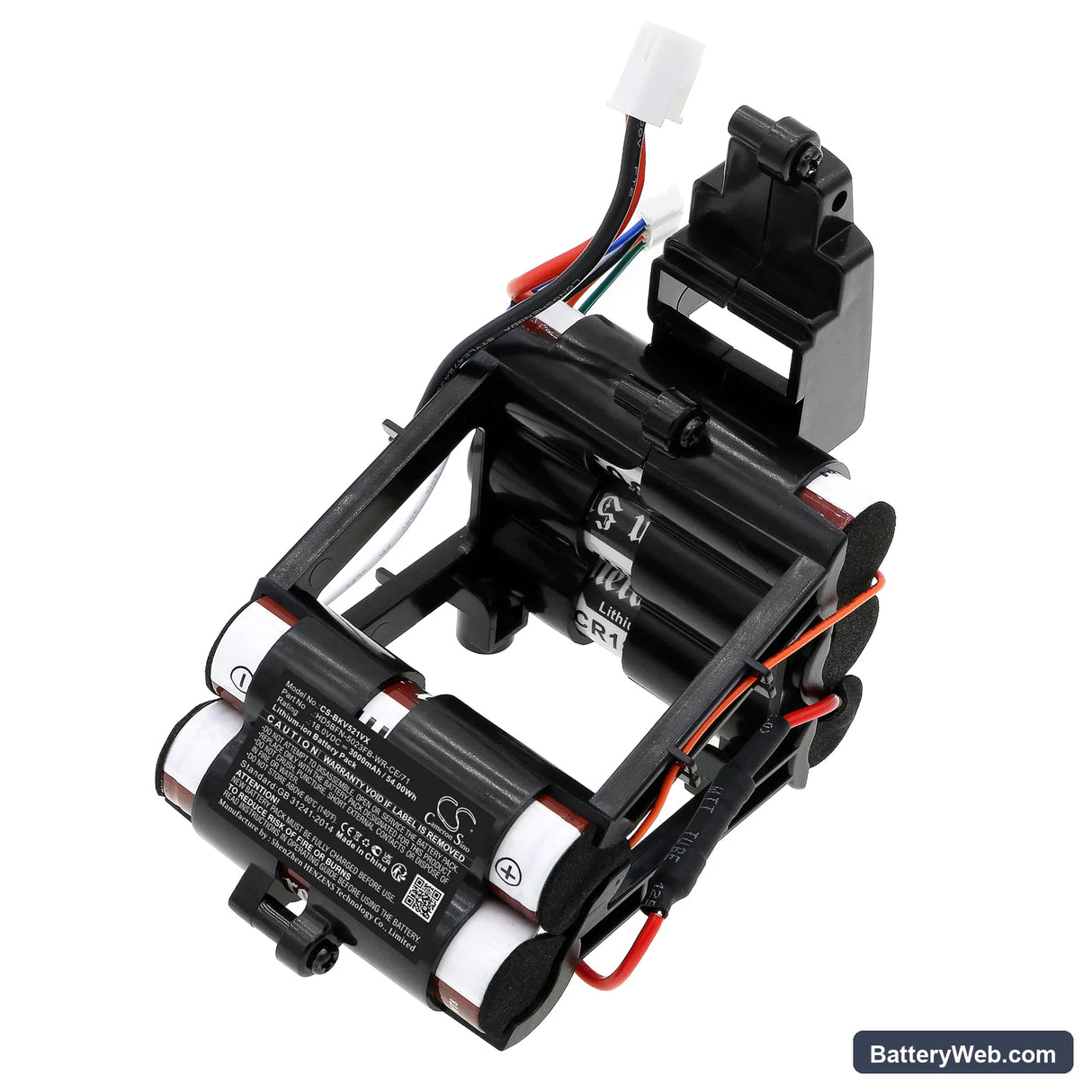

This 18V 3000mAh (54Wh) Li-ion battery replaces the original pack in the Black&Decker HSV520J01 cordless handheld vacuum. It fits directly into the HSV520J01 battery slot and communicates with the onboard BMS as the factory cell does. Voltage and chemistry match the original specification exactly.

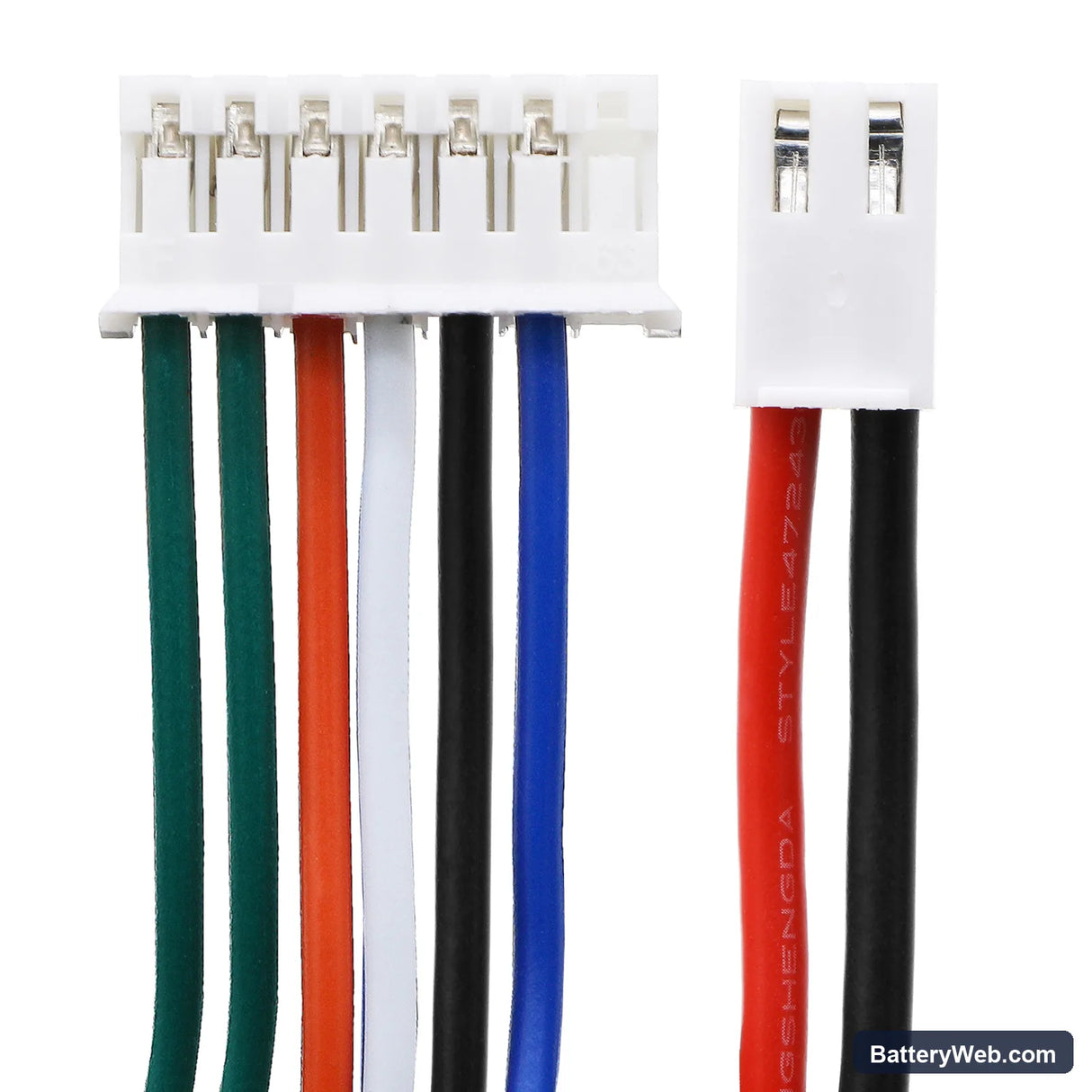

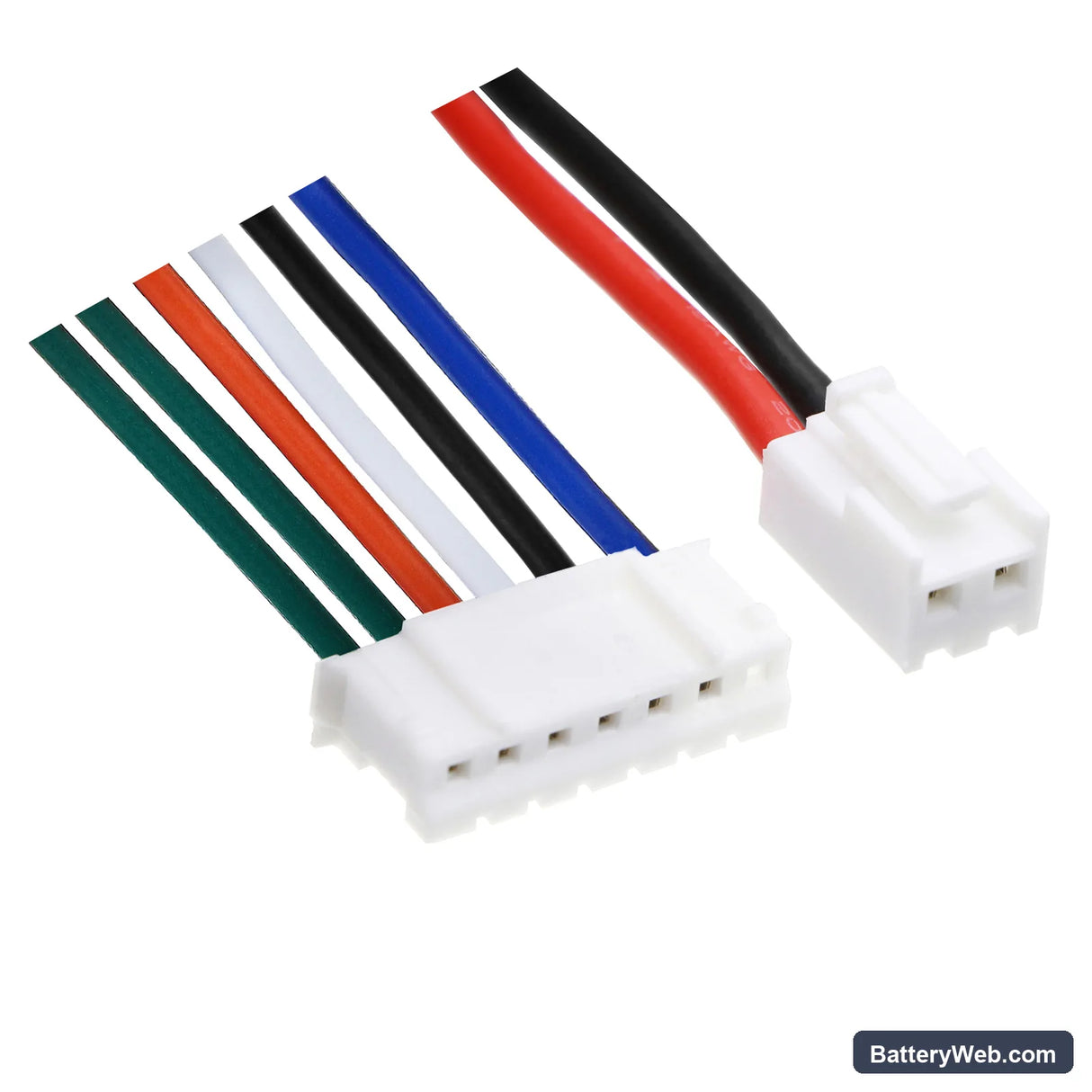

• HSV520J01 fit: The HSV520J01 runs an 18V motor rail with a BMS that checks cell voltage and current draw on startup. This replacement cell carries the same voltage profile and connector configuration, so the vacuum's protection circuit initialises normally without throwing a fault state.
• Bench tested on actual hardware: We cycled this pack through full charge and discharge runs, monitoring BMS cutoff under sustained motor load and verifying that the cell recovered cleanly after a deep draw. The protection circuit tripped and reset correctly at the expected thresholds each time.
• Dock charging habit for the HSV520J01: Do not leave this vacuum sitting on the charging dock continuously. Cordless vacuums stored on permanent dock charge accumulate trickle-charge heat cycles that accelerate capacity fade. Charge the pack to full, then remove it from the dock until the next use.

Suction dropping before the battery indicator reaches low on the HSV520J01

The HSV520J01 motor draws more current when airflow is restricted — a clogged filter forces the motor to work harder, pulling the cell voltage down faster than the indicator registers. The BMS reads actual cell voltage, but the LED indicator responds more slowly, so suction weakens while the light still shows adequate charge. A degraded original cell makes this worse because internal resistance rises and voltage sags under load even when resting voltage looks fine. Clean or replace the filter first, then test again — if suction holds consistently, the filter was the cause, not the battery.

Motor cuts out mid-use then restarts after a short pause

This is an overcurrent trip from the BMS, not a dead battery. When suction is partially blocked — by a clogged filter or a blockage in the nozzle — the motor spins under sustained restriction and current draw spikes above the protection circuit's threshold. The BMS cuts power to protect the cells, then resets once current drops back down. Clearing the blockage and cleaning the filter stops the trip cycle. If the motor still cuts out on a clean, unobstructed machine, check that cell voltage at rest reads at least 16V before putting it back under load.
