Jimmy JW51 Replacement Battery 21.6V 2500mAh T-DC38H

Jimmy JW51 / JW53 / CJ53 / CJ57 — 21.6V Li-ion Replacement Battery (T-DC38H)

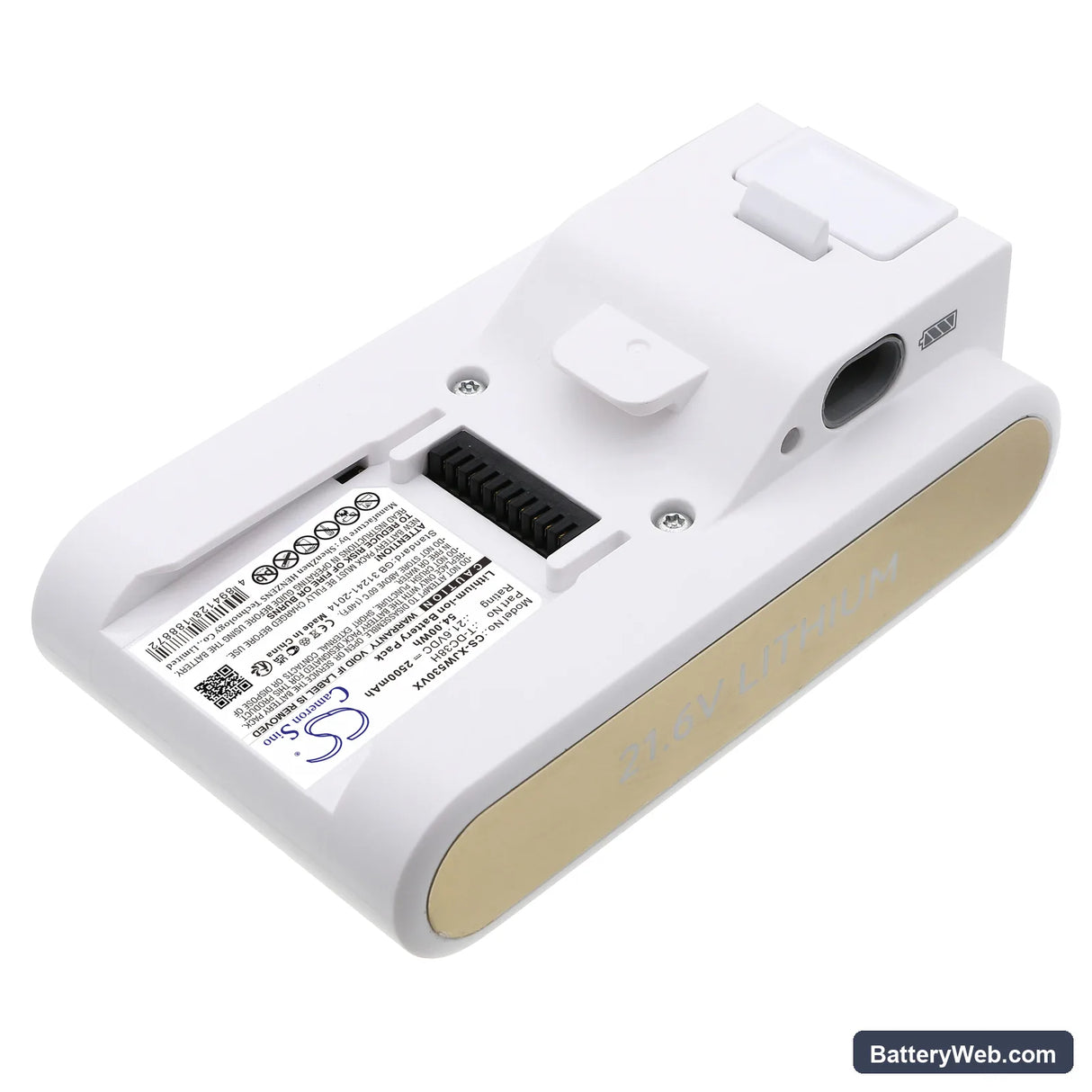

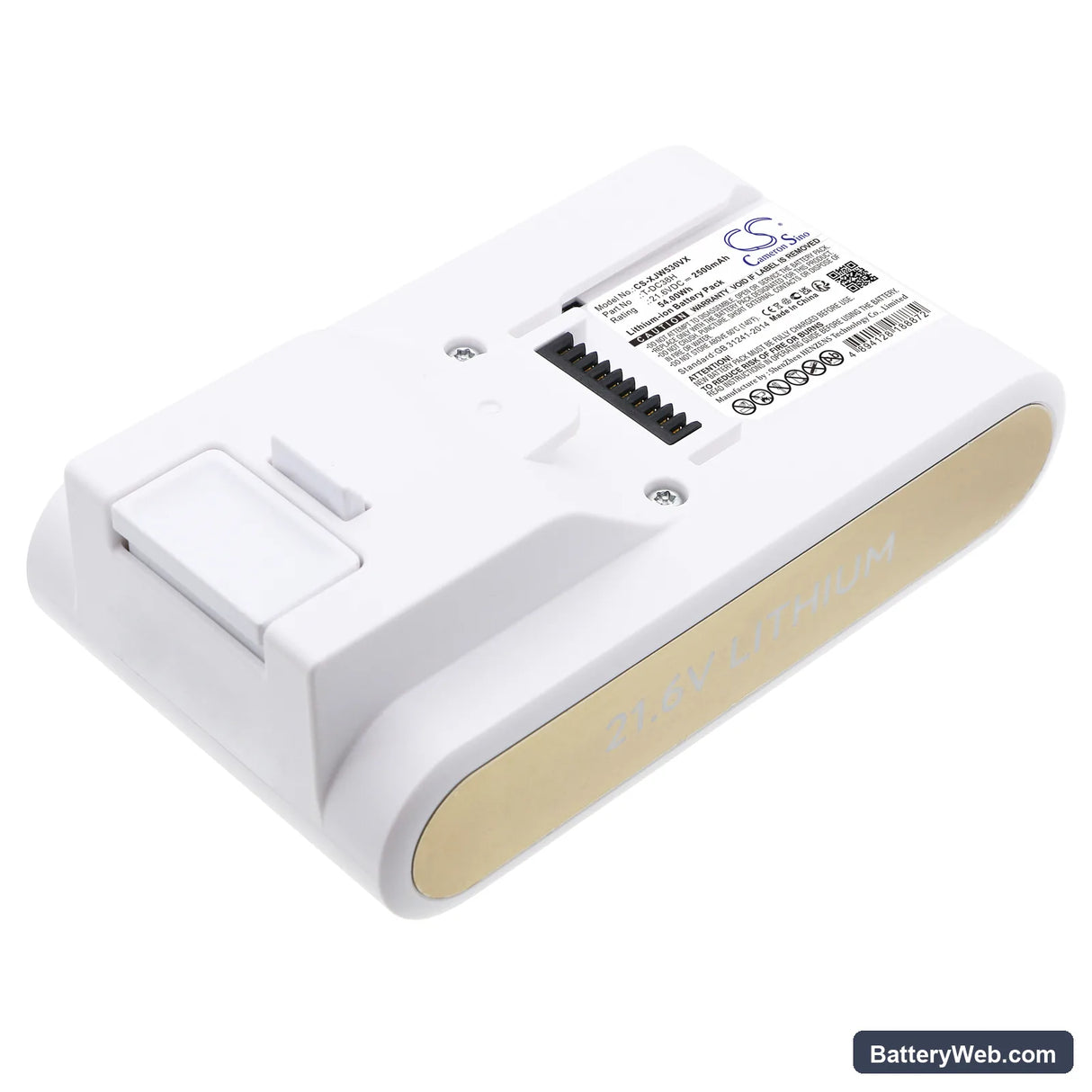

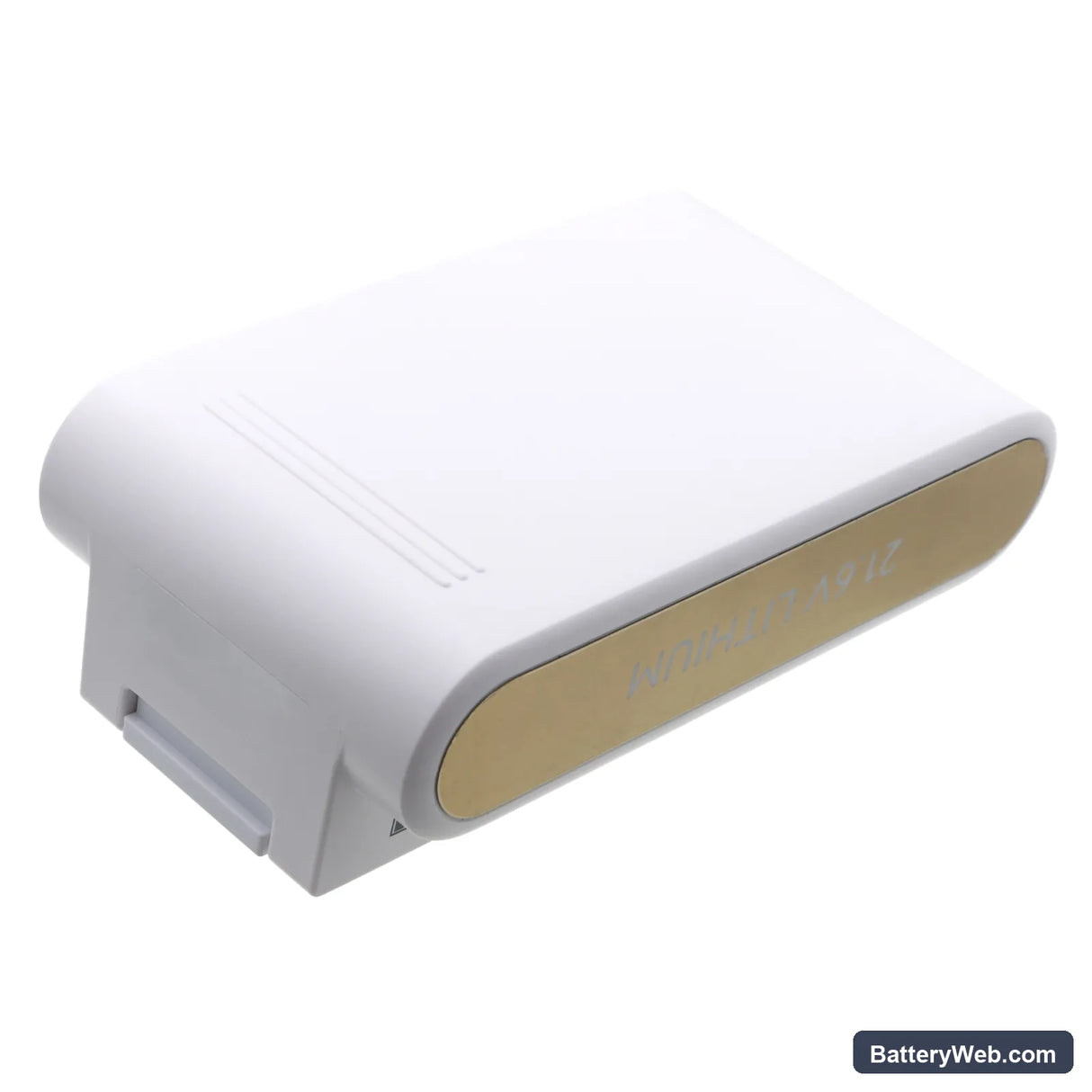

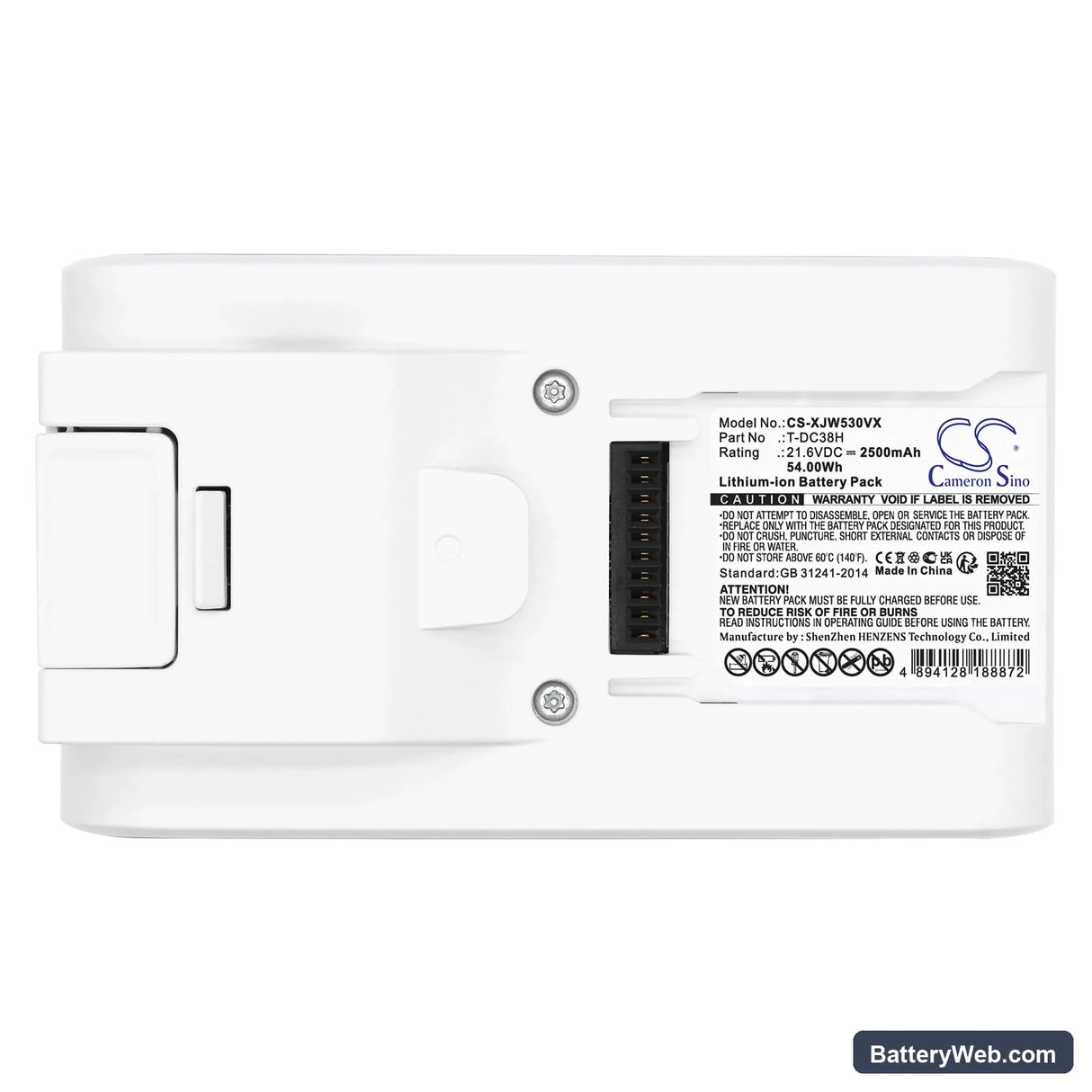

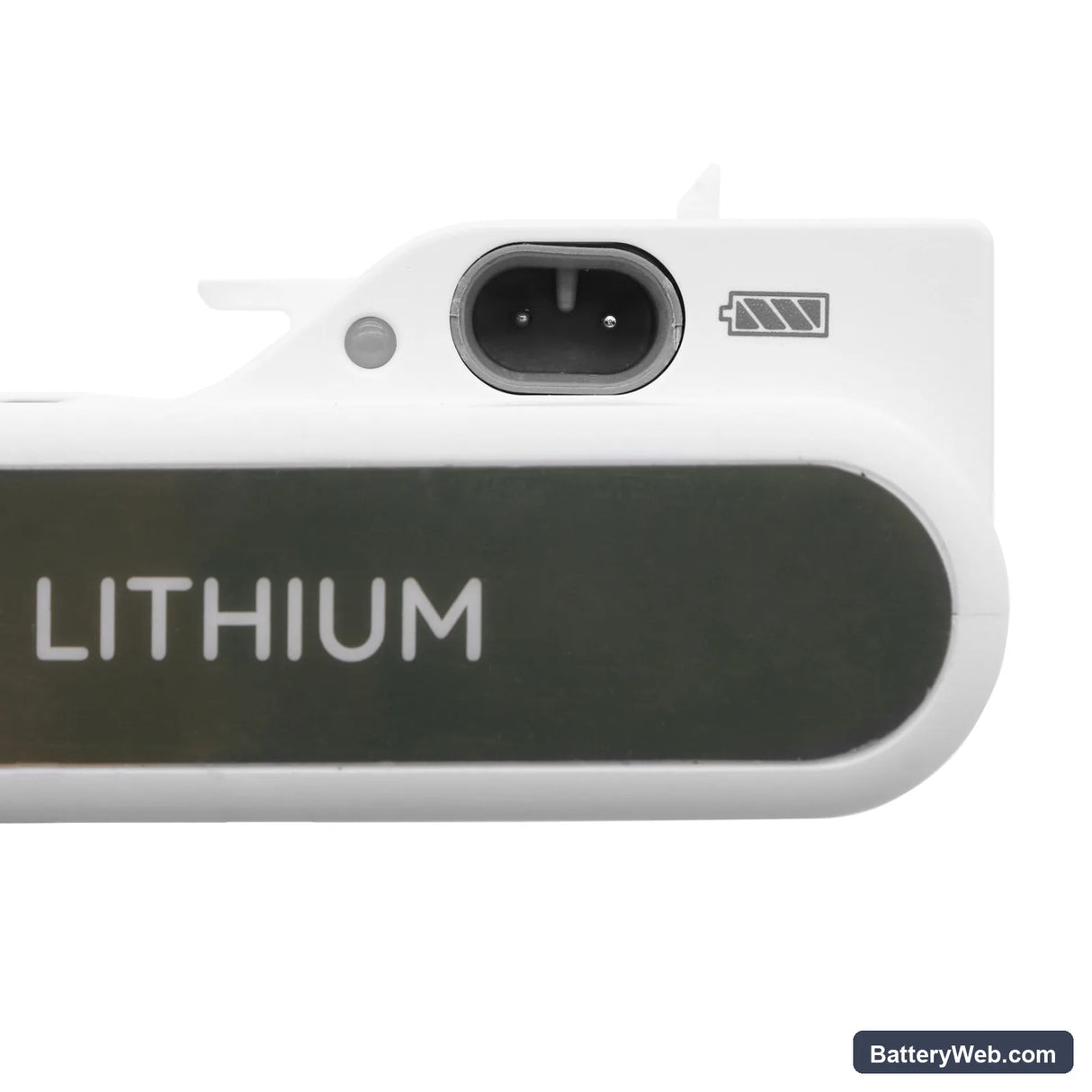

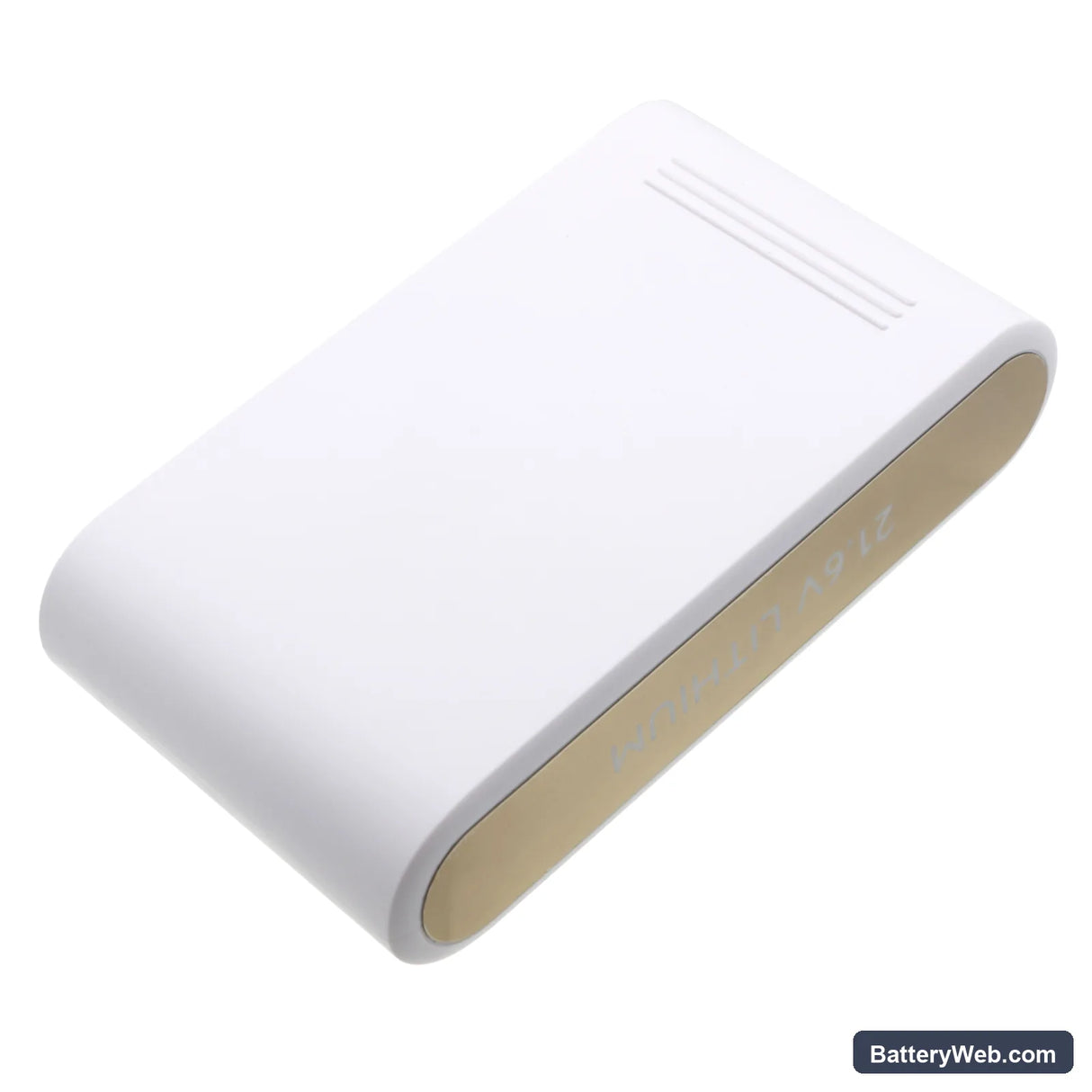

This is a 21.6V, 2500mAh (54Wh) Li-ion replacement battery for the Jimmy JW51, JW53, CJ53, and CJ57 cordless stick vacuums. It uses OEM part numbers T-DC38H and T-DC38A and slots directly into the same battery bay as the factory cell. Voltage and BMS communication match the original so the vacuum's power indicator and motor control behave normally.

• JW51 / JW53 / CJ53 / CJ57 platform fit: These models share the same 21.6V battery architecture, connector pinout, and BMS handshake protocol. One cell covers the full range without any adapter or wiring change.
• Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the JW51 platform. The BMS engaged overcurrent protection correctly under simulated motor load spikes and released cleanly once load dropped. Cell voltage held within expected range across the full discharge curve.
• Dock charging habit on Jimmy vacuums: Do not leave the vacuum sitting on the charging dock continuously. Jimmy stick vacuums on permanent dock charge accumulate trickle-charge stress on the Li-ion cells faster than models stored off-dock. Charge to full, then remove and store the vacuum unplugged.

Suction dropping before the battery indicator reaches low

This happens when the motor draws more current than rated — usually caused by a partially blocked filter restricting airflow and forcing the motor to work harder. The BMS reads the elevated current draw as a low-voltage condition and reduces power to the motor before the indicator LED reflects true remaining capacity. Clean or replace the HEPA filter first. If suction recovers immediately after cleaning the filter, the battery is not the cause — the motor was simply overloaded.

Motor cuts out mid-use and then recovers after a few seconds

This is a BMS overcurrent trip, not a dead cell. When suction is restricted — blocked nozzle, clogged filter, or tangled brush roll — the motor current spikes above the BMS threshold and the battery shuts output off as a protection measure. The recovery pause is the BMS resetting. Check the nozzle and brush roll for blockages, then clean the filter. If the cutout stops after clearing the restriction, the battery is functioning correctly. If it continues with a clean filter, measure resting cell voltage — it should read above 20V after a full charge.
