Rowenta AC923501 Cordless Vacuum Replacement Battery 10.8V 2500mAh

Rowenta AC923501 Series — 10.8V Li-ion Replacement Battery (RS-AC3499)

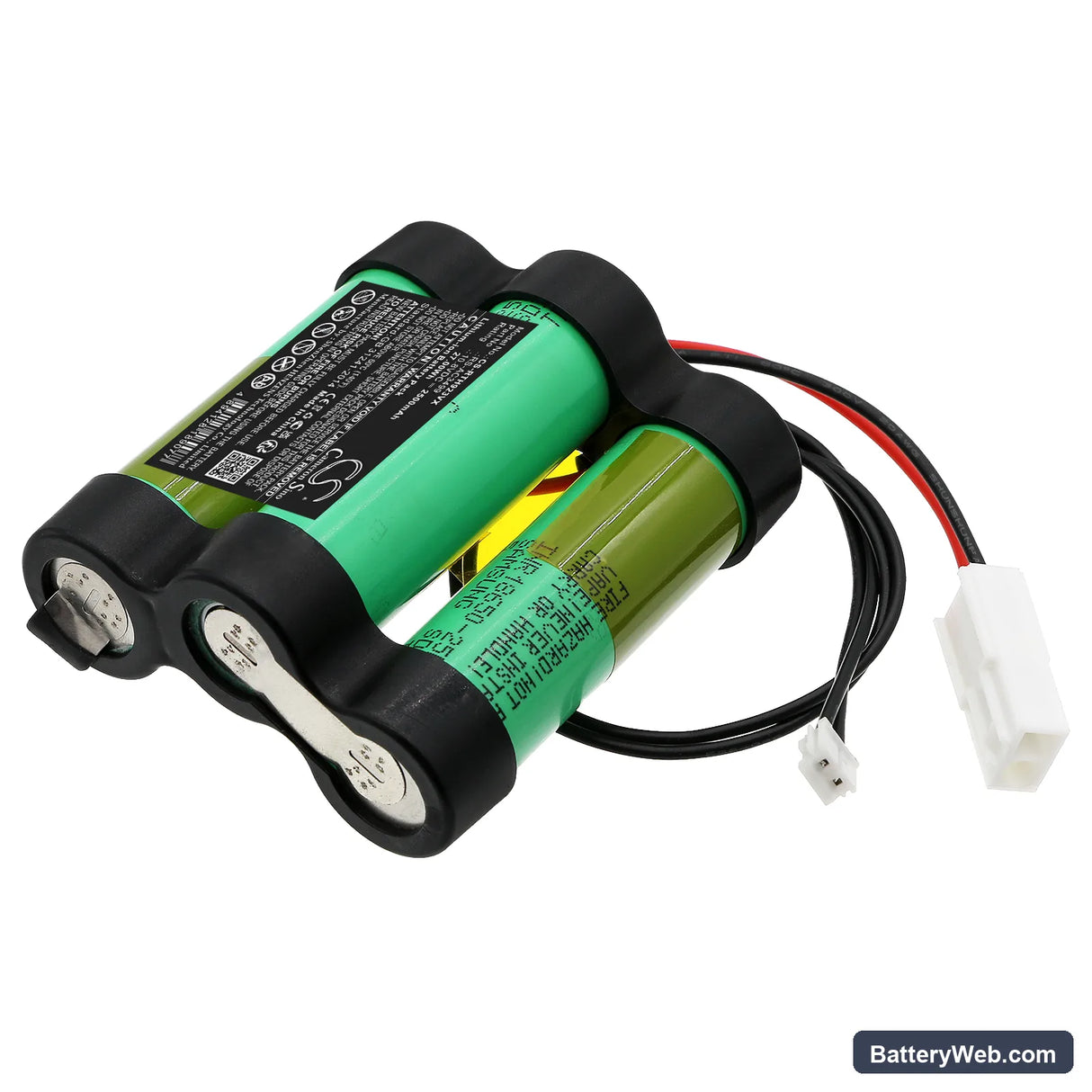

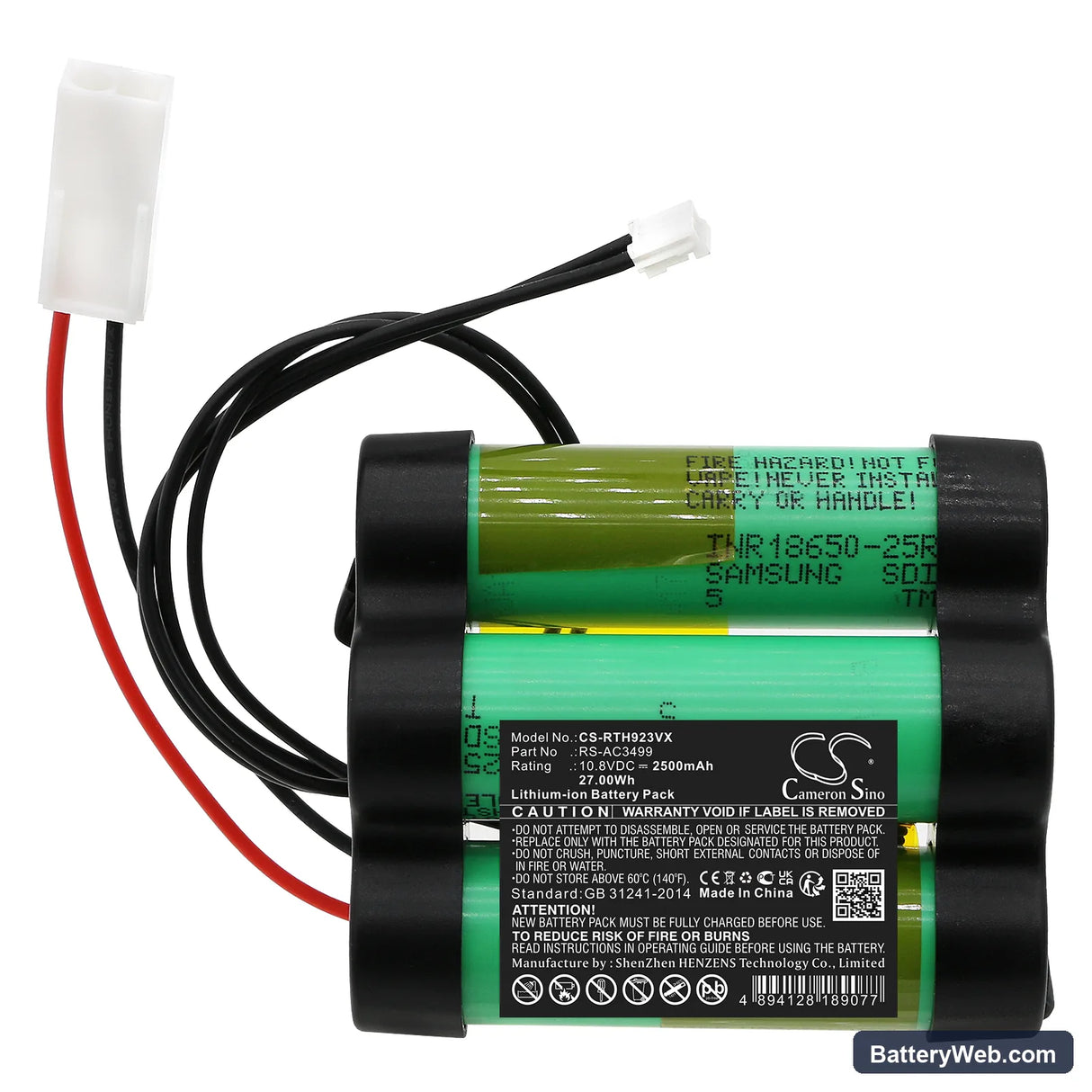

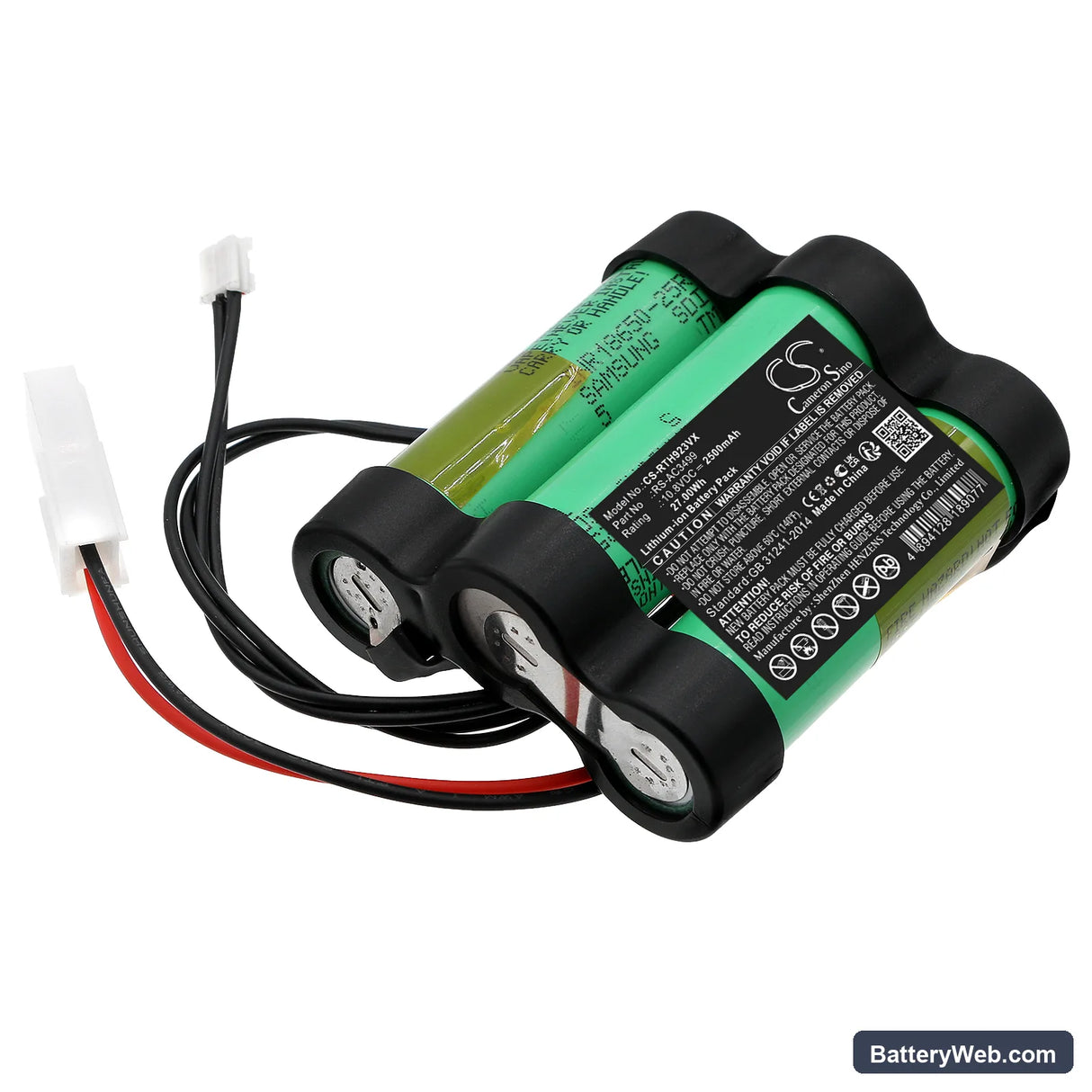

This is a 10.8V, 2500mAh Li-ion battery replacing part number RS-AC3499 in the Rowenta AC923501 cordless stick vacuum. It fits the AC923501, AC923501/9A0, and AC923501/9AA variants. Use it when the original cell no longer holds a charge and suction drops off quickly after a full charge cycle.

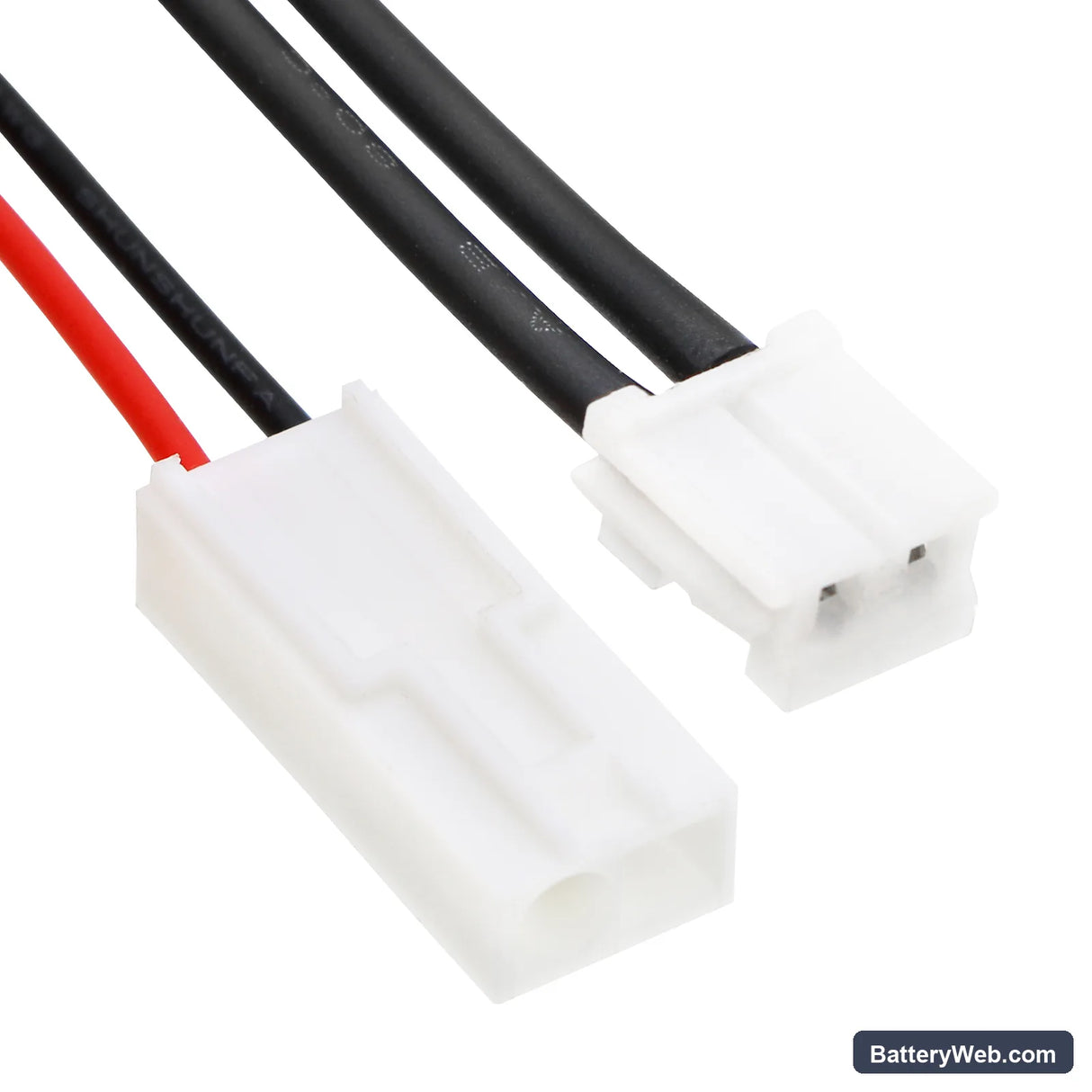

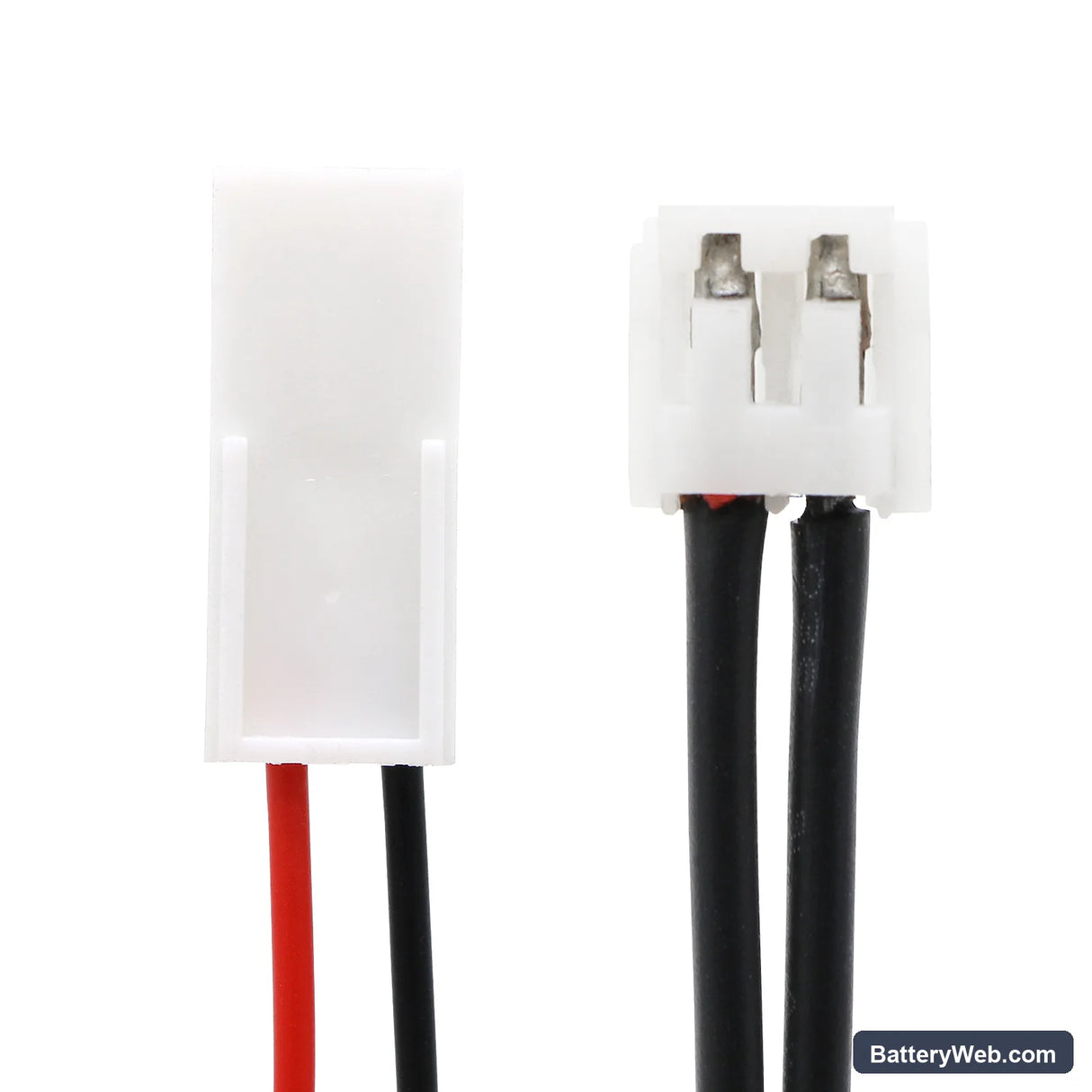

• AC923501 variant compatibility: The 9A0 and 9AA sub-variants share the same 10.8V battery rail, connector pinout, and BMS communication protocol as the base AC923501, so one part number covers all three.
• Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the AC923501 platform. The BMS accepted the handshake on first connection, and the motor drew current within the expected range across both hard floor and carpet modes.
• Dock charging behaviour: Do not leave the vacuum sitting on the charging dock permanently. Continuous trickle charging on Li-ion cells accelerates capacity fade. Charge to full, then remove the vacuum from the dock until the next use.

Suction dropping before the battery indicator reaches low

The AC923501 motor draws more current when airflow is restricted — a partially clogged filter forces the motor to work harder, pulling voltage down faster than normal. The battery indicator tracks cell voltage, not remaining capacity directly, so voltage sag under load reads as low charge even when the cell still has energy. This causes perceived short runtimes that are actually filter-load problems, not cell problems. Clean or replace the filter before attributing suction loss to the battery.

Motor cuts out mid-clean then recovers after a few seconds

This is a BMS overcurrent trip, not a dead battery. When suction is sustained against a blockage or a heavily loaded carpet, current draw spikes past the BMS protection threshold and the circuit opens to protect the cell. The BMS resets automatically after a short pause, which is why power returns without any user action. Clear the blockage, check the filter for restriction, and confirm the cell rests above 10.0V at open circuit before the next run.
