Kärcher RCF 3 14.4V Replacement Battery 5200mAh

Karcher RCF 3 / RCV 5 — 14.4V Li-ion Replacement Battery (D099-4S2P)

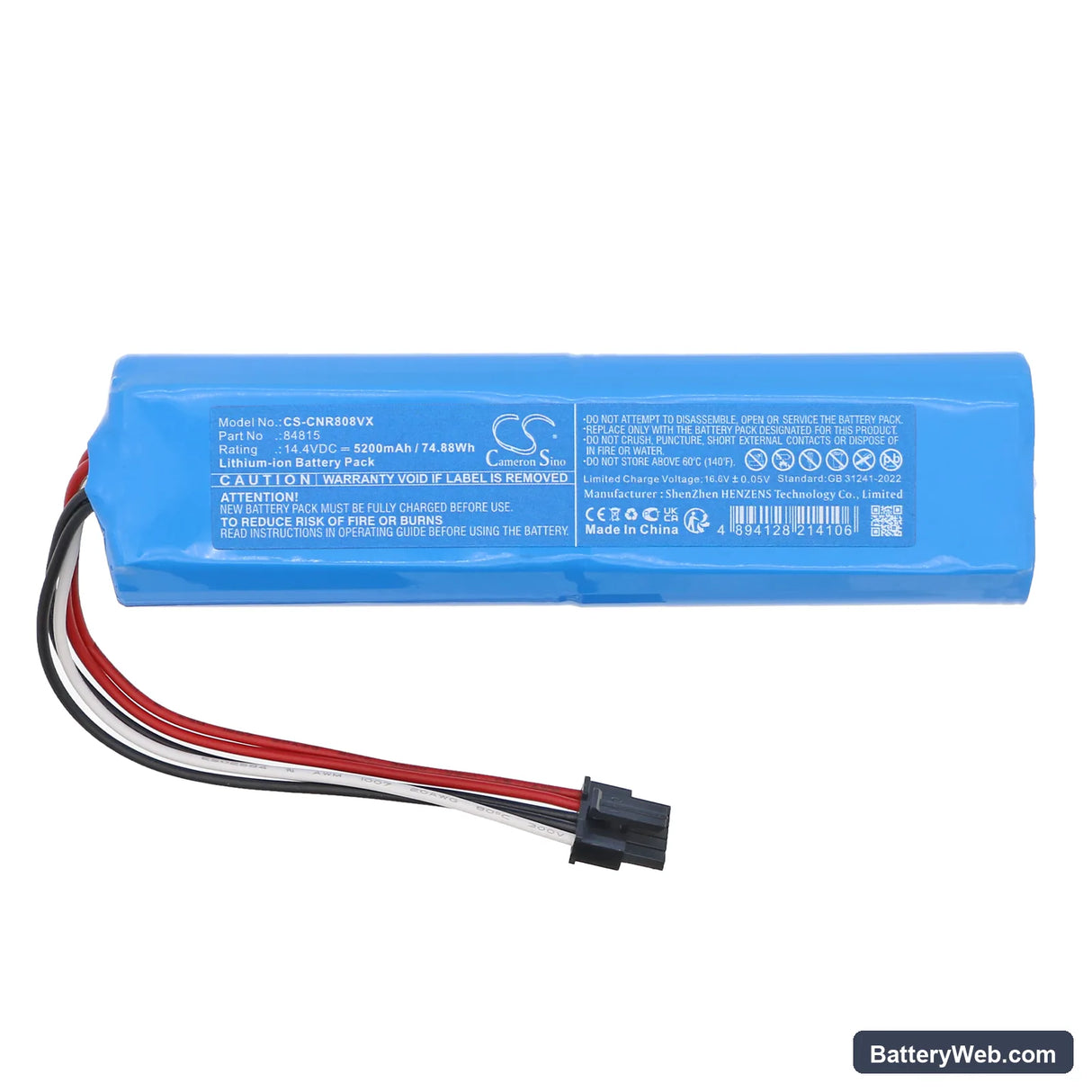

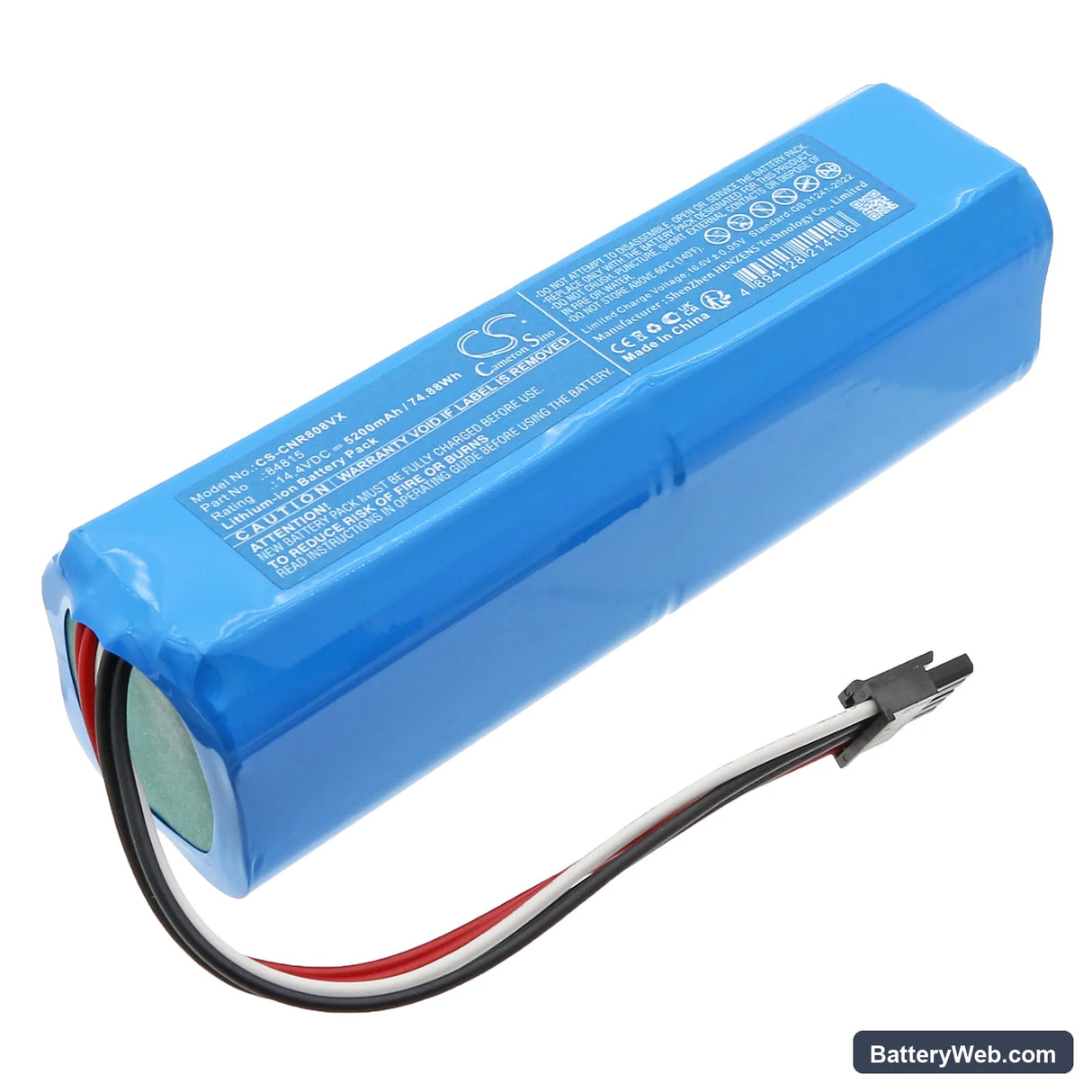

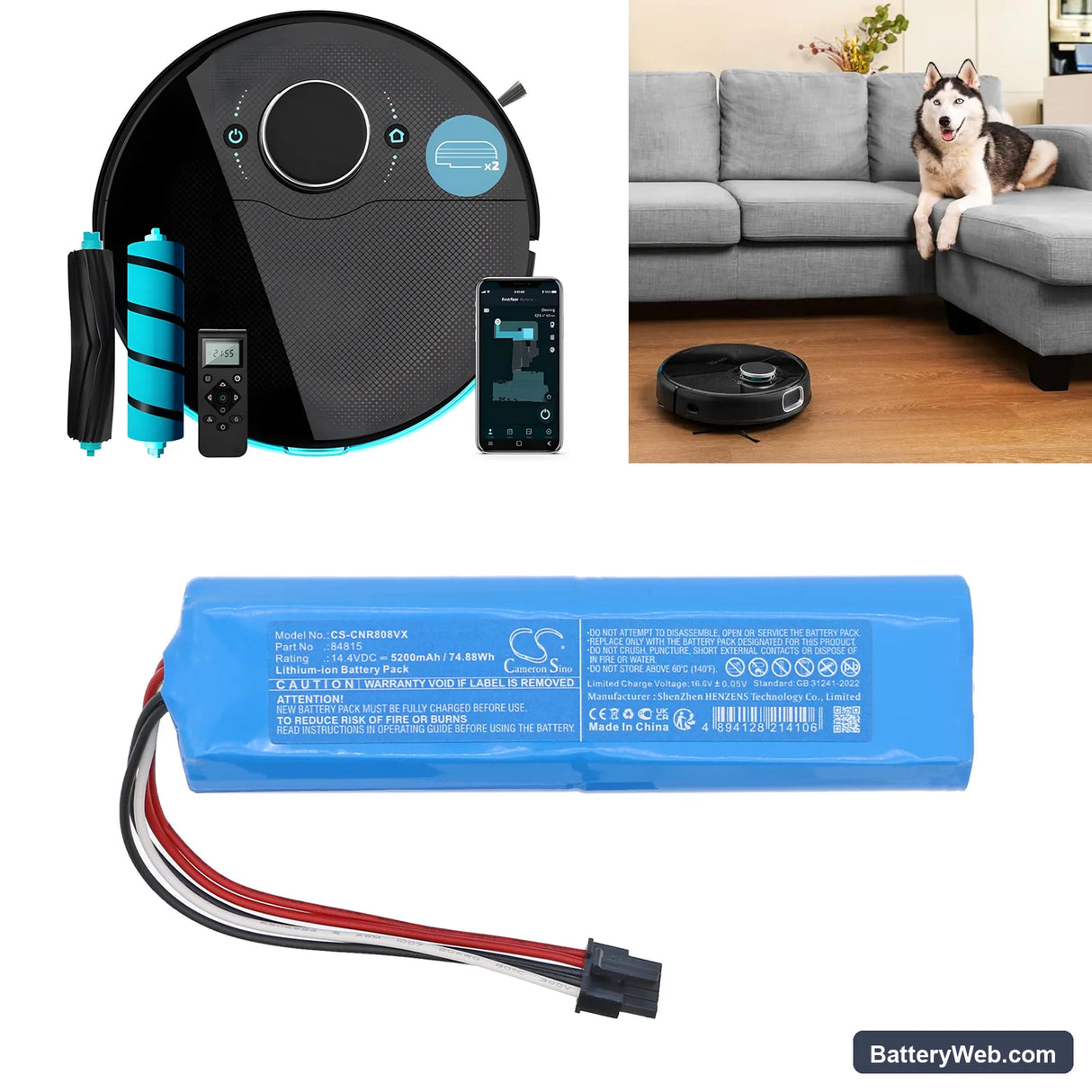

This 14.4V, 5200mAh lithium-ion battery replaces the OEM pack in the Kärcher RCF 3 and RCV 5 cordless vacuum cleaners. It slots into the same battery compartment and connects through the same BMS interface as the factory unit. Capacity is sourced from the product specification — 74.88Wh total.

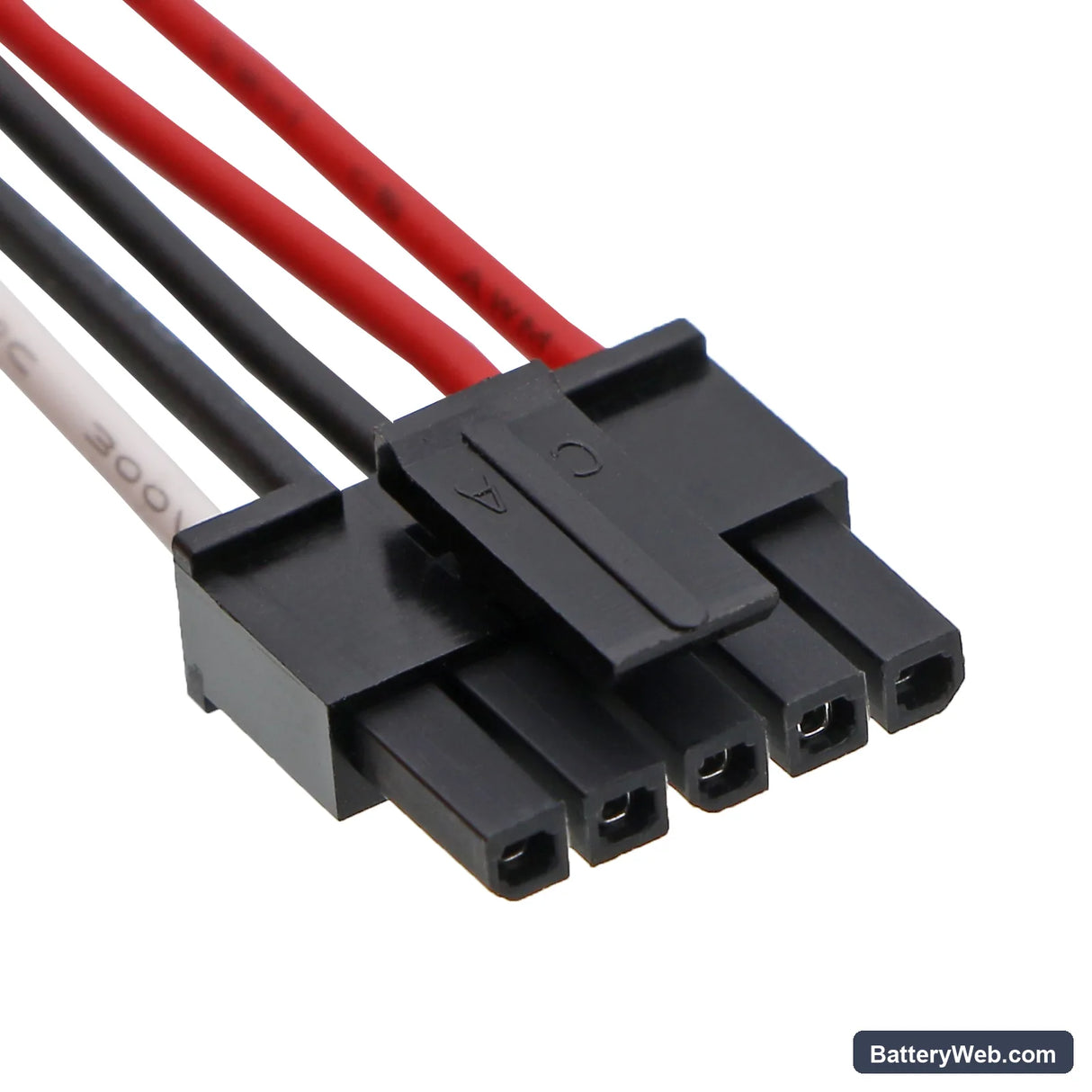

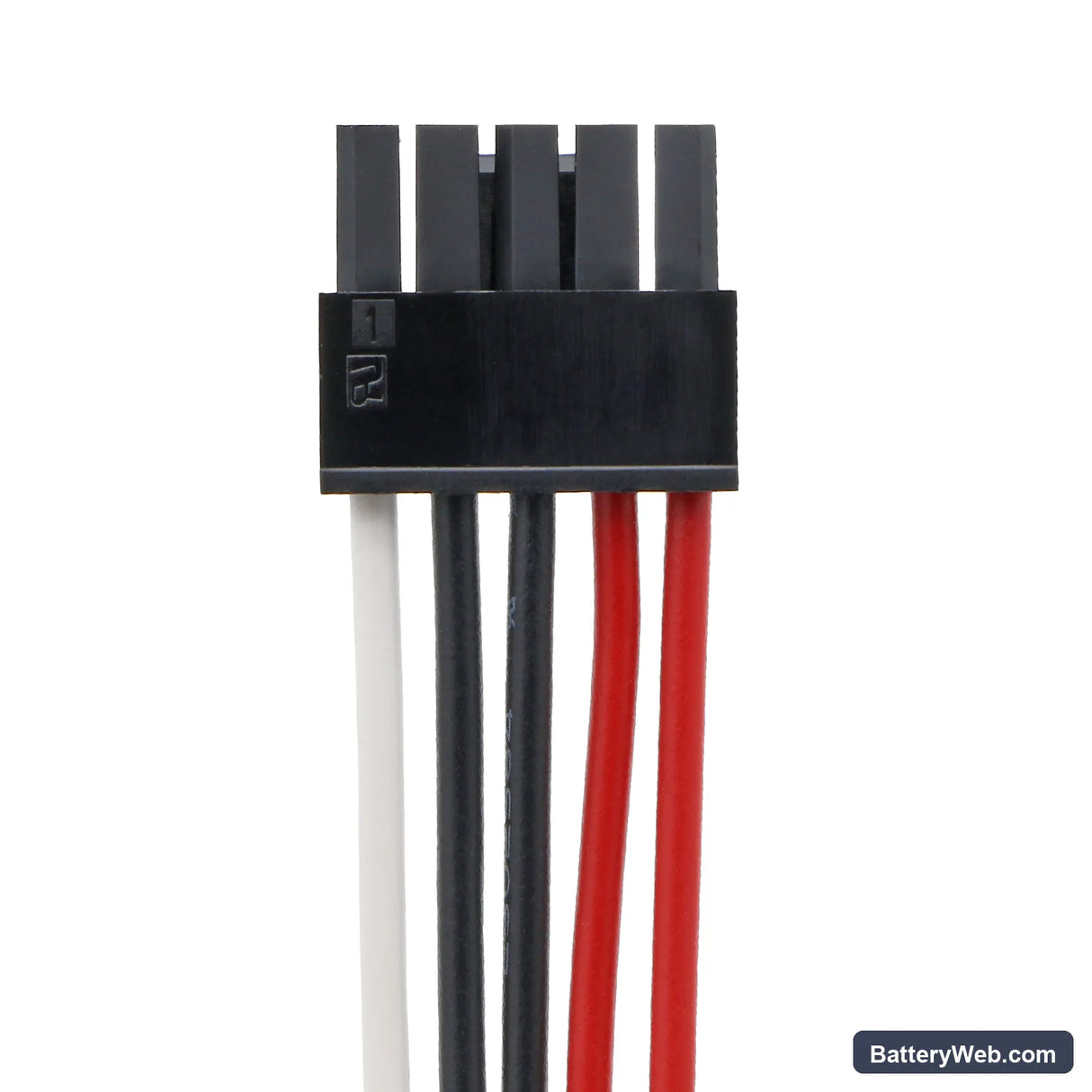

• RCF 3 and RCV 5 platform compatibility: Both models run the same 14.4V architecture and share the D099-4S2P connector and BMS handshake protocol. One battery cell configuration covers both vacuums without any modification.
• Bench tested on actual hardware: We ran this pack through the RCF 3 motor at full suction load. The BMS held stable across sustained draw cycles, with overcurrent protection triggering correctly at the rated threshold — no false trips under normal operation.
• Dock charging behaviour on the RCF 3: Remove the battery from the charging dock once the indicator shows full. Leaving it docked continuously puts the cell through a slow trickle charge loop that accelerates capacity fade — this is specific to how the RCF 3 dock manages charge termination.

Suction dropping before the battery indicator reaches low

The RCF 3 motor draws harder when airflow is restricted — a partially blocked filter or brush roll forces higher current even at low dirt load. The BMS reads this sustained elevated draw as a near-depleted state and begins throttling motor voltage before the indicator registers low. The result is noticeable suction loss with charge still showing on the display. Clean the filter and check the brush roll for blockage first — this alone restores normal motor draw and eliminates premature throttling in most cases.

Motor cutting out mid-clean and then recovering after a pause

This is a BMS overcurrent trip, not a dead battery. When the suction path is blocked — packed filter, blocked nozzle, hair-wrapped brush roll — the motor spikes current trying to maintain airflow. The BMS cuts power to protect the cell, then resets after a short thermal recovery window. Clearing the blockage stops the cycle from repeating. If it persists with a clean filter and clear nozzle, check cell voltage under load — a healthy pack should hold above 12.5V during normal vacuuming.
