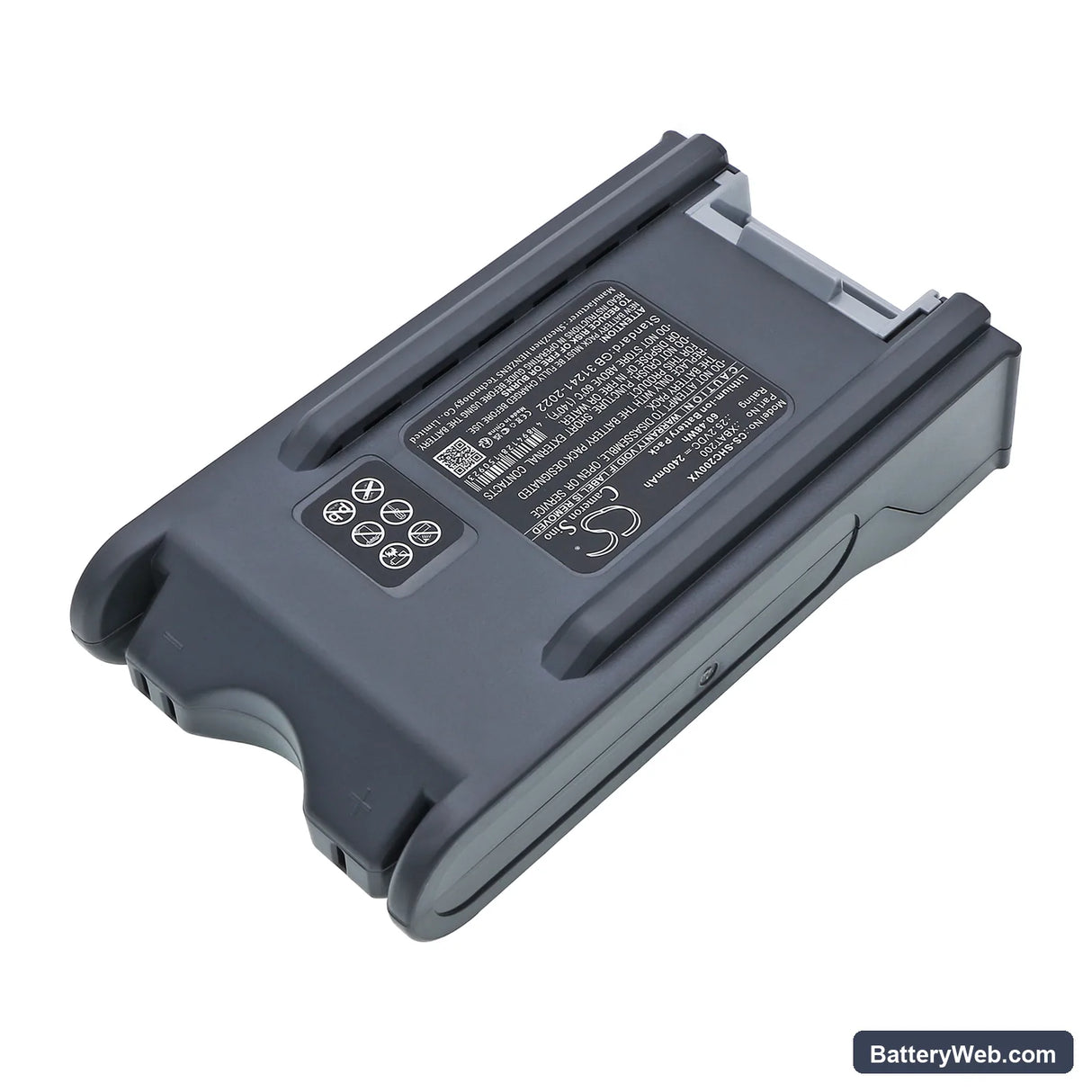

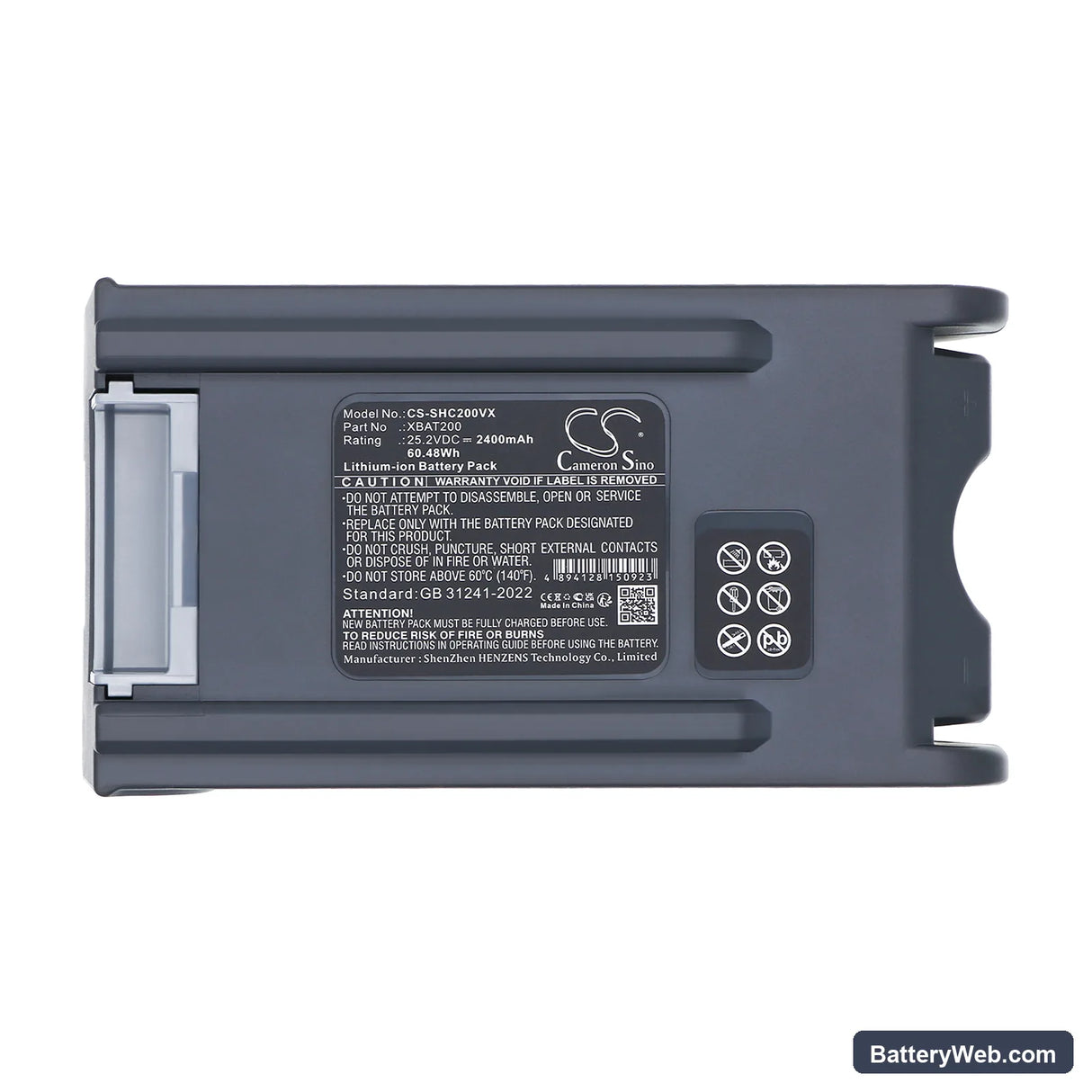

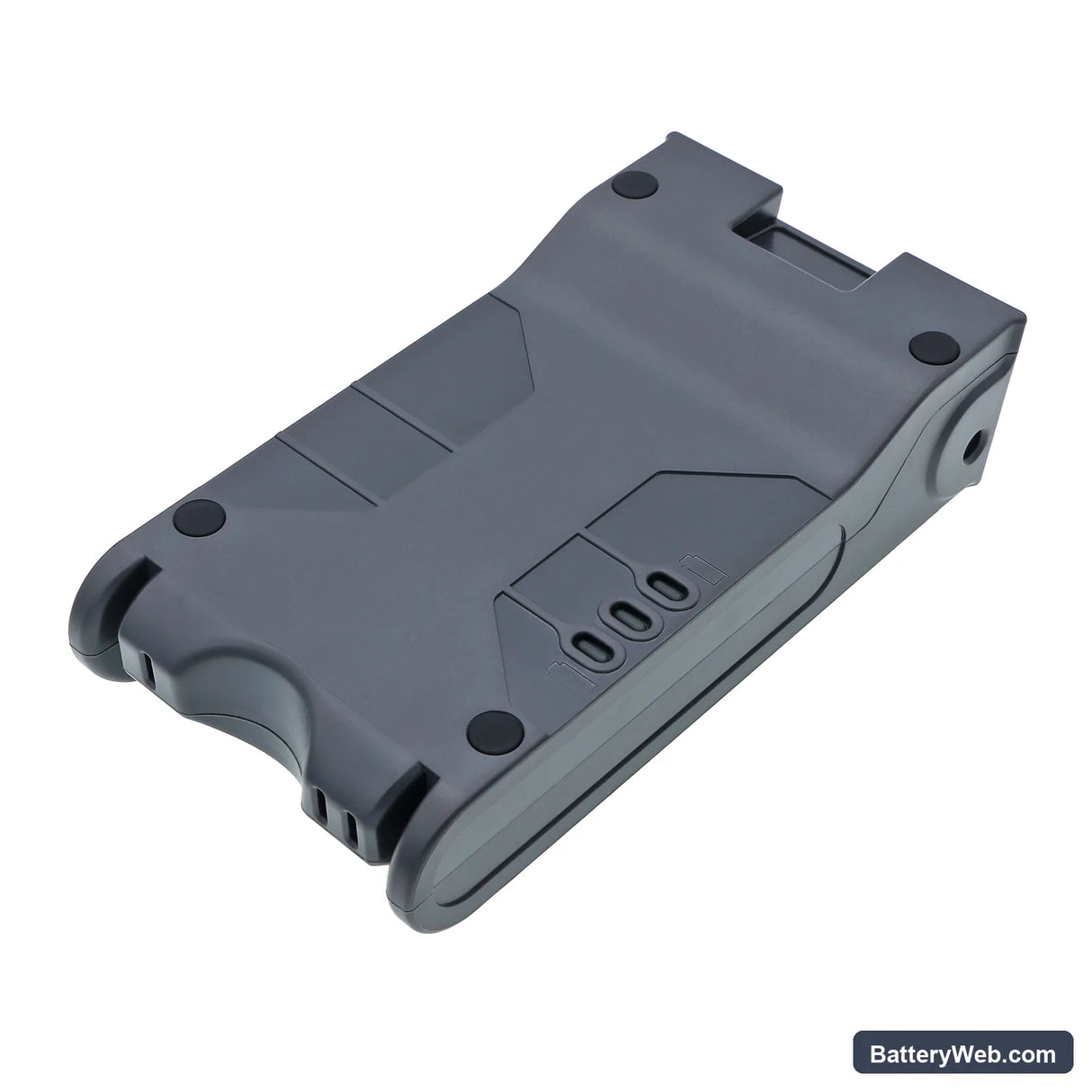

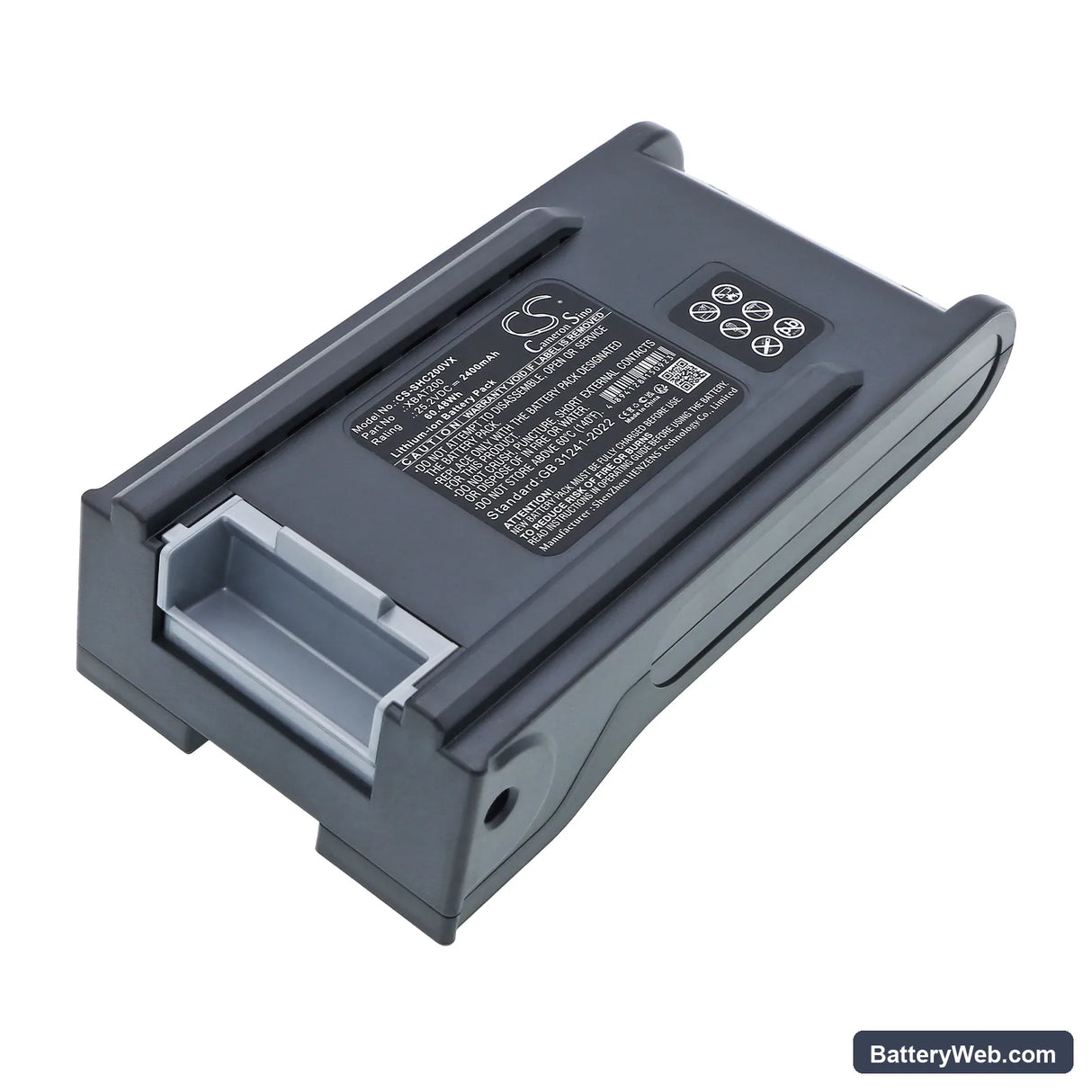

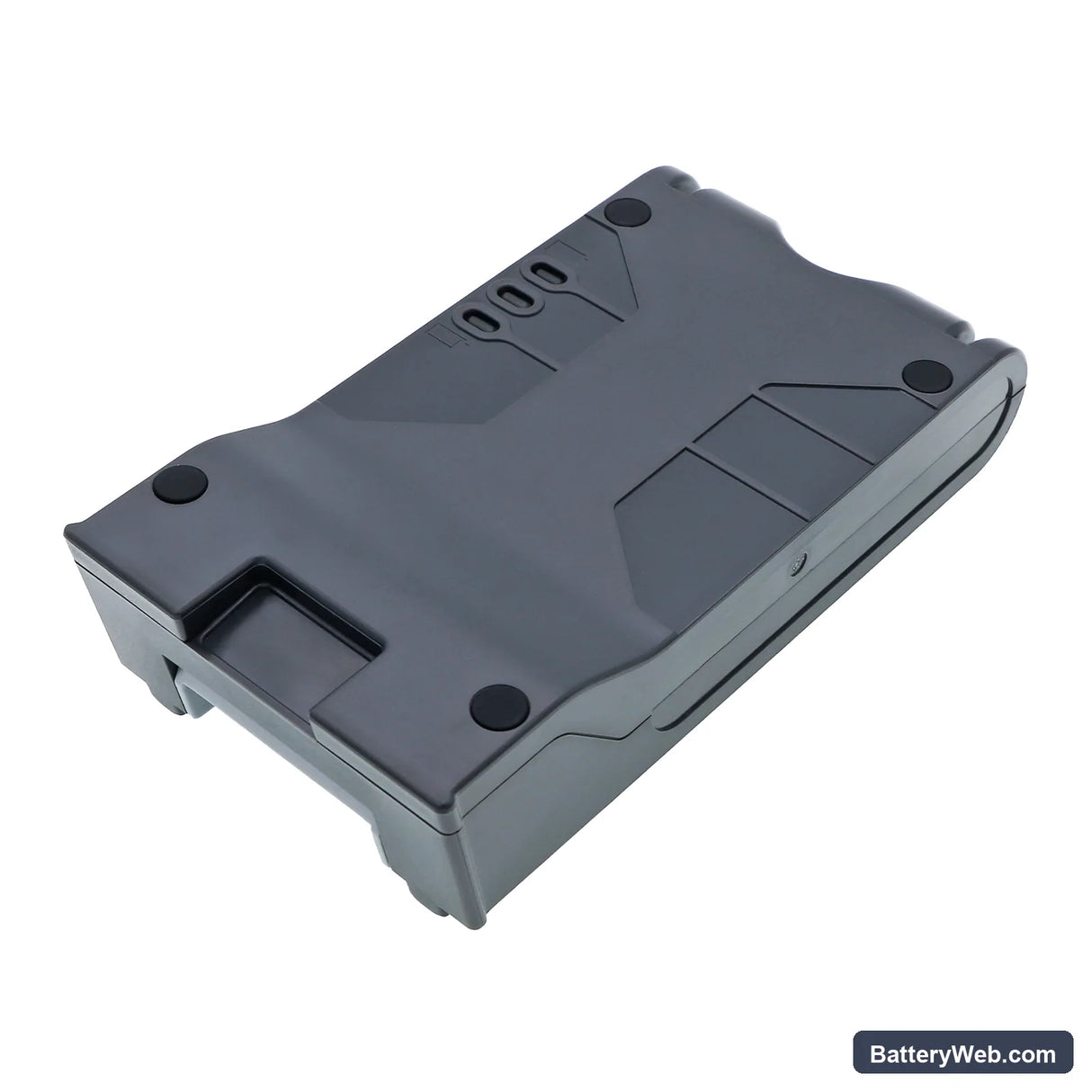

Shark XBAT200 IC205 Replacement Battery 25.2V 2400mAh

Up to 19% off
New arrival
From $89.99 USD $110.99
Shipping calculated at checkout.
Fits Shark IC205, IC200C, IC200W and 55+ models; replaces OEM part XBAT200 and XBAT200EU.
This 25.2V lithium-ion cell delivers 2400mAh capacity, matching original pack output for full motor torque on carpets and hard floors.
Connector slides onto the dock contact block with a quarter-turn lock tab; orientation marked on housing and charger cradle.
We bench-tested the BMS on a standard Shark dock charger—voltage ramp held steady, termination fired at full capacity, no fault codes across five charge cycles.
Do not leave this battery on the charging dock continuously after reaching full charge; trickle current degrades the cell faster than removing and storing off-dock between uses.
Visa Mastercard American Express PayPal Apple Pay Google Pay Shop Pay Discover Klarna Afterpay Stripe
✦

Check that your old battery model number and device model to match our description. This makes sure they work together.

✦

We ship your order same day if you buy it before 4 PM EST.

Warranty

Let customers speak for us

from 11 reviews

Product is exactly as described and arrived quickly

Robert Jones
Rocket ES4-12 Compatible Replacement Battery

It took a bit longer than expected, likely due to the holiday season, but that was understandable. So far, the battery seems to be working well!

Linda M.
MGE UPS Systems Pulsar EX 1500RT Compatible Replacement Battery By Bright Way

Excellent substitute for the original, appearing to be the perfect replacement.

Alberto J.
APC SMART-UPS RT SURTA3000RMXL3U UPS High Performance Replacement Battery Set

It was what i was looking for. Support is fast

Jaswal
WAHEGURUG - RADHASWAMI

Fast service

Mark Casias
BatteryWeb

Perfect fit

Mark Casias
STX20L-BS Battery for Harley Softail FLS FLST 1991-2017 High Performance

Works Perfectly!!

Ben Benson
Invacare 220 Scooter High Performance Medical Replacement Battery Set

Send Your Battery Photo

Expert Technician Help

Snap a photo or video of your battery and send it to us. We'll identify the exact replacement—fast and hassle-free. Our team has helped thousands of customers find the right battery quickly and easily.

POST YOUR BATTERY IMAGE
Product & Solutions Expert

Product & Solutions Expert

✉ sales@batteryweb.com

🔹 10+ Years Battery Experience 🔹 Fast & Accurate Identification

Battery Care Tips

🔹 Getting Started

Charge your new battery fully before you use it for the first time. Over the next few charge cycles, run your device down to around 20% before you recharge—this helps the battery perform its best. After that, charge whenever you need to.

🔹 Keep It Healthy

Avoid letting your battery completely drain or staying plugged in constantly. Both extremes wear it out faster. Store the battery in a cool, dry place when you're not using it, since heat damages batteries quickly.

Delivery and Shipping

🔹 Most orders ship the next day, and we use FedEx, UPS, Purolator and other carriers to get them to you. Lithium batteries have to ship by ground only, not air or USPS. Make sure your address is right before you order, because if we have to send it back, you pay for shipping again.

Disclaimer

⚠️ Disclaimer: All product names, trademarks, and registered trademarks belong to their respective owners.

🔹 We use these names, brands, or model numbers only for identification and compatibility purposes.

Voltage

25.2V

Amp

2400mAh

Shark IC205 Series — 25.2V Li-ion Replacement Battery (XBAT200)

This is a 25.2V 2400mAh Li-ion battery for the Shark IC205, IC205CCO, IC200C, IC200W, and over 55 compatible cordless stick and handheld vacuum models. It slots into the same battery housing as the original XBAT200 and XBAT200EU units. Capacity figure is taken directly from the product specification — 2400mAh / 60.48Wh.

  • IC200 and IC205 platform fit: These models share a common 25.2V battery rail, identical connector pinout, and the same BMS handshake protocol — which is why one battery covers the full range. Swapping between IC200C and IC205CCO requires no adjustment.
  • Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the IC205 platform. The BMS handled motor-start inrush without tripping and held the voltage rail steady under sustained floor-cleaning draw.
  • Dock charging habit on the IC205: Do not leave the vacuum sitting on the dock permanently. Shark cordless vacuums on continuous dock charge develop capacity fade faster than units charged only when the battery is depleted. Charge to full, then remove from the dock.

Suction dropping before the battery indicator reaches low on the IC205

This happens when the motor is working harder than rated — usually because airflow is restricted before the battery is actually low. A partially blocked filter forces the motor to draw more current, which pulls the voltage rail down faster. The BMS reads the voltage drop and reduces output to protect the cell, which the user feels as lost suction. Clear the filter and check the dust cup seal before concluding the battery is at fault.

Motor cutting out mid-clean then recovering after a few seconds

This is a BMS overcurrent trip, not a dead battery. When suction is sustained against a restriction — dense carpet pile, a blocked nozzle, or a clogged post-filter — current draw spikes past the BMS threshold and the circuit opens. The BMS resets itself after a short cool-down, which is why the vacuum restarts on its own. Fix the restriction first; if trips continue on an unobstructed surface, check that the battery voltage reads at or above 22V under load.

Compatible Models

IC205 IC205CCO IC200C IC200W IF201 IF202 IF203Q IF205 IF251 IF252 IF281 IF282 IF285 IR141 IF142 UF280 IF200 IF250 IR70 IF130 IF260 IF281C IR100 IR101 IF260UKTH IF130UKTH S9 S6 S1 S2 ION Rocket IONFlex IONFlex 2X ION F80 ION F80 MultiFLEX Cordless Stick IONFlex 2X DuoClean Ultra-Light Cordless Stick ION Rocket Cordless Ultra-Light ION F80 MultiFLEX Cordless Stick Vacuum IF280 IONFlex 2X DuoClean Cordless Stick Vacuum ION X40 ION Rocket Cordless Ultra-Light Vacuum IR100C IR101C ION X30 Cordless Ultra-Light Stick Vacuum IR142 IR141WBKT IF200C ION F30 IF203 IF251C IONFlex 2X DuoClean IF200W X30 IONFlex IF201 F30 IF200 Cordless Vacuum Cleaner IF250 Cordless Vacuum Cleaner ION Rocket IR70 Cordless Vacuum Cleaner

Replaces Part Numbers

XBAT200 XBAT200EU

Technical Specifications

Voltage25.2V
Amp Hours2400mAh
Capacity2400mAh
Rate60.48Wh
Net Weight526.2g /18.56 oz
Gross Weight706.2g /24.91 oz
Approximate Weight706.2g /24.91 oz
Dimension 172.50 x 92.50 x 46.00mm

Product Highlights

  • Brand: Shark
  • Manufacturer: CS
  • Series: Standard
  • Color: Black
  • Product Type: Li-ion
  • Battery Type: Li-ion
  • Warranty: 12 Months
  • Bulk Orders: sales@batteryweb.com

Frequently Asked Questions

My Shark IC205 has noticeably less cleaning time than it used to — is that the battery or something else?

A partially blocked filter is the first thing to check — it forces the motor to draw more current than rated, which drains the cell faster. If the filter is clean and the problem persists, the cell itself has likely lost capacity from repeated shallow cycles or continuous dock charging. A replacement cell at full 2400mAh capacity will restore normal draw, but only if the filter restriction is cleared first. Check the filter, then charge the new battery fully before the first use run.

My Shark IC205 won't charge after fitting the replacement battery — the dock light just blinks or stays off.

The IC205 charger performs a BMS handshake before initiating the charge cycle — if the replacement cell arrives in a deeply discharged state, the charger may not recognise it. Leave the battery connected to the dock for 15–20 minutes without interruption; most BMS units will wake from deep sleep and allow the handshake to complete. If the dock light still does not respond, check that the battery contacts are fully seated and free of debris. A successful handshake will show a steady or pulsing charge indicator within 30 minutes.

I left my Shark IC205 on the dock for weeks and now it barely holds a charge — what happened?

Continuous dock charging keeps the cell near 100% with a low trickle current passing through it indefinitely, which accelerates capacity fade in Li-ion cells. This is one of the fastest ways to degrade a cordless vacuum battery. The new XBAT200 replacement cell starts fresh, but the same damage will recur if the habit continues. Charge to full, remove from the dock, and only return it when the battery is depleted.
