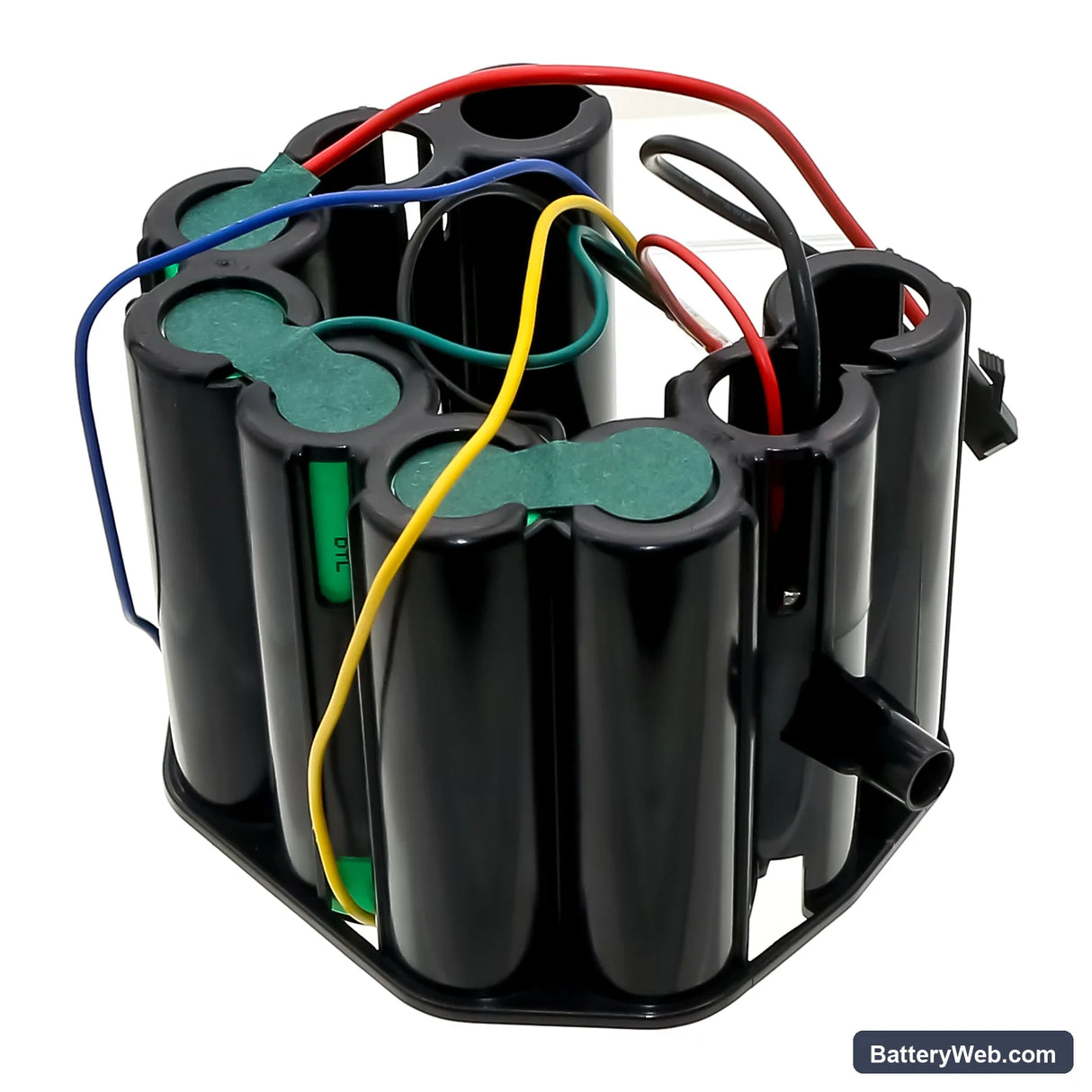

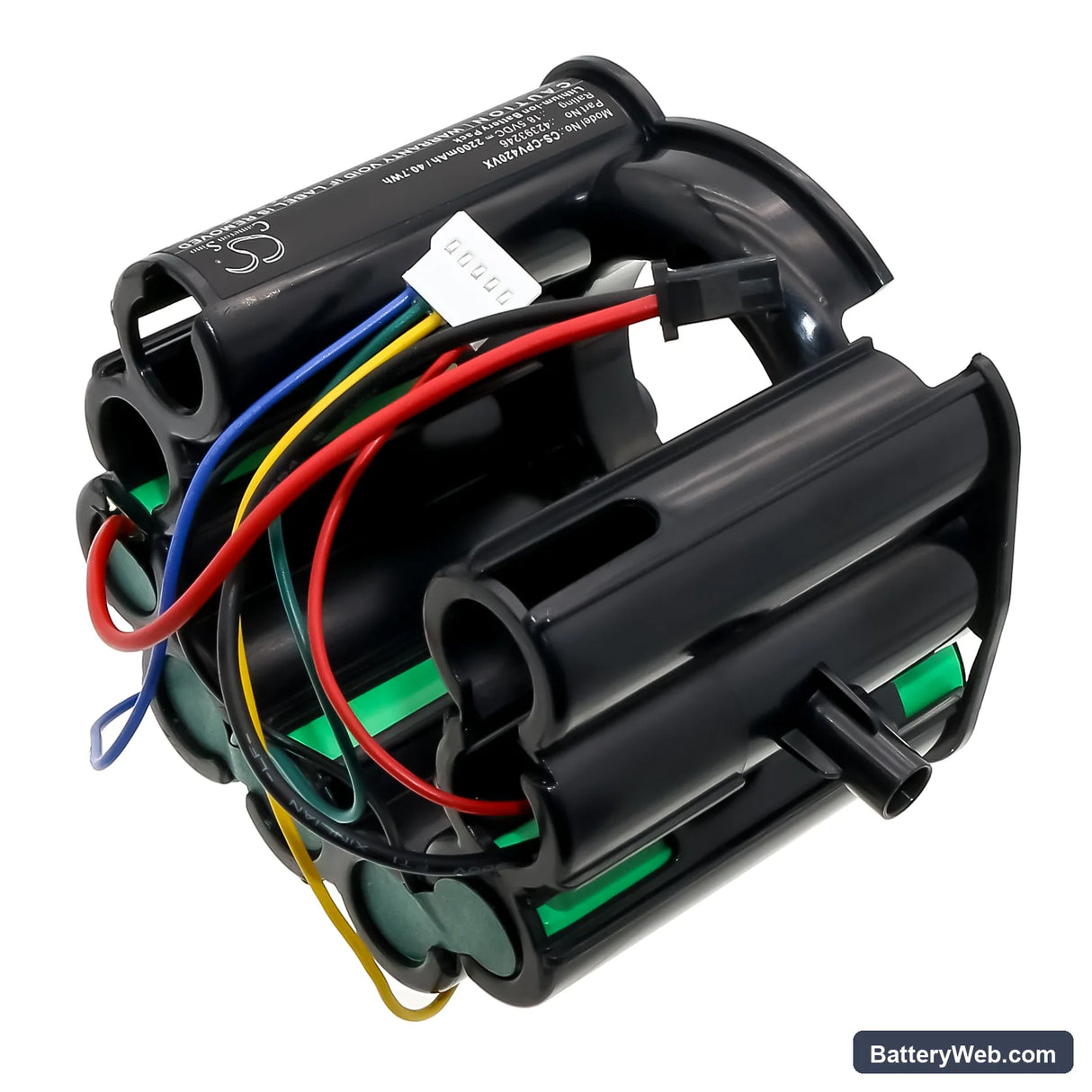

Concept VP4135 / VP4201 — 18.5V Li-ion Replacement Battery (42393246)

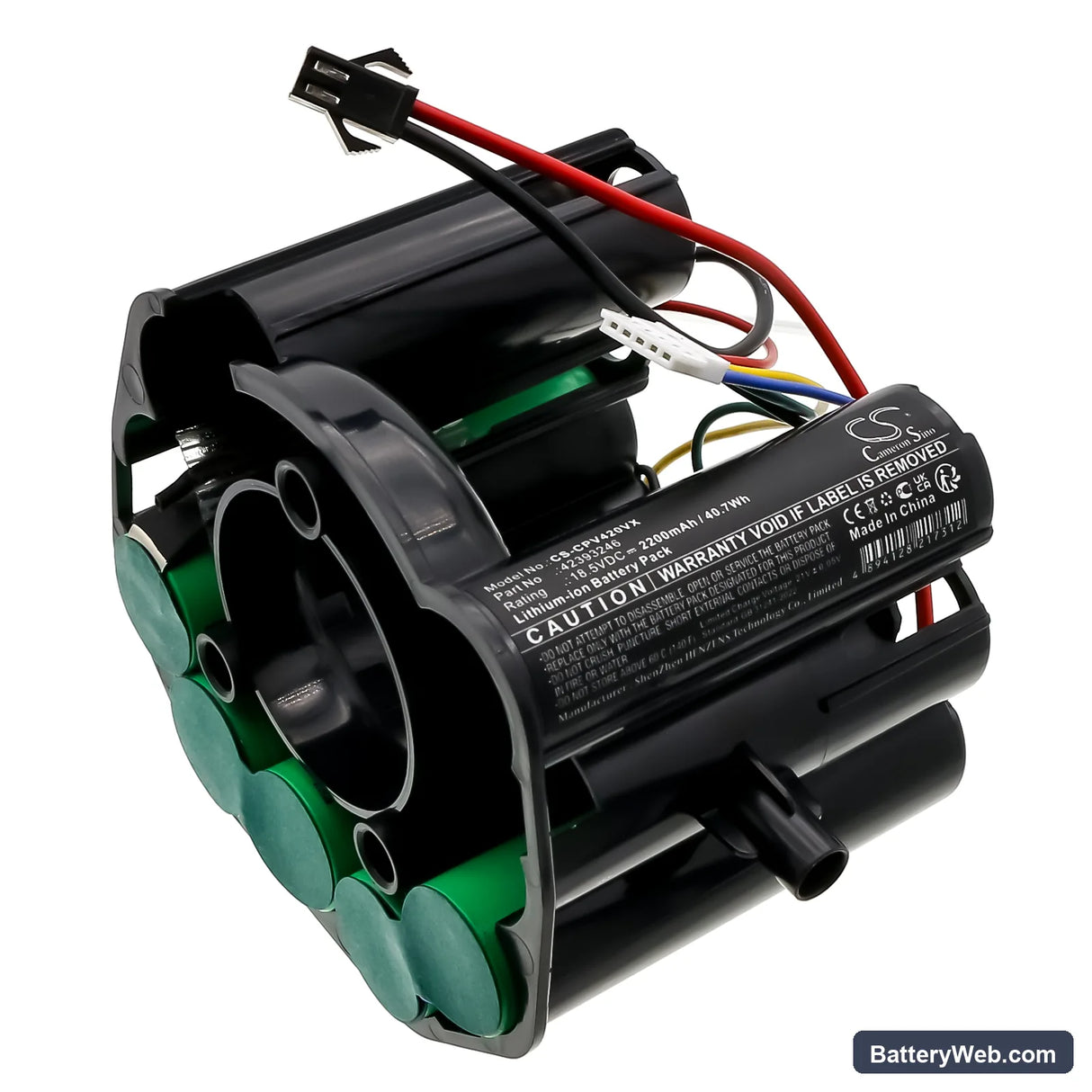

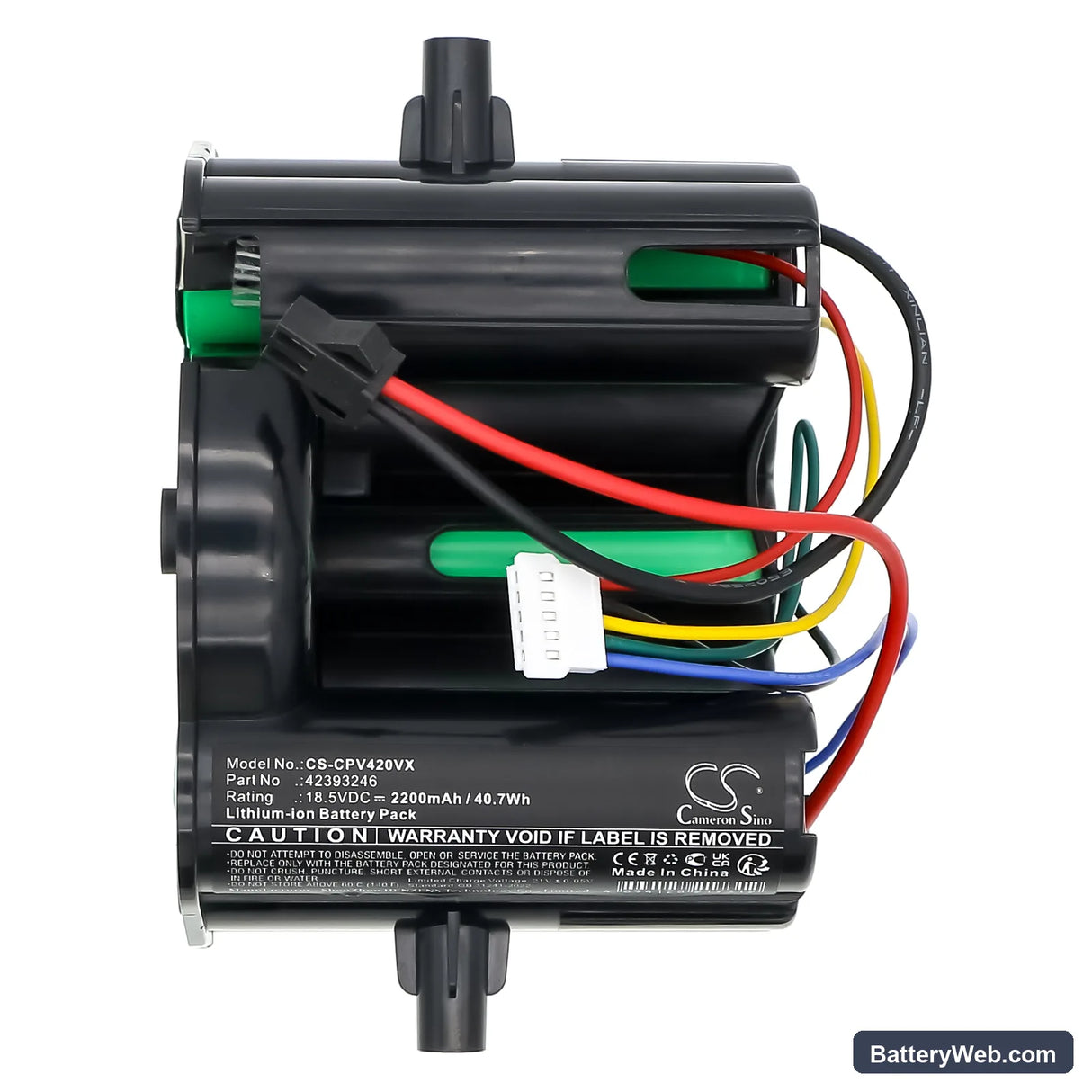

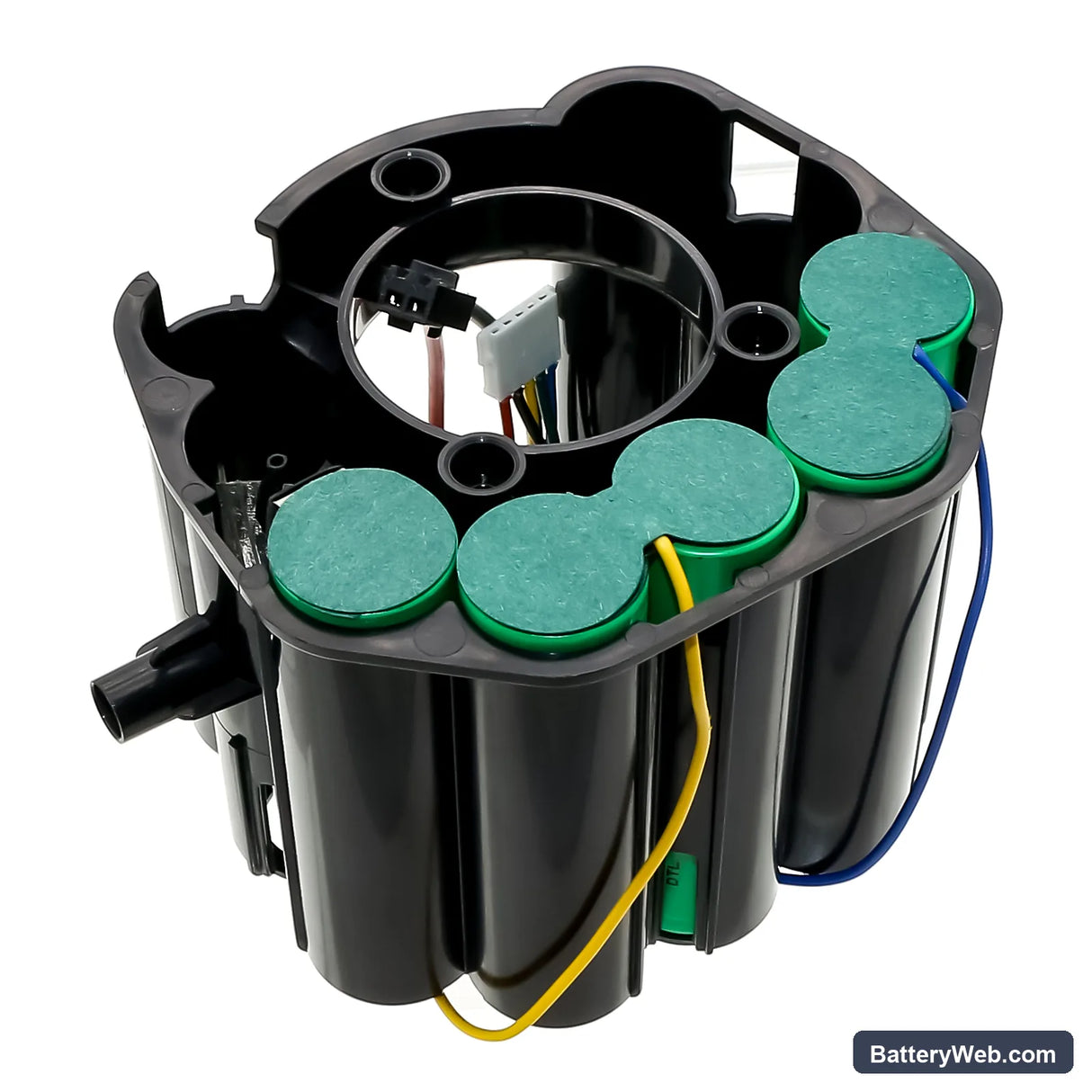

This is an 18.5V, 2200mAh Li-ion replacement battery for the Concept VP4135 and VP4201 cordless stick vacuums with 5-pin connectors. It slots directly into the same bay as the original pack and communicates with the onboard BMS via the same 5-pin handshake. Capacity matches factory spec at 40.7Wh.

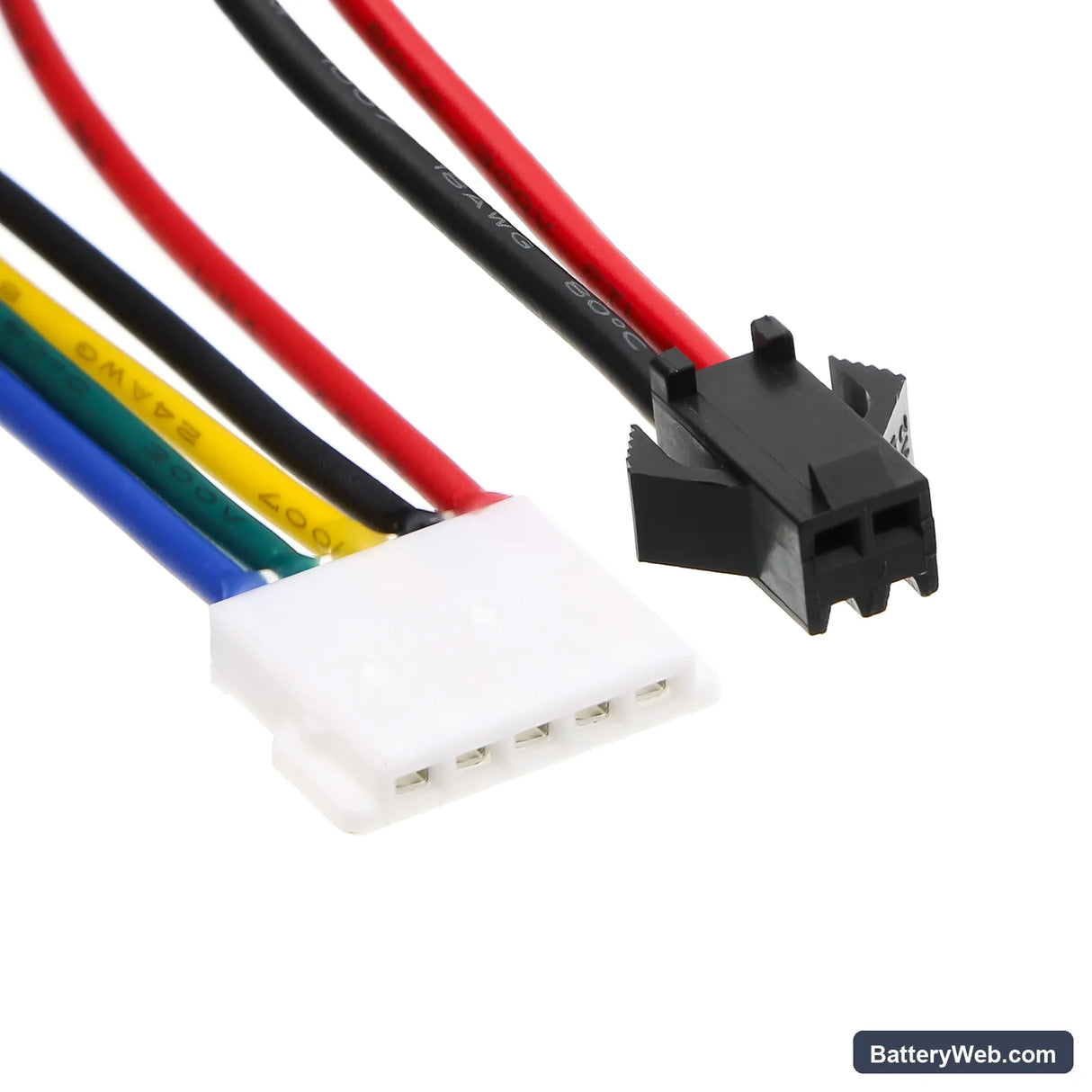

• VP4135 and VP4201 compatibility: Both models share the same 18.5V voltage rail, 5-pin connector layout, and BMS communication protocol — which is why a single replacement cell covers both. The pin arrangement carries cell status data, not just power, so the correct pin count matters.
• Bench tested on actual hardware: We cycled this pack through full charge and discharge runs on the VP4135 platform. The BMS accepted the handshake cleanly, charge terminated at the correct cutoff voltage, and overcurrent protection tripped as expected under a simulated blocked-filter load.
• Dock charging discipline on the VP4135: Do not leave this vacuum sitting on the charging dock permanently. Continuous trickle charge on Li-ion packs accelerates capacity fade faster than normal charge cycles. Charge to full, then remove from the dock until the next use.

Cordless vacuum losing suction before the battery indicator reaches low

This happens when the motor is drawing more current than rated — usually because a partially blocked filter forces it to work harder to maintain airflow. The extra draw causes voltage to sag at the cell level, which the BMS reads as a low-battery condition even when charge remains. The vacuum loses suction power noticeably, but the indicator light hasn't caught up yet. Clean the filter first; if suction restores immediately, the battery was not the issue.

Motor cuts out during use then recovers after a short pause

This is a BMS overcurrent trip, not a dead battery. When suction is restricted — by a clogged filter, full dustbin, or carpet fibres blocking the inlet — the motor pulls sustained current above the BMS threshold and the pack shuts output off as a protection measure. After a brief rest, the BMS resets and the vacuum powers on again. Clear the obstruction, check the filter, and retest; if the cutout continues with no blockage present, measure pack voltage under load — it should hold above 15V during normal operation.
