Creative Vado HD 3.7V 1050mAh Replacement Battery

Creative Vado HD — 3.7V Li-ion Replacement Battery

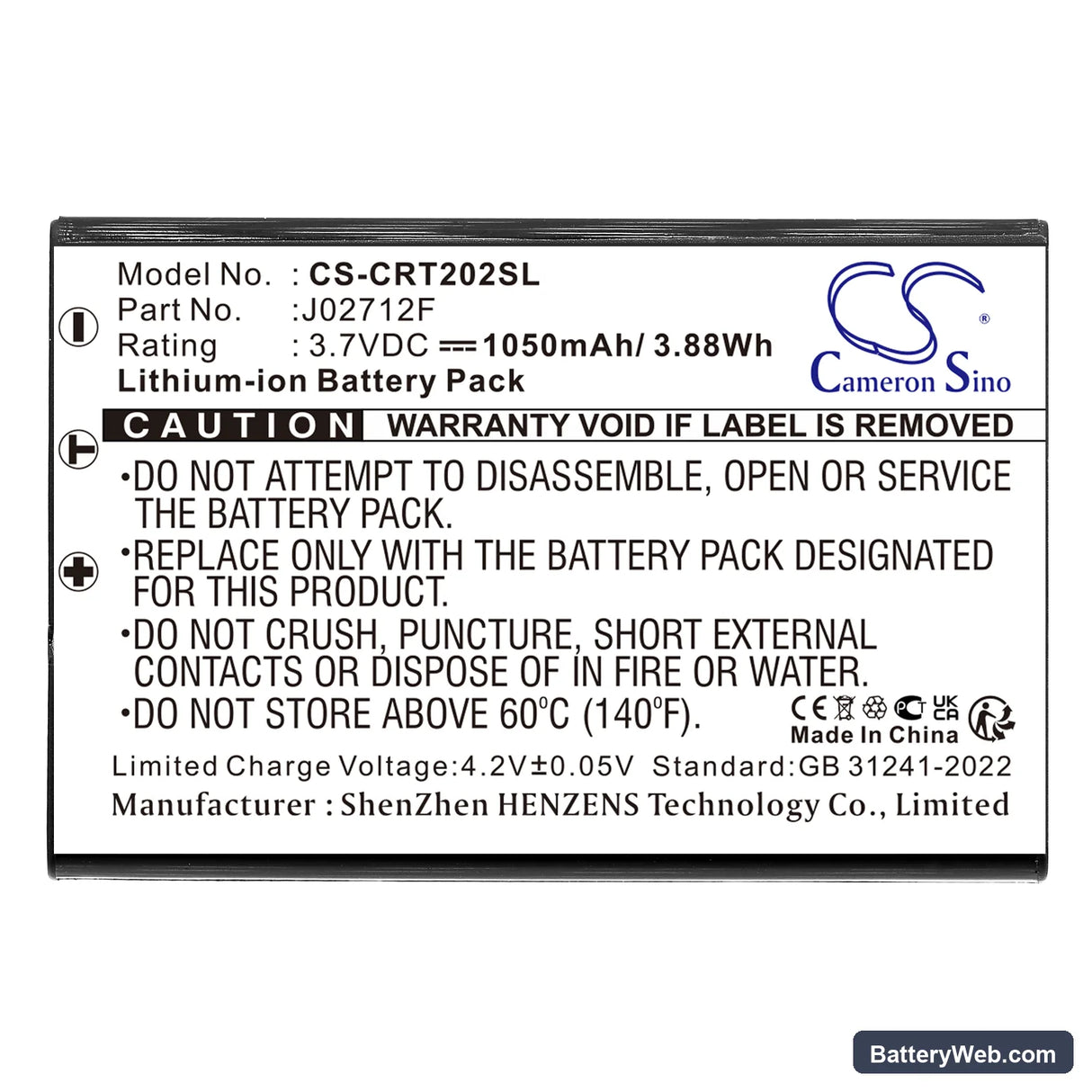

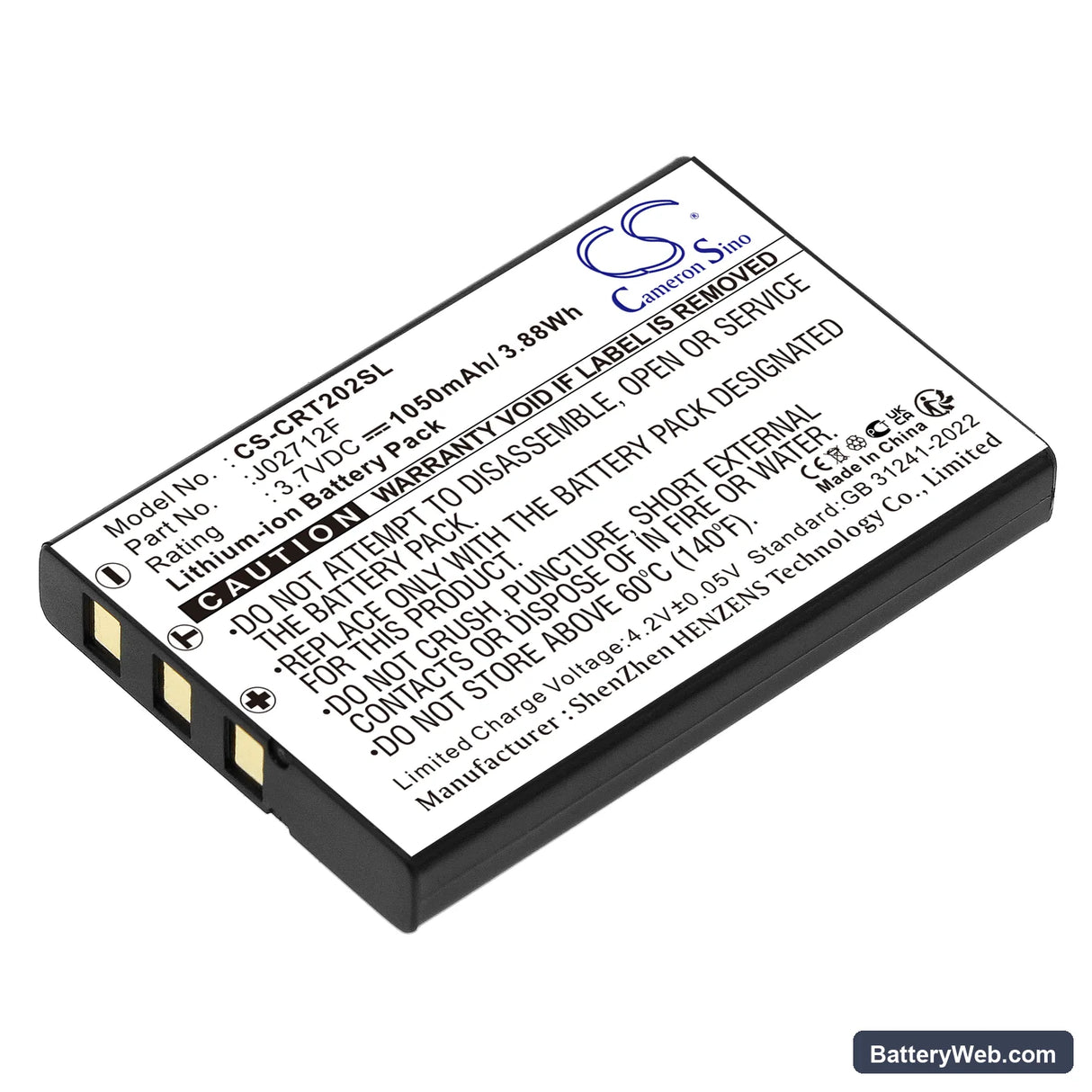

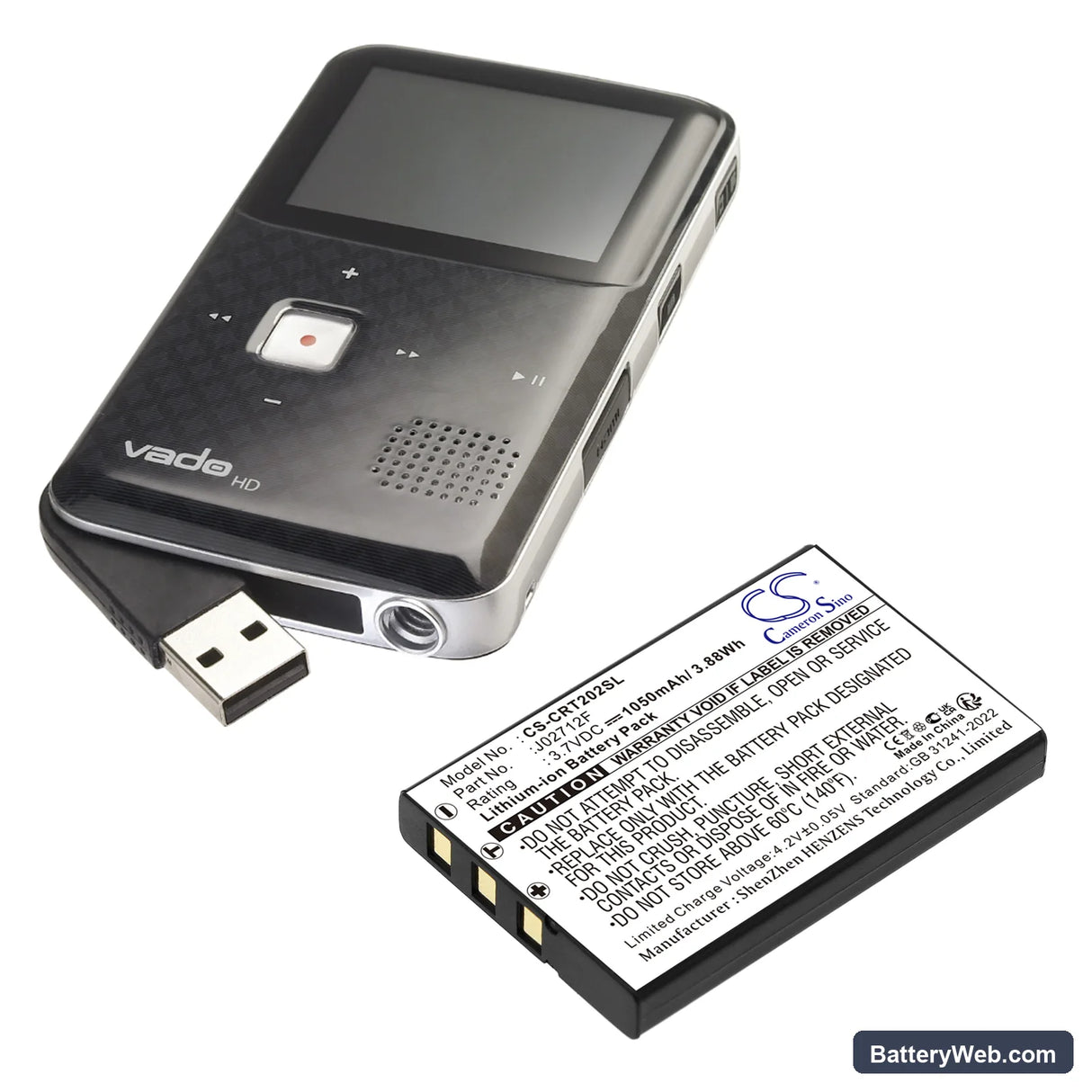

This is a 3.7V 1050mAh Li-ion battery for the Creative Vado HD pocket camcorder. It replaces the original cell when charge capacity has dropped and recording sessions are cutting short. Dimensions are 52.96 x 35.63 x 7.00mm — confirm these against your existing battery before ordering.

• Vado HD compatibility: The Vado HD uses a single-cell 3.7V Li-ion pack with a compact form factor that fits the flush-mount battery bay. Voltage and physical dimensions must both match — a cell that is even 1mm too thick will prevent the battery door from closing.
• Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the Vado HD platform. The BMS accepted a standard 5V USB charge input without fault flags, and voltage hold was stable across the discharge curve until the low-battery cutoff triggered cleanly.
• Li-ion activation after extended storage: If the Vado HD arrives depleted or has been sitting unused, connect the charger before attempting to power on. Cells stored below 3.0V may enter a deep discharge protection state where the device will not respond to the power button until a trickle charge has raised cell voltage above the BMS recovery threshold.

Battery percentage jumping after fitting a new cell in the Vado HD

The Vado HD uses a voltage-threshold fuel gauge — it reads remaining charge by measuring cell voltage, not by tracking charge history. A fresh cell has no charge history stored, so the indicator recalibrates in real time as voltage settles. You may see the percentage jump by 10–20% in the first few cycles. Run two full charge-to-discharge cycles and the reading will stabilise at the correct voltage-to-percentage mapping.

Playback cutting out before the battery indicator shows empty

The Vado HD's video output and sensor circuits draw more current during active recording than during standby. At the end of a discharge curve, cell voltage sags under that load faster than the fuel gauge can track. The device shuts down to protect the cell even though the indicator still shows a remaining charge. This is a load-sag cutoff, not a faulty battery. Charge the cell back to 4.2V and the full usable capacity will be available again.
