DYMO S0895840 LabelManager 360D Replacement Battery 7.4V 1600mAh

DYMO LabelManager 360D / Rhino 5200 Series — 7.4V Li-ion Replacement Battery (S0895840)

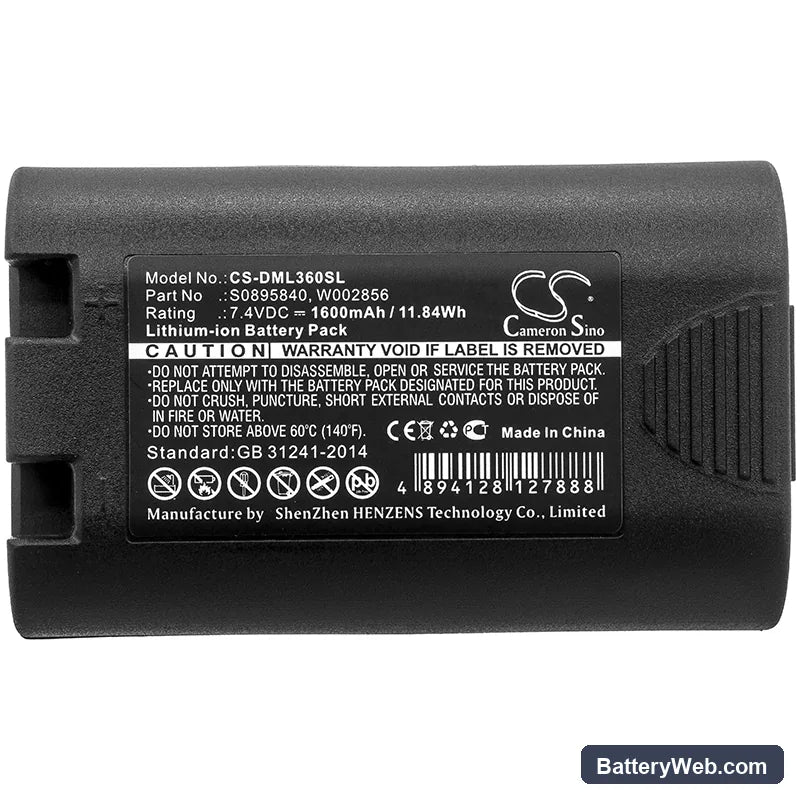

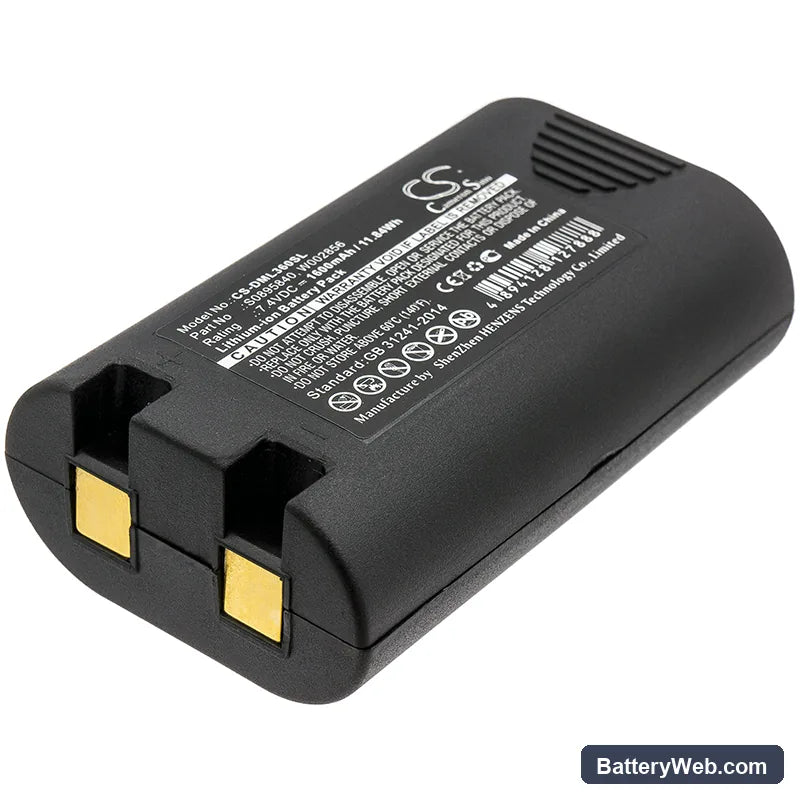

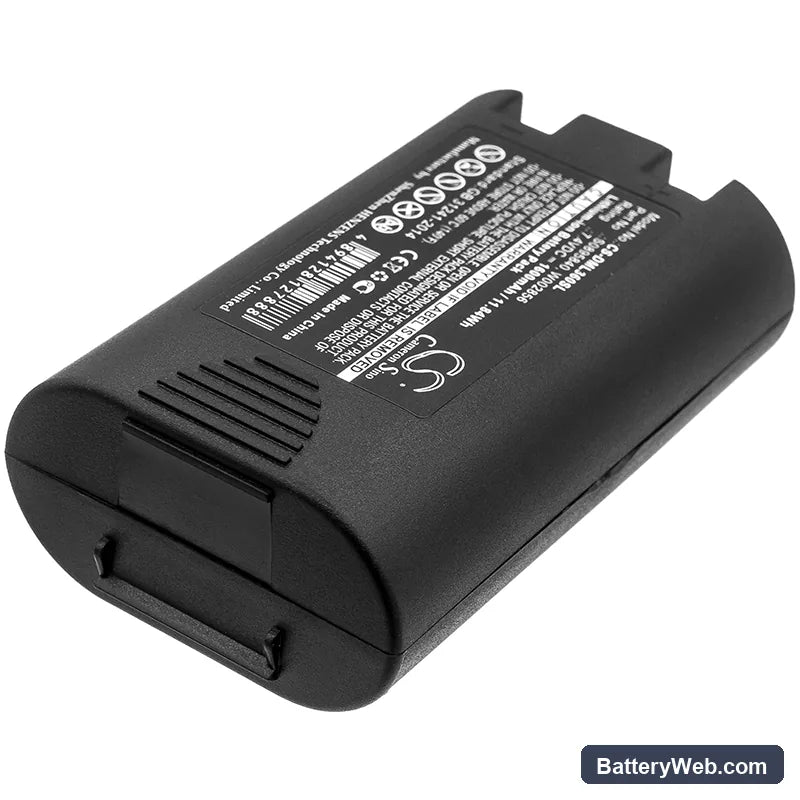

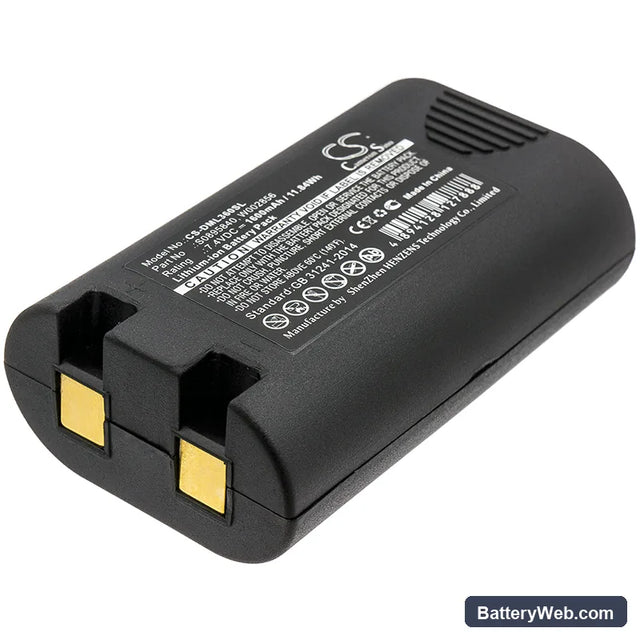

This 7.4V, 1600mAh Li-ion battery replaces OEM part S0895840 in the DYMO LabelManager 360D, Rhino 5200, Rhino 4200, and LabelManager 420P. It fits the original battery bay without modification. Voltage and cell chemistry match the OEM spec exactly.

• Cross-model compatibility — LabelManager and Rhino lines: These models share the same 7.4V two-cell Li-ion architecture, identical BMS handshake protocol, and the same keyed connector. One battery covers the full group.
• Bench tested on actual hardware: We cycled this battery through charge and discharge on a LabelManager 360D unit. The BMS accepted the cell profile without fault flags, and the thermal head reached operating temperature across repeated print bursts.
• First-use print sequence: After installing, charge the battery fully, then run five consecutive label prints before field deployment. The printer's paper feed motor draws a brief current spike on startup — running that sequence confirms the BMS current profile is correctly matched to the new cell and prevents false low-battery cutoffs on the first job.

Why the LabelManager 360D won't print after sitting unused for months

Li-ion cells in handheld label printers self-discharge during storage. If the battery drops below roughly 2.5V per cell (5.0V pack total), the BMS locks output to protect the cells. The printer powers on — the display may even light up — but the thermal head and feed motor get no current. Plug into a charger for at least 30 minutes before attempting to print; most BMS units will re-initialise once the cell voltage climbs above the recovery threshold.

Print coming out faded or uneven despite full charge indicator

The thermal print head in the LabelManager 360D requires a stable voltage rail to hold the correct heating temperature across the full label width. A degraded cell delivers the rated voltage at rest but sags under the sustained current draw of a print job. That sag causes uneven head temperature — the result is faded patches or inconsistent darkness across the label. If fading starts mid-label rather than at the edges, voltage sag under load is the cause. Check pack voltage under load; a healthy 7.4V cell should hold above 7.0V during a print cycle.
