Ecovacs Airbot AA30 Replacement Battery 18.5V 5200mAh

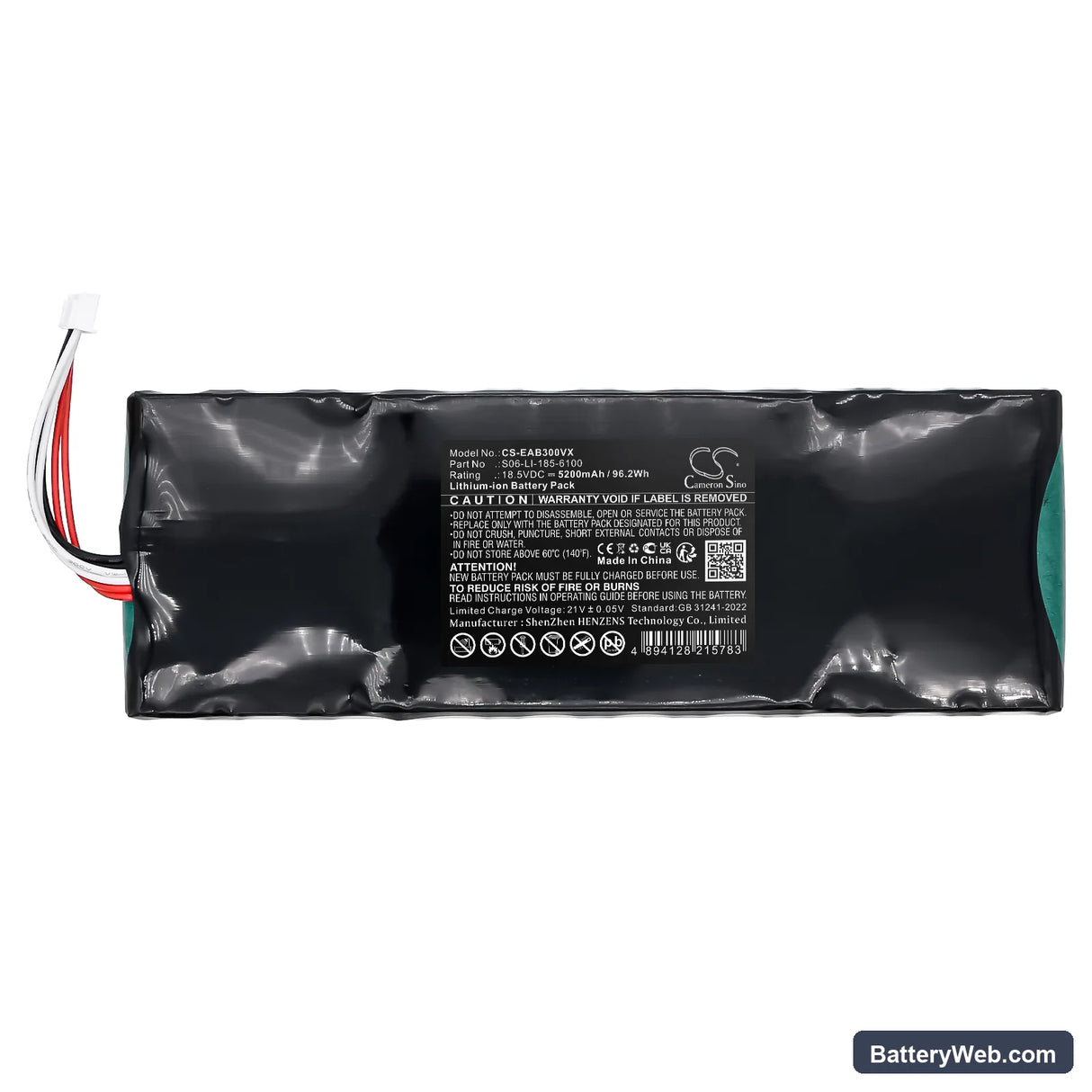

Ecovacs Airbot AA30 — 18.5V Li-ion Replacement Battery (S06-LI-185-6100)

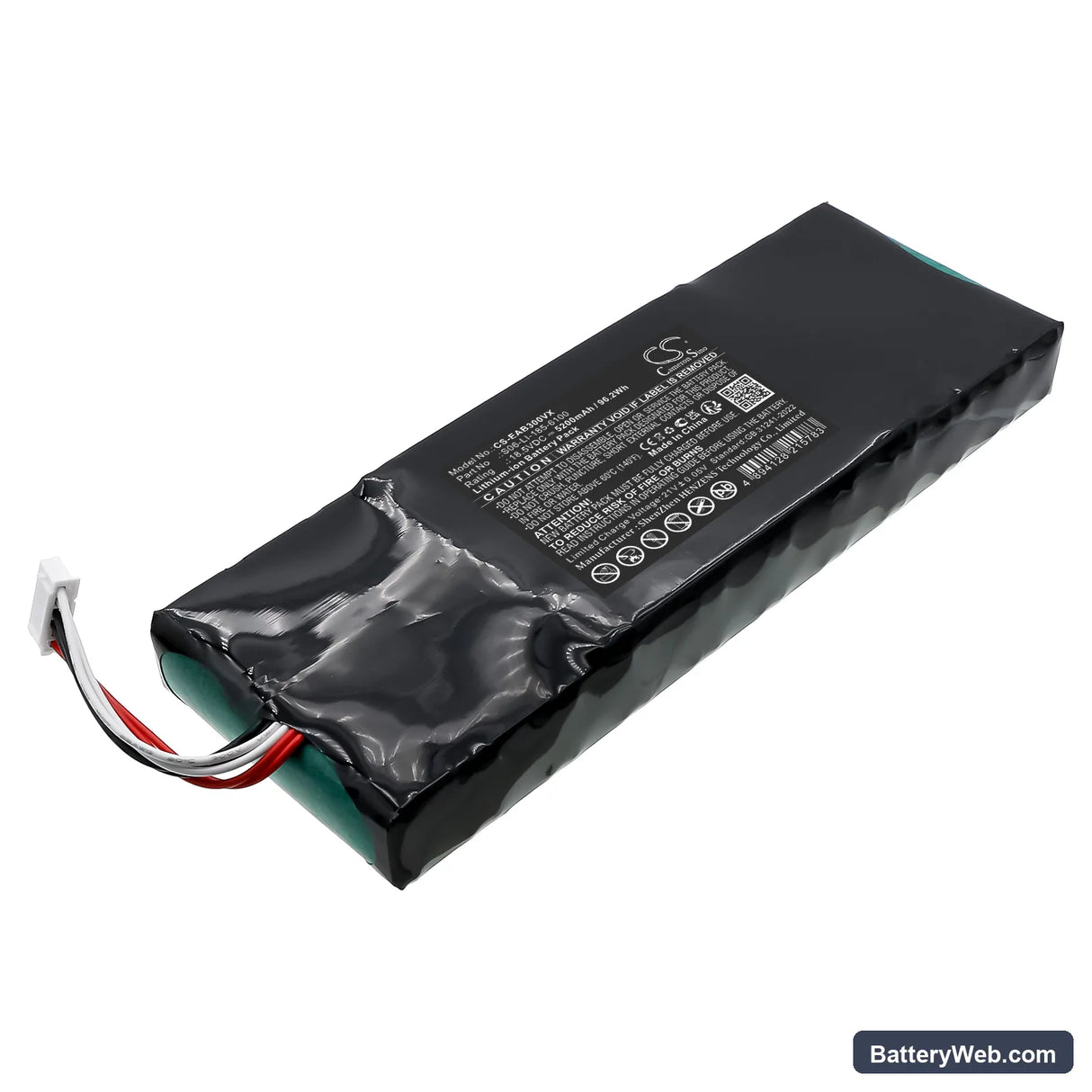

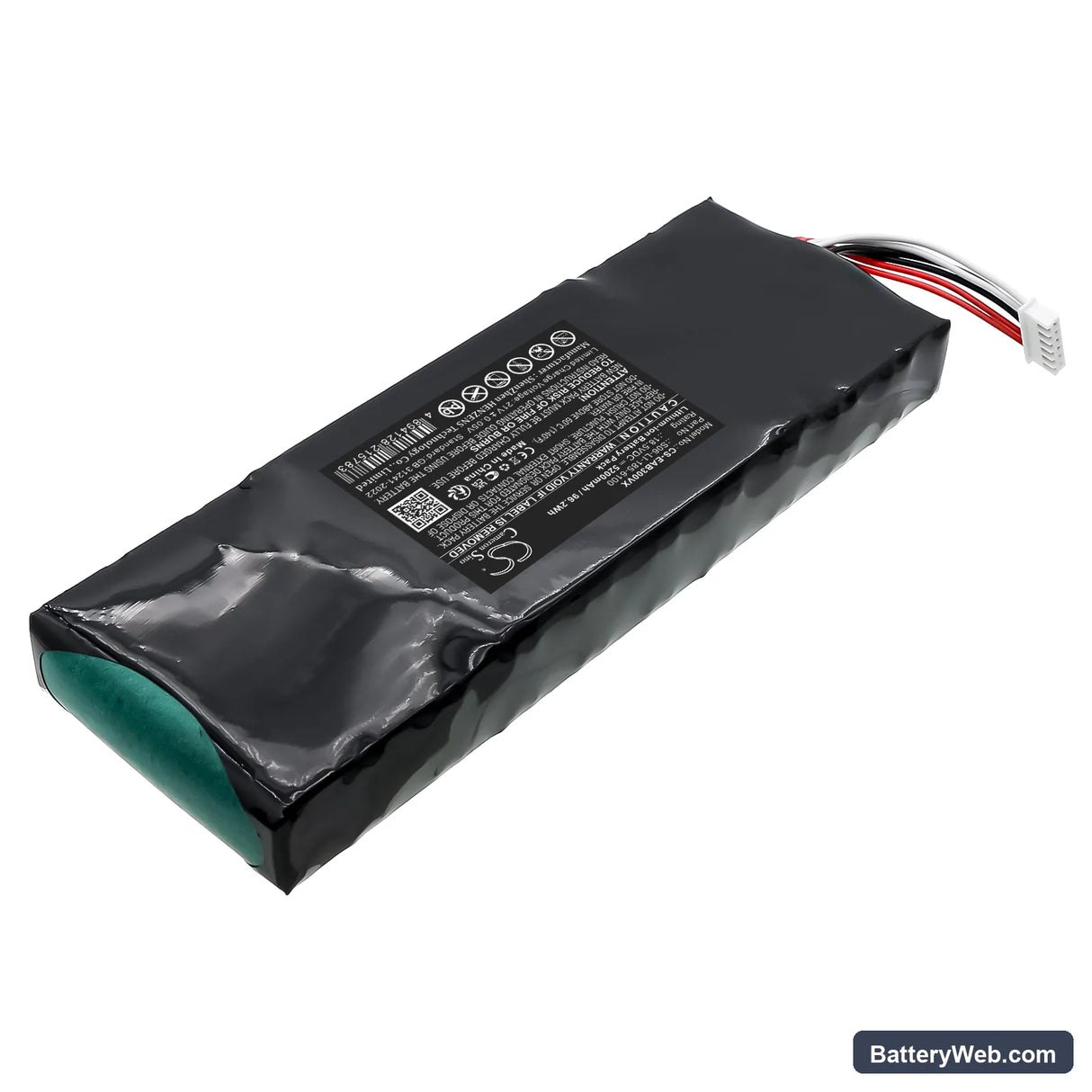

This is an 18.5V 5200mAh Li-ion battery for the Ecovacs Airbot AA30 robotic vacuum cleaner. It fits the AA30's battery bay and powers the motor, brush roll, and onboard navigation. Capacity is 96.2Wh — matching the original cell specification.

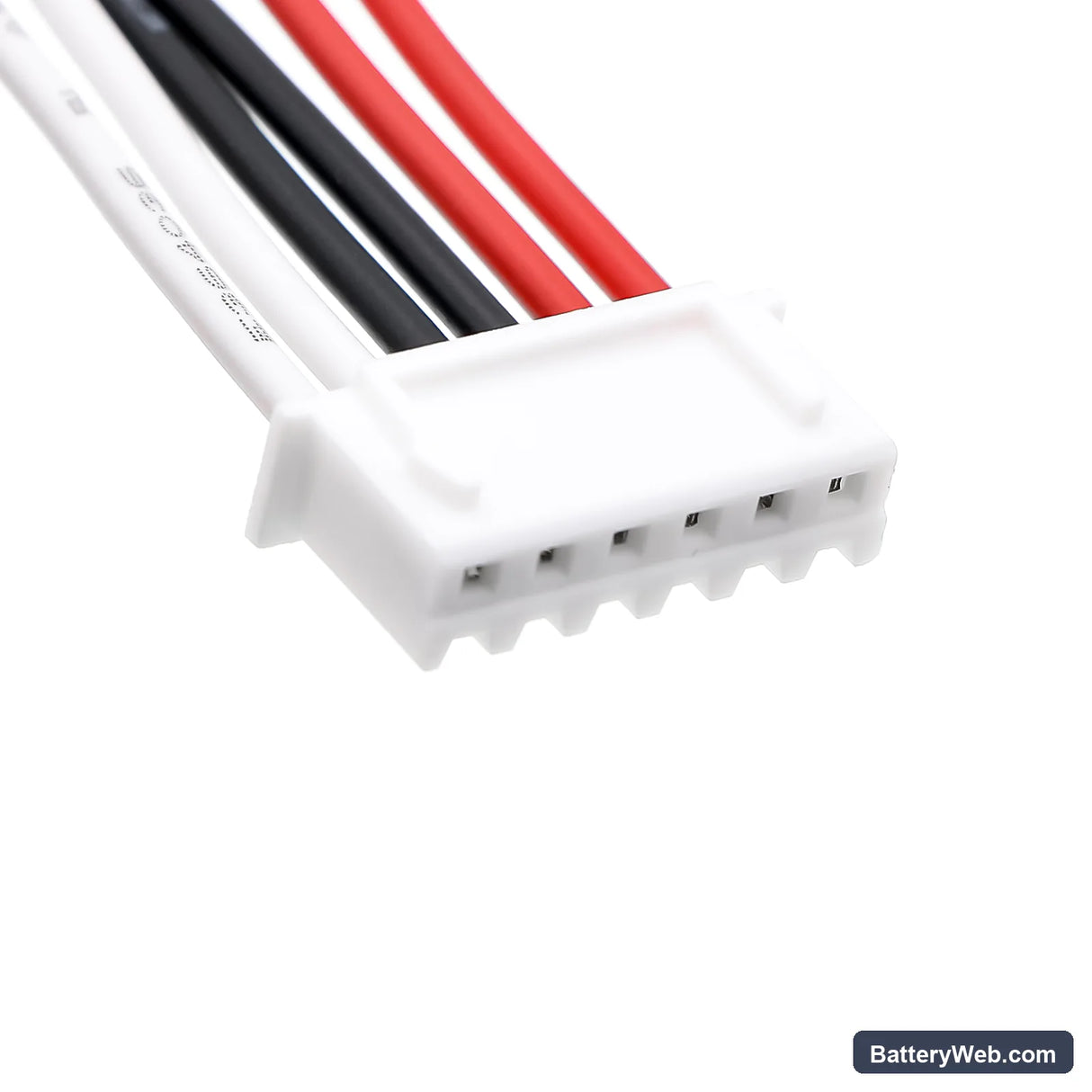

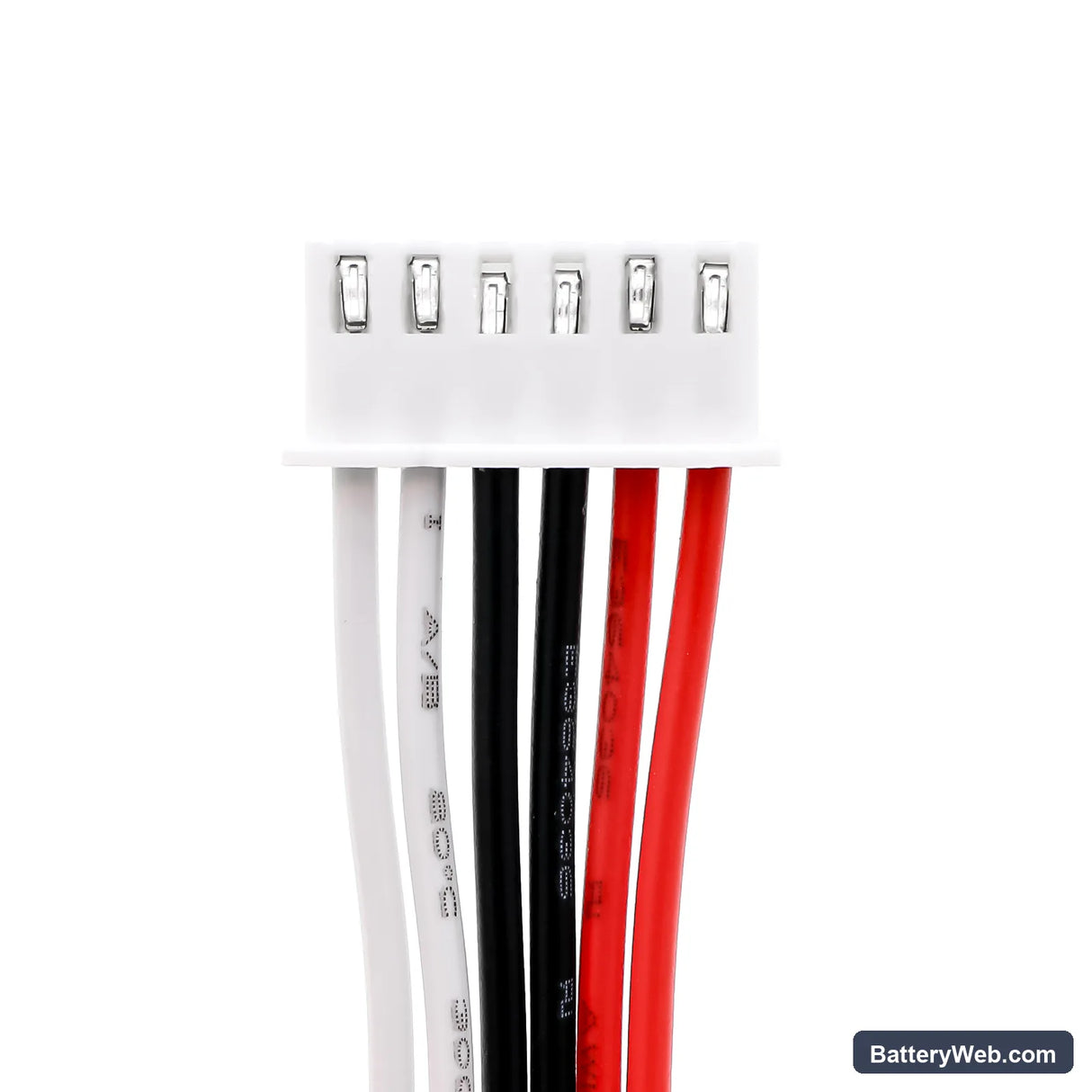

• Airbot AA30 fitment: The AA30 runs an 18.5V motor bus. This cell matches that voltage rail and uses the same connector and BMS handshake the dock charger expects. Swapping in a different voltage causes the BMS to reject the charge cycle or the motor controller to flag a fault.
• Bench tested on actual hardware: We cycled this battery through full charge and discharge under simulated motor load. The BMS held the cutoff threshold steady and showed no false low-voltage trips under normal draw conditions.
• Dock charging behaviour on the AA30: Do not leave the AA30 sitting on the dock continuously between uses. Cordless vacuums on permanent dock charge develop capacity fade much faster than units charged only when depleted. Charge to full, then remove from dock until the next cleaning run.

Suction dropping before the battery indicator reaches low on the AA30

The AA30's motor controller pulls more current when airflow is restricted — a clogged filter or partial blockage forces the motor to work harder to maintain suction. That extra draw pulls the cell voltage down faster than normal, which the BMS reads as a low-battery condition even when the cell still holds charge. The result is reduced suction or a premature shutdown while the indicator still shows adequate charge. Clear the filter and check the dustbin before assuming the battery is faulty — clean airflow cuts motor draw back to rated levels.

Motor cutting out mid-cycle and recovering after a few seconds

This is a BMS overcurrent trip, not a dead cell. When suction is sustained against a blockage or a heavily loaded brush roll, current spikes past the BMS threshold and it cuts the motor to protect the pack. The BMS resets after a short thermal cooldown, which is why the vacuum restarts on its own. Check the brush roll for hair wrap and clear any blockage at the intake before running again. If the trip keeps recurring with no visible blockage, measure resting voltage — a healthy cell should sit above 18V off charge.
