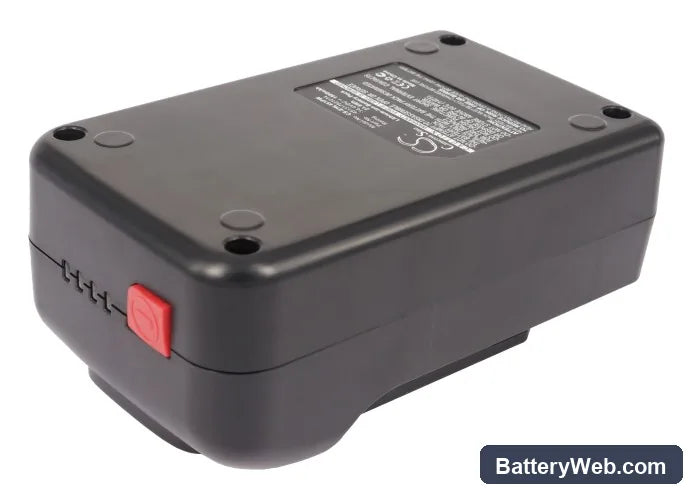

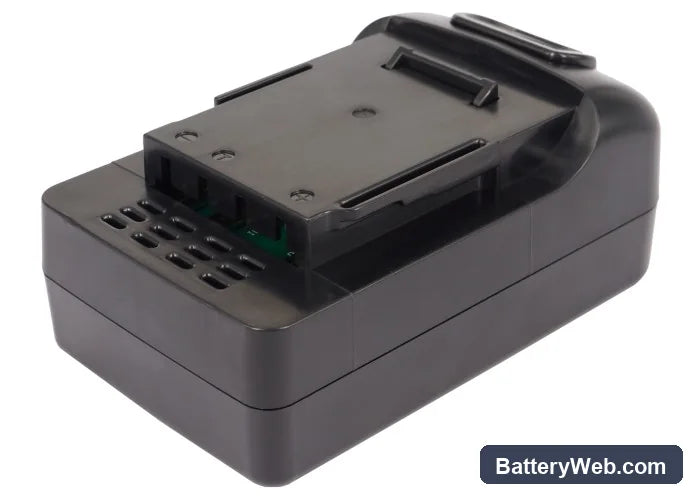

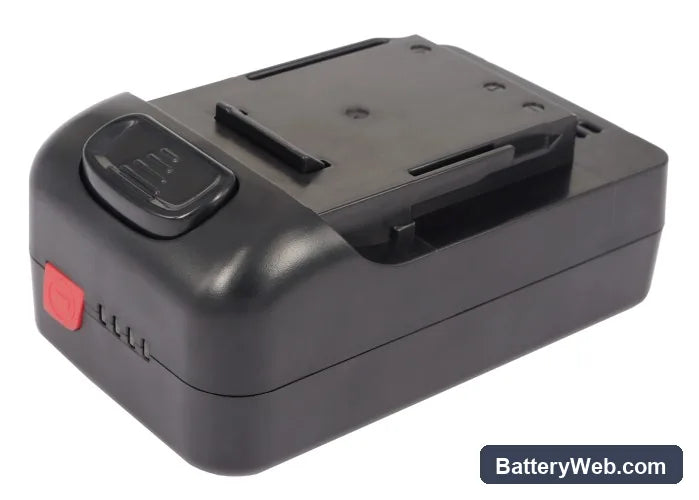

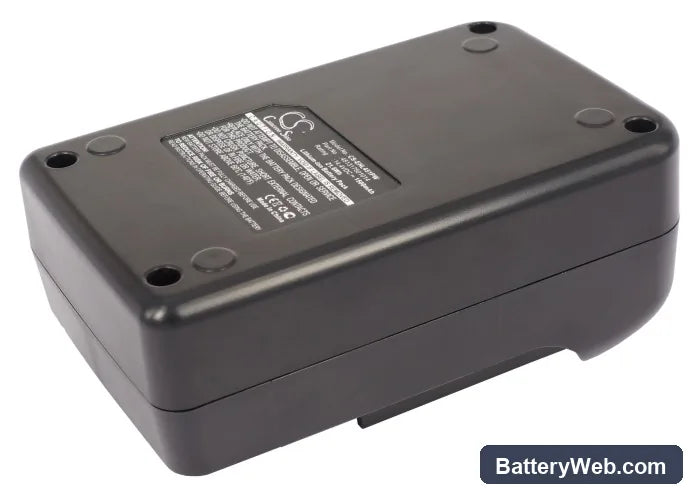

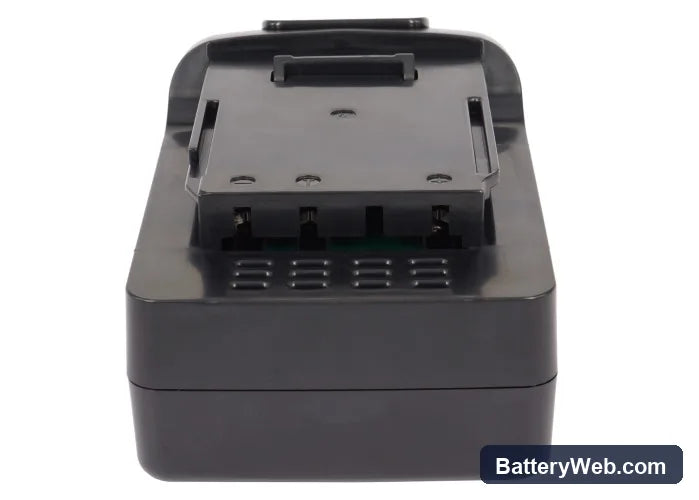

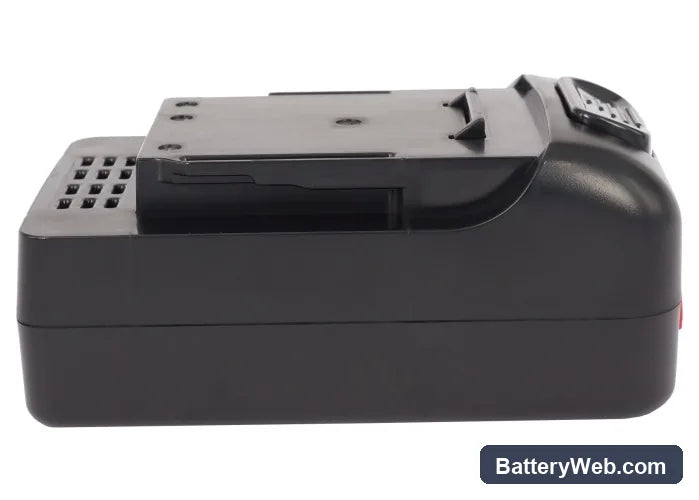

Einhell BT-CD 14 Replacement Battery 14.4V 1500mAh Li-ion

Einhell BT-CD 14 Series — 14.4V Li-ion Replacement Battery (451317501014)

This is a 14.4V, 1500mAh Li-ion replacement battery for the Einhell BT-CD 14 cordless drill/driver and compatible 14.4V platform models. It fits the BT-CD 14, 4/3 Li, MT-AS 14, and 4 Li/2 — all share the same 14.4V rail and pack connector format. Capacity is 1500mAh (21.6Wh), matching the original specification.

• BT-CD 14 platform compatibility: The BT-CD 14, 4/3 Li, MT-AS 14, and 4 Li/2 all run the same 14.4V battery format and use the same slide-in connector with matching BMS communication pins. One battery format covers all four models in this lineup.
• Bench tested on actual hardware: We cycled this pack through repeated trigger-pull loads on a BT-CD 14 drill. The BMS handled motor-start inrush without tripping, held voltage stable through fastening cycles, and returned accurate charge state to the indicator.
• Break-in on first use: Run the drill at half load — light fastening, no heavy drilling — for the first two charge cycles. This lets the BMS log the motor's inrush current pattern before it sets its overcurrent trip threshold. Skipping this can cause nuisance cutouts on the first full-torque application.

BMS overcurrent trip on motor-start inrush in the BT-CD 14

When you pull the trigger on a drill under load, the motor draws a brief inrush current spike — often three to five times the running current. A new BMS with no usage history defaults to a conservative trip threshold. If the spike exceeds that threshold, the BMS cuts the circuit before the bit even starts turning. This is not a faulty battery; it is the BMS protecting cells it has not yet profiled. Two half-load break-in cycles give the BMS enough data to set a threshold that reflects actual motor behaviour on this tool.

Charger not recognising the pack after it has been sitting unused

Li-ion cells self-discharge during storage. If a pack drops below roughly 2.5V per cell, most chargers reject it — the charger reads the voltage as too low to safely initiate a charge cycle and blinks an error instead of charging. The fix is a recovery charge: some Einhell chargers have a recovery or conditioning mode that trickle-charges at a low current until the pack climbs back above the acceptance threshold, typically around 3.0V per cell. If the charger has no recovery mode, a short 30-second connection, disconnection, and reconnection sequence can sometimes prompt the charger to retry at low current and accept the pack.
