i.safe Mobile BPIS540.2A Replacement Battery 3.7V 4400mAh

i.safe Mobile IS540.2 Series — 3.7V Li-ion Replacement Battery (BPIS540.01A)

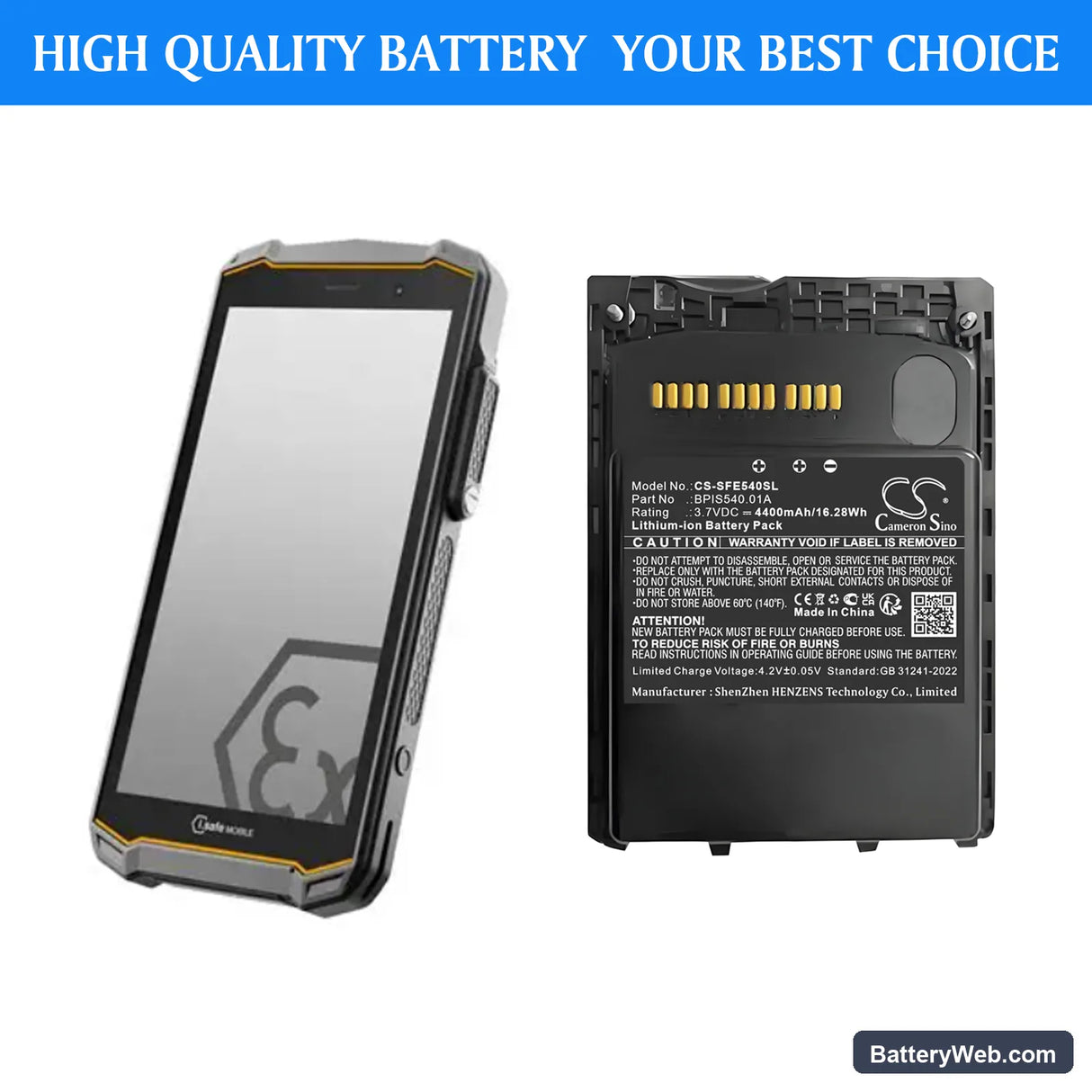

This 3.7V, 4400mAh Li-ion battery replaces the original pack in the i.safe Mobile BPIS540.2A, BPIS540.2N, IS540.2, and IS540.2 C1 handheld barcode scanners. These are rugged, intrinsically safe scanners used in warehouse, logistics, and industrial environments where battery failure means a shift stops. Capacity matches the OEM spec exactly — 4400mAh, 16.28Wh.

• IS540.2 series compatibility: The BPIS540.2A, BPIS540.2N, IS540.2, and IS540.2 C1 all run on the same 3.7V rail with an identical connector and BMS handshake protocol, which is why one cell covers the full range. The pack communicates state-of-charge to the host device over a dedicated data line — a generic cell without the matching BMS ID will show a fault on boot.
• Bench tested on actual hardware: We cycled this pack through repeated scan-trigger and wireless polling loads. The BMS held the low-voltage cutoff at the correct threshold and did not trip during combined radio plus imager inrush — both draws hit simultaneously on every scan event.
• First-install cradle protocol: After fitting this pack, seat the scanner in its charging cradle and run a full charge cycle before the first shift. Scan-trigger inrush current is highest when the cell is near minimum charge, and a depleted new pack can cause false BMS trips on the first trigger pull of the day.

Cradle showing a charging error on a freshly fitted pack

The IS540.2 charging cradle reads pack identity and contact resistance before it begins the charge cycle. A new pack with oxidised or dirty contacts can push contact resistance above the cradle's acceptance threshold, triggering a charge fault instead of a charge cycle. This is a contact issue, not a cell fault. Wipe the gold contacts on the battery and the cradle pins with a dry lint-free cloth, reseat the pack firmly, and the cradle should clear the error and begin charging within 30 seconds.

Scanner losing wireless connection during rapid scan bursts

On the IS540.2 series, every scan event draws current from two sources at once — the imager or laser and the wireless radio staying connected to the host system. During a rapid burst of consecutive scans, that combined inrush can cause a momentary voltage sag across the cell. If the pack's state-of-charge is already low, the BMS may interpret the sag as an undervoltage condition and briefly interrupt power, dropping the wireless session. Keeping the pack above 3.5V under load prevents this — if dropouts are occurring, return the scanner to the cradle before the charge indicator falls below one bar.
