Lenovo IdeaPad Flex 14AP L12L4K51 14.4V Replacement Battery

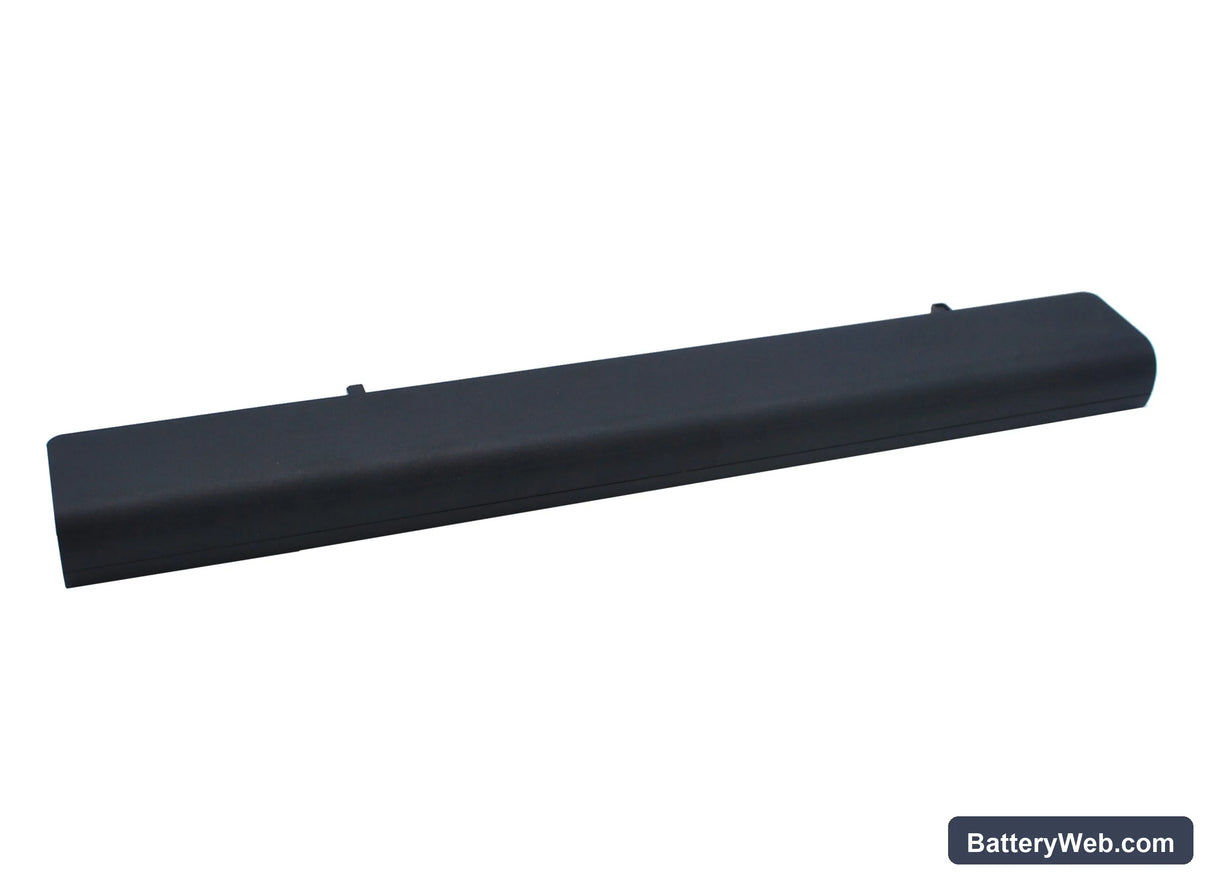

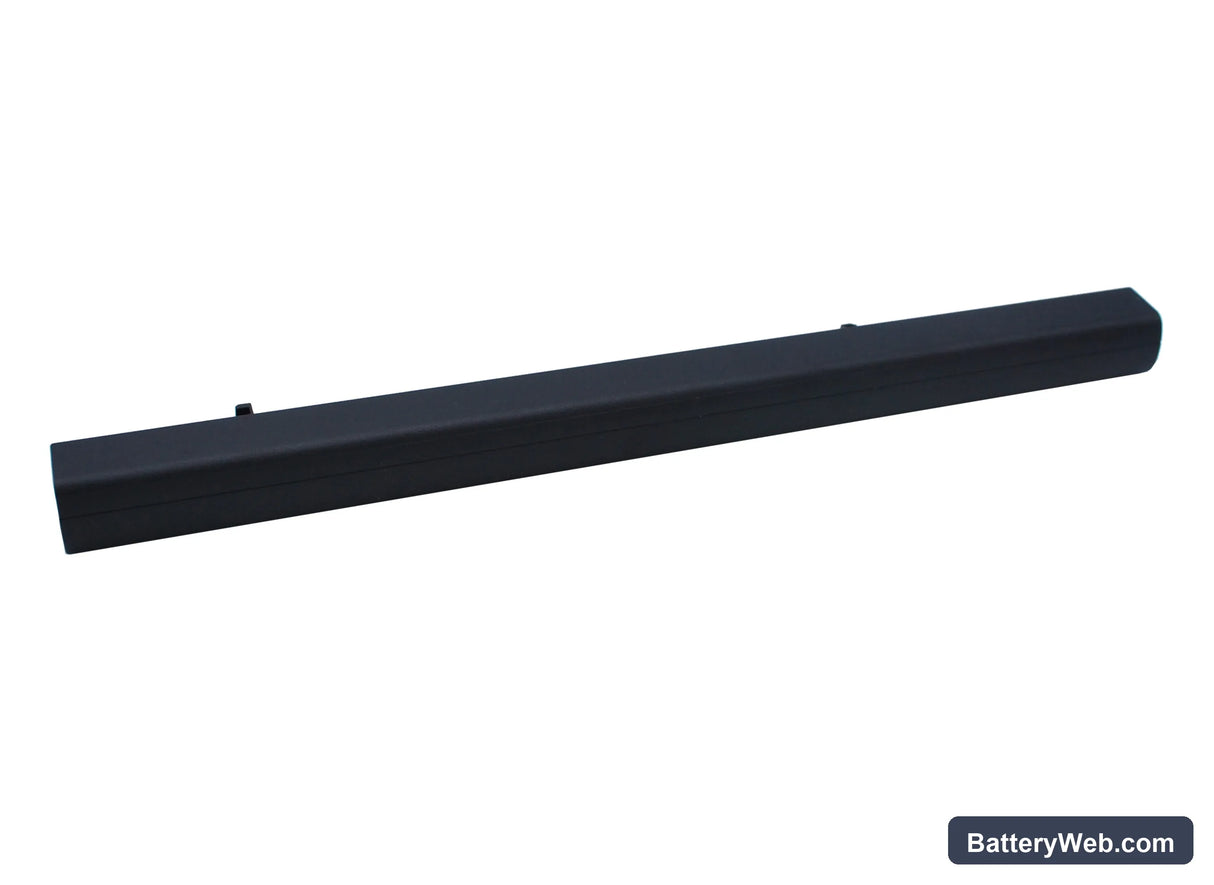

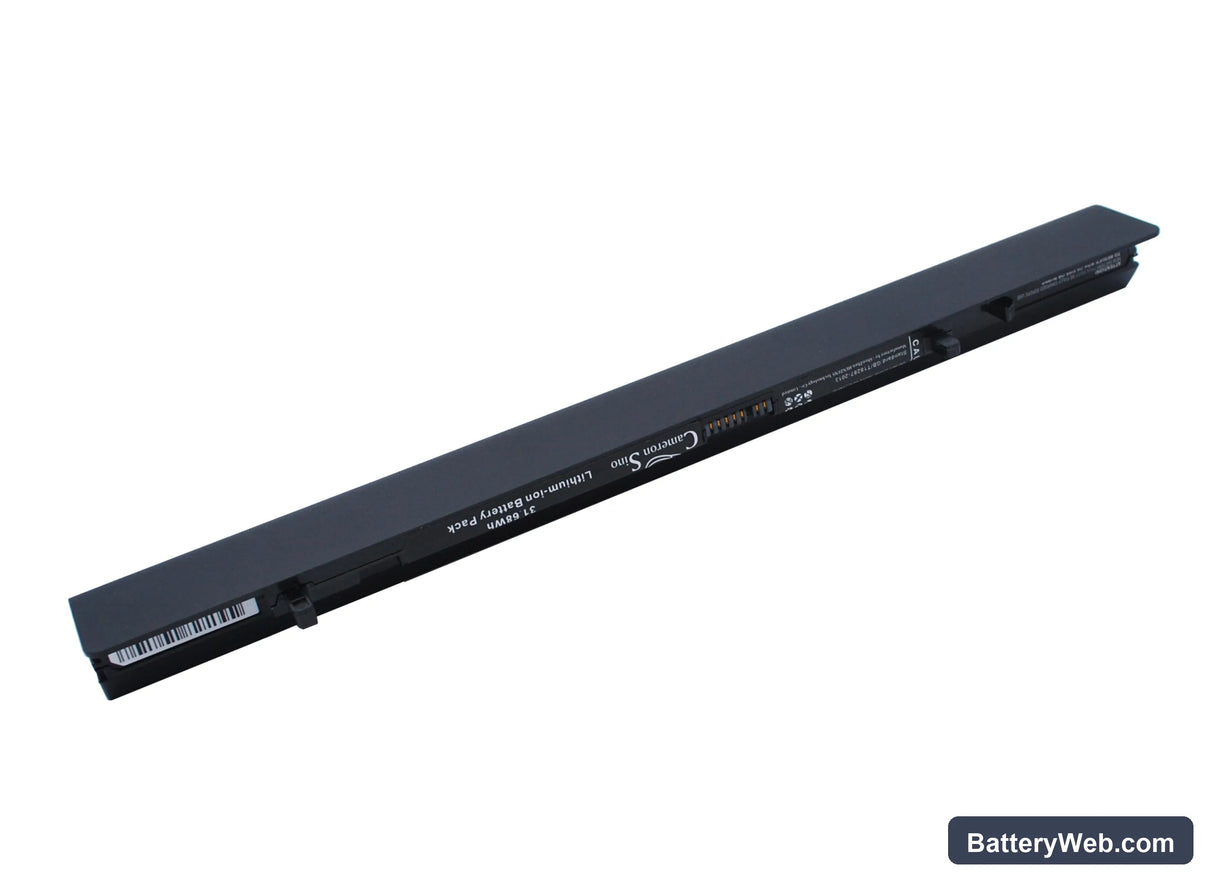

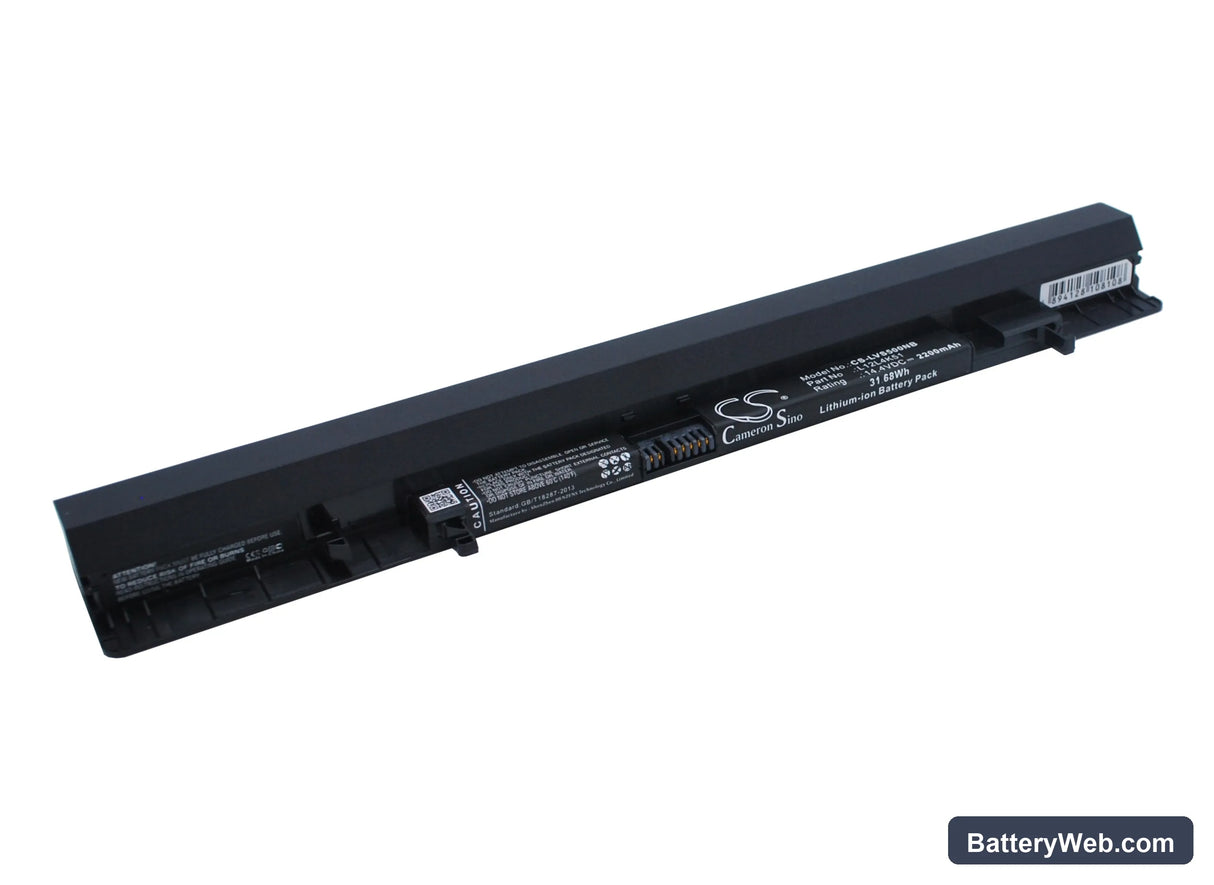

Lenovo IdeaPad Flex 14AP / 14D Series — 14.4V Li-ion Replacement Battery (L12L4K51)

This is a 14.4V, 2200mAh (31.68Wh) Li-ion replacement battery for the Lenovo IdeaPad Flex 14AP, 14AT, 14D, and 14M convertible notebooks. It matches the original connector, voltage rail, and BMS handshake protocol for these models. OEM part numbers covered include L12L4K51, L12M4A01, L12M4E51, L12S4A01, L12S4F01, and L12S4K51.

• Flex 14 series compatibility: The 14AP, 14AT, 14D, and 14M all share the same 14.4V battery bay, connector pinout, and SMBus communication line. One cell fits across the series because the BMS firmware negotiates with the same Lenovo EC regardless of sub-model suffix.
• Bench tested on actual hardware: We cycled this cell on a Flex 14 chassis and confirmed the BMS completed charge handshake, balanced across all four cells, and triggered low-voltage cutoff at the correct threshold without a protection trip at full CPU and display load.
• Post-install calibration on the Flex 14: After installing, run one full discharge down to hibernate cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap on these Lenovo convertibles.

BIOS reporting poor battery health immediately after replacement on the Flex 14

The Lenovo EC reads health data from EEPROM registers on the battery itself. A new cell ships with factory EEPROM values that do not match the charge history the EC expects to see. The EC flags this mismatch as degraded health before any real cycling has occurred. Running the BIOS battery learn cycle — one full discharge to hibernate, one uninterrupted charge to 100% — writes fresh cycle data and the warning clears. No firmware update or BIOS reset is required; calibration alone resolves it.

Flex 14 shutting down at 20–30% remaining shown on screen

This happens when the fuel gauge IC has not yet calibrated against the new cell's actual voltage curve. The OS reads a state-of-charge percentage based on the old cell's discharge profile, so the reported percentage no longer maps correctly to real voltage. Under full CPU plus display load, the cell voltage drops faster than the gauge predicts, and the EC triggers a hard shutdown before the displayed percentage reaches zero. Run two complete discharge-to-hibernate and charge-to-100% cycles, and the fuel gauge IC recalibrates — the shutdown behaviour stops once the curve is re-learned.
