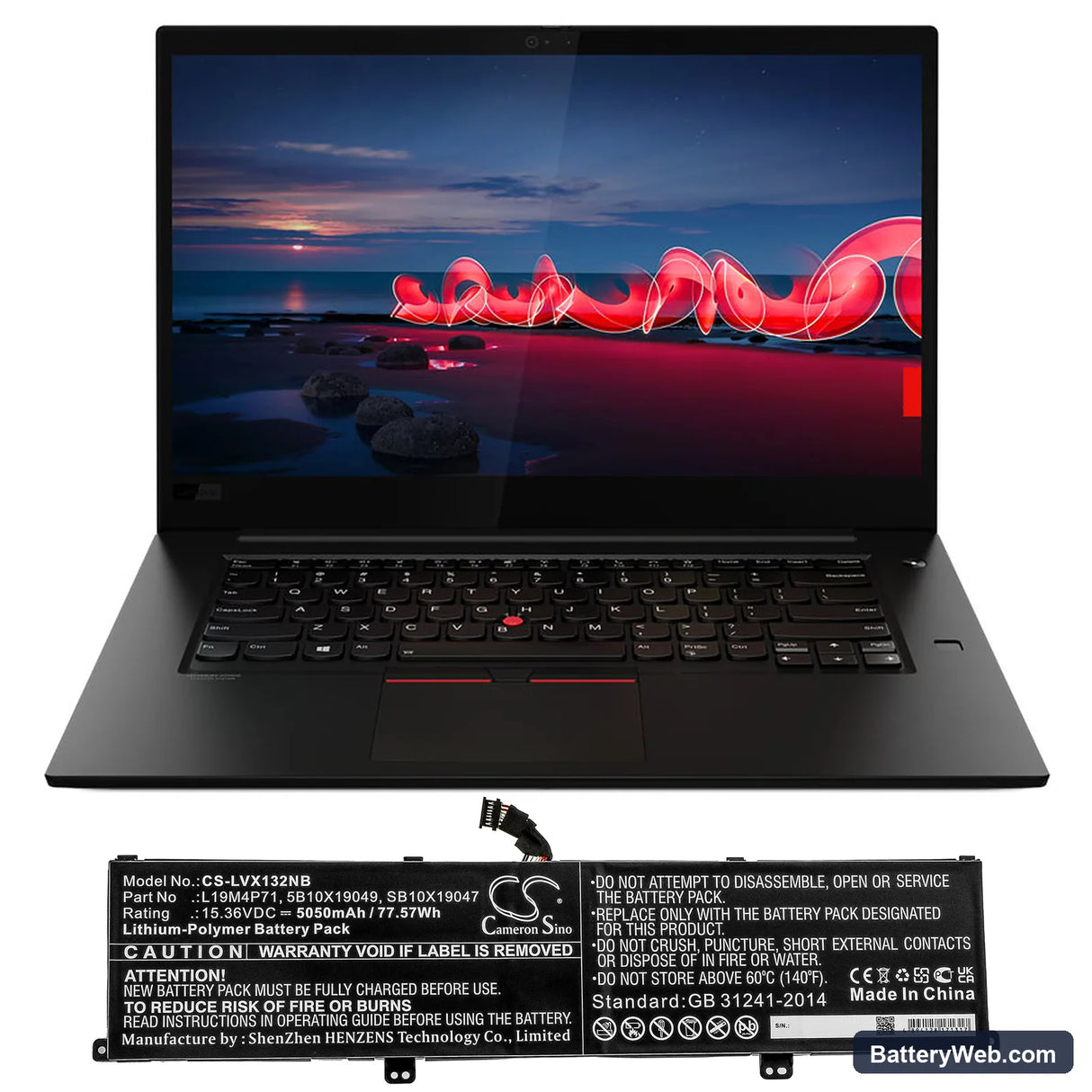

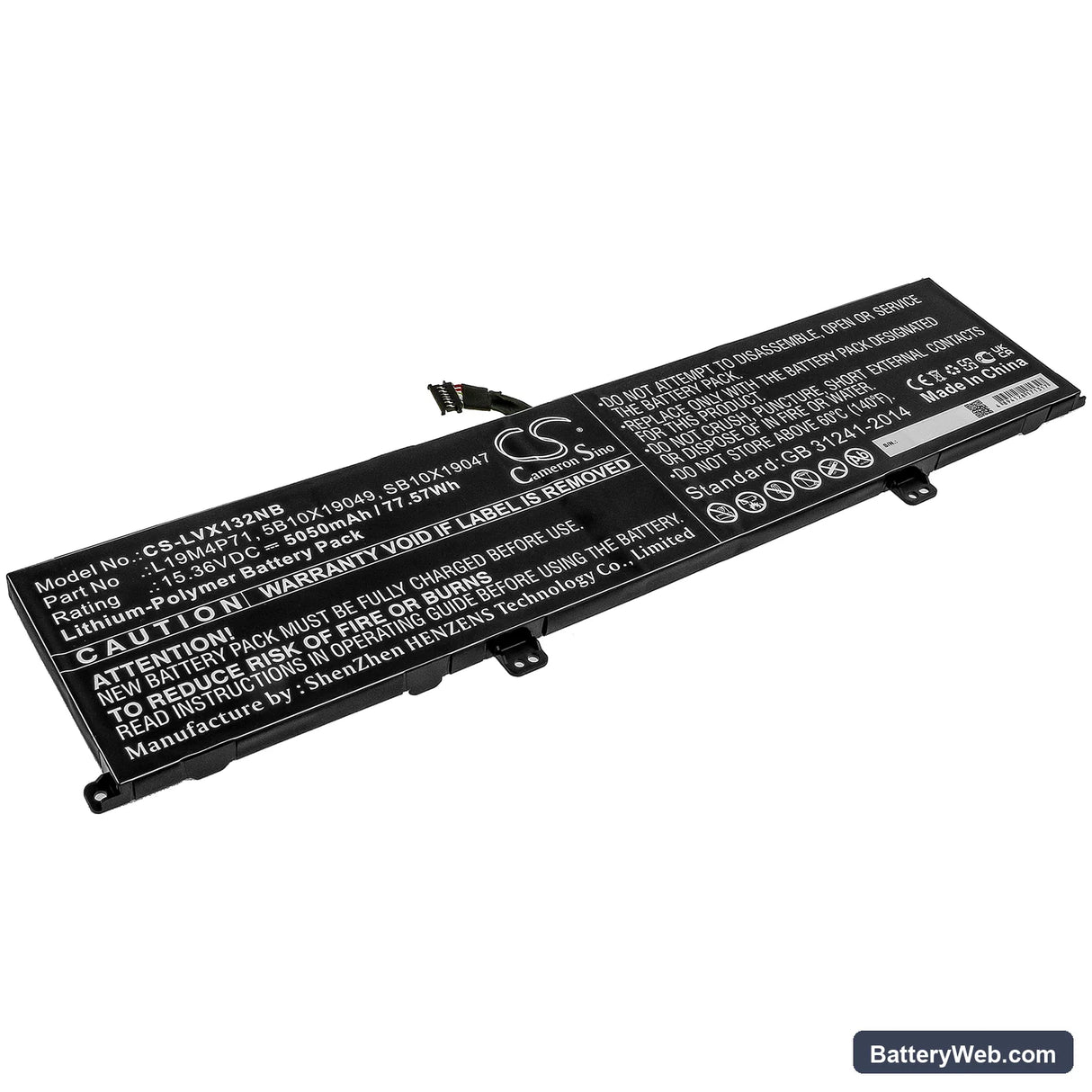

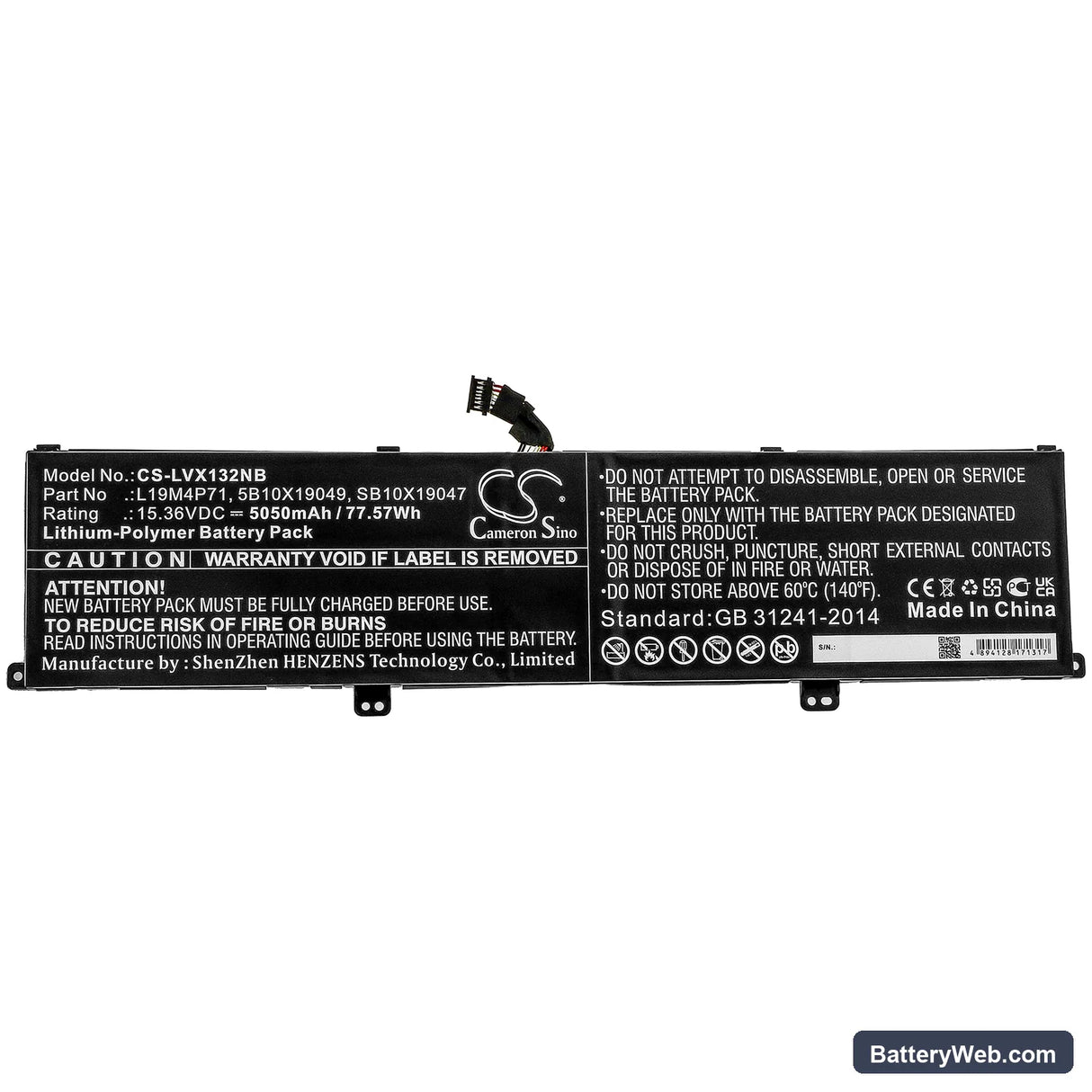

Lenovo ThinkPad X1 Extreme Gen 3 L19M4P71 15.36V 77.57Wh Compatible Battery

Lenovo ThinkPad X1 Extreme Gen 3 — 15.36V Li-Polymer Replacement Battery (L19M4P71)

This is a 15.36V, 5050mAh (77.57Wh) Li-Polymer replacement battery for the Lenovo ThinkPad X1 Extreme Gen 3. It fits the full Gen 3 range, including the 20TK0012US, 20TK000DUK, and 20TK000AMH variants. OEM part numbers L19M4P71, 5B10X19049, and SB10X19047 all cross-reference to this cell.

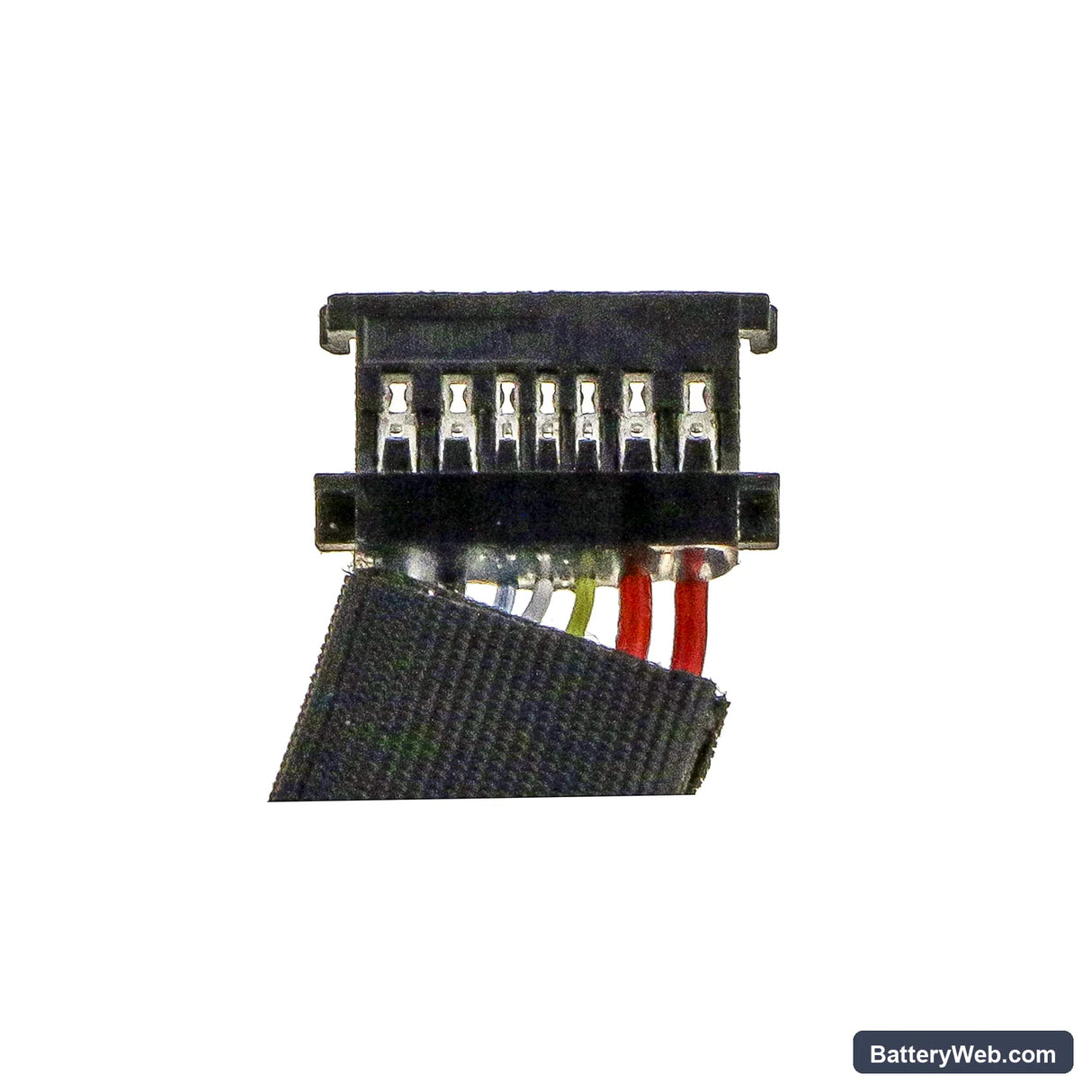

• ThinkPad X1 Extreme Gen 3 compatibility: All Gen 3 variants in this family share the same 15.36V four-cell architecture, the same physical connector, and the same BMS handshake protocol — which is why a single replacement cell covers all listed model suffixes without modification.
• Bench tested on actual hardware: We ran this cell through full charge and load cycles on a Gen 3 chassis. The BMS negotiated correctly, charge acceptance held steady across the full 0–100% range, and the protection circuit triggered cleanly at both undervoltage and overvoltage thresholds.
• First-cycle calibration on Gen 3: After installation, run the laptop down until it hibernates on its own, then charge uninterrupted to 100% without using the machine. This forces the ThinkPad's fuel gauge IC to calibrate against the new cell's actual capacity and clears the inaccurate health warning that appears in Lenovo Vantage after every cell swap.

BIOS reporting poor battery health immediately after replacement

The ThinkPad BIOS reads battery health from EEPROM data written by the previous cell. When a new cell goes in, the stored cycle count and capacity values do not match the fresh chemistry, so the BIOS flags the battery as degraded before it has run a single cycle. This is not a fault with the replacement cell. Run one full discharge-to-hibernate followed by an uninterrupted charge to 100%, and the firmware will rewrite the learn-cycle data against the new cell. After two to three cycles, the health reading in both the BIOS and Lenovo Vantage will normalise.

Laptop shuts down at 20–30% charge shown on screen

This happens when the cell voltage drops below what the CPU and discrete GPU can sustain under combined load, even though the OS fuel gauge still shows charge remaining. The fuel gauge IC is reading a stored curve, not real-time cell voltage, so it reports 25% while the actual cell is already near its cutoff cliff. The fix is a full calibration cycle: discharge to forced hibernate, then charge to 100% without interruption. After calibration, the fuel gauge maps accurately to the cell's actual voltage curve, and the premature shutdowns stop.
