Lenovo L19D3PD3 Replacement Battery 11.25V 4850mAh

Lenovo Xiaoxin Pro13 2020 / IdeaPad S540 — 11.25V Li-Polymer Replacement Battery (L19D3PD3)

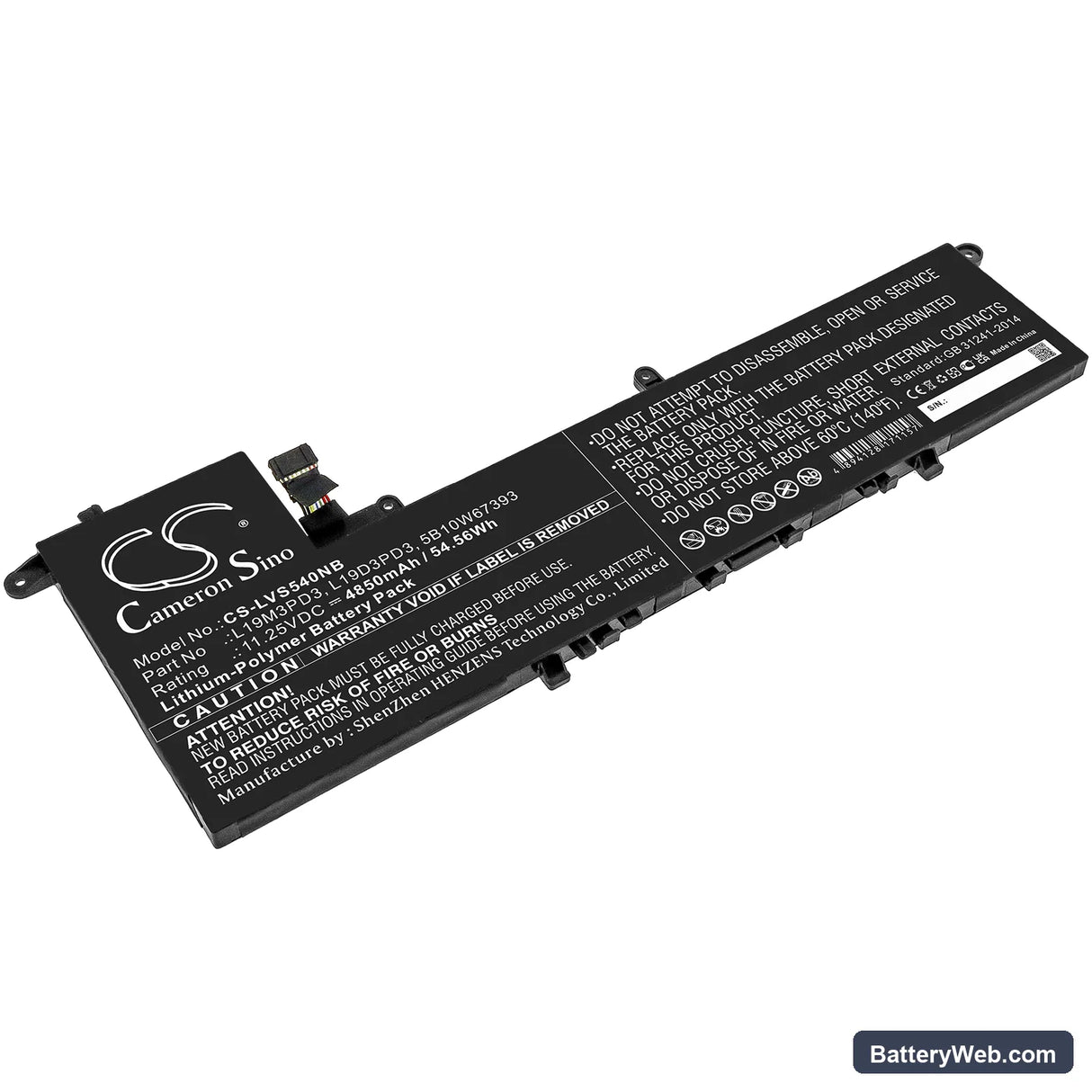

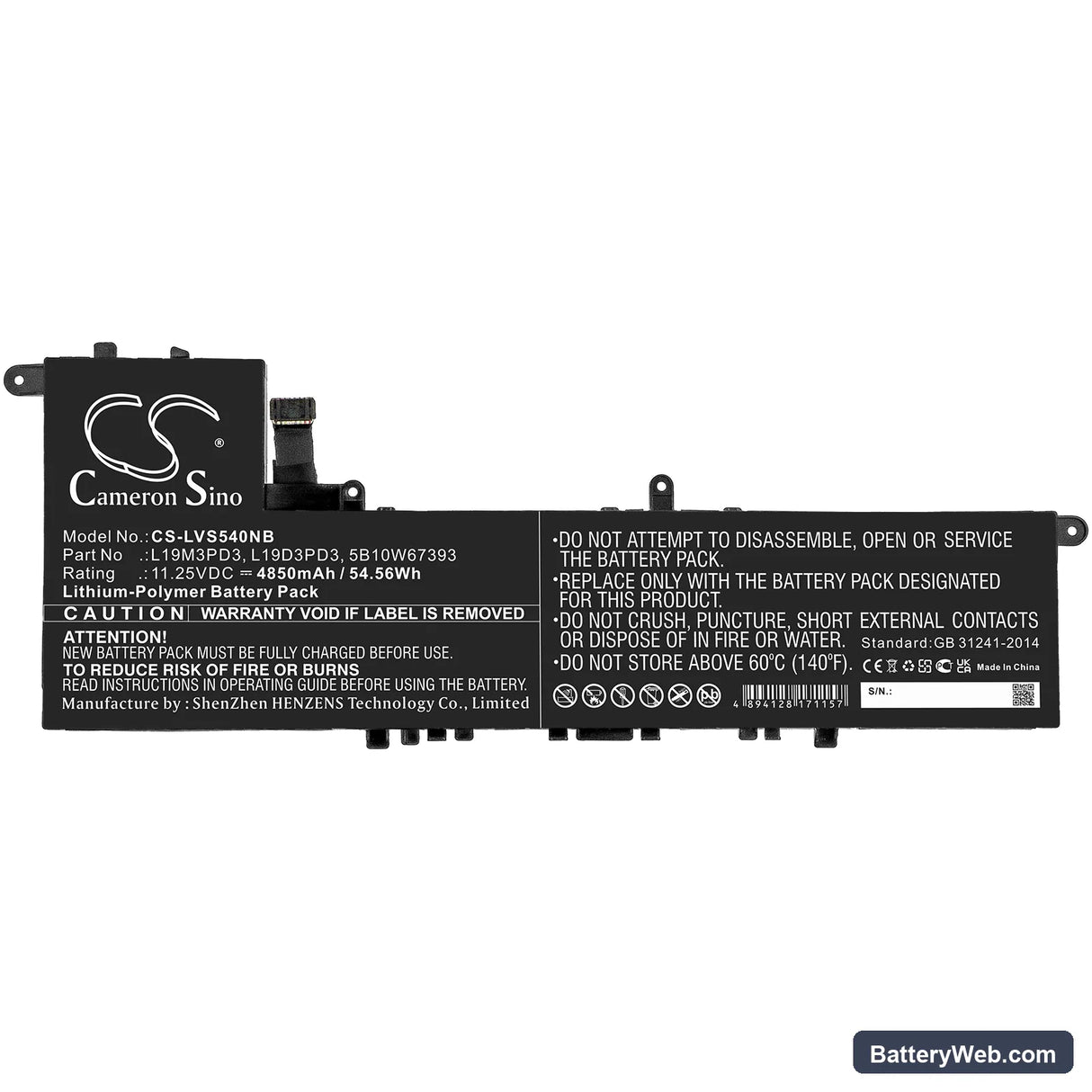

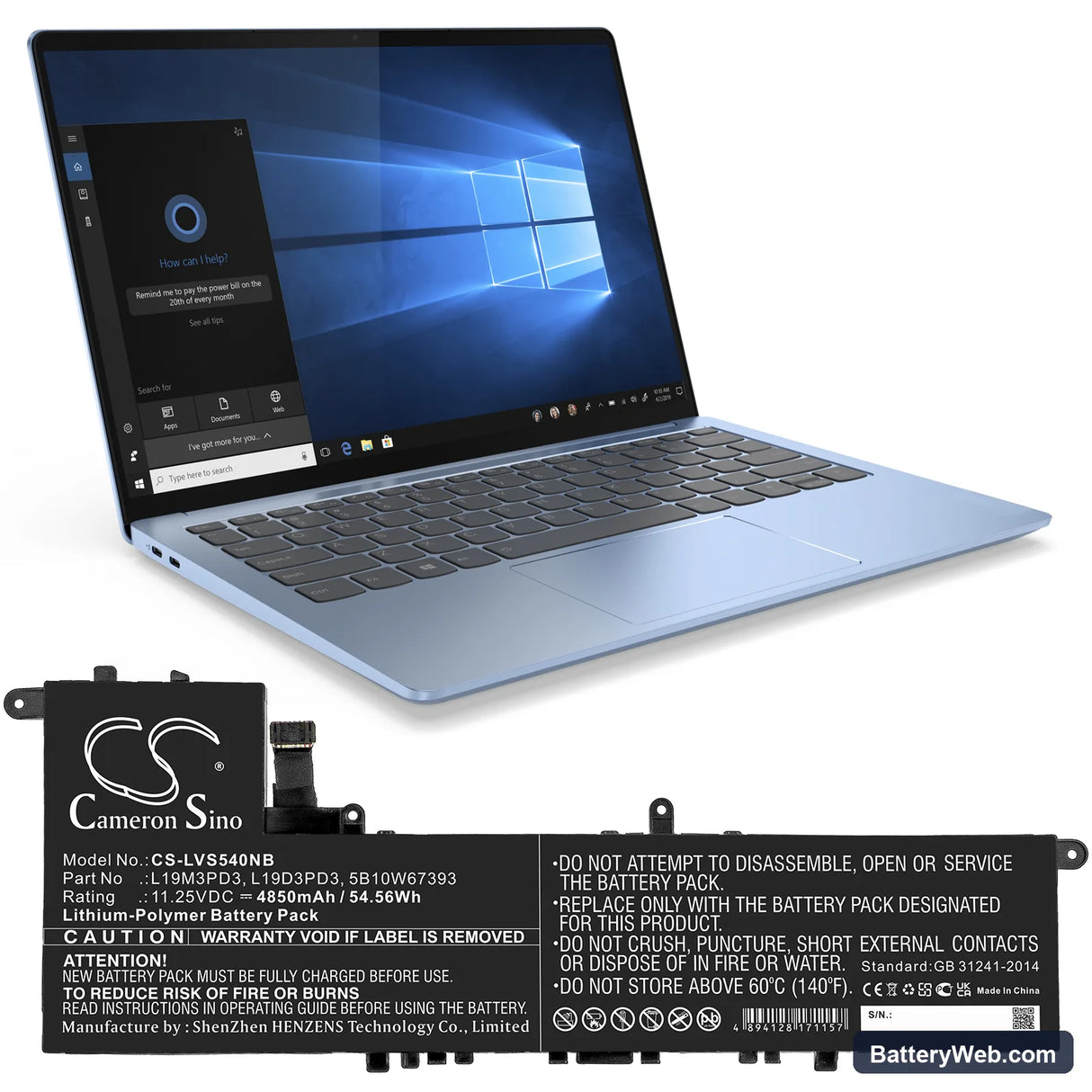

This is an 11.25V, 4850mAh (54.56Wh) Li-Polymer replacement battery for the Lenovo Xiaoxin Pro13 2020. It also fits the IdeaPad S540 13ARE, S540-13, and IdeaPad S540 13IML. OEM part numbers L19D3PD3 and L19M3PD3 confirm fitment across this slim ultrabook family.

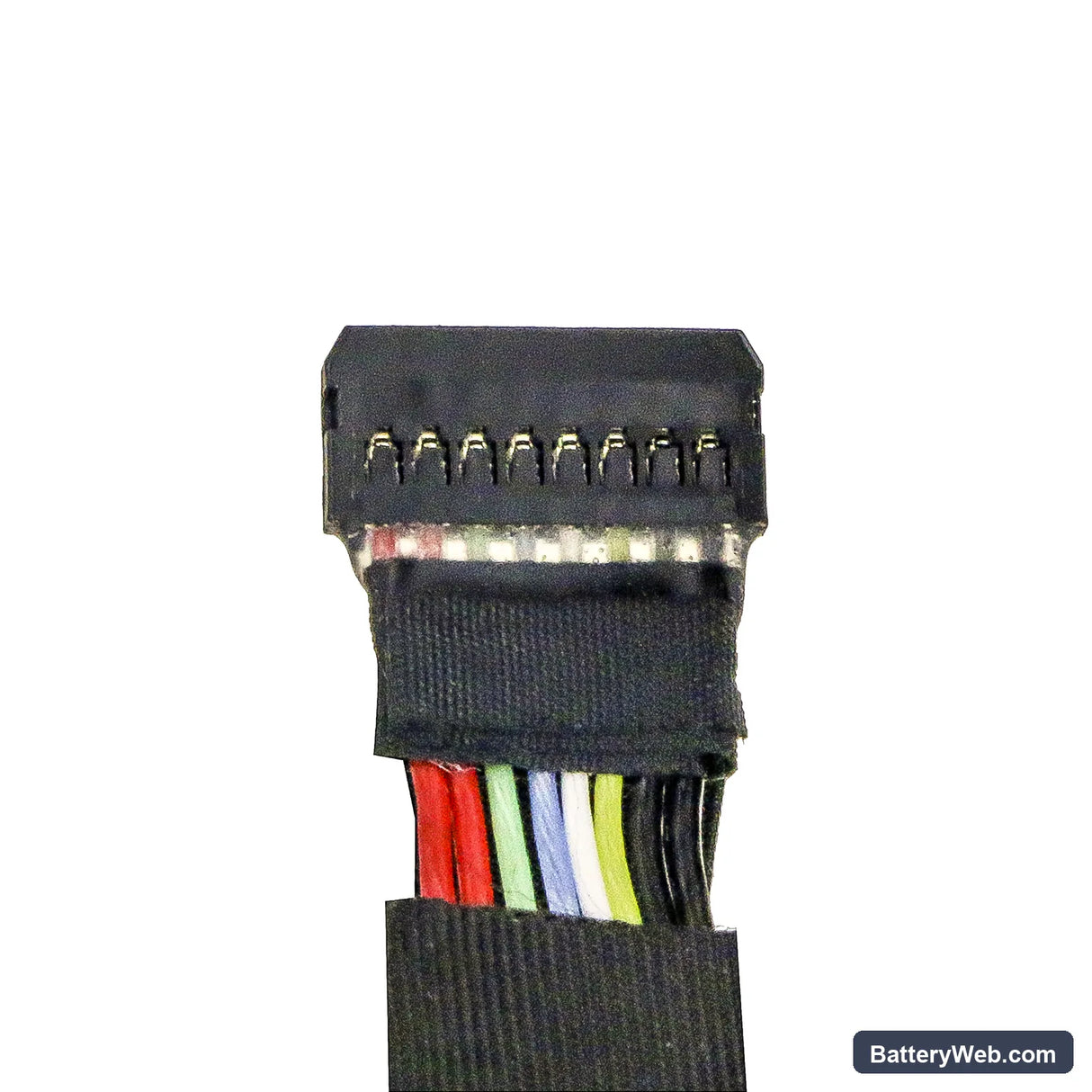

• Xiaoxin Pro13 / IdeaPad S540 fit group: These models share the same 11.25V three-cell architecture, identical battery connector pinout, and the same BMS handshake protocol on the SMBus line — so one replacement cell covers all variants listed above without modification.
• Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the IdeaPad S540 platform. The BMS negotiated correctly on the first cycle, charge termination triggered at the expected voltage ceiling, and the SMBus reported capacity data back to the OS without error flags.
• BIOS learn cycle after install: After fitting this cell, discharge the laptop fully until it hibernates, then charge uninterrupted to 100% without powering on mid-cycle. This resets the BIOS battery learn cycle and clears the false "battery health poor" warning that appears after any cell swap on this platform.

BIOS reporting poor health immediately after fitting a new cell

The Lenovo BIOS reads health data from EEPROM registers on the battery's fuel gauge IC. When a new cell arrives, those registers still hold factory default values — not learned data from real charge cycles on your unit. The BIOS interprets unfamiliar EEPROM values as a degraded battery and flags poor health on day one. Running one full discharge-to-hibernate followed by an uninterrupted charge to 100% lets the fuel gauge IC write accurate learned data, which the BIOS then accepts as a healthy cell.

Laptop shuts down at 20–30% remaining after battery swap

This happens because the OS fuel gauge IC is still calibrated to the old cell's voltage curve. The new cell hits a voltage cliff — where cell voltage drops sharply under combined CPU and display load — at a state-of-charge percentage the IC hasn't yet mapped correctly. The system reads enough charge to continue but the actual cell voltage falls below the protection threshold and triggers an emergency shutdown. Run two full discharge-to-hibernate and full-recharge cycles without the adapter plugged in during use; by the second cycle the fuel gauge IC recalibrates to the new cell's actual curve and the shutdowns stop.
